TBG

Truck Bed Screw

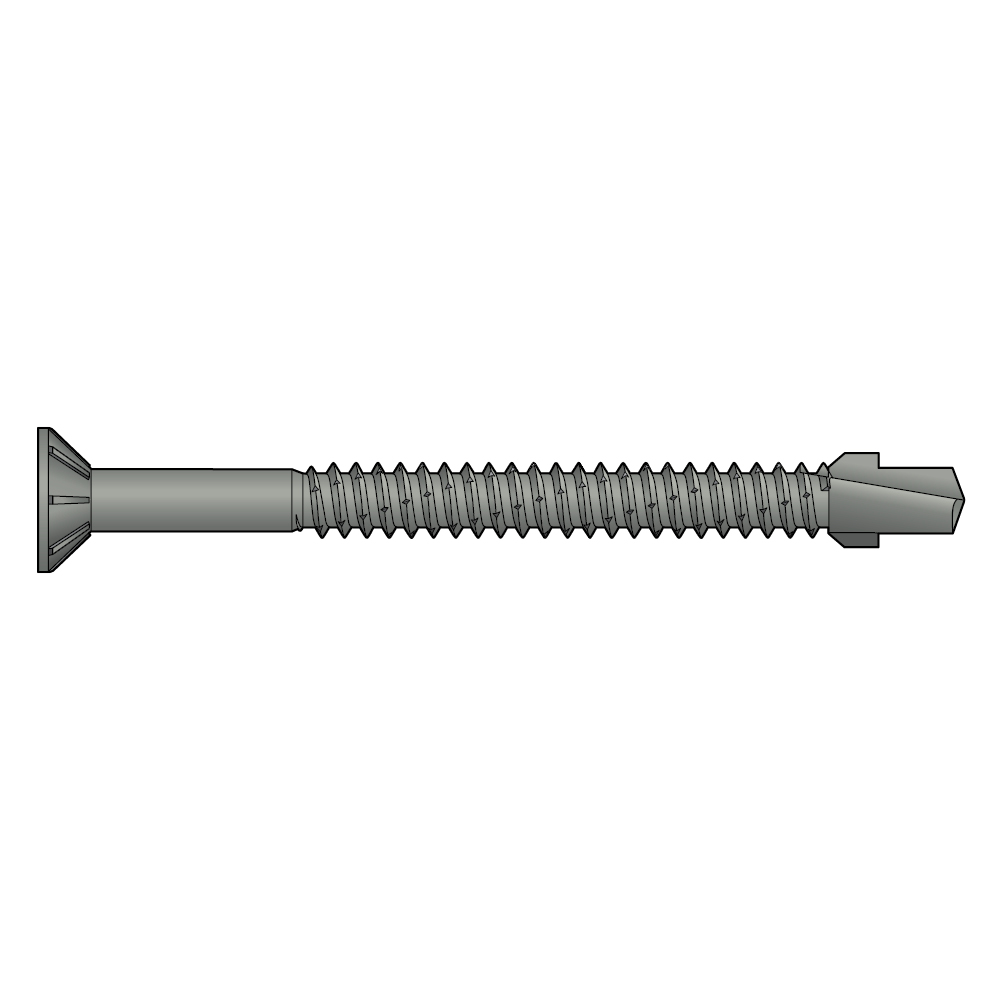

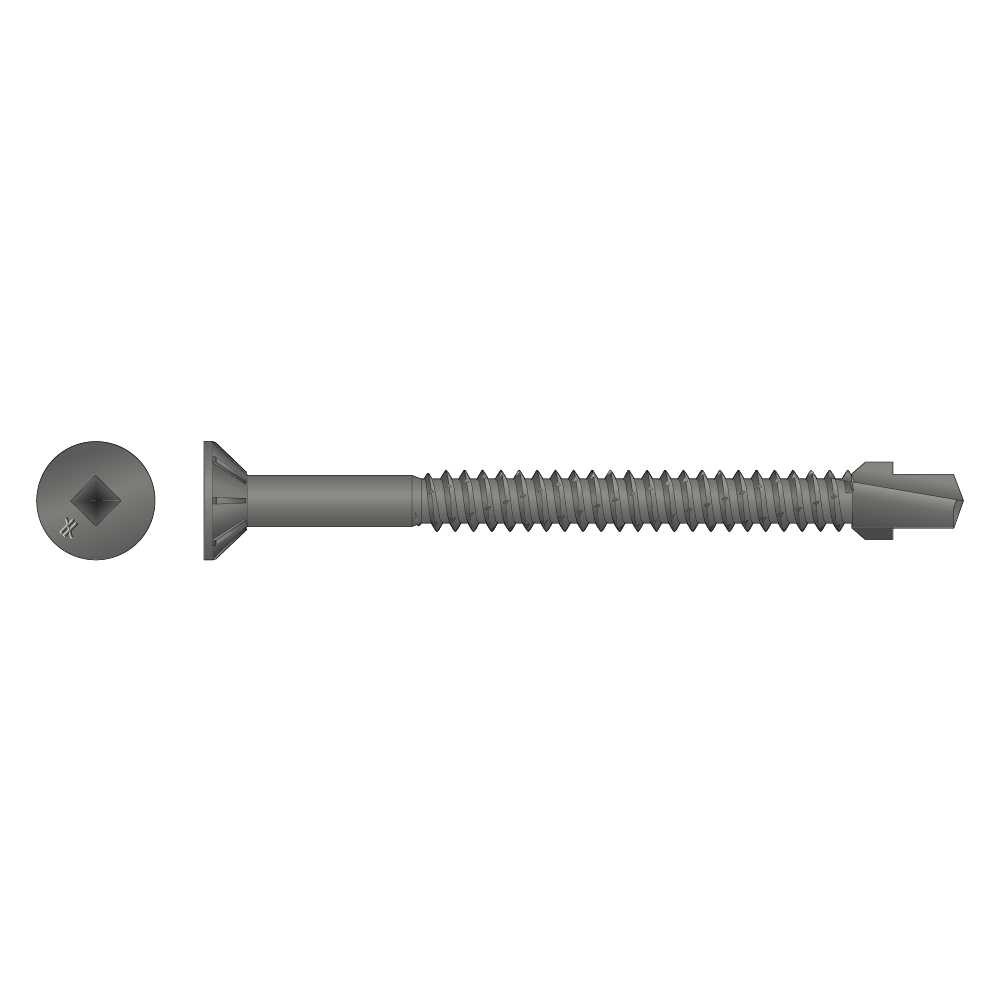

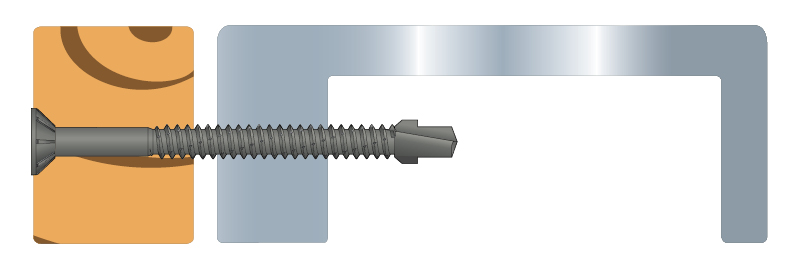

The TBG heavy duty truck bed screw is perfect for fixing timber to steel frames. It has a countersunk ribbed flat head, self tapping thread and drill point with wings. The wings ream a hole larger in the timber and break off when they hit the steel. This allows the timber to be pulled tight to the steel. Suitable for fixing to steel up to 5mm thick. TBG screws are suitable for all types of timber including Keruing hardwood and WISA plywood. They are also mechanically galvanised and so are suitable for outdoor use.

Service class 3
Service class 3
EPD
EPD
Yellow electro-galvanised steel
Yellow electro-galvanised steel
Outdoor
Outdoor

Product Details

Images

Features

Material

  • Steel - N2000® mechanically galvanised

Benefits

  • Countersunk ribbed flat head for neat finish
  • Suitable for outdoor use
  • Self tapping thread
  • Winged drill point to help clear hole and penetrate steel
  • Driver bits included (BIT3SUE)




Application

Support

  • Used for fixing to steel or aluminium
  • Maximum recommended steel thickness 5mm

Common Applications

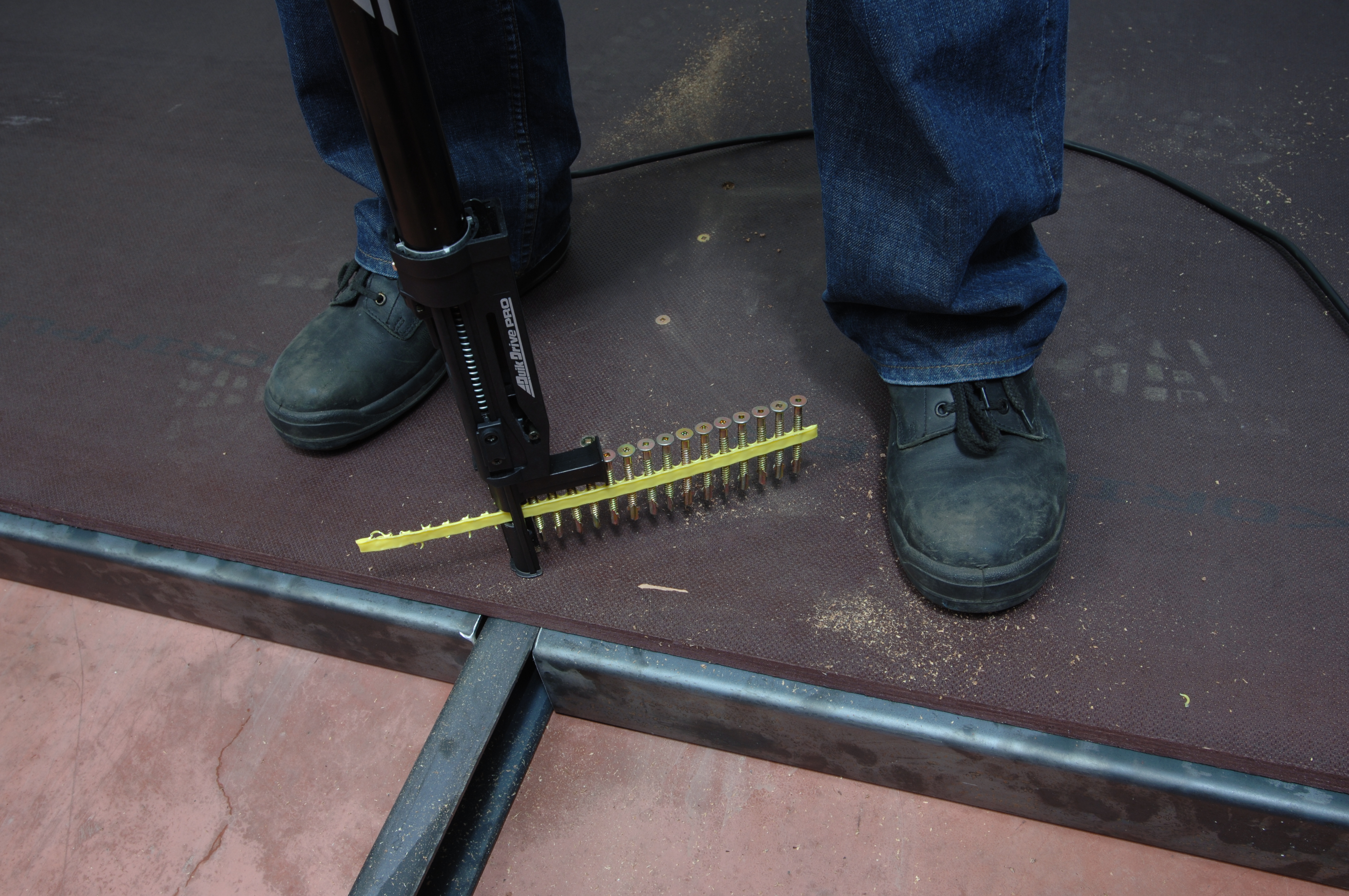

  • Truck beds and trailer floors
  • Mezzanine floors
  • Modular construction
  • Mobile homes
  • Caravans
  • Boat building

Technical Data

Product Dimensions UK

Dimensions

ReferenceFasteners Dimensions[mm]
Product Dimensions[mm]QD informationOther
Head diameter[mm]Thread diameter[mm]Length of the screw[mm]Screws per bandMax. rotational speed[tr/min]Compatible devicesScrews per caseWeight[kg]
TBG645E11.76.14523.01700 - 2000QDHSD60E1000.00.008
TBG660E11.76.16023.01700 - 2000QDHSD60E / QDHSD75E750.00.011
