THM
Truss Hanger Mono

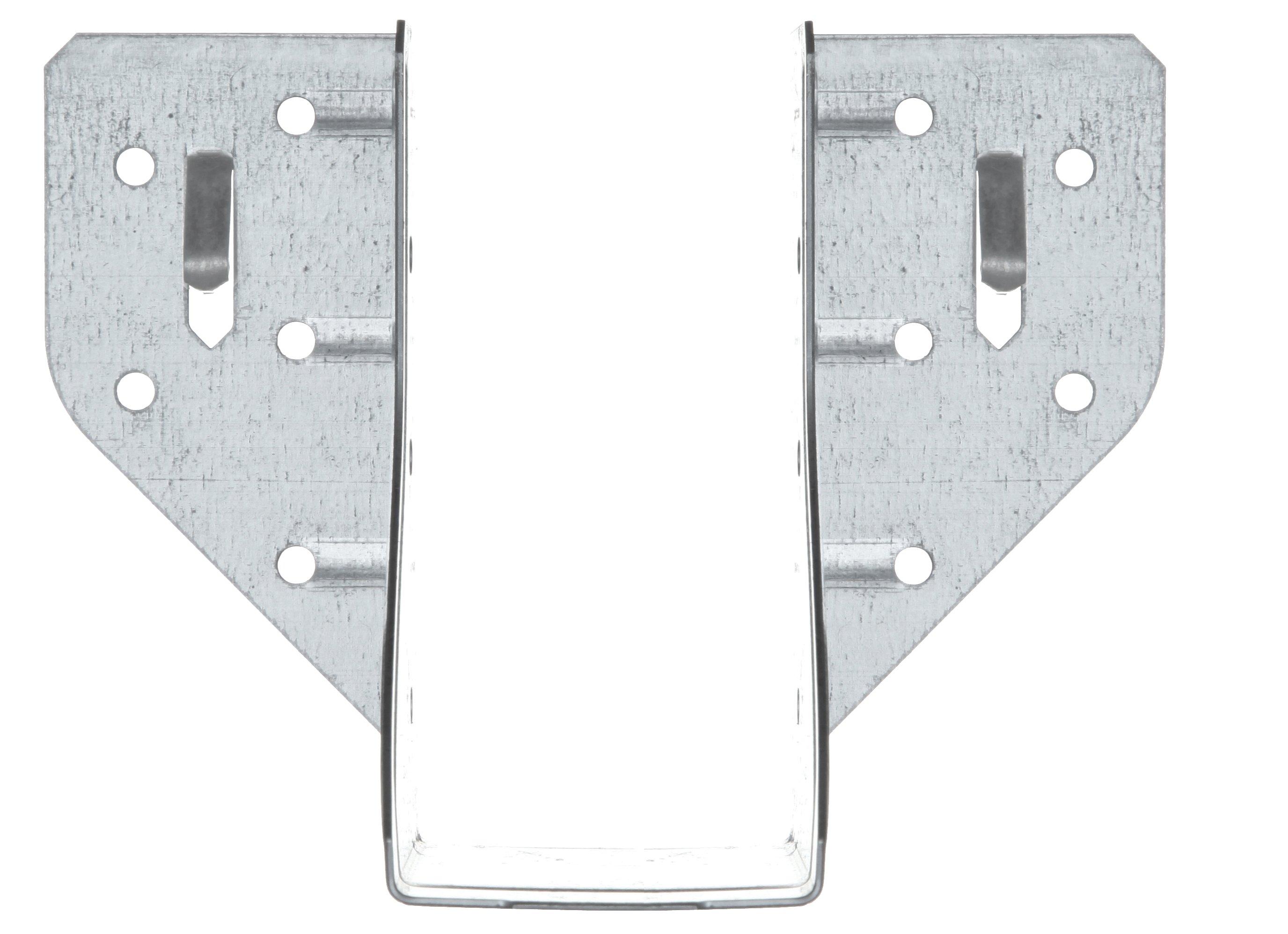

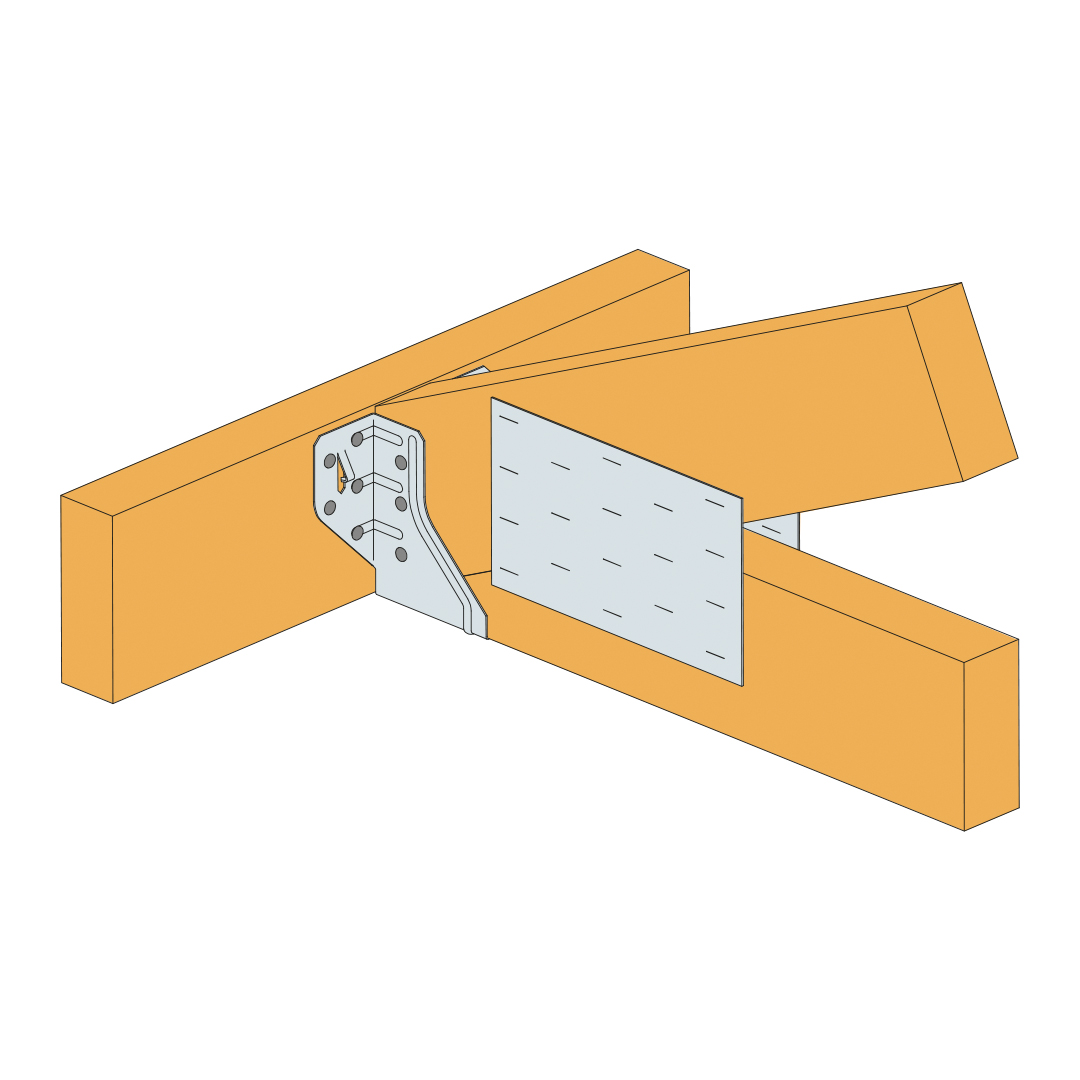

The THM (Truss Hanger Mono) is a joist hanger for supporting mono trusses from timber members. The THM hanger offers two installation
options:
- Square twist nails only.
- Square twist nails and double shear nailing.
Features speed Prongs for ease of installation.
CE Marking
ETA
EPD
Product Details
Images
Features
Technical Data
Product Dimensions
Dimensions
| Reference | Connector Dimensions | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Timber size[mm] | Product Dimensions[mm] | Header holes | Joist holes | Other | |||||||||
| Height | Width | A[mm] | B[mm] | C[mm] | D[mm] | F[mm] | t[mm] | Round | Obround | Weight[kg] | |||
| Min[mm] | Max.[mm] | Min[mm] | Max.[mm] | Ø4 | Ø6x4[mm] | ||||||||
| THM230/38 | 100 | 150 | 35 | 38 | 38 | 96 | 75 | 42 | 77 | 0.9 | 10 | 6 | 0.127 |
| THM230/44 | 100 | 150 | 44 | 44 | 44 | 93 | 75 | 42 | 77 | 0.9 | 10 | 6 | 0.127 |
| THM230/47 | 100 | 150 | 47 | 47 | 47 | 91.5 | 75 | 42 | 77 | 0.9 | 10 | 6 | 0.127 |
| THM230/50 | 100 | 150 | 50 | 50 | 50 | 90 | 75 | 42 | 77 | 0.9 | 10 | 6 | 0.127 |
Product capacities - Standard nailing
Dimensions
| Reference | Hanger capacity | ||
|---|---|---|---|
| Characteristic capacities - Timber to timber - Full nailing | |||
| Number of Fasteners | Characteristic capacity - Timber TR26[kN] | ||
| Header | Joist | R₁,ₖ | |
| Qty | Qty | N3.75x30 | |
| THM230/38 | 10.0 | 6 | 7.3 |
| THM230/44 | 10.0 | 6 | 7.3 |
| THM230/47 | 10.0 | 6 | 7.3 |
| THM230/50 | 10.0 | 6 | 7.3 |
Product capacities - Double shear nailing
Dimensions
| Reference | Hanger capacity | ||||
|---|---|---|---|---|---|
| Characteristic capacities - Timber to timber - Double shear nailing | |||||
| Number of Fasteners | Characteristic capacity - Timber TR26[kN] | ||||
| Header | Joist | R₁,ₖ | |||
| Qty | Type | Qty | Type | N3.75x30 | |
| THM230/38 | 10.0 | N3.75x30 | 6.0 | N3.75 x 75 | 9.8 |
| THM230/44 | 10.0 | N3.75x30 | 6.0 | N3.75 x 75 | 9.8 |
| THM230/47 | 10.0 | N3.75x30 | 6.0 | N3.75 x 75 | 9.8 |
| THM230/50 | 10.0 | N3.75x30 | 6.0 | N3.75 x 75 | 9.8 |
