VPA

Variable Pitch Connector

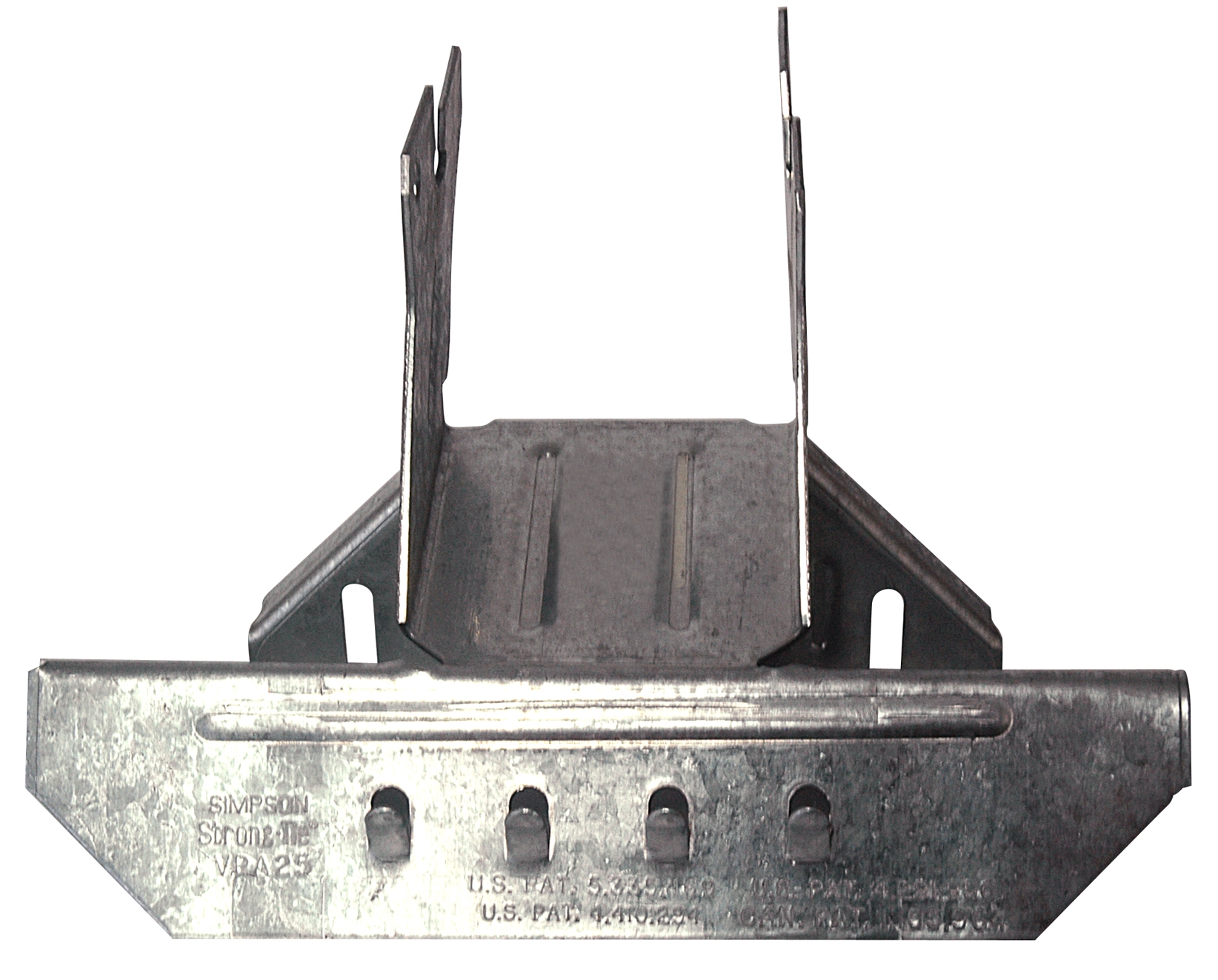

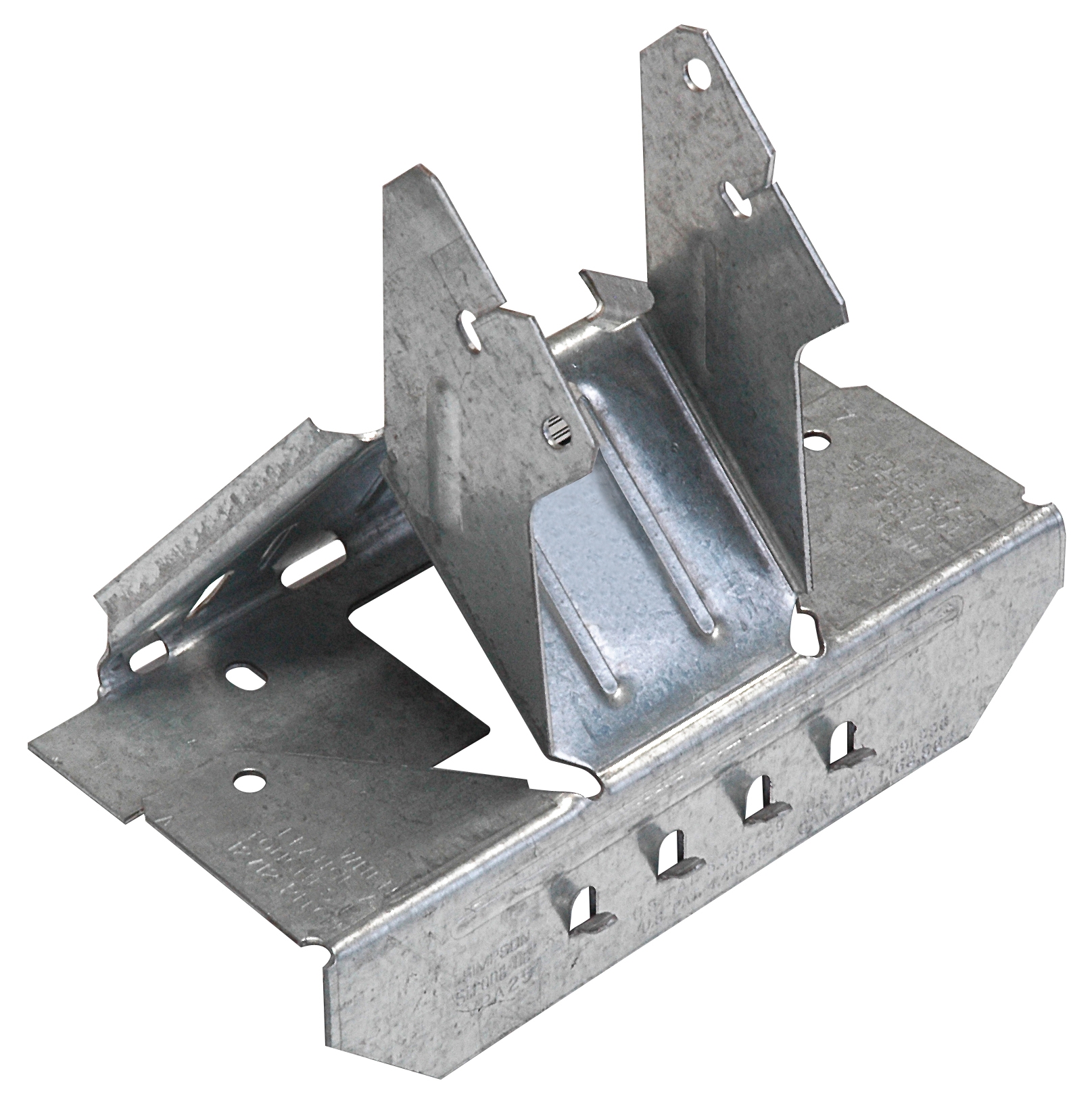

The VPA is an engineered one-piece connector for attaching I-joist rafters to wall plates.

The VPA is adjustable to slopes between 15° and 45° with a special interlock design indicating when the maximum pitch is reached. This product complements the versatile LSSU.

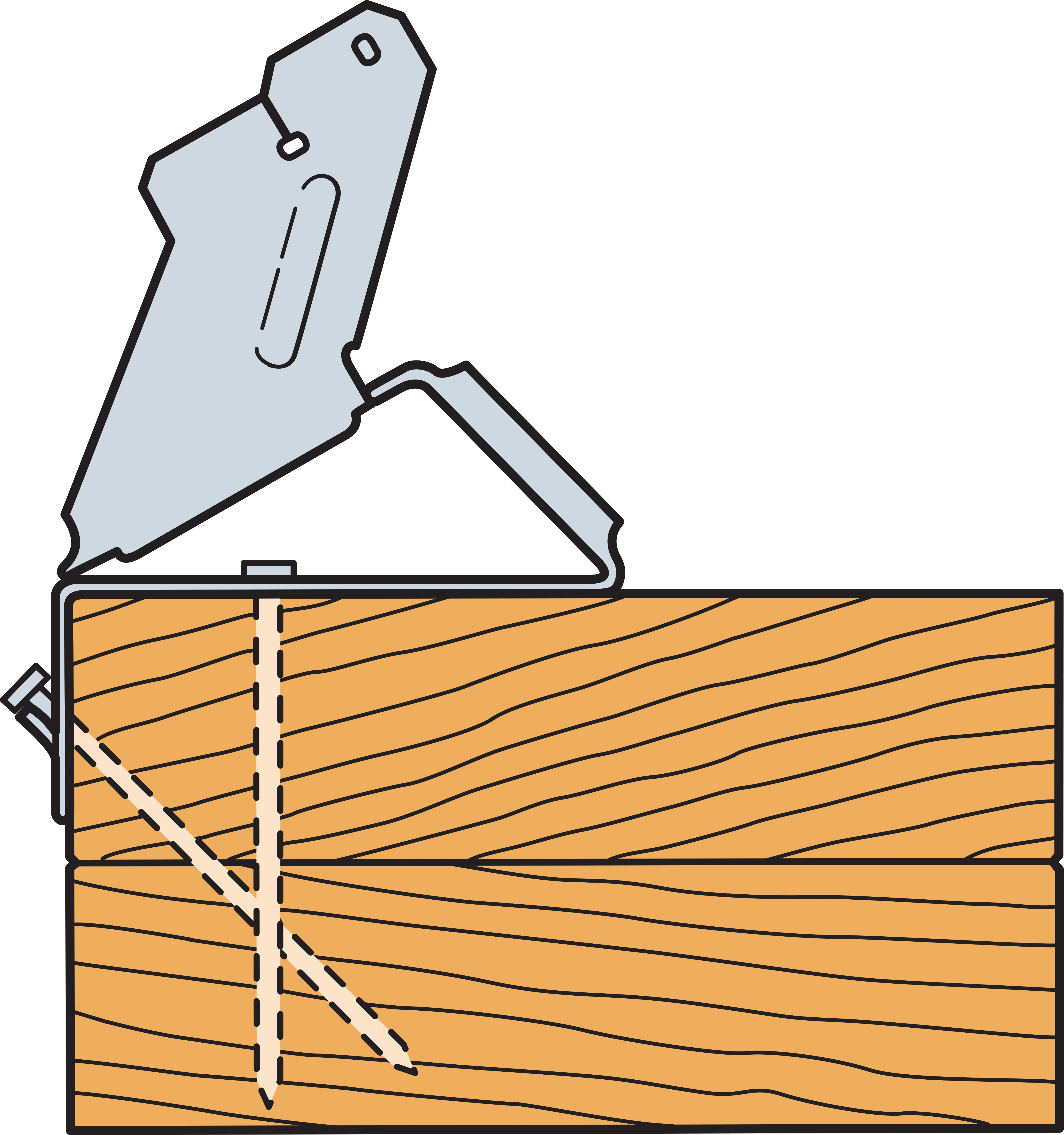

Designed for use with double 38mm top plates with a 50mm seat, which allows sufficient bearing area for most rafters.

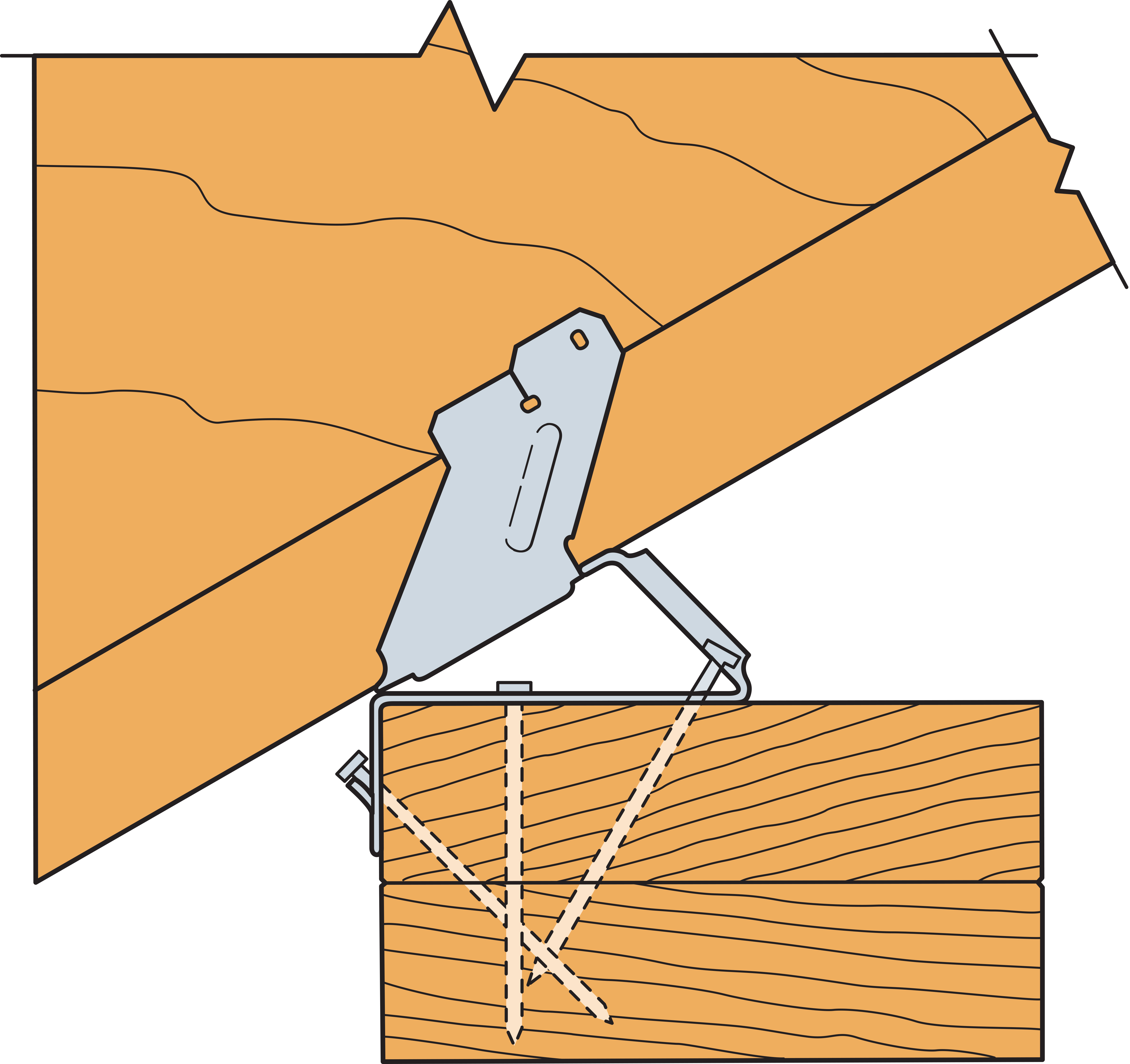

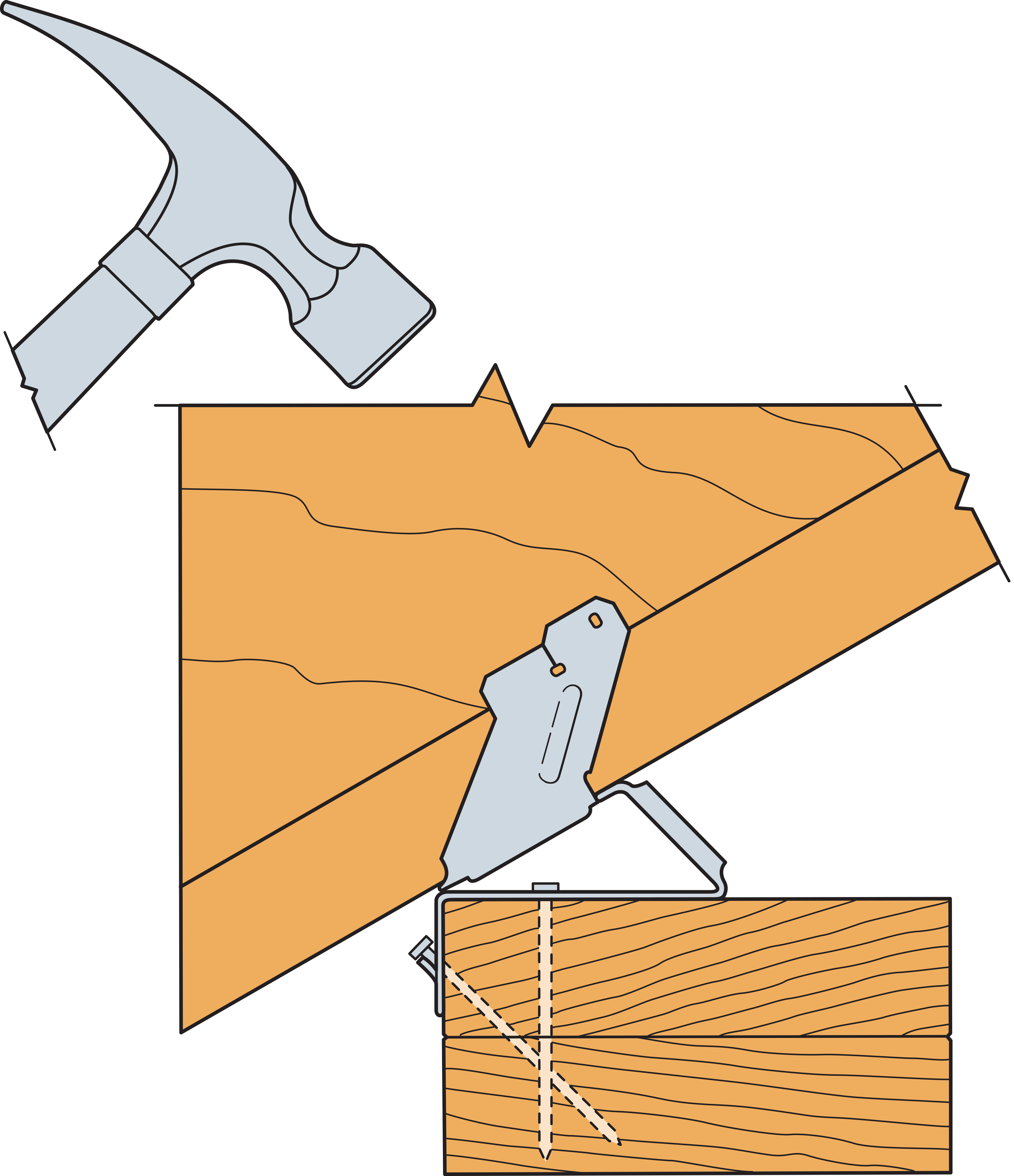

No notching of the I-joist is required when using the VPA. This connector reduces the need for bevelled plates and toenailing. It has positive angle nailing to speed installation and to minimise wood splitting.

Technical Data Sheet

CE Marking

ETA

Service class 2

Electrogalvanized steel 20 µm

EPD

Product Details

Images

Features

Material

Pre-galvanised mild steel

Application

Suitable For

Timber Trusses.

When to Use

Truss to wall plate connections.

Technical Data

Dimensions

Product Dimensions

References	Joist Width [mm]	Dimensions [mm]				Header Holes			Joist Holes	Weight [kg]
		A	B	C	t	Obrounds		Holes	Obrounds
		A	B	C	t	Ø4x6	PAN	Ø4.1	Ø4x6
VPA25	45	46	133	67	1.2	2	4	2	2	0.2
VPA50	47	50	124	62	1.2	3	4	2	2	0.145
VPA56	53	53	124	62	1.2	3	4	2	2	0.157
VPA61	58-60	61	132	62	1.2	3	4	2	2	0.16
VPA66	63	66	132	62	1.2	3	4	2	2	0.168
VPA72	70	72	137	62	1.2	3	4	2	2	0.177
VPA75	75	75	145	67	1.2	3	6	2	2	0.185
VPA4	90	90	183	67	1.2	3	6	2	2	-
VPA96	(2) 47	96	166	67	1.2	3	6	2	2	0.216
VPA99	96-97	99	170	67	1.2	3	6	2	2	0.22

Performance Values

References	Fasteners		Safe Working Loads [kN]			Characteristic Capacities [kN]
	Header	Joist	R_{1,SWL,Med Term}	R_{2,SWL,Short Term}	R_{3&4,SWL,Short Term}	Solid Section			I-Joists
	N3.75x75	N3.75x30				R_1,k	R_2,k	R_3&4,k	LVL Flanges			Solid Flanges
	Qty	Qty				R_1,k	R_2,k	R_3&4,k	R_1,k	R_2,k	R_3,k=R_4,k	R_1,k	R_2,k	R_3,k=R_4,k
VPA25	8	2	3.7	1.1	1.5	5.6	1.4	1	5.6	3.9	1.9	5.6	1.4	0.7
VPA50	9	2	2.5	0.7	0.5	5.2	1.4	1	5.2	3.9	1.9	5.2	1.4	0.7
VPA56	9	2	2.7	0.7	0.5	5.6	1.4	1	5.6	3.9	1.9	5.6	1.4	0.7
VPA61	9	2	2.7	0.7	0.5	5.6	1.4	1	5.6	3.9	1.9	5.6	1.4	0.7
VPA66	9	2	2.7	0.7	0.5	5.6	1.4	1	5.6	3.9	1.9	5.6	1.4	0.7
VPA72	11	2	2.7	0.7	0.5	5.6	1.4	1	5.6	3.9	1.9	5.6	1.4	0.7
VPA75	11	2	3.7	0.7	0.5	7.8	1.4	1	7.8	3.9	1.9	7.8	1.4	0.7
VPA4	11	2	4.6	1.1	1.5	7.8	1.4	1	7.8	3.9	1.9	7.8	1.4	0.7
VPA96	11	2	3.7	0.7	0.5	7.8	1.4	1	7.8	3.9	1.9	7.8	1.4	0.7
VPA99	11	2	3.7	0.7	0.5	7.8	1.4	1	7.8	3.9	1.9	7.8	1.4	0.7

Certification

Declaration of Performance (DoP)

uk-dop-e08-0053-04-s.pdf (218.82 KB)

2017-10-04

uk-dop-e08-0053-issue-3.pdf (41.63 KB)

2015-08-04

uk-dop-e08-0053-issue-2.pdf (31.77 KB)

2013-03-01

5e6f500bc44715caf0af78e8e611f6628f3d9db7.pdf (31.68 KB)

European Technical Assessment (ETA)

eta-08-0053-2025-05-01.pdf (2.45 MB)

2017-10-09

eta-08-0053-2017-09-22.pdf (1.35 MB)

2013-07-18

eta-080053-issue-3.pdf (1.47 MB)

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors
