Product Details

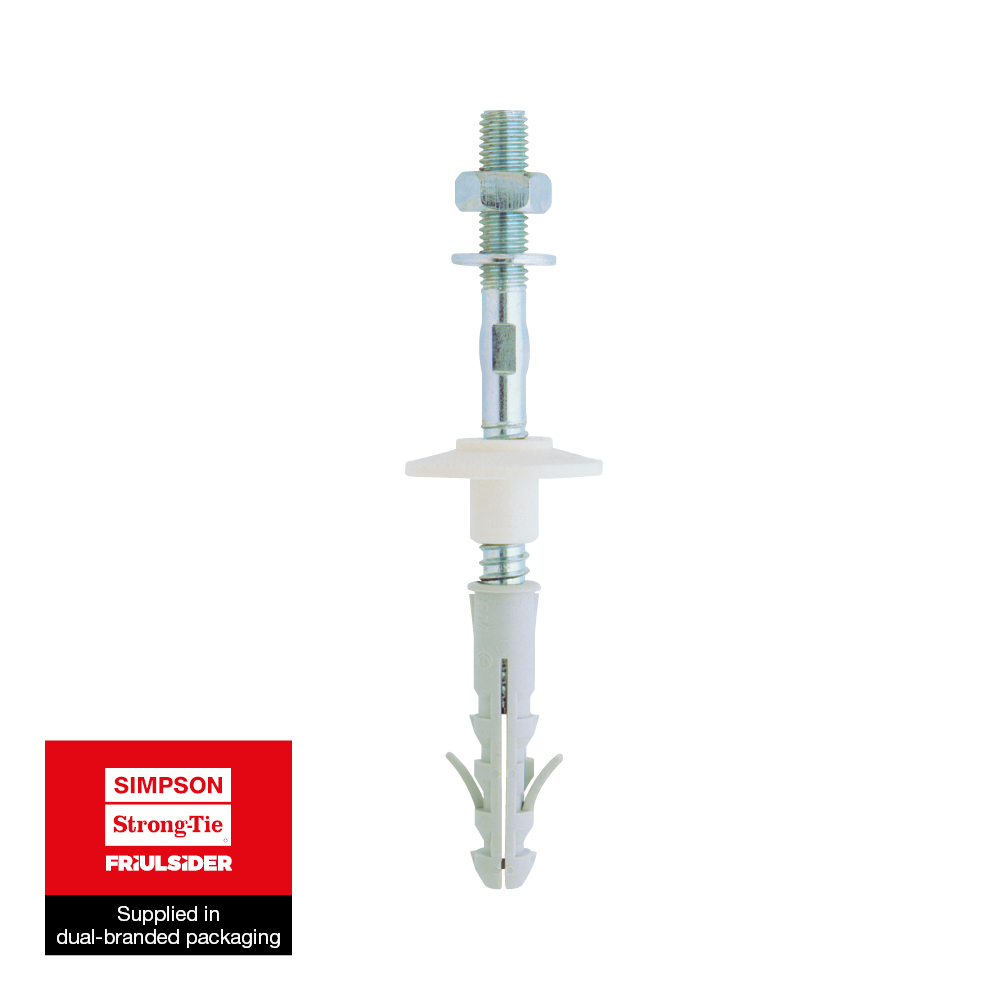

Images

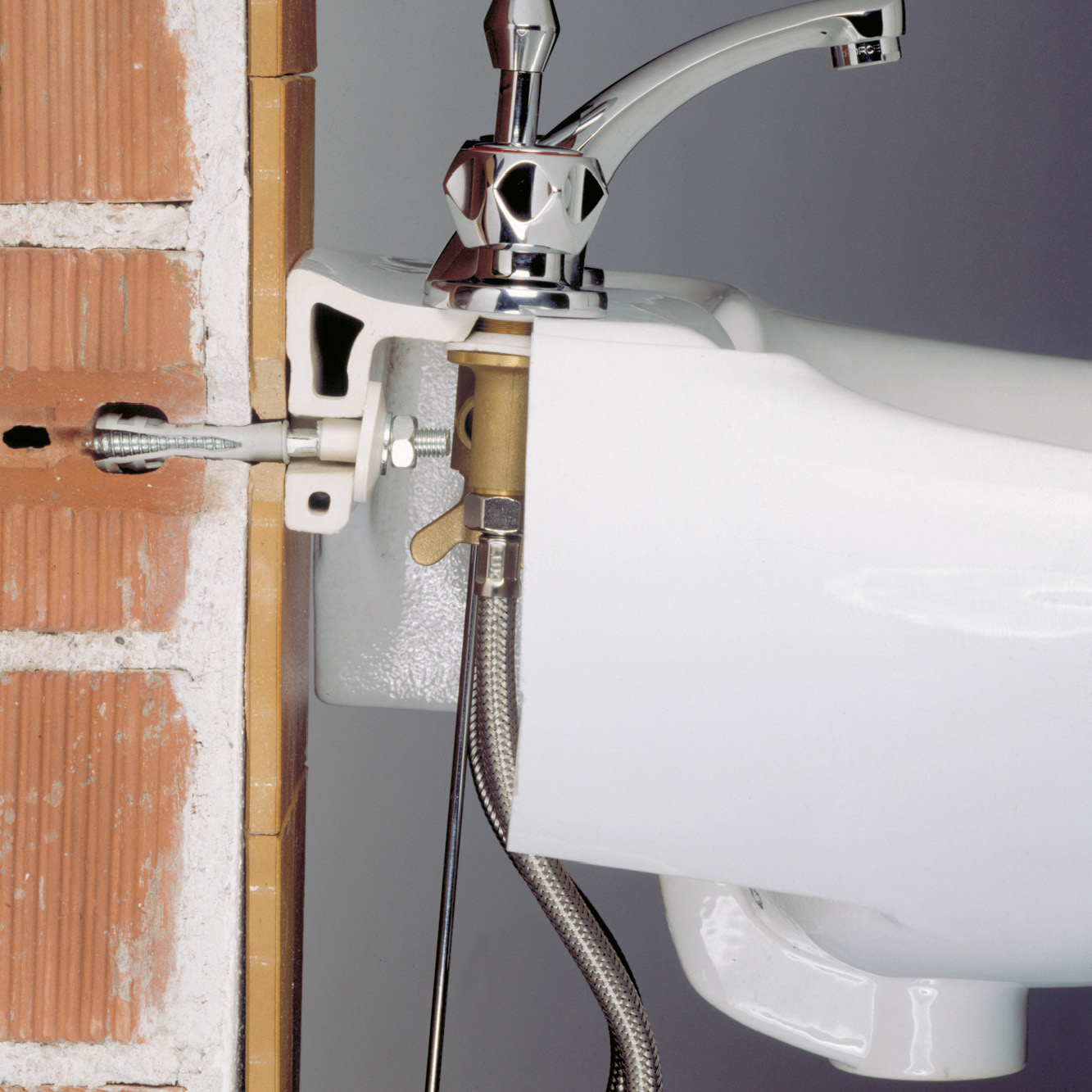

Application
Technical Data
Product Dimension
Dimensions
| Reference | Fixing installation dimensions | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product reference | Type [dₘₓLv] | Fixture thickness [tfᵢₓ] | Hole diameter [dₒ] | Minimum hole depth [h₁] | Nominal embedment depth [hₙₒₘ] | Minimum support thickness [hₘᵢₙ] | Screw diameter [d] | Bush diameter [dₚ] | Wrench | Qty per box | Qty per outer box | Weight[kg] | |
| 61407B081100C | FLB | M8x110 | 30 | 10 | 70 | 60 | 100 | 8 | 11,5 | 13 | 2.0 | 25.0 | 0.052 |
| 61407B101000C | FLB | M10x100 | 20 | 12 | 70 | 60 | 100 | 10 | 13,6 | 17 | 2.0 | 25.0 | 0.073 |
| 61407B101200C | FLB | M10x120 | 40 | 12 | 70 | 60 | 100 | 10 | 13,6 | 17 | 2.0 | 25.0 | 0.083 |
| 61407B101400C | FLB | M10x140* | 40 | 14 | 90 | 80 | 120 | 10 | 13,6 | 17 | 2.0 | 25.0 | 0.098 |
* Plug 14x80 plug with greater nylon thickness.
Installation
Installation
