WBT

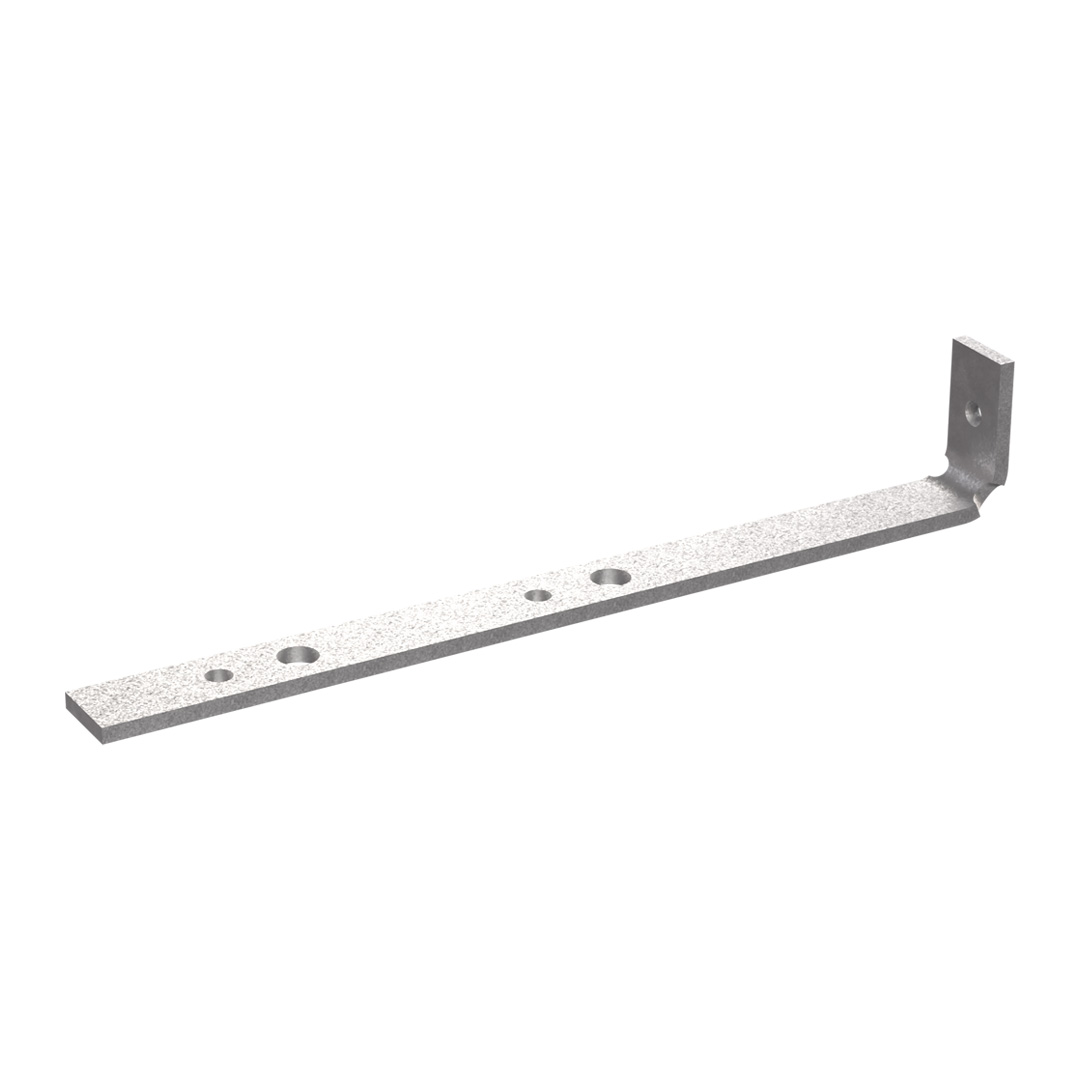

Window Board Tie

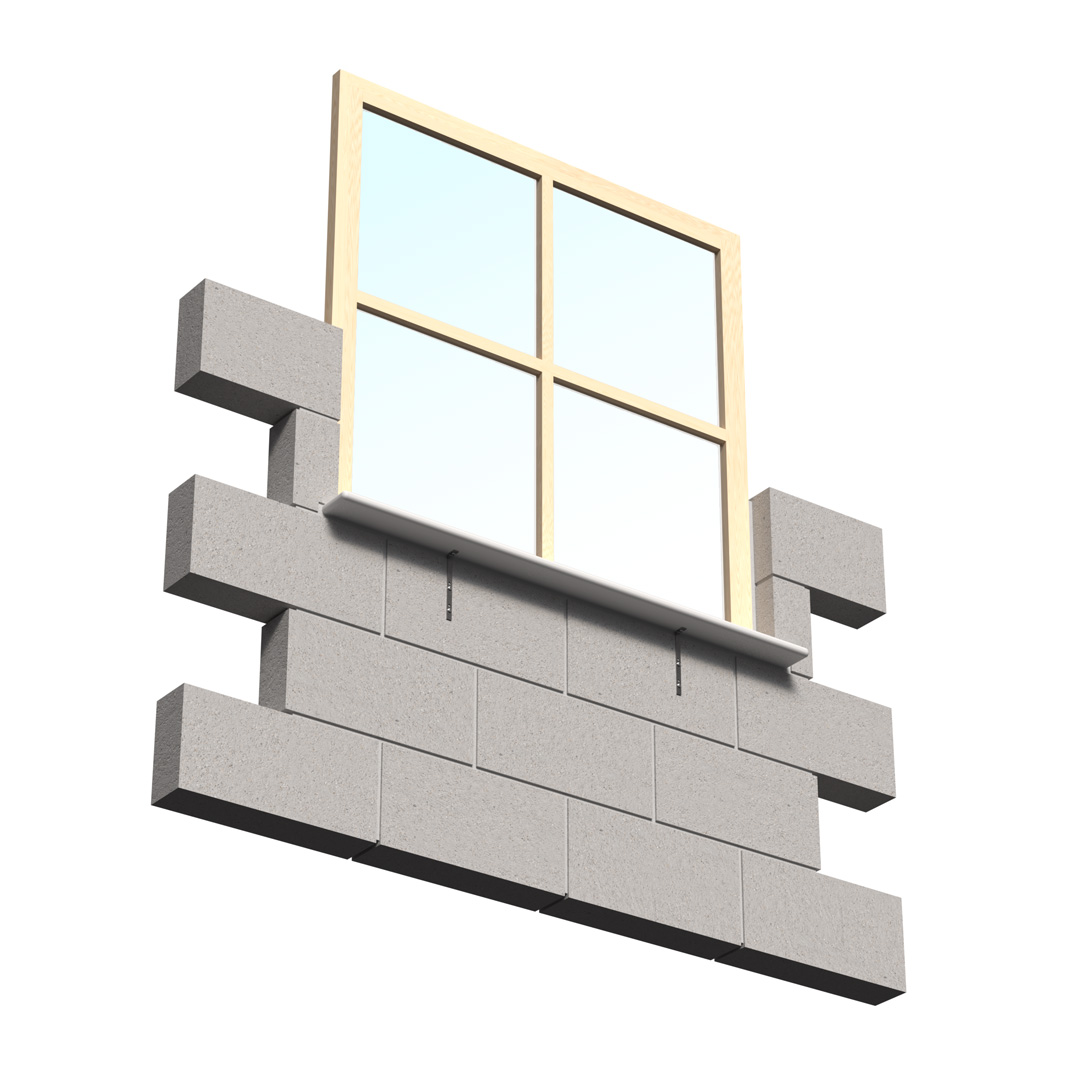

Attaches window boards to masonry wall.

Material: Pre-galvanised mild steel.

Item code WBT06 (150mm length).

Technical Data Sheet

EPD

Technical Data

Dimensions

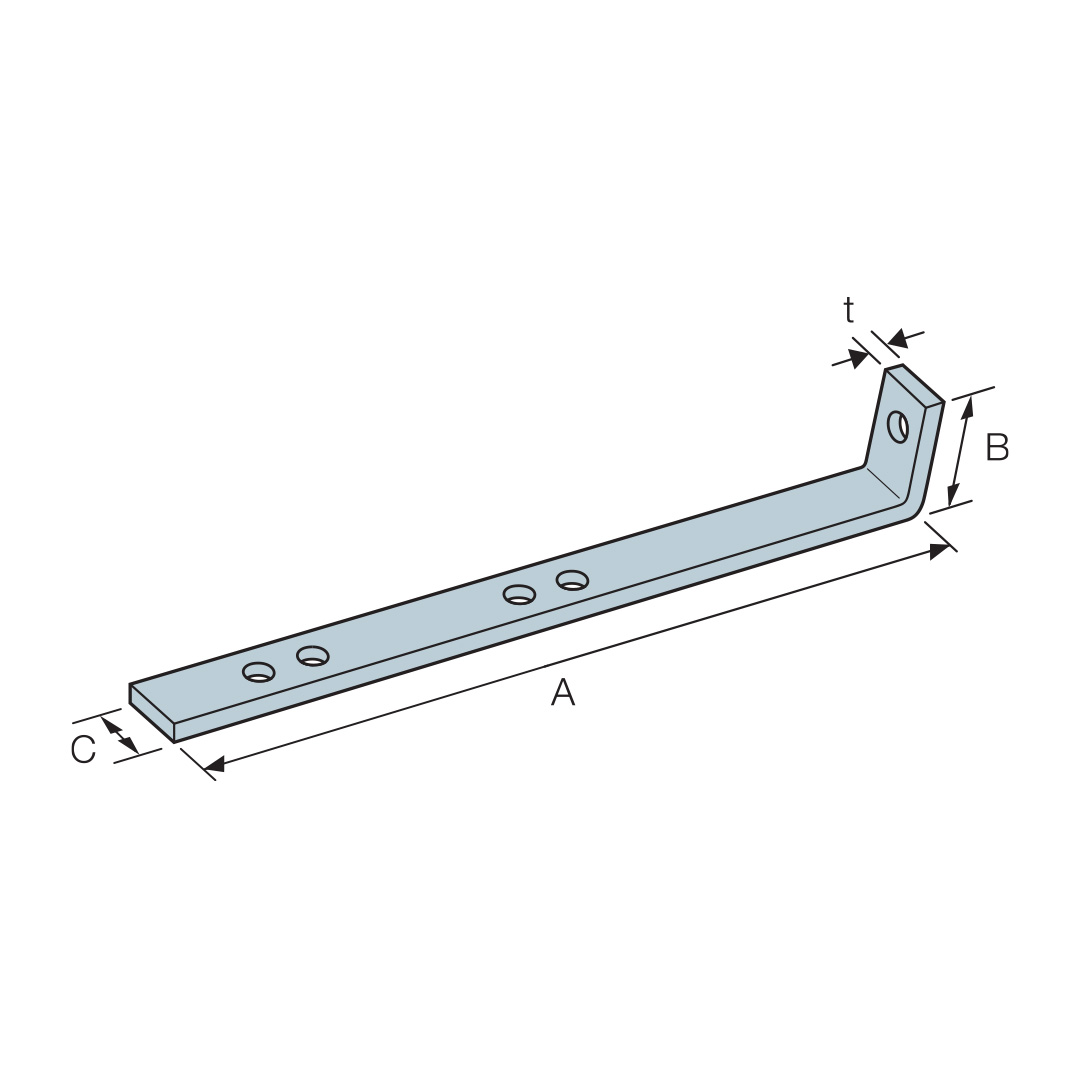

Product Dimensions

References	Dimensions [mm]				Holes			Weight [kg]
	A	B	C	t	Flange A		Flange B
	A	B	C	t	Ø4	Ø6	Ø4
WBT06	145	22	12	1.2	2	2	1	0.037

ZIP Packages

2D
2D DWG ZIP DXF ZIP PDF ZIP

3D/3D Simplified
IFC ZIP SAT ZIP SKP ZIP STL ZIP

Buy from Distributor

No items available.
