CLSA4

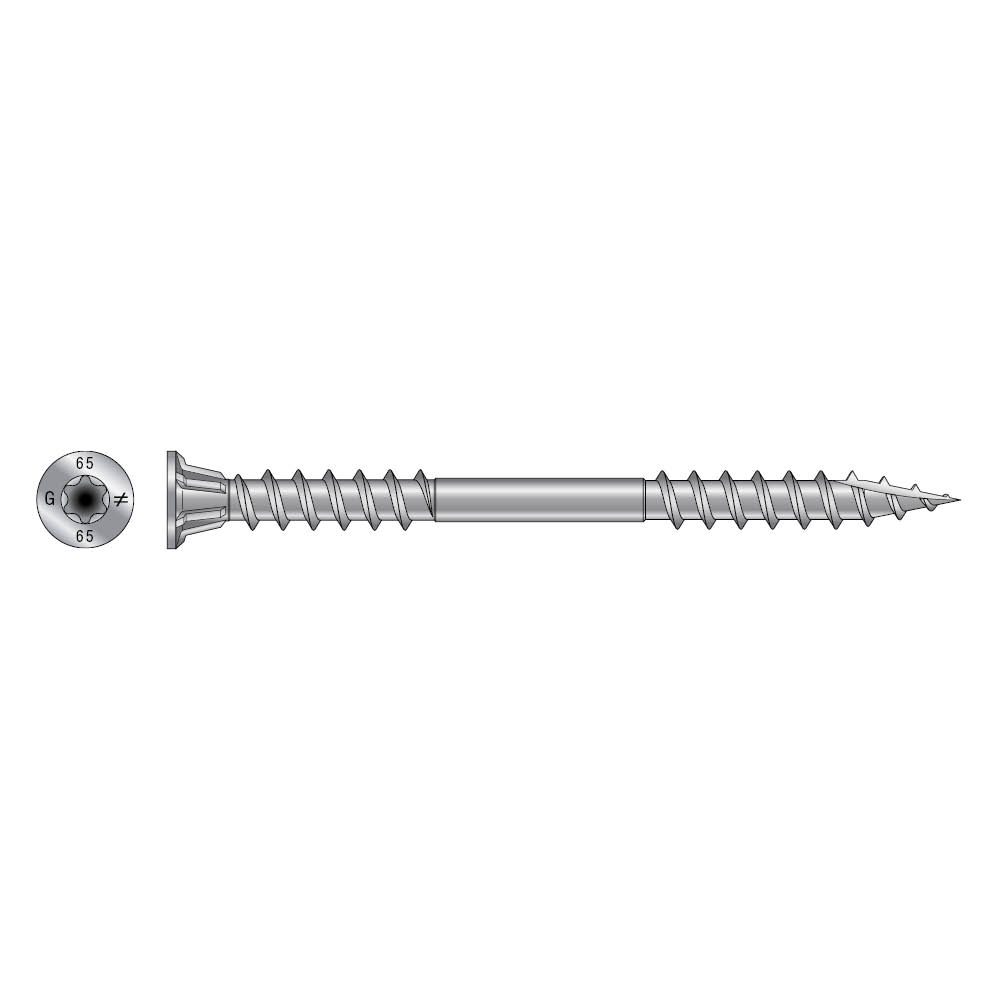

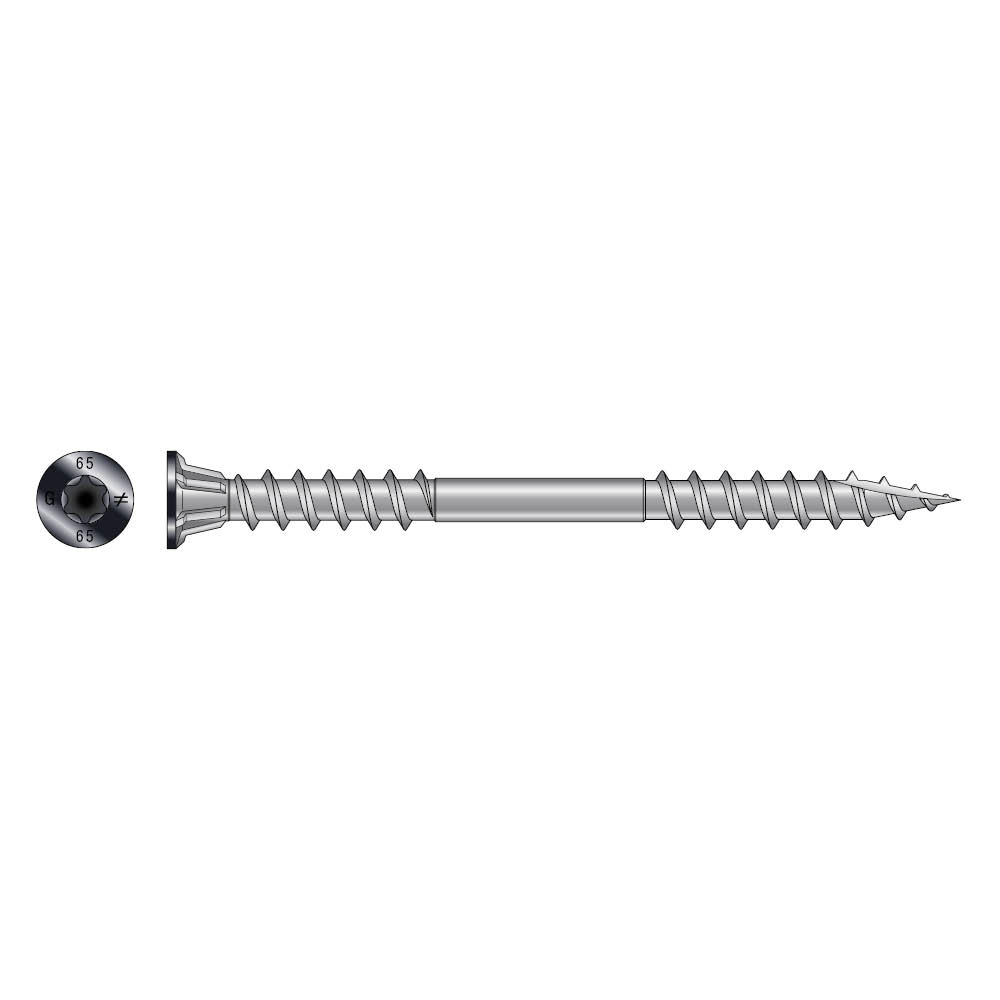

Wood Facade Screw - Stainless A4

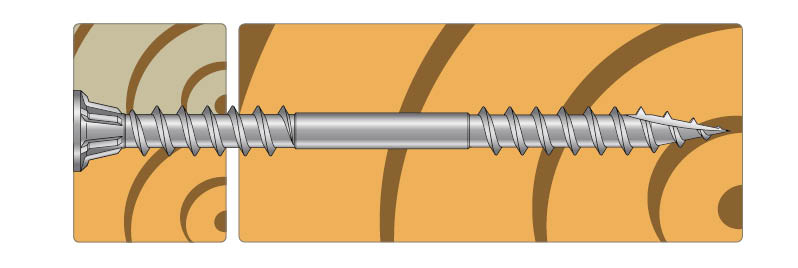

The CLSA4 is a double threaded screw suitable for use with timber cladding. The screw consists of type 17 point to prevent timber splitting on insertion and flat head with fiber lock technology which prevents moisture getting into the timber. The double thread ensures sufficient insertion, even in high density wood without the risk of spin-off. It also helps pull the cladding tight to the frame. The CLSA4 screw is made from A4 stainless steel and therefore suitable for use in outdoor environments and extreme weather conditions.

Service class 3
Stainless steel A4
Severe
EPD

Product Details

Features

Material

  • A4 Stainless steel

Features

  • 6 lobe drive
  • Flat head with fiber lock technology
  • Double threaded
  • Extreme ductility
  • Type 17 point

Application

Common Applications

  • Cladding to timber
  • Timber facades to timber

Technical Data

Dimensions

Product Dimensions

References Item code Fastener dimensions [mm] Box Quantity Weight [kg]
d l dh lg1 lg2

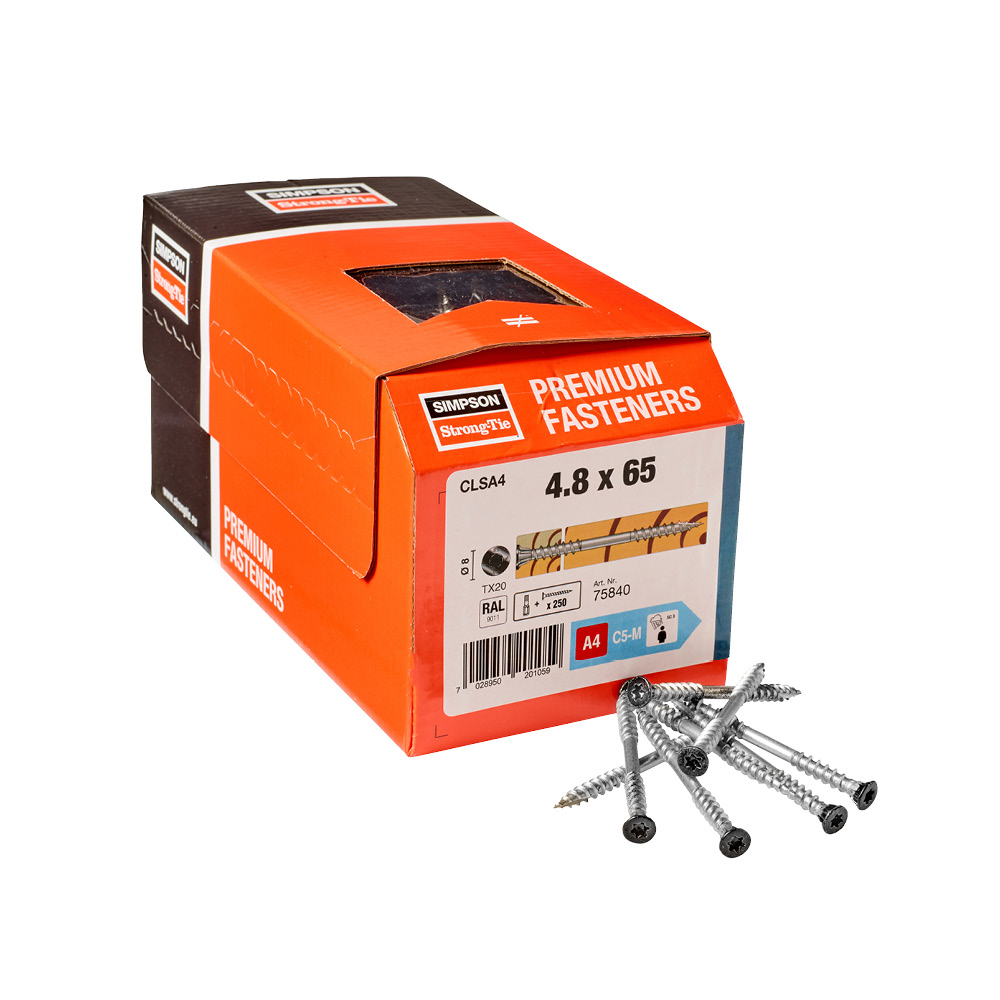

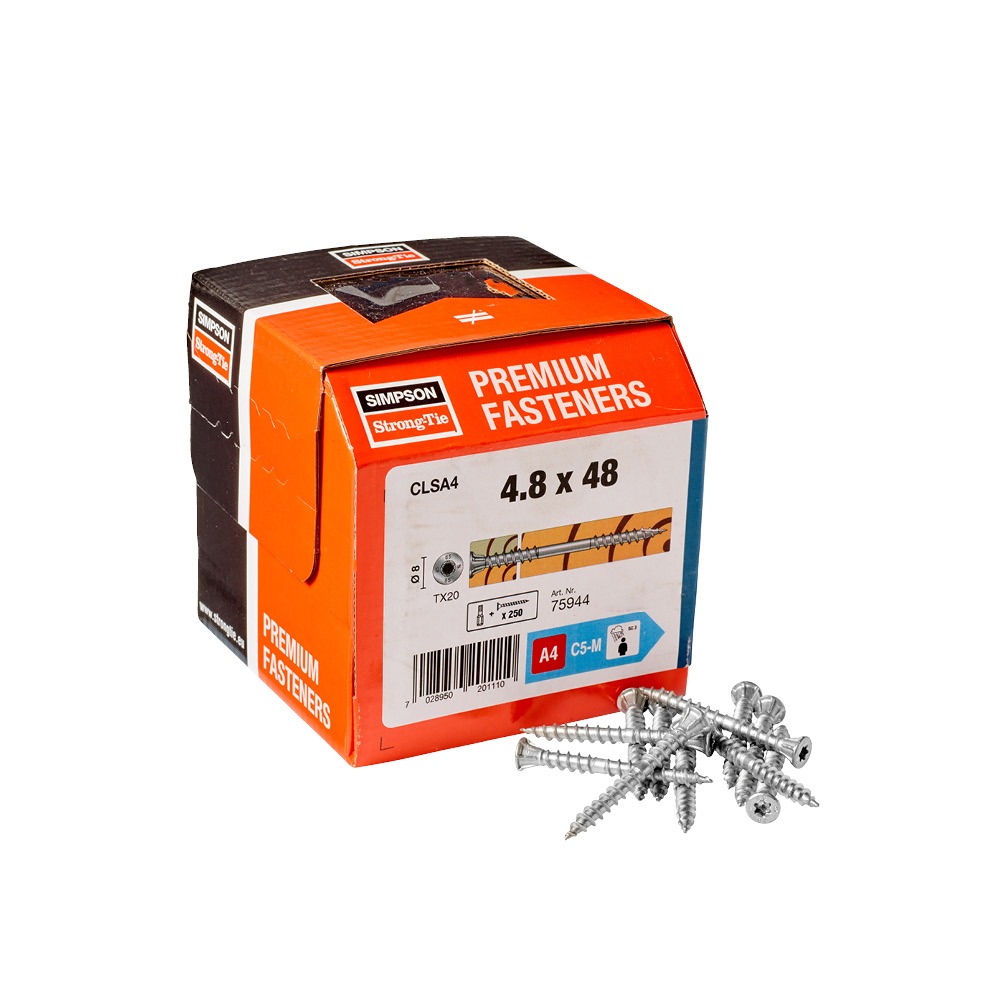

CLSA44.8X48759444.848826182500.003
CLSA44.8X657594565826222500.005

Certification
