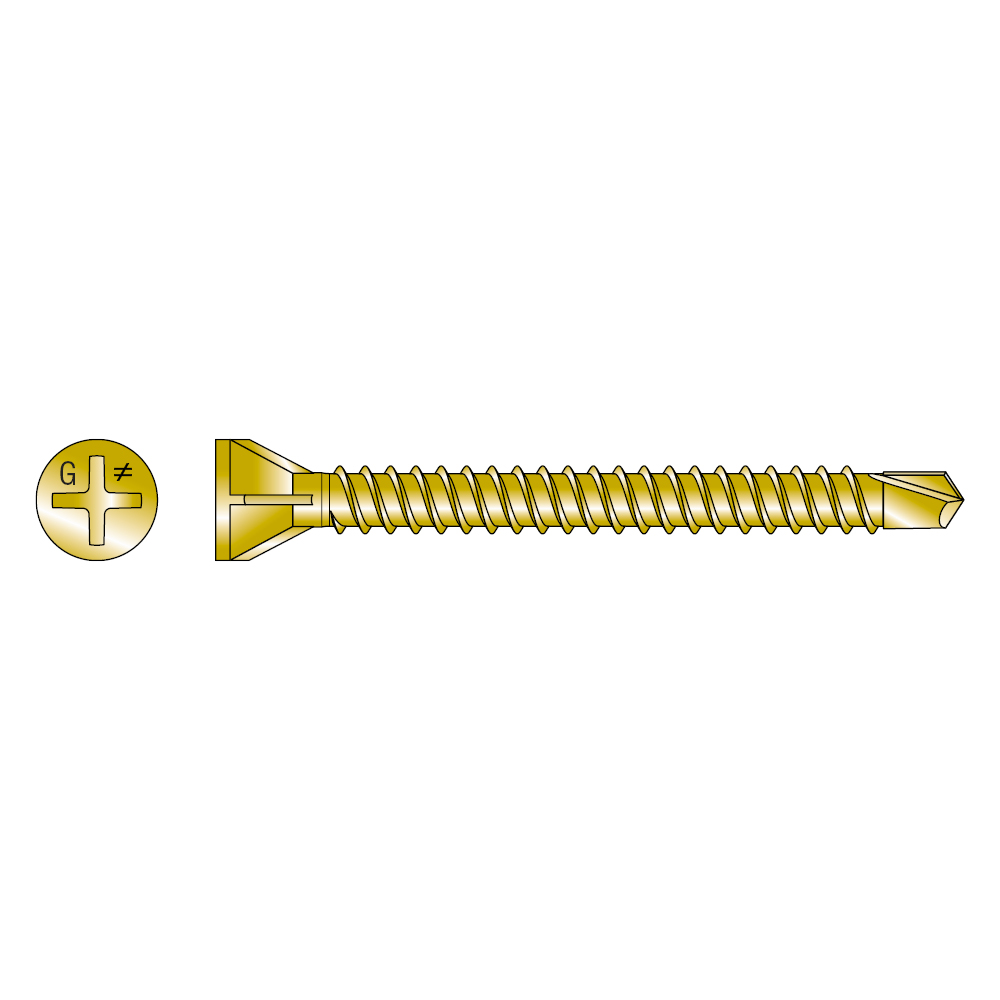

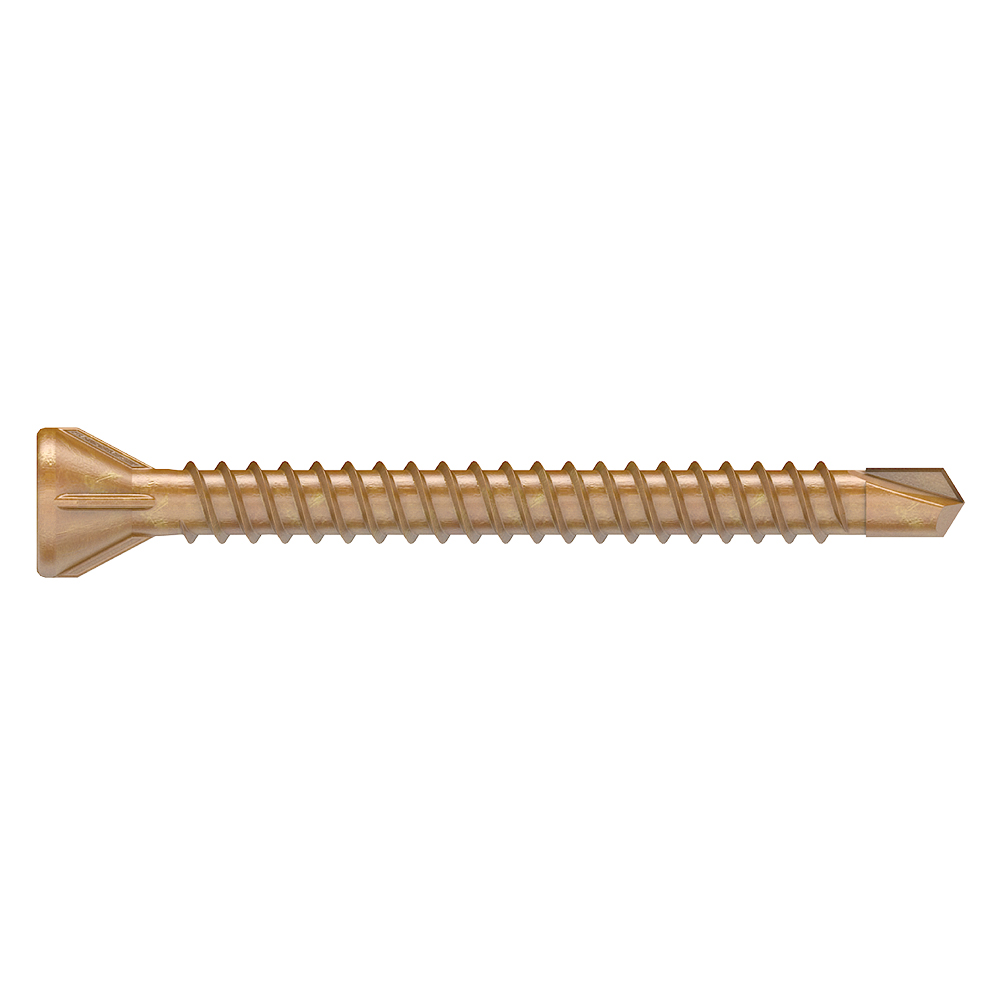

TSB
Wood Fiber to Steel Screw - Drill Point

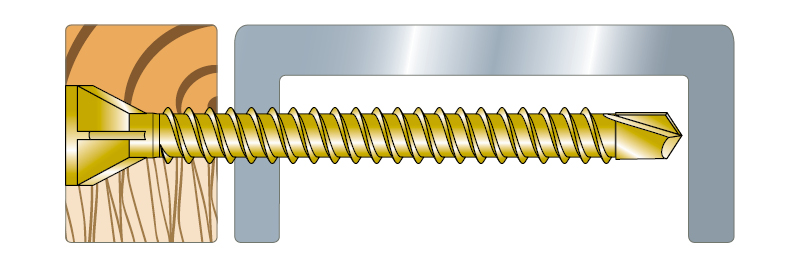

The TSB screw is ideally used indoors for fixing mouldings, OSB, chipboard and plywood to steel. It has a ribbed countersunk flat head which countersinks into the board to ensure a neat finish. The drill point allows the screw to fix boards to steel up to 2mm thick. The TSB screw has a PH2 recess and driver bits are included in every box.
Service class 1
EPD
Indoor
Yellow electro-galvanised steel
Product Details
Images
Features
Application
Technical Data
Product Dimensions
Dimensions
| Reference | Fasteners Dimensions | ||||||
|---|---|---|---|---|---|---|---|
| Item Code | Other | Product Dimensions[mm] | |||||
| Box Quantity | Weight[kg] | d[mm] | l[mm] | dh[mm] | Driver Bit[mm] | ||
| TSB3.9X28 | 74276 | 500.0 | 0.002 | 3.9 | 28 | 7 | PH2 |
