CNAPC34

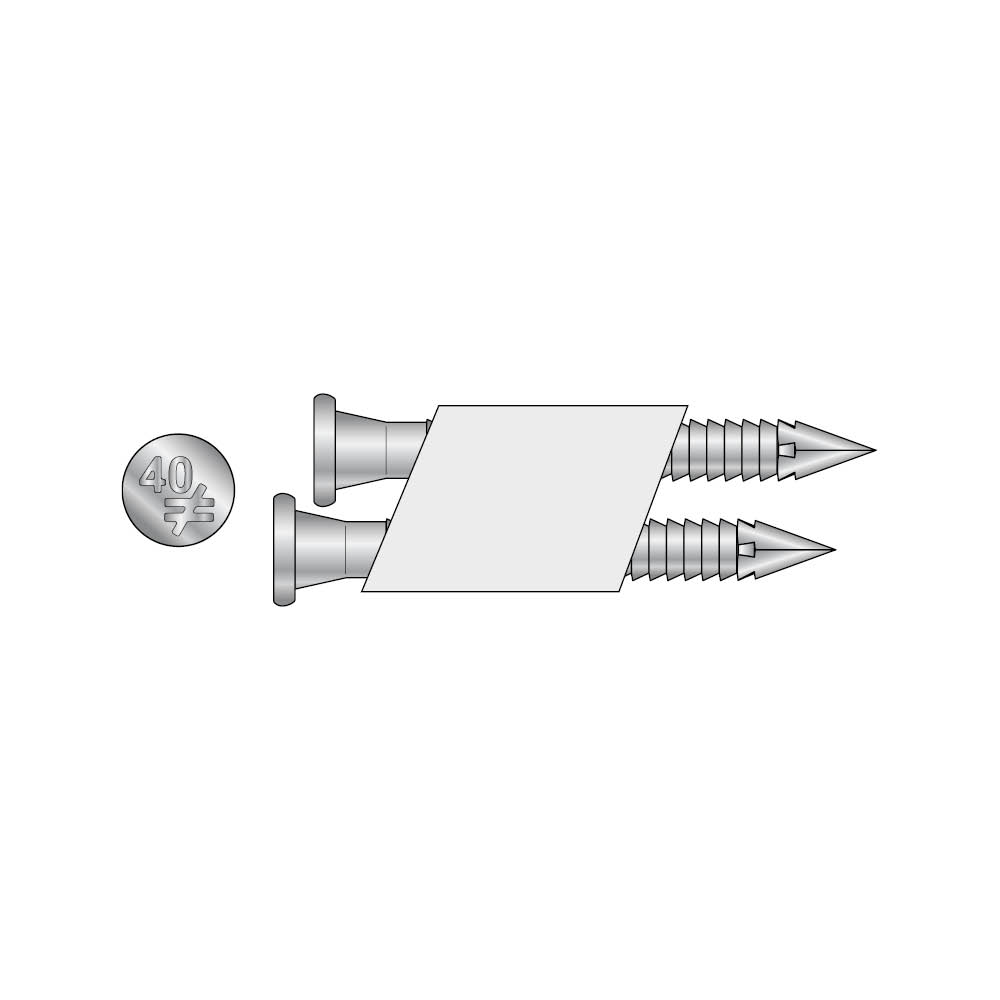

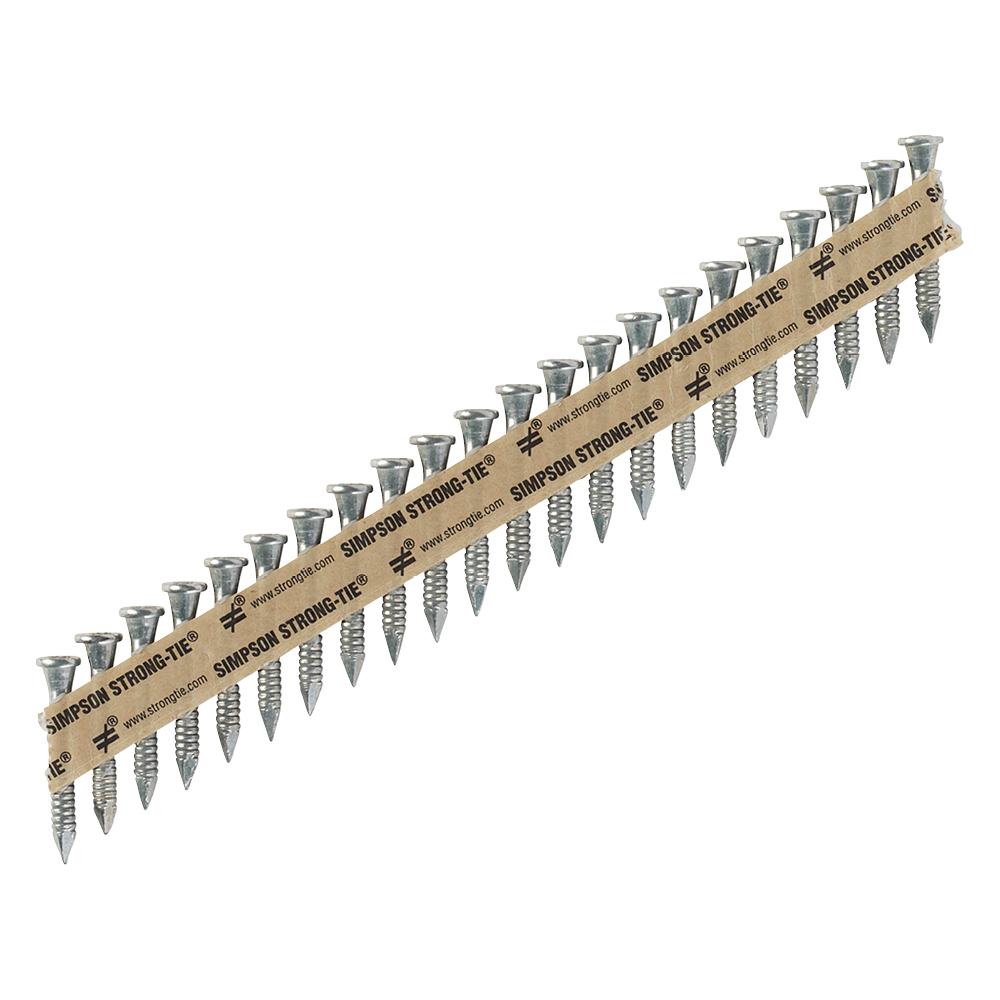

34° Connector Nail, Paper Strip

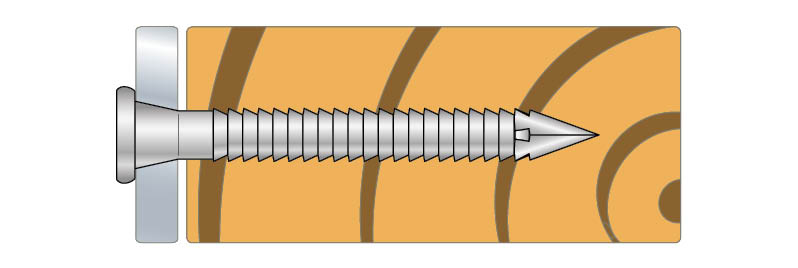

The CNA nails are recommended for structural assemblies and to use with Simpson Strong-Tie connectors. The paper collated nail reduce the time for installation.
CE Marking
ETA
EPD
Electrogalvanized steel 12µm
Service class 2
Indoor
Product Details
Images
Features
Application
Technical Data
Product dimensions and capacities
Dimensions
| Reference | Fasteners Dimensions[mm] | |||||||
|---|---|---|---|---|---|---|---|---|
| Other | Product Dimensions[mm] | QD information | ||||||
| Tun / DB nr. | NOB nr. | Qty/box | d[mm] | l[mm] | dh[mm] | ht[mm] | Qty per Strip | |
| CNA4.0X35PC34 | 1897085 | 51561493 | 1500.0 | 4 | 35 | 7 | 1.5 | 22.0 |
| CNA4.0X50PC34 | 1897087 | 51561512 | 1000.0 | 4 | 50 | 7 | 1.5 | 22.0 |
| CNA4.0X60PC34 | 1897088 | 51561523 | 1000.0 | 4 | 60 | 7 | 1.5 | 22.0 |
Capacities are for 2mm thick steel plates and Grade C24 timber. Please refer to ETA-04/0013 for capacities of other thickness and timber grades
