Connectors for Masonry, Timber and Steel Construction
Roof Connectors
BSB

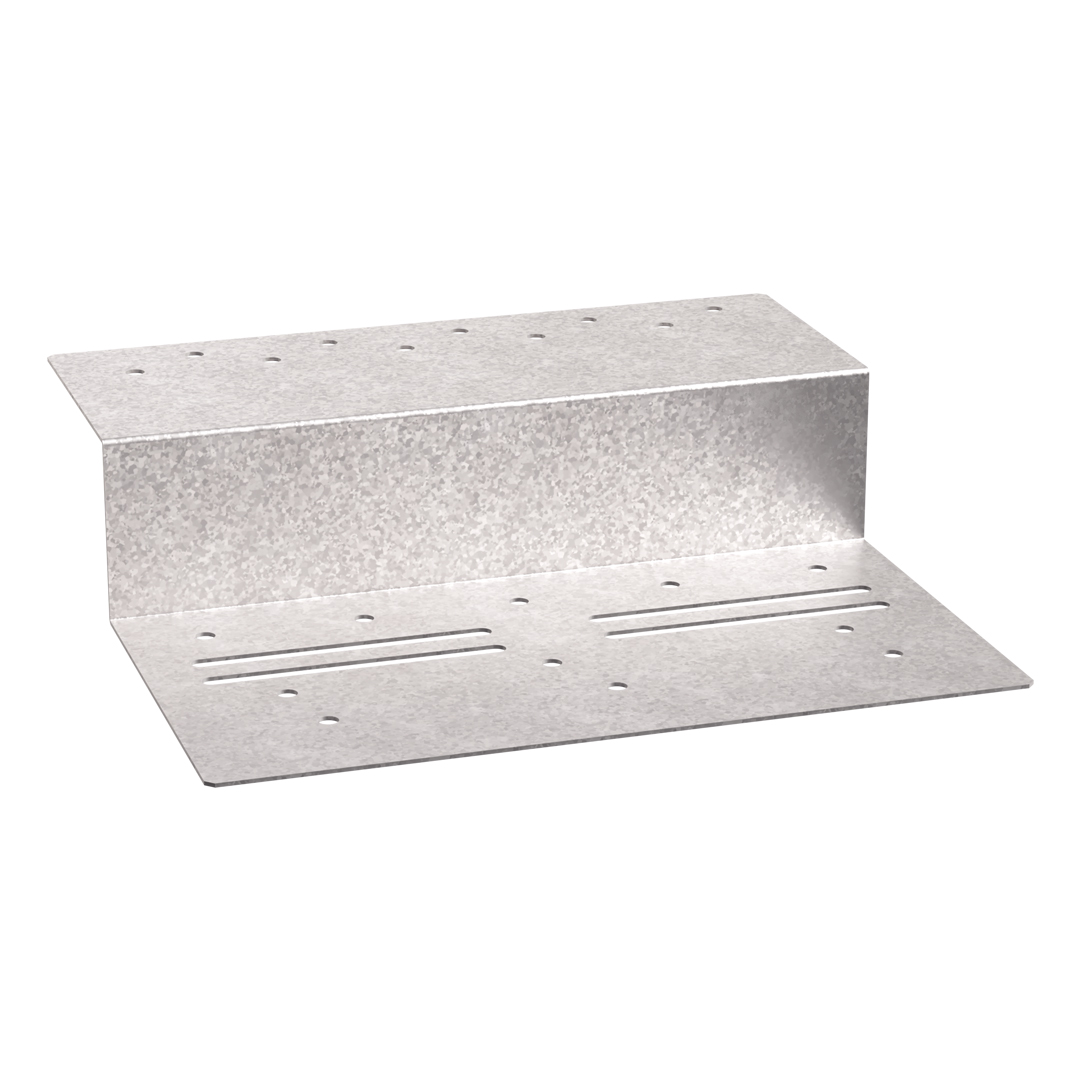

Bracing Shelf Support Bracket

BSB is a bracket which complies with the new arrangements for enhanced and super bracing included with BS 5268: Part 3

Technical Data Sheet
Service class 2
Electrogalvanized steel Z275
EPD

Product Details

Images

BSB Install Image 01
BSB Install Image 02
BSB Install Image 03

Application

Material

  • Pre-galvanised mild steel.

Technical Data

Dimensions

BSD Dims Image

Product Dimensions

References Width  [mm] Fastener Quantity
Rafter Shelf
N3.75x30 N3.75x30
BSB35 to 471010

Installation

Installation

Installation

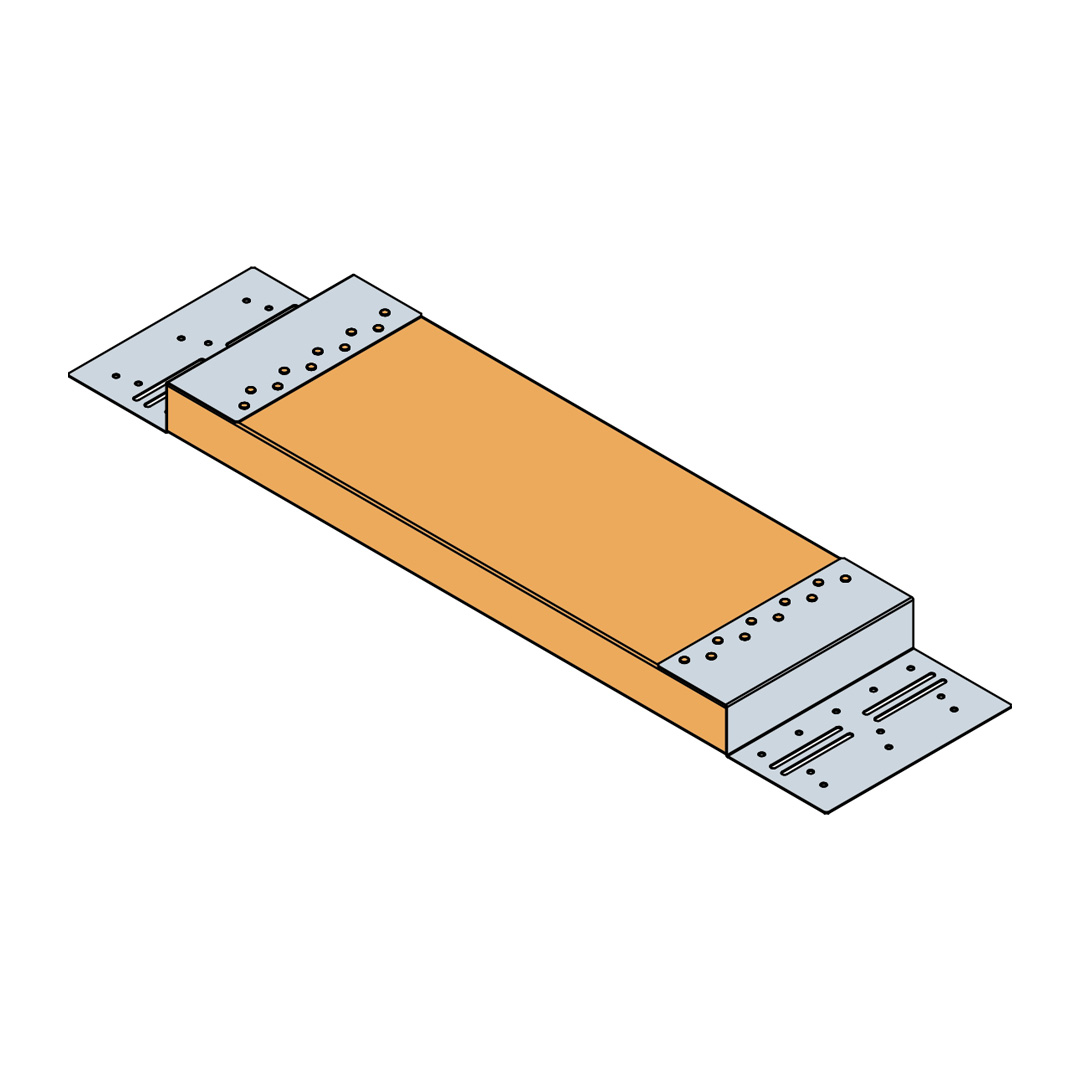

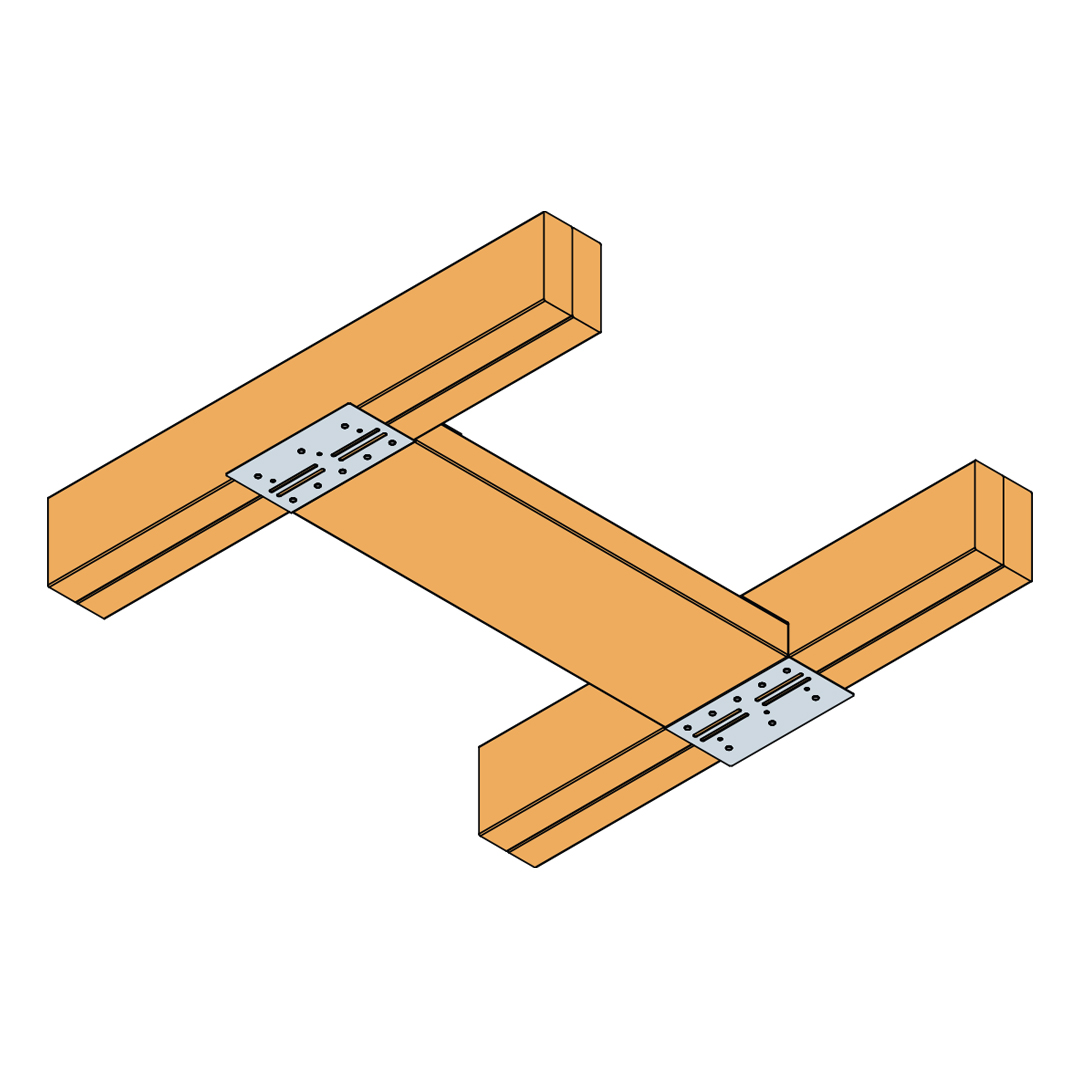

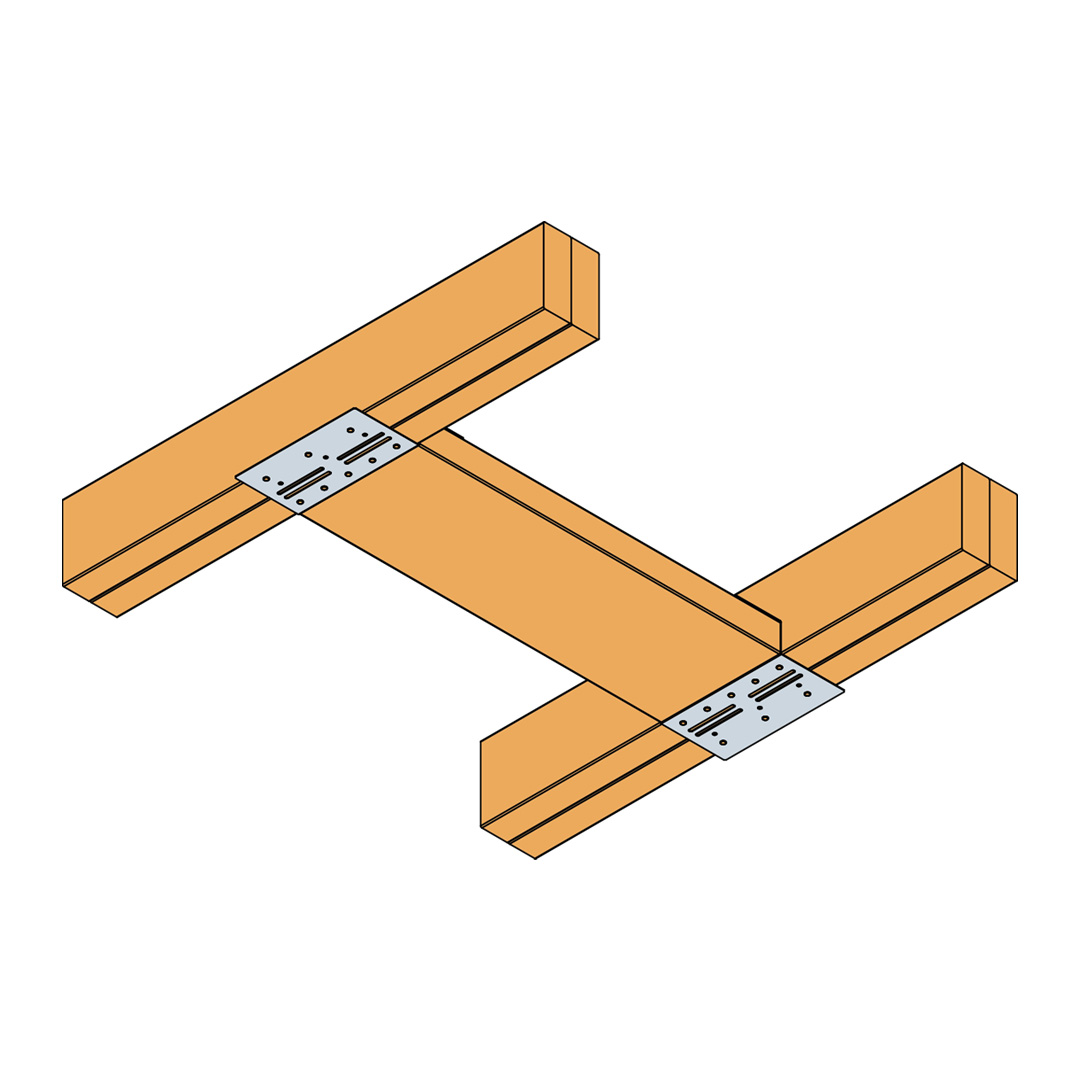

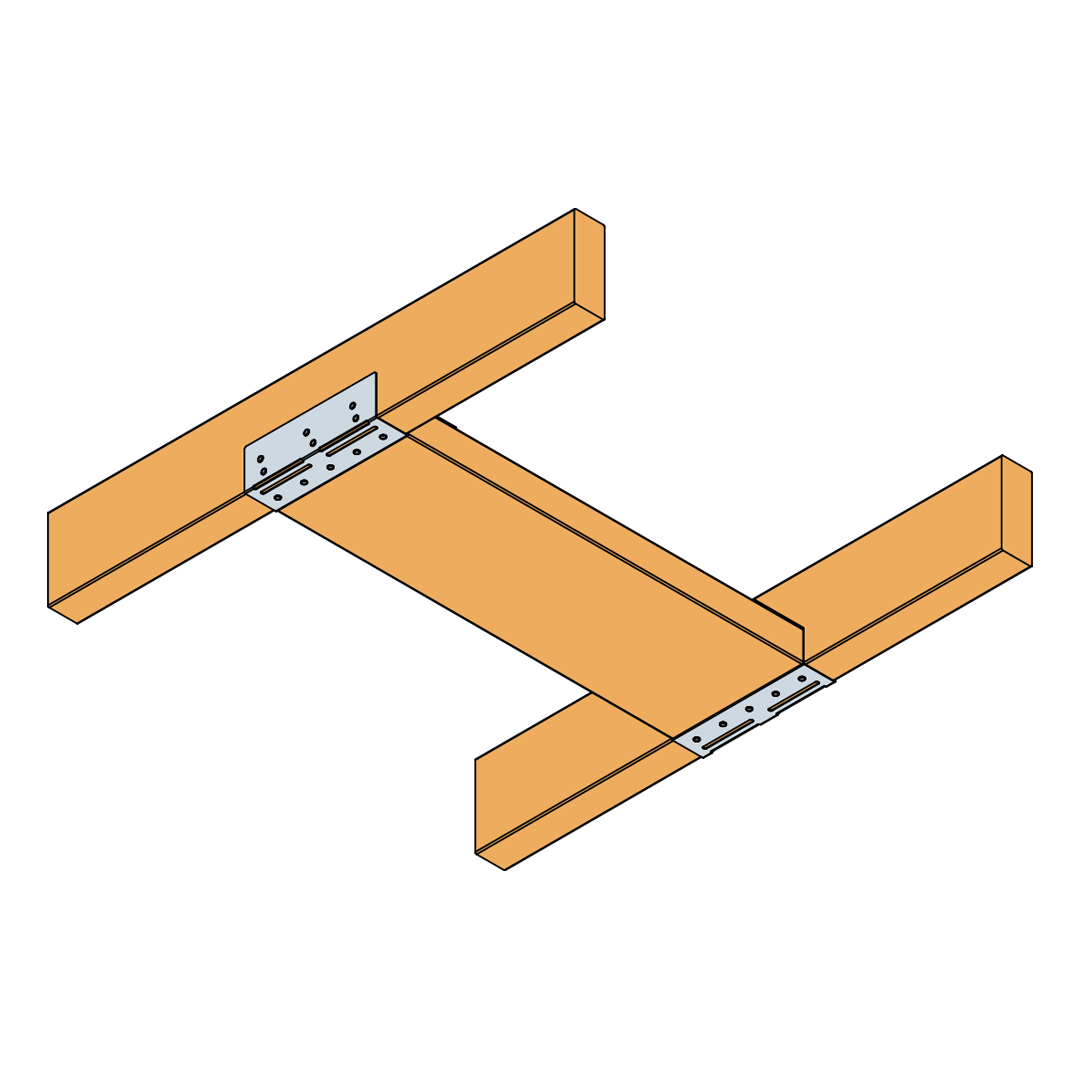

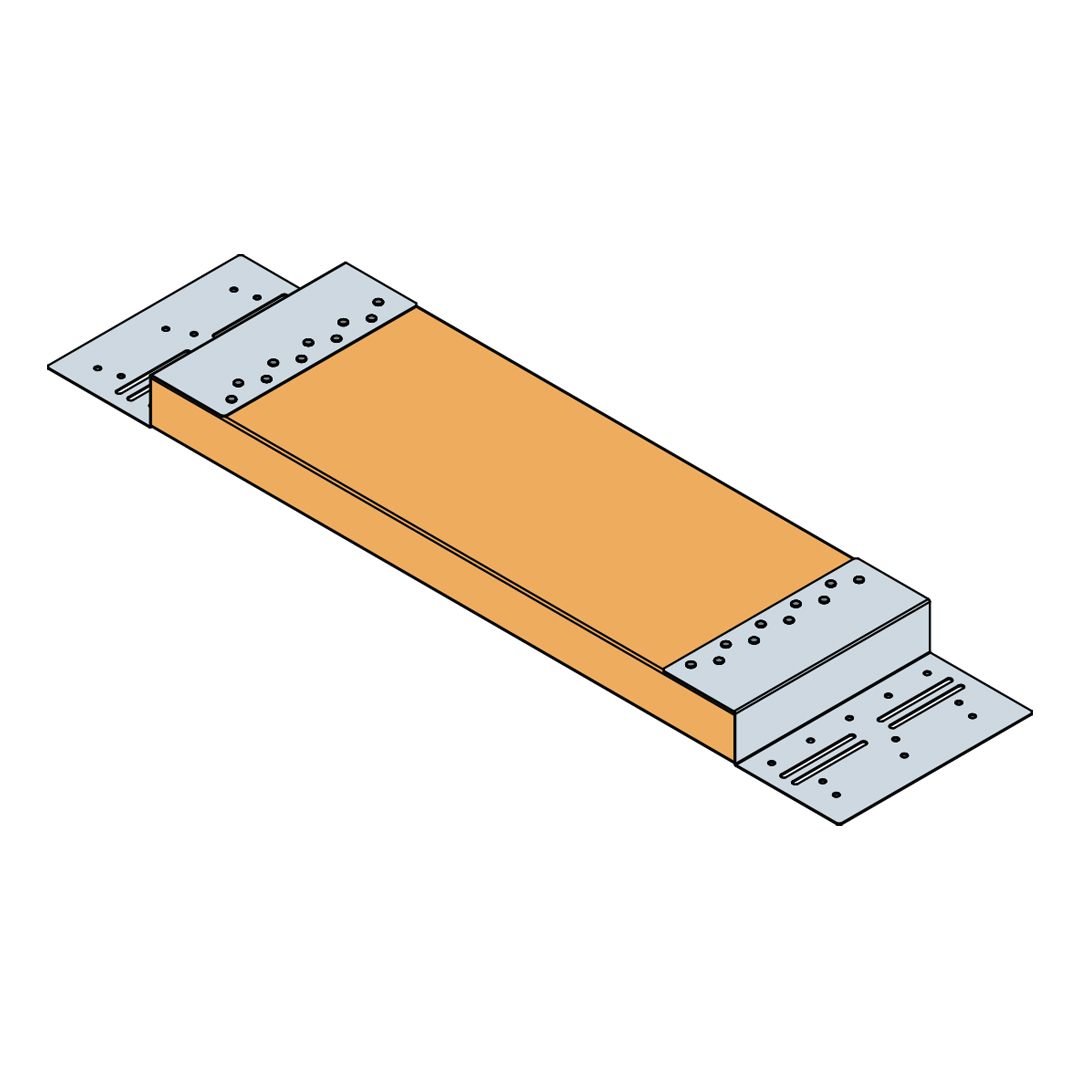

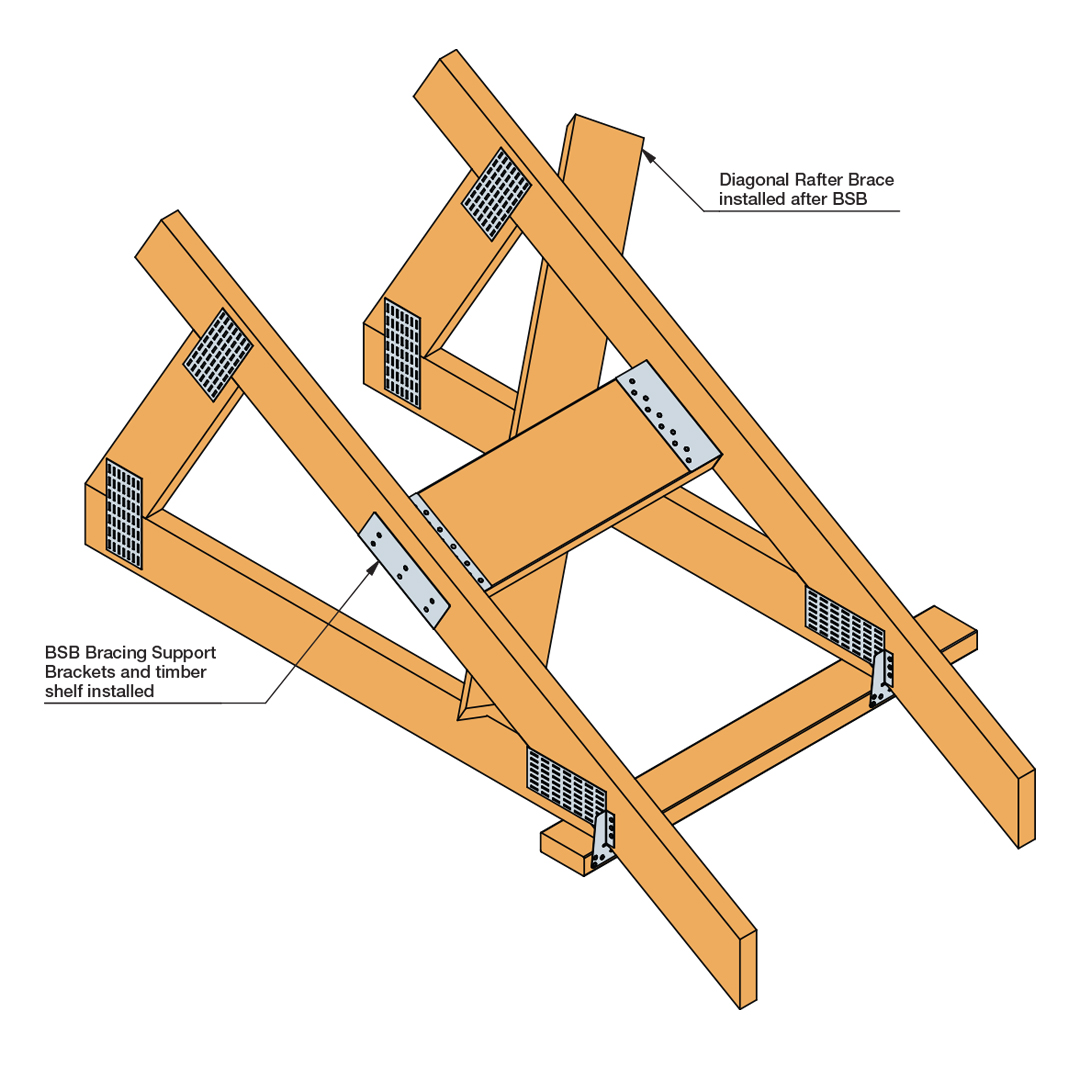

Nail BSB to each end of the timber bracing shelf using specified fasteners through all round holes. Locate assembly from underside at a maximum of 250mm from wall and nail to top chords using specified fasteners through all round nail holes. Nail diagonal bracing member to underside of timber shelf. Diagonal bracing size and fastener specification to be as defined in proposed BS 5268 Part 3.

Certification

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors

ZIP Packages

Buy from Distributor

No items available.
