CBQ

Cast-in Post Base

The CBQ welded post base is for pre-pour concrete applications and is made to order within parameters below.

  • IMPORTANT NOTE:  The CBQ is NOT recommended when the top of post/column is not restrained (e.g. fence post).
Technical Data Sheet
Service class 3
Service class 3
Galvanised steel
Galvanised steel
Outdoor
Outdoor
CBQ product image.jpg

Product Details

Images

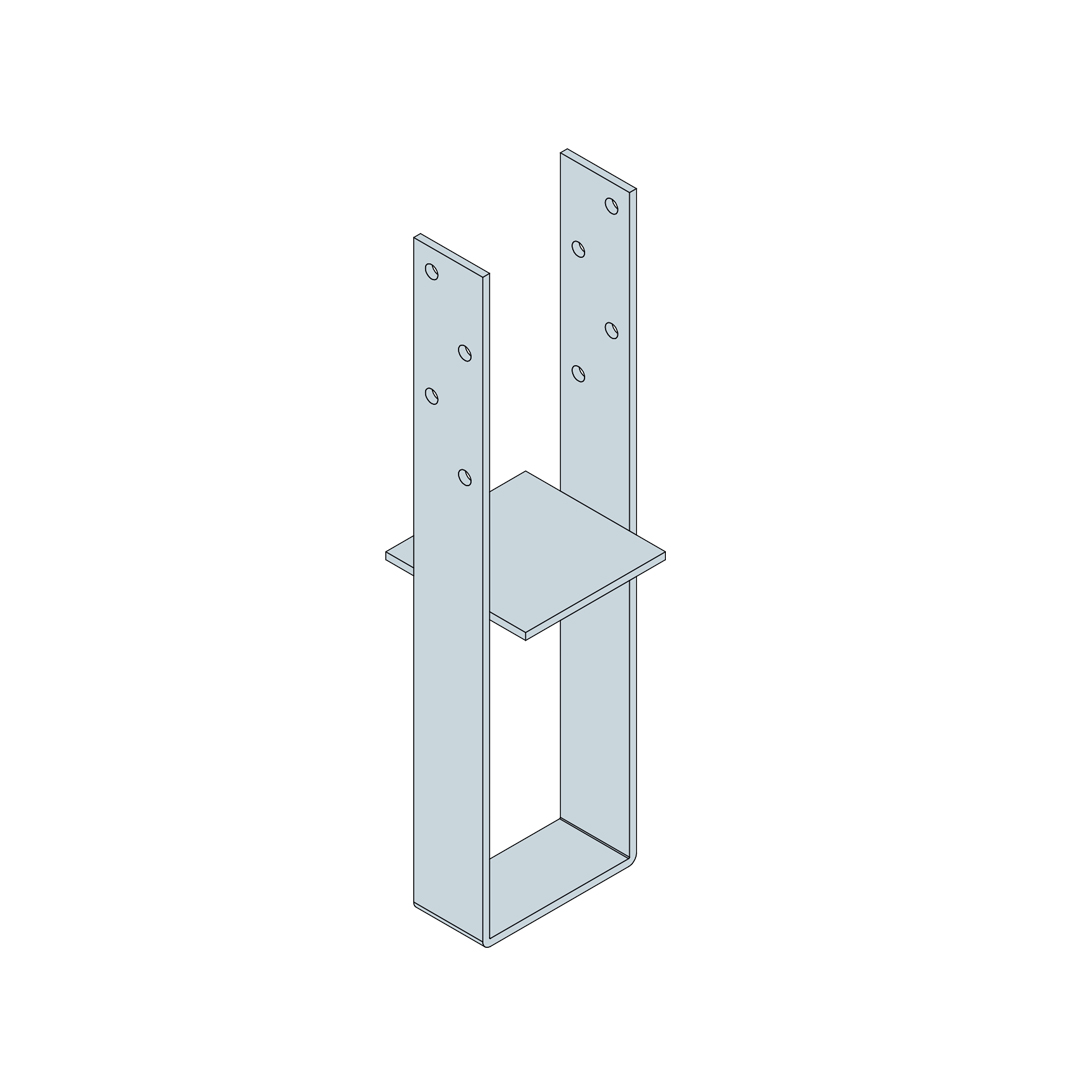

CBQ product product illustration-no dims.jpg

Features

Material

  • Hot dip galvanised mild steel

Technical Data

Product Dimensions

Dimensions

Product Dimensions
ReferenceConnector Dimensions
Post[mm]Product Dimensions[mm]Holes
Post Size[mm]B[mm]C[mm]E[mm]t₁[mm]t₂[mm]A (2)D (2)Round
Min[mm]Max[mm]Min[mm]Max[mm]Ø10[mm]
CBQ75x75 - 200x200502202055575200752008

Installation

Installation

Installation

  1. Position CBQ into pre poured wet concrete so that bottom of the base plate is flush with the top surface of the new foundation (Fig 1)
  2. Once the concrete is sufficiently cured place post centrally onto CBQ base plate and prop in place (Fig 2)

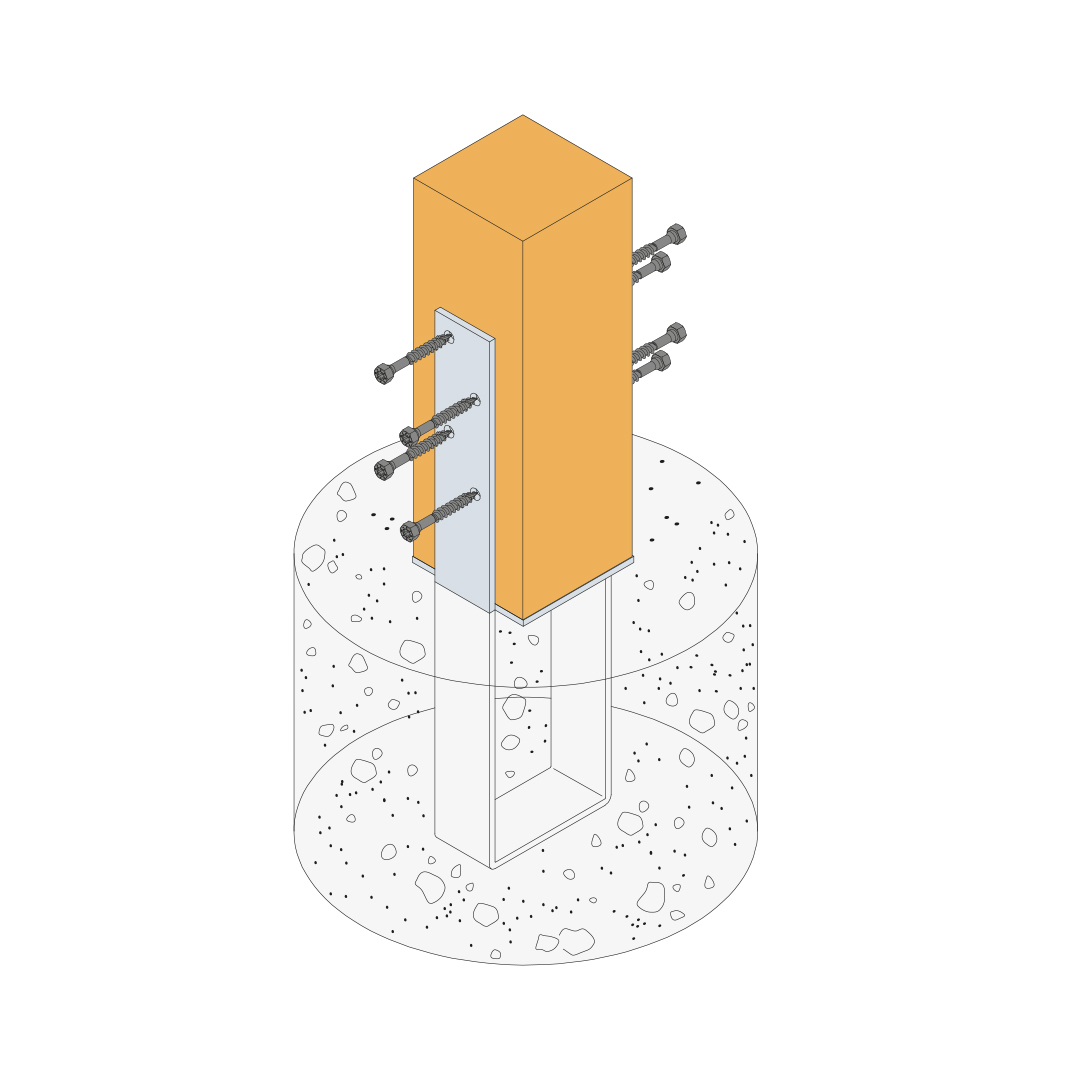

  3. Install 4 number SSH8.0X60 screws into each upstand flange providing a total of 8 fixings per CBQ (Figs 3 & 4)

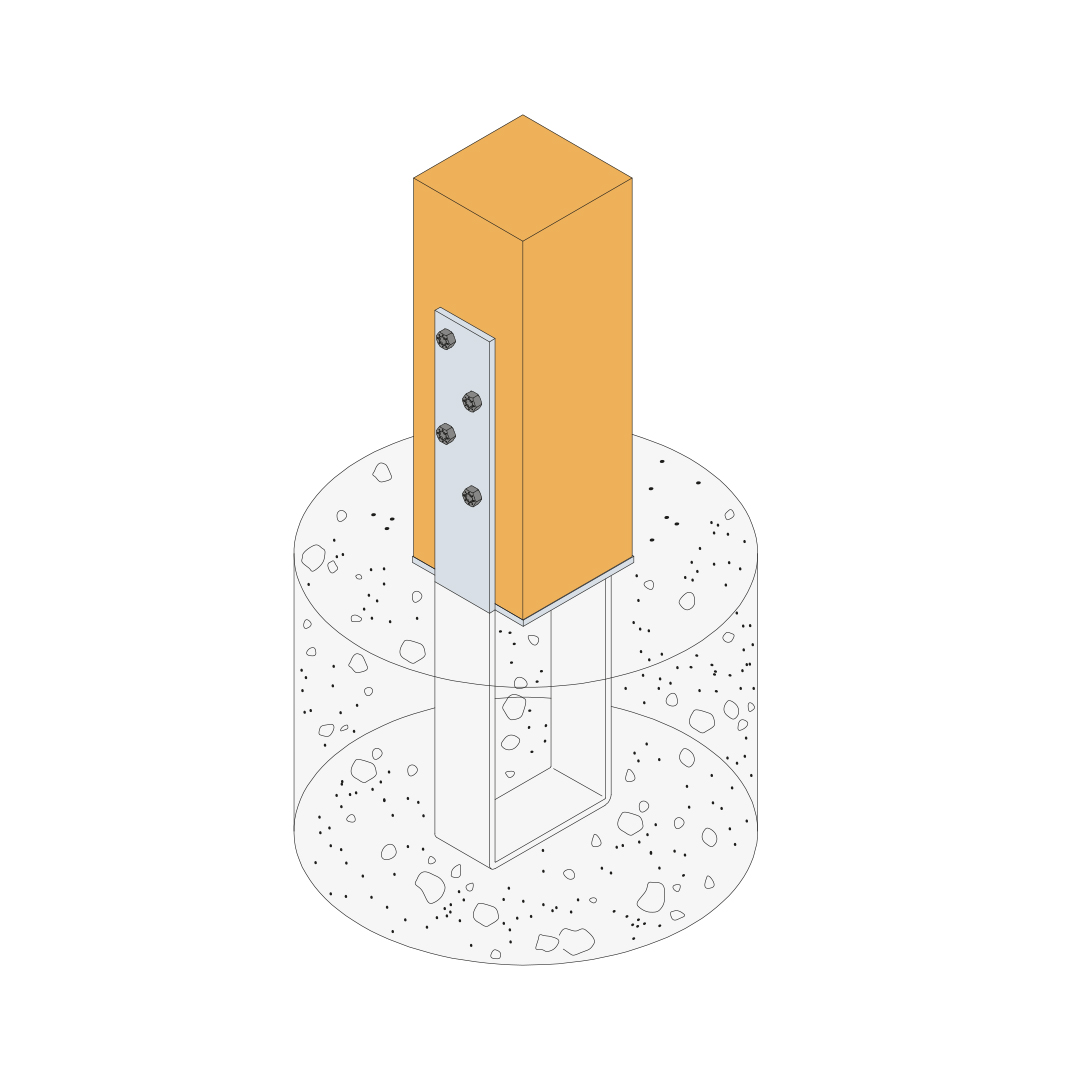

  4. Continue to build the rest of the timber structure ensuring there is adequately braced to eliminate any moment loads on the post base
CBQ install 1.jpg
CBQ install 2.jpg
CBQ install 3.jpg
CBQ install.jpg
