Hexagon Head Connector Screw Impreg®+

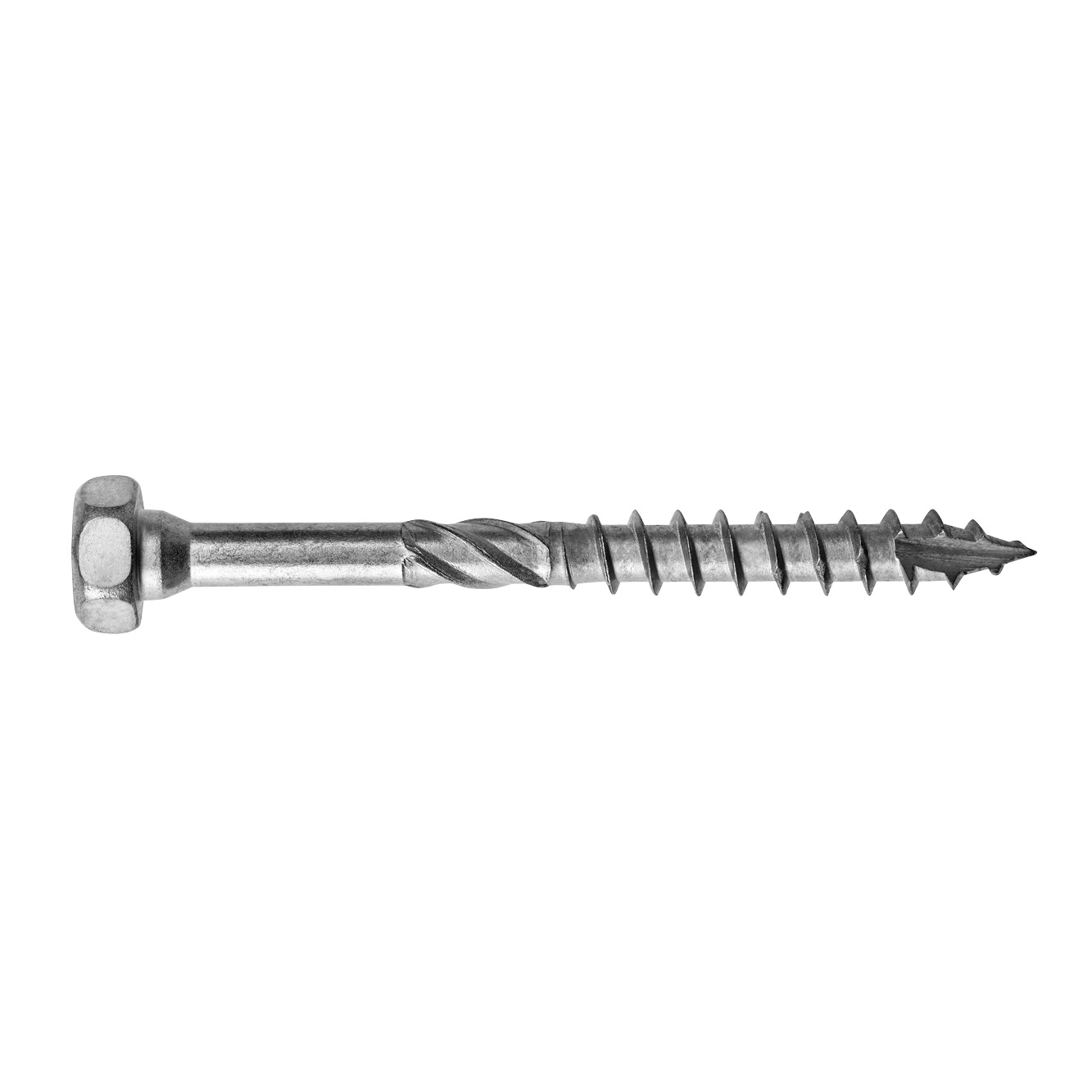

SSH is used together with connectors where high load capability is required. The conical shape under the head ensures full contact with the connector, creating a firm assembly. The superior Impreg®+ coating makes the screw suitable for exterior use. The type 17 cut point prevents timber from splitting, and the milling thread and serrated thread reduce the insertion torque. SSH has both 6 lobe drive and a hexagonal head, enabling installation both with torx bits or hex wrench.

CE Marking
Service class 2
Impreg® +
Outdoor

Product Details

Images

Features

Material

  • Steel - Impreg®+ coating

Features

  • CE marked to EN14592

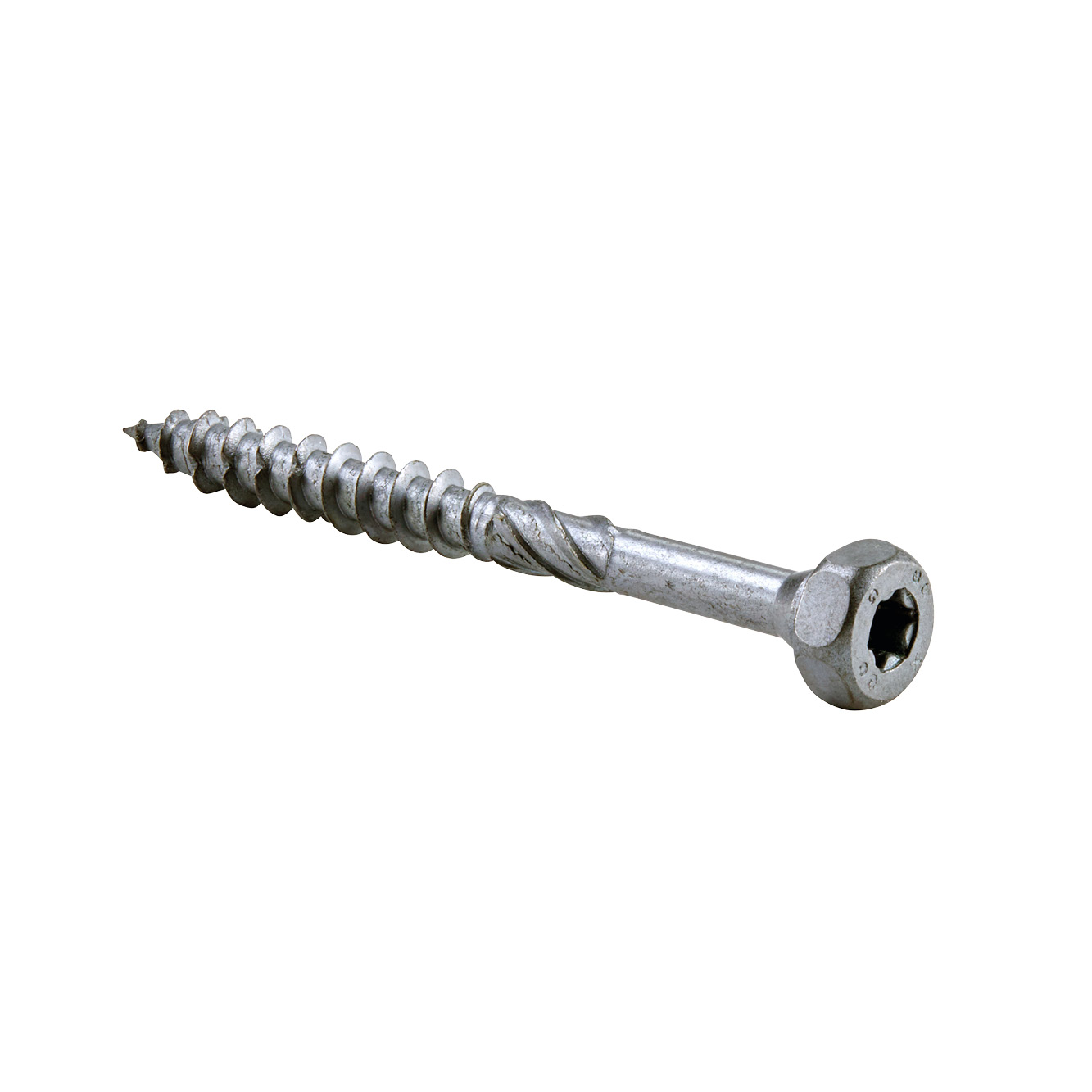

  • Hex head with integrated 6 lobe drive

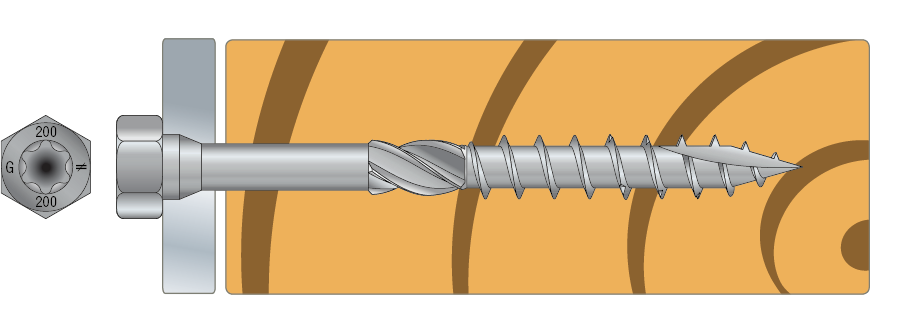

  • Conical shape under the head for secure fit in connector holes
  • No predrilling required

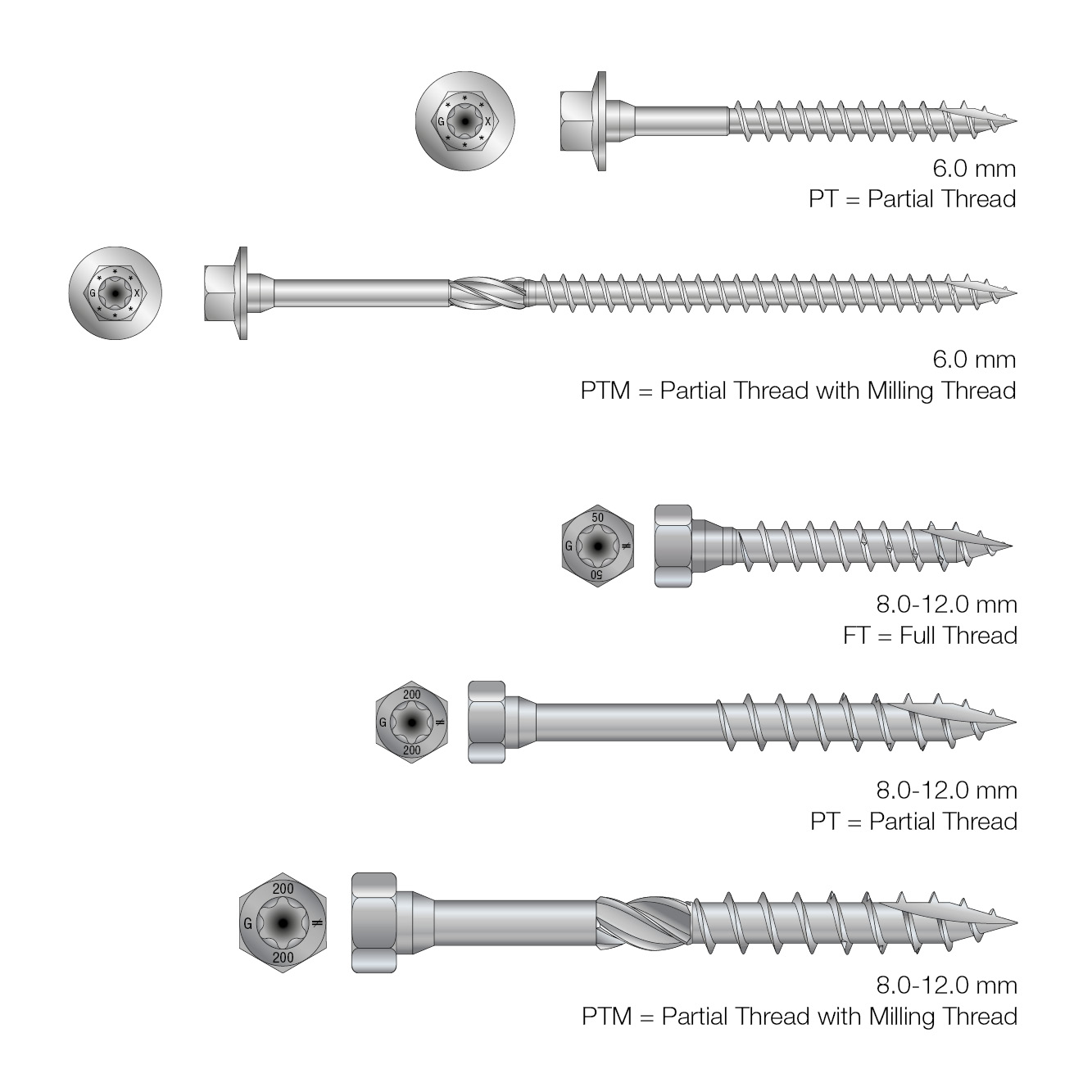

  • Milling thread reduces insertion torque
  • Type 17 point prevents splitting of timber

Application

Assemblies

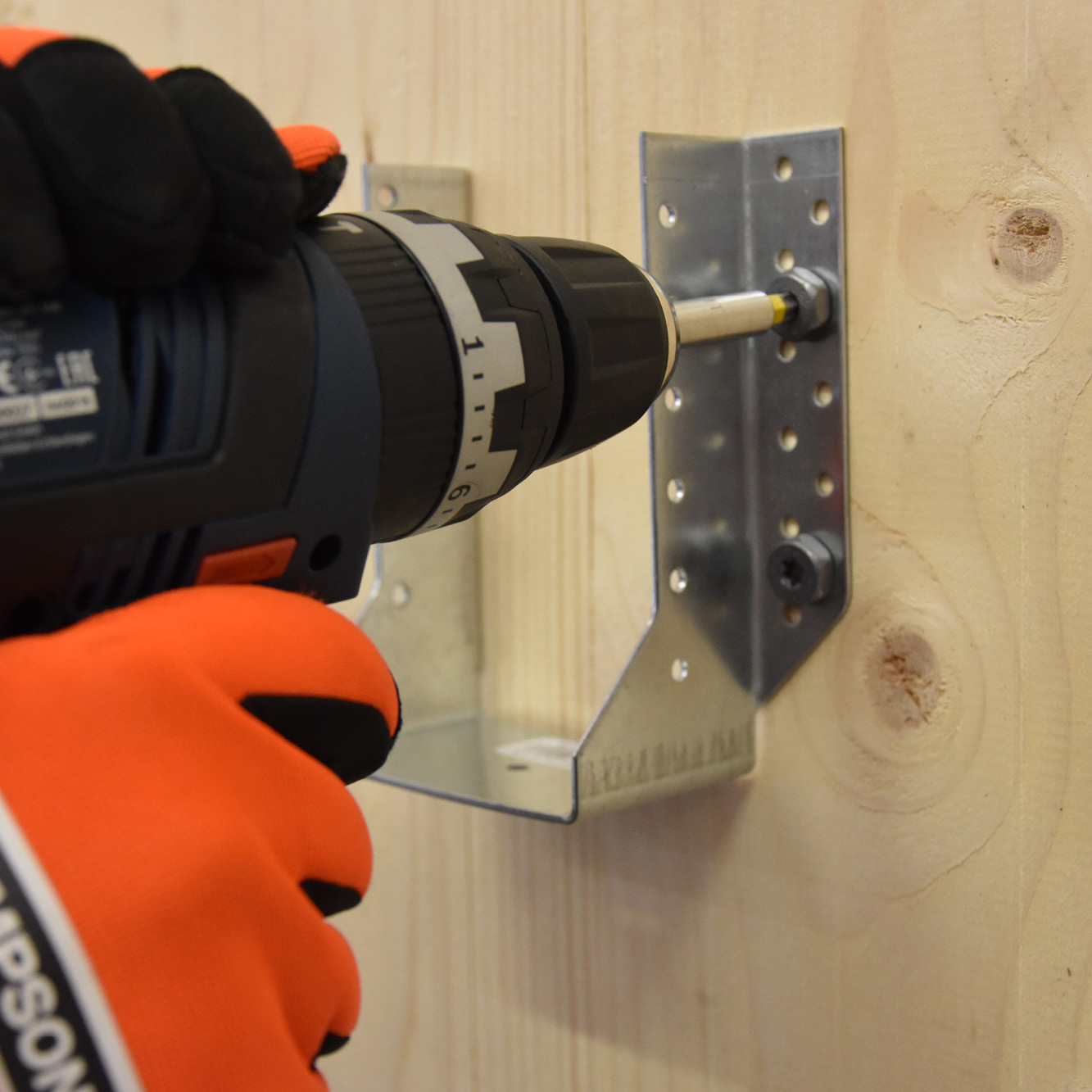

  • Connectors to wood

Common Applications

  • Fixing connectors to timber
  • Suitable for outdoor applications

Technical Data

Dimensions

Product dimensions

References Item code Fastener dimensions [mm] Box Quantity Stocked in UK
d l dh ht duh d1 lg bit

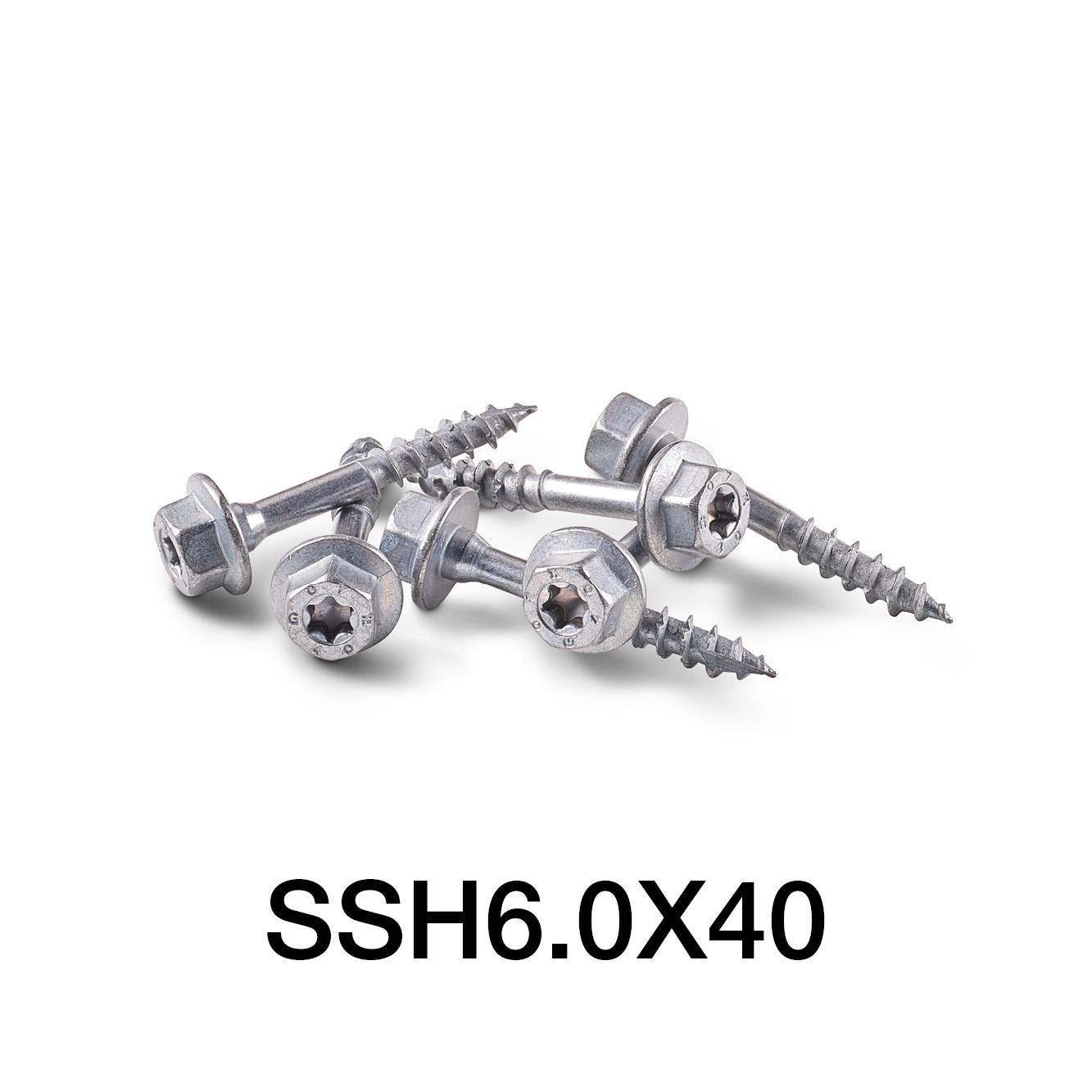

SSH6.0X40 75128 6 40 10 4.75 6.1 3.7 23 T-30 100 -
SSH6.0X50 75129 6 50 10 4.75 6.1 3.7 33 T-30 100 -
SSH6.0X60 75130 6 60 10 4.75 6.1 3.7 42 T-30 100 Yes
SSH6.0X75 75131 6 75 10 4.75 6.1 3.7 42 T-30 100 -
SSH6.0X90 75132 6 90 10 4.75 6.1 3.7 42 T-30 100 Yes
SSH6.0X120 75133 6 120 10 4.75 6.1 3.7 75 T-30 100 -

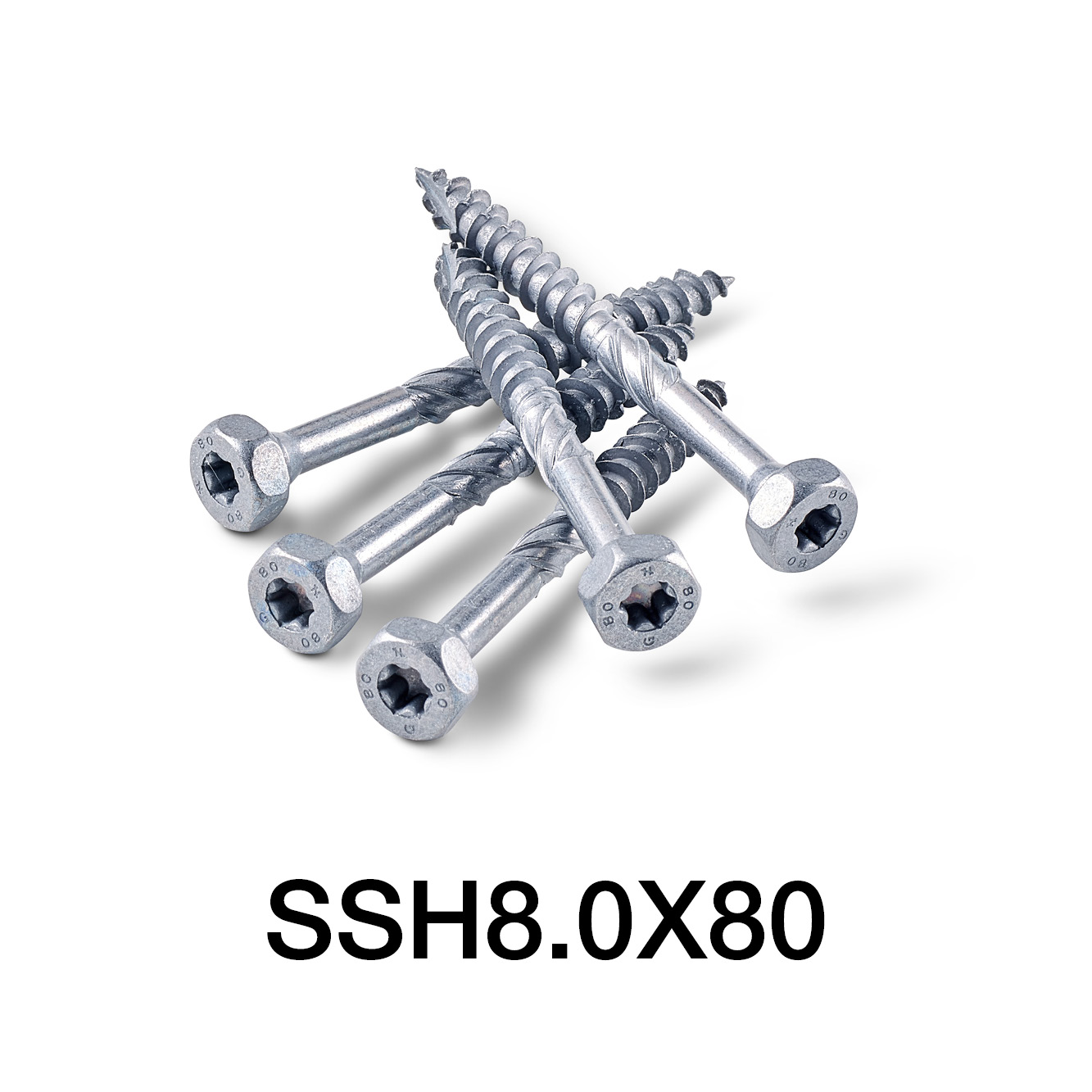

SSH8.0X40 75134 8 40 13 5.75 8.2 5.1 32 T-40 50 -

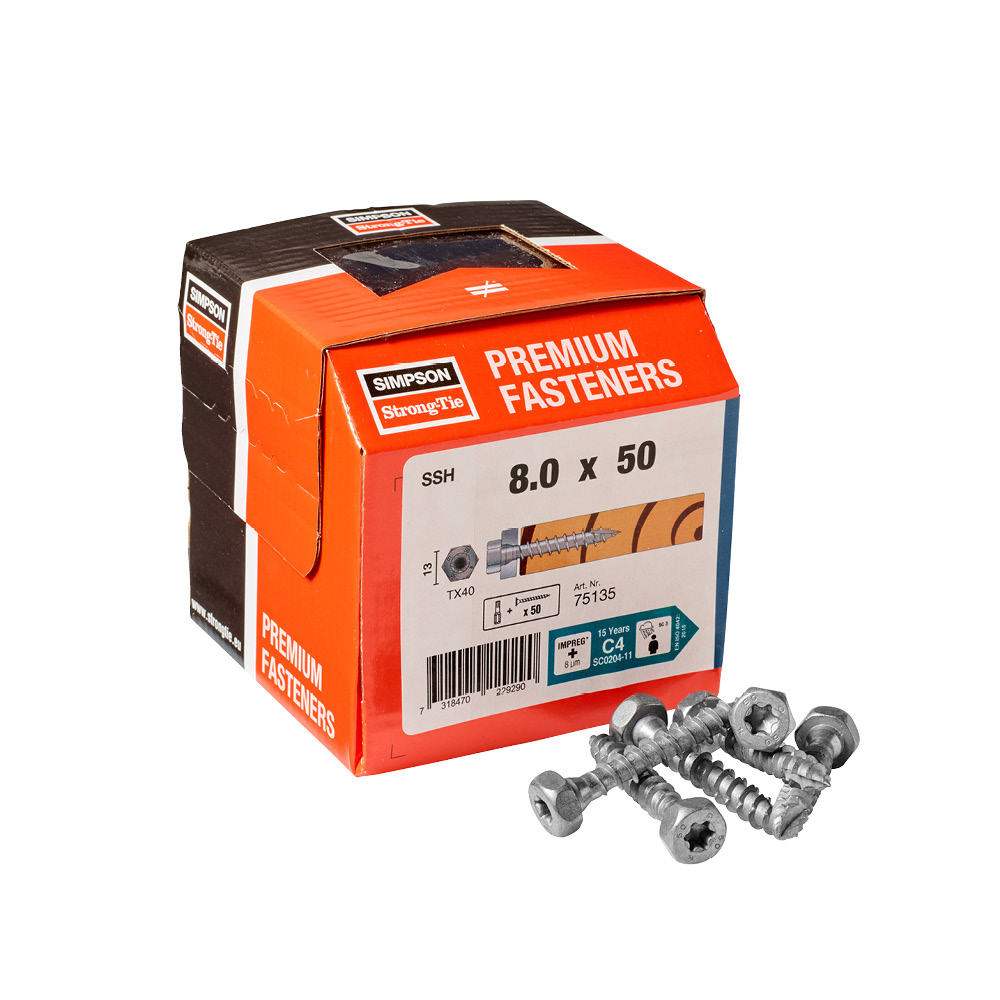

SSH8.0X50 75135 8 50 13 5.75 8.2 5.1 42 T-40 50 -
SSH8.0X60 75136 8 60 13 5.75 8.2 5.1 42 T-40 50 Yes
SSH8.0X80 75137 8 80 13 5.75 8.2 5.1 42 T-40 50 -
SSH8.0X90 75138 8 90 13 5.75 8.2 5.1 42 T-40 50 Yes
SSH8.0X100 75139 8 100 13 5.75 8.2 5.1 55 T-40 50 -
SSH8.0X120 75140 8 120 13 5.75 8.2 5.1 85 T-40 50 -
SSH8.0X140 75141 8 140 13 5.75 8.2 5.1 85 T-40 50 -
SSH8.0X160 75142 8 160 13 5.75 8.2 5.1 110 T-40 50 -
SSH8.0X180 75143 8 180 13 5.75 8.2 5.1 110 T-40 50 -
SSH8.0X200 75144 8 200 13 5.75 8.2 5.1 110 T-40 50 -
SSH8.0X240 75145 8 240 13 5.75 8.2 5.1 110 T-40 50 -
SSH8.0X260 75146 8 260 13 5.75 8.2 5.1 110 T-40 50 -
SSH8.0X280 75147 8 280 13 5.75 8.2 5.1 110 T-40 50 -
SSH8.0X300 75148 8 300 13 5.75 8.2 5.1 110 T-40 50 -
SSH10.0X40 75149 10 40 15 6 10.2 6.2 32 T-40 50 Yes
SSH10.0X50 75150 10 50 15 6 10.2 6.2 42 T-40 50 -

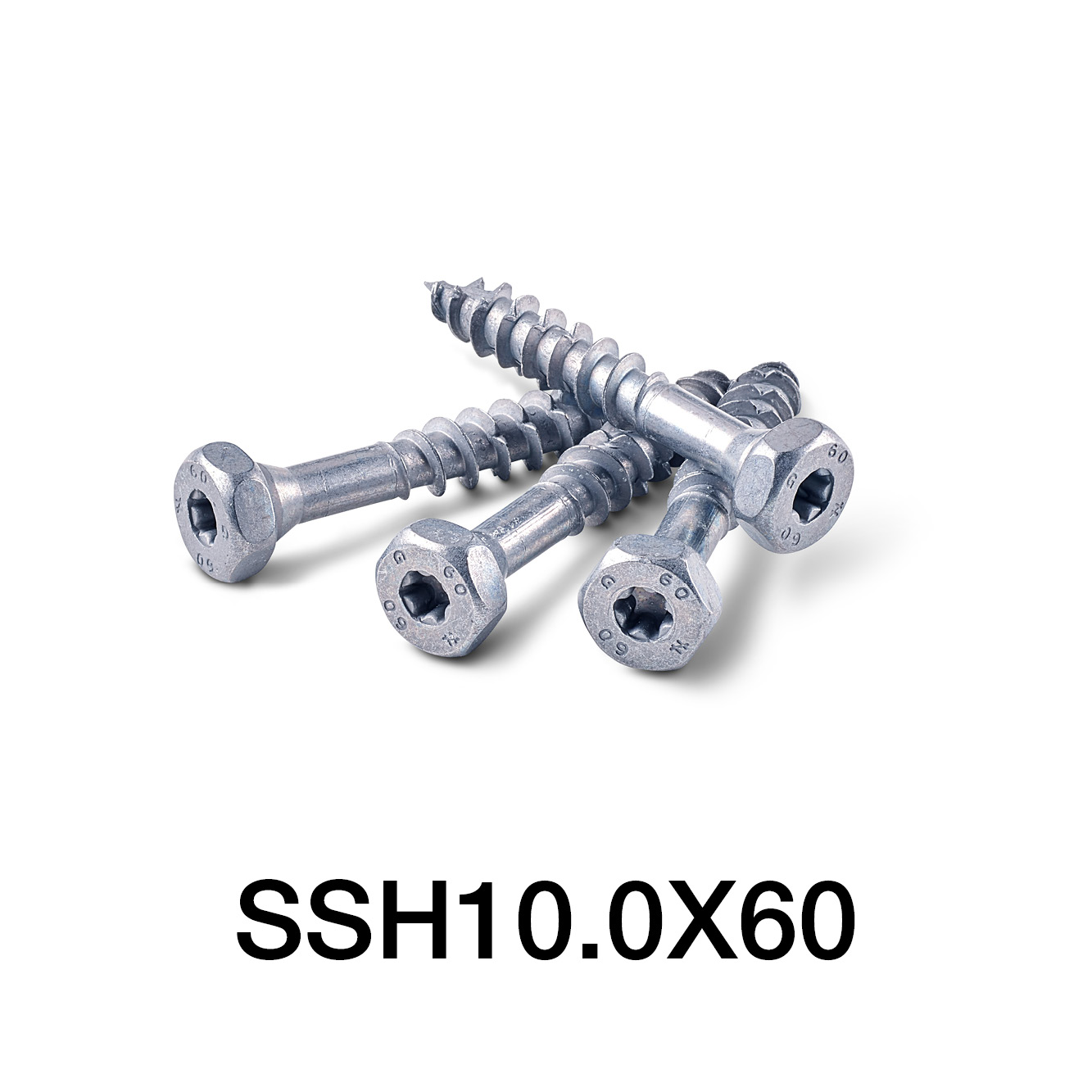

SSH10.0X60 75151 10 60 15 6 10.2 6.2 42 T-40 50 -
SSH10.0X80 75152 10 80 15 6 10.2 6.2 42 T-40 50 Yes
SSH10.0X90 75153 10 90 15 6 10.2 6.2 42 T-40 50 -
SSH10.0X100 75154 10 100 15 6 10.2 6.2 55 T-40 50 -
SSH10.0X120 75155 10 120 15 6 10.2 6.2 85 T-40 50 Yes
SSH10.0X140 75156 10 140 15 6 10.2 6.2 85 T-40 50 -
SSH10.0X160 75157 10 160 15 6 10.2 6.2 110 T-40 50 -
SSH10.0X180 75158 10 180 15 6 10.2 6.2 110 T-40 50 Yes

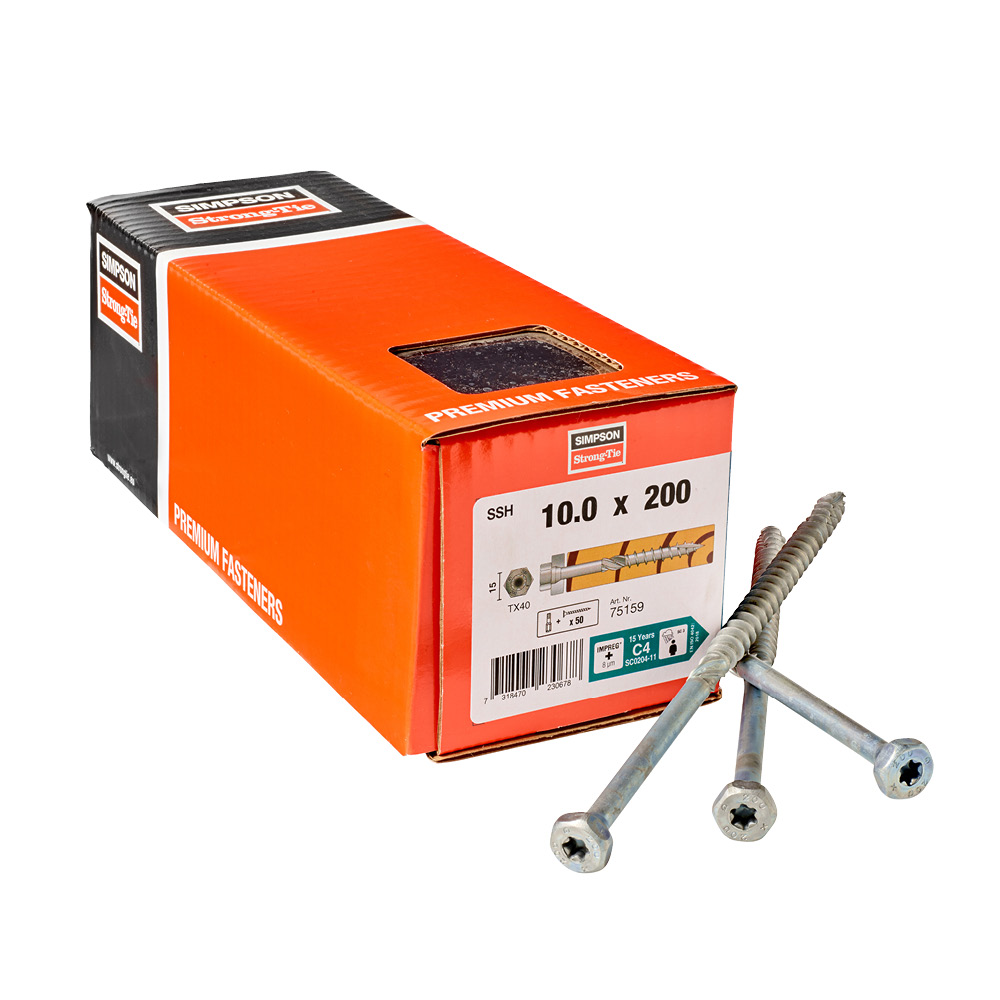

SSH10.0X200 75159 10 200 15 6 10.2 6.2 110 T-40 50 -
SSH10.0X240 75160 10 240 15 6 10.2 6.2 125 T-40 50 Yes
SSH10.0X280 75161 10 280 15 6 10.2 6.2 125 T-40 50 -
SSH12.0X60 75162 12 60 17 6.25 12.2 6.7 48 T-40 25 Yes
SSH12.0X80 75163 12 80 17 6.25 12.2 6.7 48 T-40 25 Yes
SSH12.0X90 75164 12 90 17 6.25 12.2 6.7 48 T-40 25 -
SSH12.0X100 75165 12 100 17 6.25 12.2 6.7 55 T-40 25 -
SSH12.0X120 75166 12 120 17 6.25 12.2 6.7 85 T-40 25 -
SSH12.0X140 75167 12 140 17 6.25 12.2 6.7 85 T-40 25 -
SSH12.0X160 75168 12 160 17 6.25 12.2 6.7 110 T-40 25 Yes
SSH12.0X180 75169 12 180 17 6.25 12.2 6.7 110 T-40 25 -
SSH12.0X200 75170 12 200 17 6.25 12.2 6.7 110 T-40 25 -

Compatible products

References Compatible brackets Compatible hangers Compatible post bases
SSH6.0X40 - - -
SSH6.0X50 - - -
SSH6.0X60 - - -
SSH6.0X75 - - -
SSH6.0X90 - - -
SSH6.0X120 - - -
SSH8.0X40 EBC - -
SSH8.0X50 EBC - -
SSH8.0X60 EBC - -
SSH8.0X80 EBC - -
SSH8.0X90 EBC - -
SSH8.0X100 EBC - -
SSH8.0X120 EBC - -
SSH8.0X140 EBC - -
SSH8.0X160 EBC - -
SSH8.0X180 EBC - -
SSH8.0X200 EBC - -
SSH8.0X240 EBC - -
SSH8.0X260 EBC - -
SSH8.0X280 EBC - -
SSH8.0X300 EBC - -
SSH10.0X40 E5/1.5, E5/1.5/1.22/11, ABR100, ABR105 SBE, SAE(1), S45, S1030, S1530 -
SSH10.0X50 - SBE, SAE(1), S45, S1030, S1530 -
SSH10.0X60 - SBE, SAE(1), S45, S1030, S1530 -
SSH10.0X80 ABR105, E20/3 SBE, SAE(1), S45, S1030, S1530 PPA, PPRC, APB100/150, PBLR, PPSP
SSH10.0X90 - SBE, SAE(1), S45, S1030, S1530 PPA, PPRC, APB100/150, PBLR, PPSP
SSH10.0X100 - SBE, SAE(1), S45, S1030, S1530 PPA, PPRC, APB100/150, PBLR, PPSP
SSH10.0X120 - SBE, SAE(1), S45, S1030, S1530 PPA, PPRC, APB100/150, PBLR, PPSP
SSH10.0X140 - SBE, SAE(1), S45, S1030, S1530 PPA, PPRC, APB100/150, PBLR, PPSP
SSH10.0X160 - SBE, SAE(1), S45, S1030, S1530 PPA, PPRC, APB100/150, PBLR, PPSP
SSH10.0X180 - SBE, SAE(1), S45, S1030, S1530 PPA, PPRC, APB100/150, PBLR, PPSP
SSH10.0X200 - SBE, SAE(1), S45, S1030, S1530 PPA, PPRC, APB100/150, PBLR, PPSP
SSH10.0X240 - SBE, SAE(1), S45, S1030, S1530 PPA, PPRC, APB100/150, PBLR, PPSP
SSH10.0X280 - SBE, SAE(1), S45, S1030, S1530 PPA, PPRC, APB100/150, PBLR, PPSP
SSH12.0X60 - SAE(2), GLE, GSE, S45 PBP60/50
SSH12.0X80 AE116, AG922, ABR255, AKRX3L SAE(2), GLE, GSE, S45 PBP60/50
SSH12.0X90 - SAE(2), GLE, GSE, S45 PBP60/50
SSH12.0X100 - SAE(2), GLE, GSE, S45 PBP60/50
SSH12.0X120 - SAE(2), GLE, GSE, S45 PBP60/50
SSH12.0X140 - SAE(2), GLE, GSE, S45 PBP60/50
SSH12.0X160 - SAE(2), GLE, GSE, S45 PBP60/50
SSH12.0X180 - SAE(2), GLE, GSE, S45 PBP60/50
SSH12.0X200 - SAE(2), GLE, GSE, S45 PBP60/50

SAE(1) = SAE200 and SAE250
SAE(2) = SAE300, SAE340, SAE380, SAE440 and SAE500

Characteristic properties

References Product characteristic properties
Characteristic Yield Moment - My,k [Nm] Characteristic withdrawal parameter - fax,k,90° [N/mm²] Characteristic head pull-through parameter - fhead,k [N/mm²] Characteristic tensile capacity - ftens,k [kN] Torsonial ratio
SSH6.0X40 12.4 16.9 31.8 12.8 2.5
SSH6.0X50 12.4 16.9 31.8 12.8 2.5
SSH6.0X60 12.4 16.9 31.8 12.8 2.5
SSH6.0X75 12.4 16.9 31.8 12.8 2.5
SSH6.0X90 12.4 16.9 31.8 12.8 2.5
SSH6.0X120 12.4 16.9 31.8 12.8 2.5
SSH8.0X40 29.4 15.6 22 23.2 3.1
SSH8.0X50 29.4 15.6 22 23.2 3.1
SSH8.0X60 29.4 15.6 22 23.2 3.1
SSH8.0X80 29.4 15.6 22 23.2 3.1
SSH8.0X90 29.4 15.6 22 23.2 3.1
SSH8.0X100 29.4 15.6 22 23.2 3.1
SSH8.0X120 29.4 15.6 22 23.2 3.1
SSH8.0X140 29.4 15.6 22 23.2 3.1
SSH8.0X160 29.4 15.6 22 23.2 3.1
SSH8.0X180 29.4 15.6 22 23.2 3.1
SSH8.0X200 29.4 15.6 22 23.2 3.1
SSH8.0X240 29.4 15.6 22 23.2 3.1
SSH8.0X260 29.4 15.6 22 23.2 3.1
SSH8.0X280 29.4 15.6 22 23.2 3.1
SSH8.0X300 29.4 15.6 22 23.2 3.1
SSH10.0X40 50.3 13.2 20.1 32 3.4
SSH10.0X50 50.3 13.2 20.1 32 3.4
SSH10.0X60 50.3 13.2 20.1 32 3.4
SSH10.0X80 50.3 13.2 20.1 32 3.4
SSH10.0X90 50.3 13.2 20.1 32 3.4
SSH10.0X100 50.3 13.2 20.1 32 3.4
SSH10.0X120 50.3 13.2 20.1 32 3.4
SSH10.0X140 50.3 13.2 20.1 32 3.4
SSH10.0X160 50.3 13.2 20.1 32 3.4
SSH10.0X180 50.3 13.2 20.1 32 3.4
SSH10.0X200 50.3 13.2 20.1 32 3.4
SSH10.0X240 50.3 13.2 20.1 32 3.4
SSH10.0X280 50.3 13.2 20.1 32 3.4
SSH12.0X60 67.1 12.1 18.5 39.6 3
SSH12.0X80 67.1 12.1 18.5 39.6 3
SSH12.0X90 67.1 12.1 18.5 39.6 3
SSH12.0X100 67.1 12.1 18.5 39.6 3
SSH12.0X120 67.1 12.1 18.5 39.6 3
SSH12.0X140 67.1 12.1 18.5 39.6 3
SSH12.0X160 67.1 12.1 18.5 39.6 3
SSH12.0X180 67.1 12.1 18.5 39.6 3
SSH12.0X200 67.1 12.1 18.5 39.6 3

SSH8.0x40 and SSH10.0x40 characteristic properties are available in compatible products datasheets with these screws (see above table).

Certification

Declaration of Performance (DoP)
