SPR

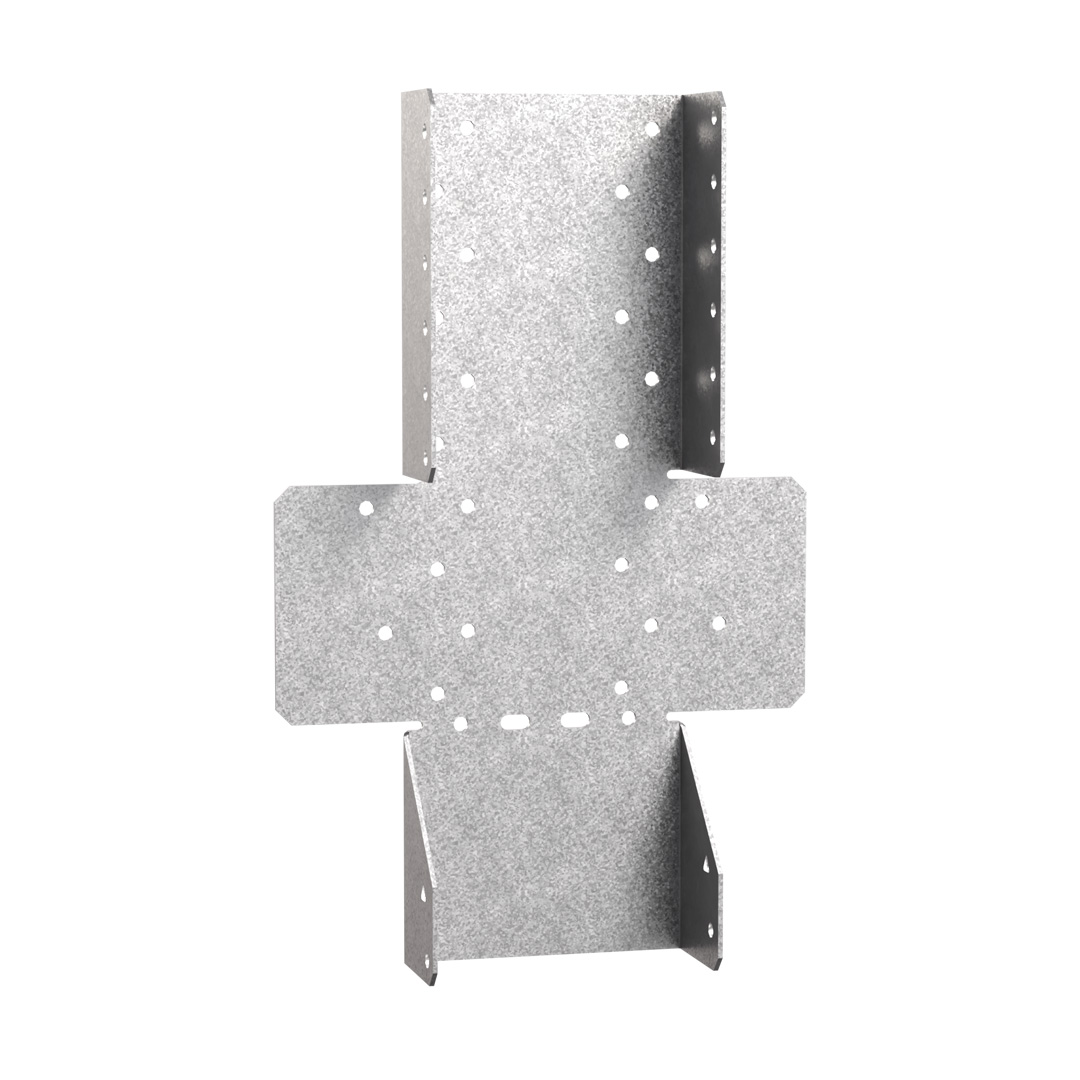

Timber Joist Hanger Slope Adjustable

The SPR connector supports rafters from other timber members and can be sloped up or down by up to 45 degress.

Slope angle can be adjusted on-site.
Adjustable between 0 and 45 degree, up and down.
supports a range of timber heights from 145mm to 250mm.

Technical Data Sheet

CE Marking

ETA

Service class 2

Electrogalvanized steel 20 µm

Product Details

Images

Features

Material

Galvanized steel S250GD + Z275 according to NF EN 10346.

Application

For Connecting

Supporting member: solid wood, composite lumber, glued-laminated wood, concrete, steel.
Supported member: solid wood, composite lumber, glued-laminated wood.

Applications

Joists,
Purlins,
Smooth beams...

Technical Data

Dimensions

Product dimensions

References	Joist dimensions [mm]				Product dimensions [mm]						Header holes	Joist holes
	Width		Height		A	B	C	D	F	t	Ø5	Ø5	Traingular
	Min.	Max.	Min.	Max.	A	B	C	D	F	t	Ø5	Ø5	Traingular
SPR47/140	45	47	145	200	47	140	74	43	78	1.5	13	8	2
SPR47/200	45	47	200	250	47	200	74	43	78	1.5	17	14	2
SPR91/140	89	91	145	200	91	140	74	43	78	1.5	18	8	2
SPR91/200	89	91	200	250	91	200	74	43	78	1.5	24	14	2

The lower heel of the joist hanger must be bent only once along the desired angle α.

The height of joist is dependet on the slope.

Product characteristic capacities - Timber beam to timber beam

References	Fasteners		Product characteristic capacities - Timber C24 [kN]		Safe working loads - timber C24 [kN]
	Header	Joist	R_1.k	R_2.k	R_{1,SWL,Long term}	R_{1,SWL,Medium Term}	R_{2,SWL,Short term}
	Qty	Qty	N3.75x30	N3.75x30	N3.75x30	N3.75x30	N3.75x30
SPR47/140	13	10	6	6	2.5	2.9	3
SPR47/200	17	16	12.2	12.2	5.1	5.8	6.1
SPR91/140	18	10	8.3	8.3	3.5	4	4.2
SPR91/200	24	16	14.5	14.5	6	6.9	7.2

number in ( ) are the number of square twist nails N3,75x30

Installation

Fasteners

On supported member:

CNA annular ring-shank nails dia. 4.0 x 35 mm or CNA dia. 4.0 x 50 mm.
Square twist nails N3,75x30

On supporting member:
Wood substrate:

CNA annular ring-shank nails dia. 4.0 x 35 or CNA dia. 4.0 x 50 mm.
Lag screws and bolts dia. 10 mm.
Square twist nails N3,75x30

Concrete substrate:

Mechanical anchor: WA M10-78/5 .
Chemical anchor threaded rod dia. 10 mm: LMAS M10-130 with AT-HP resin.

Metal substrate:

Bolts dia. 10 mm.

Installation

Use all specified fasteners.
Bend only once.

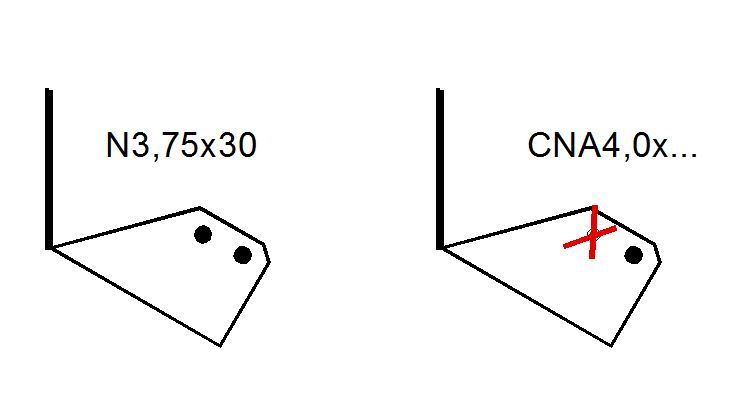

To ensure proper seat installation, install the bottom nails prior to the side nails.
Attach the sloped joist at both ends so that the horizontal force developed by the slope is fully supported by the carried members.

Certification

Declaration of Performance (DoP)

uk-dop-e08-0053-issue-3.pdf (41.63 KB)

2015-08-04

uk-dop-e08-0053-issue-2.pdf (31.77 KB)

2013-03-01

5e6f500bc44715caf0af78e8e611f6628f3d9db7.pdf (31.68 KB)

European Technical Assessment (ETA)

eta-08-0053-2017-09-22.pdf (1.35 MB)

2013-07-18

eta-080053-issue-3.pdf (1.47 MB)
