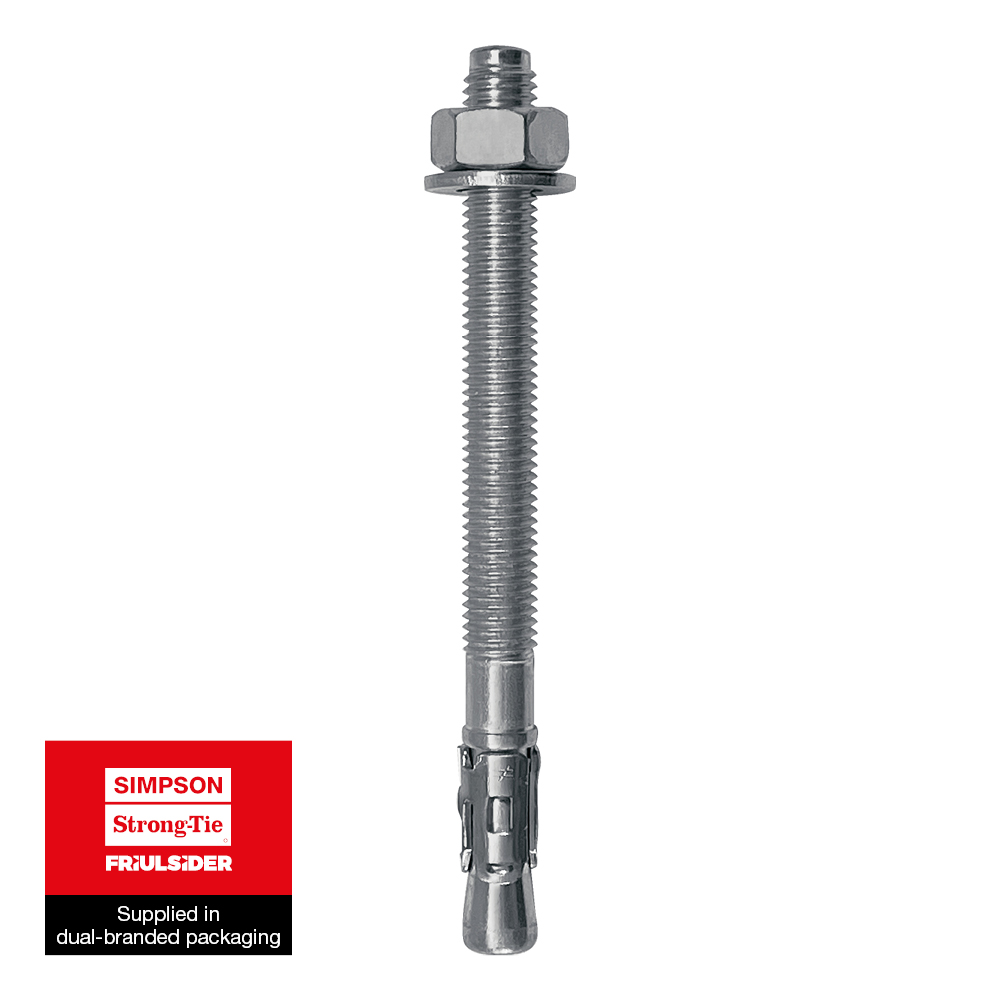

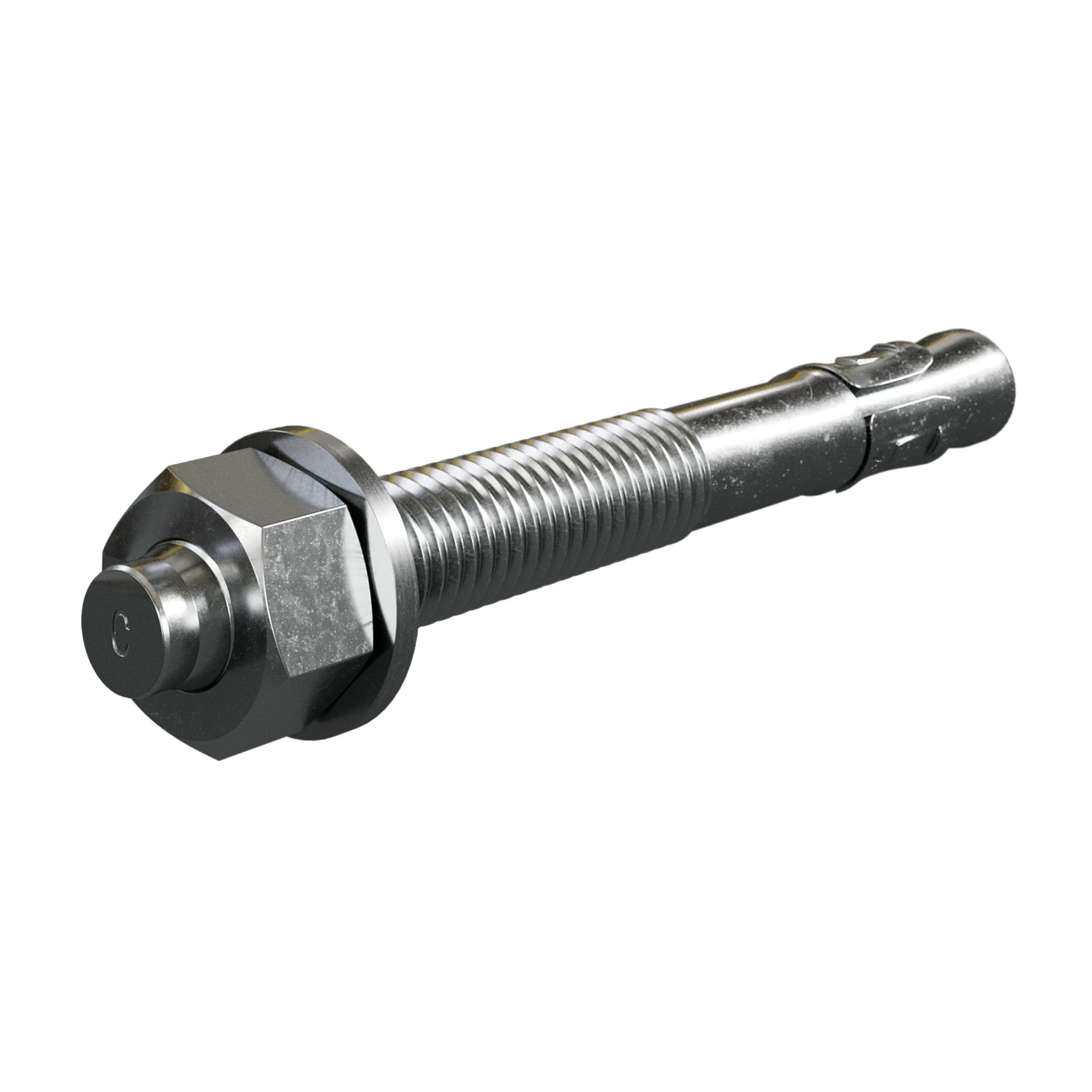

FM 753 evo

Heavy Duty Wedge Anchor

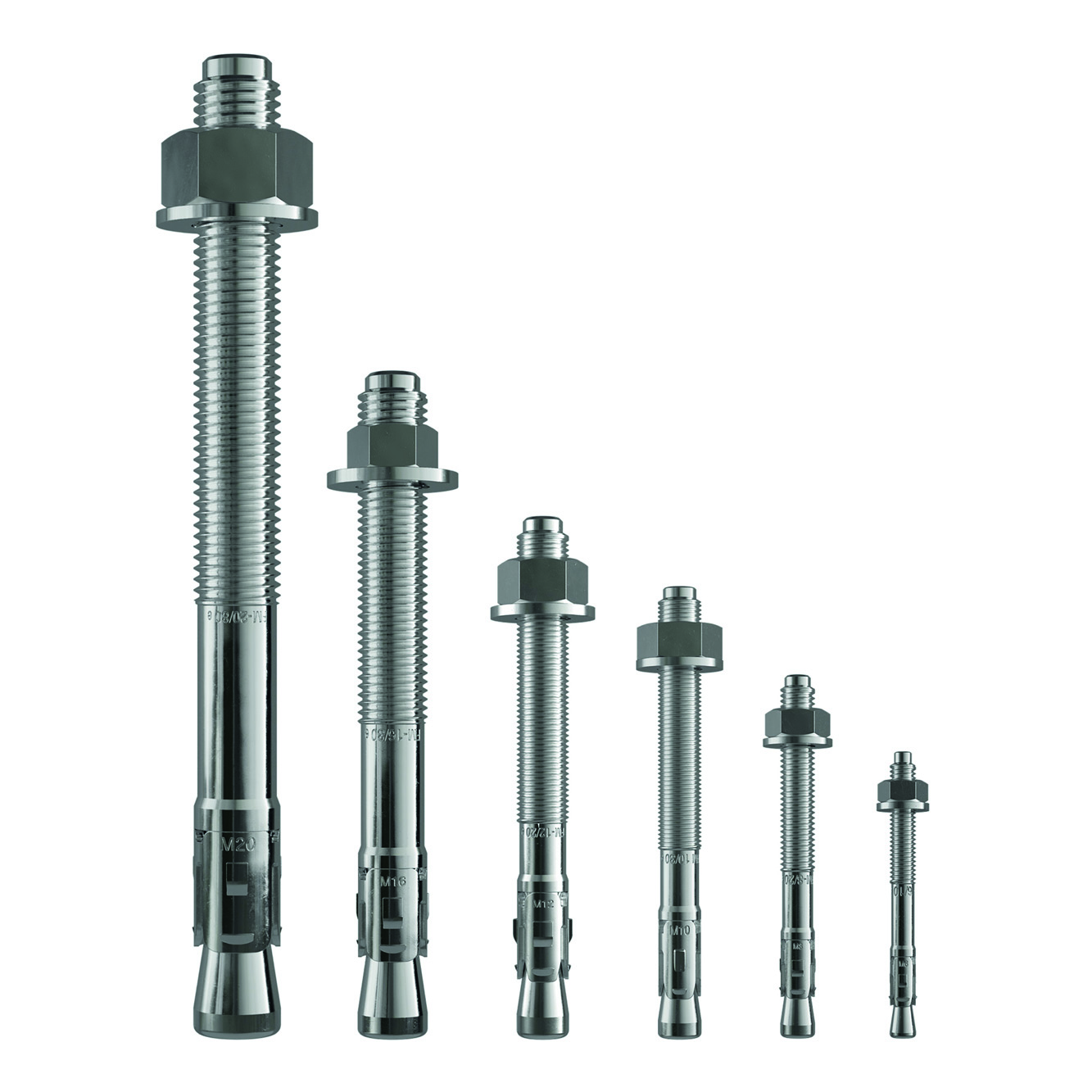

Heavy-duty wedge anchor for the medium load range, in sizes M6 - M20 for anchoring in non-cracked concrete C20/25 - C50/60.

Technical Data Sheet

CE Marking

ETA

Indoor

Electro-galvanized steel

Service class 2

Fix Calc

Product Details

Images

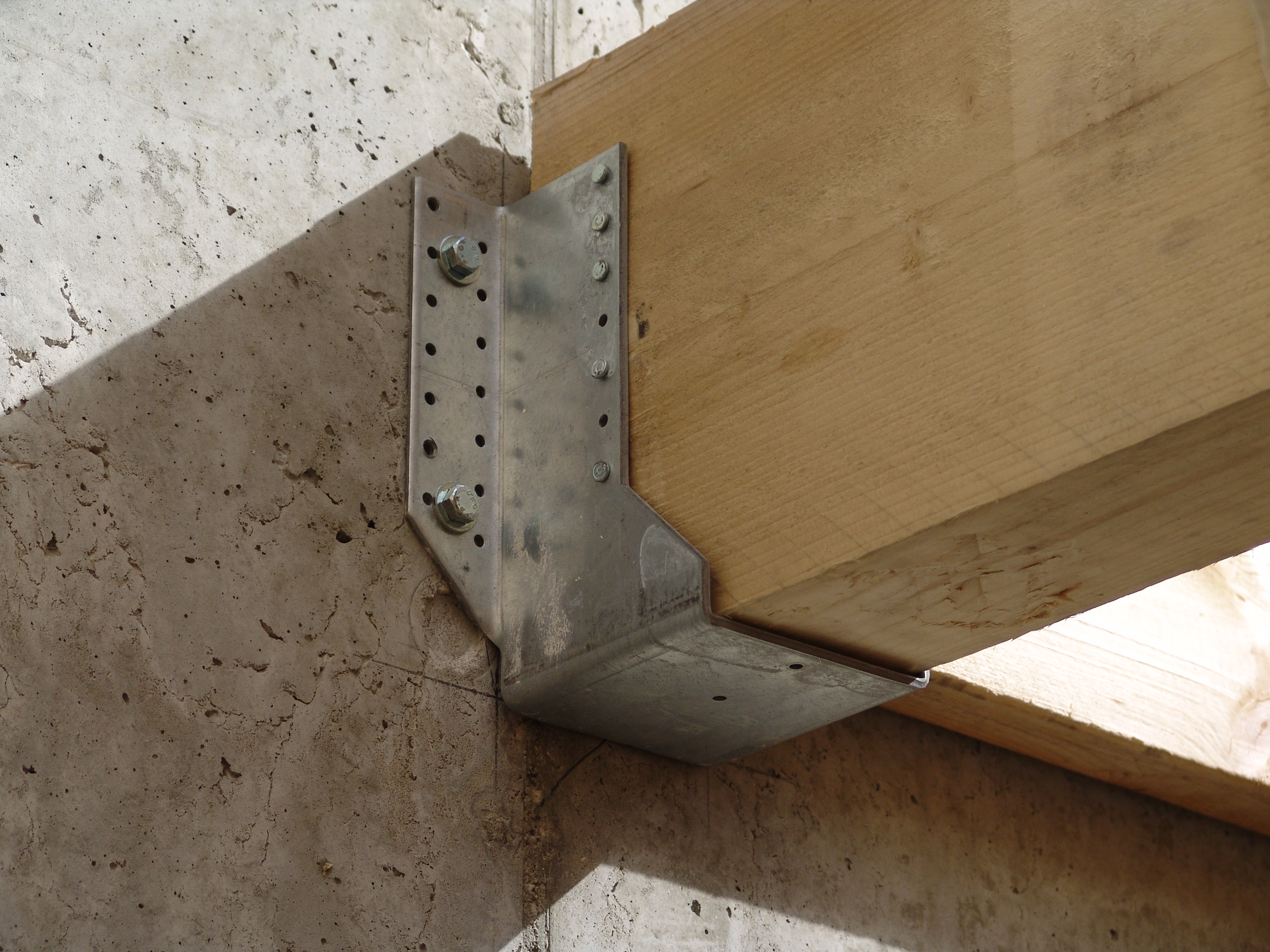

Fixation de structure bois

Zoom de la pointe

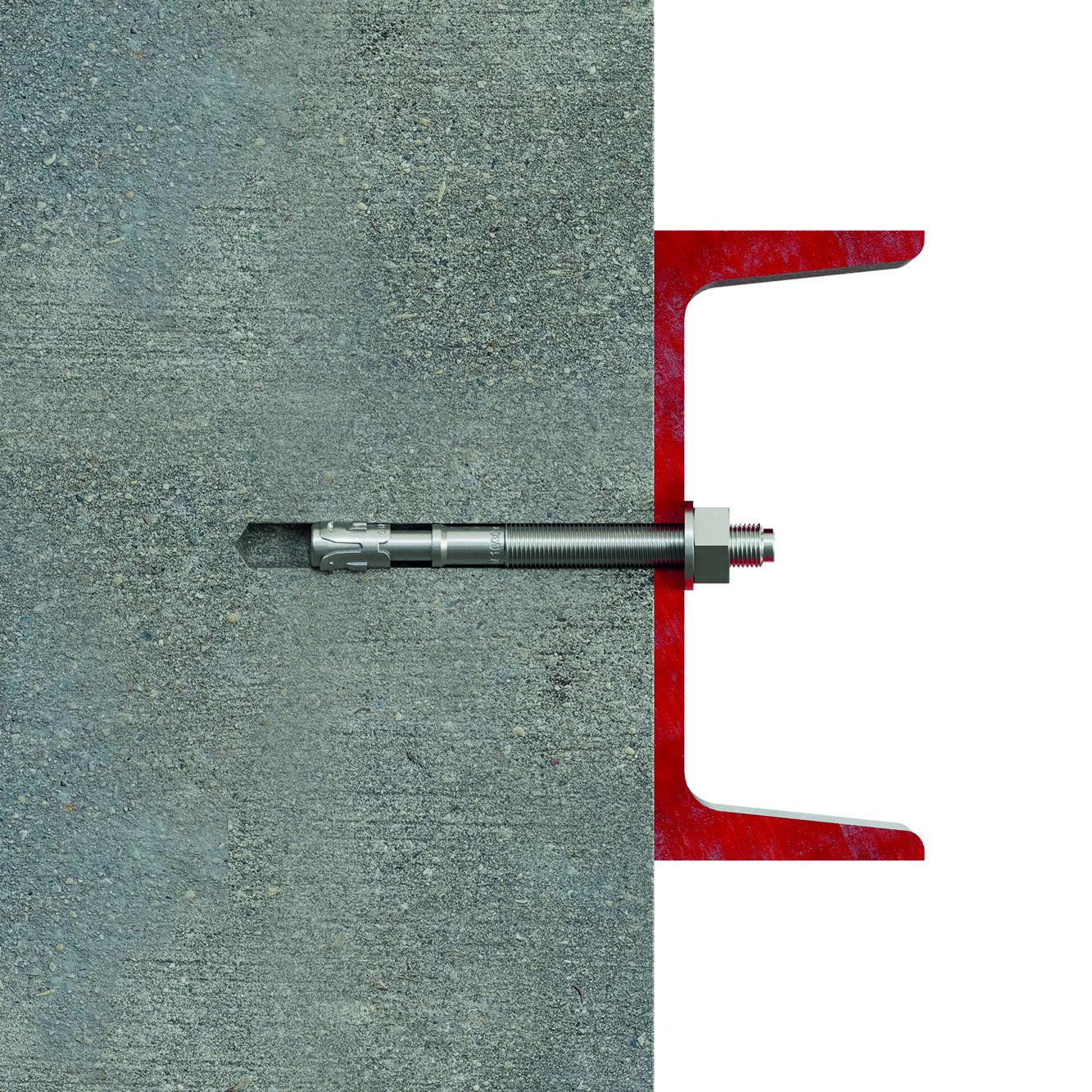

Steel frame structure anchoring

Features

Material

Cold formed carbon steel body with special geometry clip

Benefits

Wide range
Easy installation
Versatile
Cold forged anchor body
Increased thickness of three expander segments
Six teeth and anti-slip ridge to prevent slip during tightening

Application

Applications

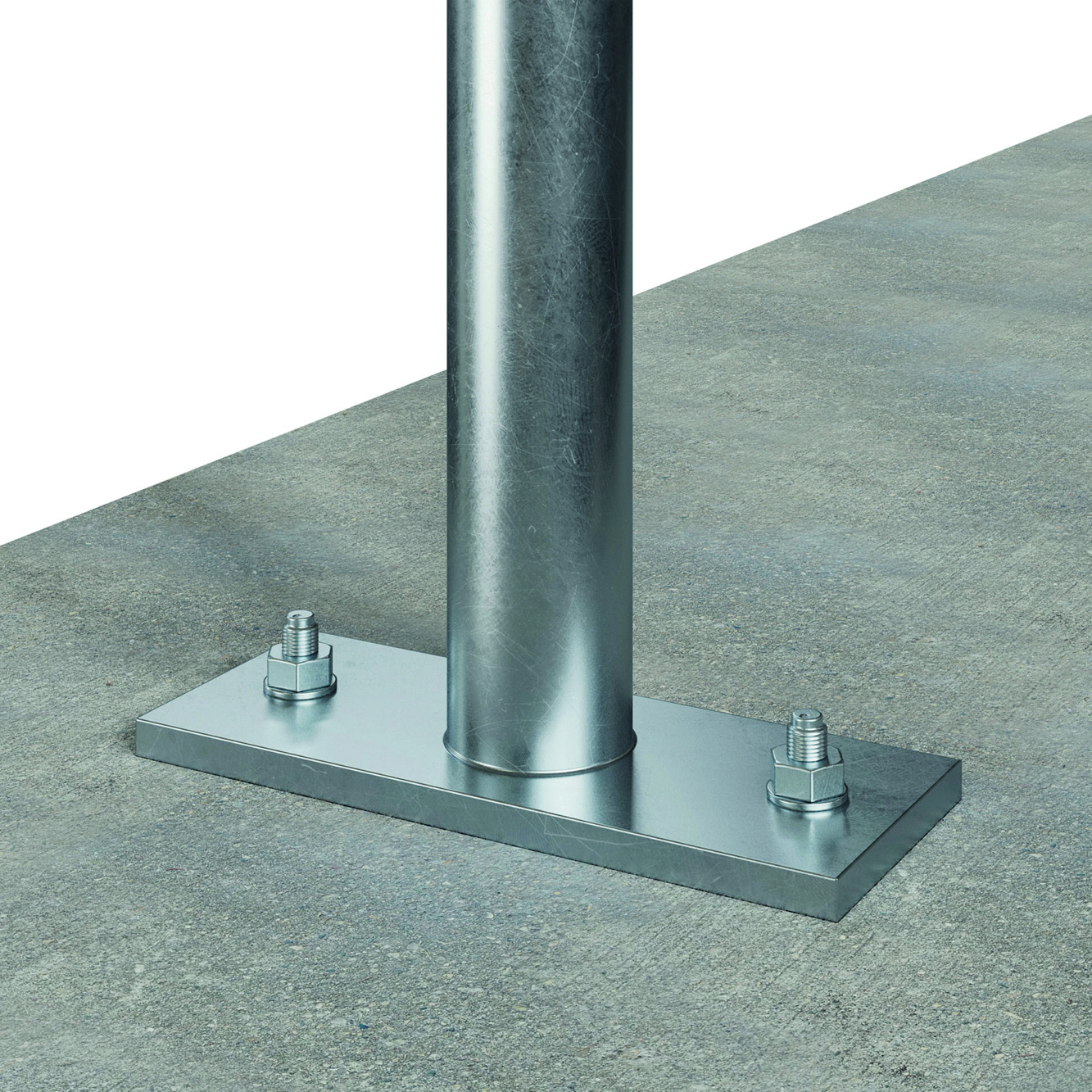

Railings
Metal and wood carpentry
Facades

Suitable for

Non-cracked concrete
Solid stone

Technical Data

Other

fm-753-evo-rev02.pdf

Dimensions

Reference	Metallic fixings dimensions												Installation data
	Other							Product Reference	Dimensions and drill holes[mm]				Installation data			Spacing and edge distances - Rebar
	NOB nr.	Fixture thickness [tfᵢₓ,ₘₐₓ] with standard setting depth [hₑf,ₛₜD][mm]	Hole diameter [dₒ][mm]	Hole diameter in fixture [df][mm]	Qty per box[stk]	Qty per outer box	Weight[kg]	Product Reference	Dimensions[mm]	ID¹)	Thread length [Lv][mm]	Wrench size[mm]	Min. hole depth [h₁][mm]	Embedment depth[mm]	Installation torque[Nm]	Min. support thickness [hₘᵢₙ]
75340B0604800	60743077	3	6	7	150.0	1500	0.012	FM 753 evo	M6x48/*	A	18	10	45	30	8	90
75340B0606500	60743078	10	6	7	100.0	1000	0.015	FM 753 evo	M6x65	B	30	10	55	40	8	100
75340B0608500	-	30	6	7	100.0	1000	0.018	FM 753 evo	M6x85	C	40	10	55	40	8	100
75340B0610000	-	45	6	7	50.0	500	0.022	FM 753 evo	M6x100	D	50	10	55	40	8	100
75340B0805300	-	5	8	9	100.0	400	0.025	FM 753 evo	M8x53/*	A	20	13	50	30	15	90
75340B0806800	-	5	8	9	100.0	400	0.028	FM 753 evo	M8x68	B	40	13	65	45	15	100
75340B0807300	-	10	8	9	100.0	400	0.029	FM 753 evo	M8x73	C	45	13	65	45	15	100
75340B0808300	-	20	8	9	100.0	400	0.033	FM 753 evo	M8x83	D	45	13	65	45	15	100
75340B0809300	-	30	8	9	100.0	400	0.036	FM 753 evo	M8x93	E	50	13	65	45	15	100
75340B0810300	-	40	8	9	100.0	400	0.04	FM 753 evo	M8x103	F	50	13	65	45	15	100
75340B0811300	60743079	50	8	9	100.0	400	0.042	FM 753 evo	M8x113	G	60	13	65	45	15	100
75340B0813300	-	70	8	9	100.0	400	0.048	FM 753 evo	M8x133	H	85	13	65	45	15	100
75340B0816300	-	100	8	9	50.0	200	0.058	FM 753 evo	M8x163	I	100	13	65	45	15	100
75340B1006300	60743080	5	10	12	50.0	200	0.047	FM 753 evo	M10x63/*	A	25	17	55	35	30	90
75340B1007800	-	5	10	12	50.0	200	0.055	FM 753 evo	M10x78	B	40	17	70	50	30	100
75340B1008300	60743081	10	10	12	50.0	200	0.056	FM 753 evo	M10x83	C	40	17	70	50	30	100
75340B1009300	-	20	10	12	50.0	200	0.061	FM 753 evo	M10x93	D	50	17	70	50	30	100
75340B1010300	60743082	30	10	12	50.0	200	0.065	FM 753 evo	M10x103	E	50	17	70	50	30	100
75340B1011300	-	40	10	12	50.0	200	0.071	FM 753 evo	M10x113	F	60	17	70	50	30	100
75340B1012300	60743083	50	10	12	50.0	200	0.076	FM 753 evo	M10x123	G	60	17	70	50	30	100
75340B1014300	-	70	10	12	50.0	200	0.085	FM 753 evo	M10x143	H	70	17	70	50	30	100
75340B1017300	-	100	10	12	25.0	100	0.1	FM 753 evo	M10x173	I	80	17	70	50	30	100
75340B1021300	-	140	10	12	25.0	100	0.12	FM 753 evo	M10x213	L	100	17	70	50	30	100
75340B1208500	60743084	5	12	14	50.0	200	0.084	FM 753 evo	M12x85/*	A	40	19	75	50	50	120
75340B1210400	-	5	12	14	50.0	200	0.097	FM 753 evo	M12x104	B	60	19	90	65	50	130
75340B1210900	60743085	10	12	14	50.0	200	0.1	FM 753 evo	M12x109	C	60	19	90	65	50	130
75340B1211900	-	20	12	14	50.0	200	0.11	FM 753 evo	M12x119	D	70	19	90	65	50	130
75340B1212900	60843086	30	12	14	25.0	100	0.12	FM 753 evo	M12x129	E	70	19	90	65	50	130
75340B1213900	-	40	12	14	25.0	100	0.13	FM 753 evo	M12x139	F	80	19	90	65	50	130
75340B1214900	60743087	50	12	14	25.0	100	0.13	FM 753 evo	M12x149	G	100	19	90	65	50	130
75340B1217900	-	80	12	14	25.0	100	0.15	FM 753 evo	M12x179	H	110	19	90	65	50	130
75340B1219900	60743088	100	12	14	25.0	100	0.17	FM 753 evo	M12x199	I	110	19	90	65	50	130
75340B1221900	-	120	12	14	20.0	80	0.18	FM 753 evo	M12x219	L	125	19	90	65	50	130
75340B1223900	-	140	12	14	20.0	80	0.2	FM 753 evo	M12x239	M	125	19	90	65	50	130
75340B1225900	-	160	12	14	20.0	80	0.21	FM 753 evo	M12x259	N	125	19	90	65	50	130
75340B1226900	-	170	12	14	20.0	80	0.22	FM 753 evo	M12x269	O	135	19	90	65	50	130
75340B1229900	-	200	12	14	20.0	80	0.24	FM 753 evo	M12x299	P	155	19	90	65	50	130
75340B1231900	-	220	12	14	20.0	80	0.25	FM 753 evo	M12x319	Q	155	19	90	65	50	130
75340B1233900	-	240	12	14	15.0	60	0.26	FM 753 evo	M12x339	R	155	19	90	65	50	130
75340B1236900	-	270	12	14	15.0	-	0.29	FM 753 evo	M12x369	S	155	19	90	65	50	130
75340B1611000	60743089	15	16	18	20.0	80	0.19	FM 753 evo	M16x110/*	A	50	24	89	59	100	140
75340B1613100	-	10	16	18	20.0	80	0.21	FM 753 evo	M16x131	B	65	24	110	80	100	160
75340B1615100	60743090	30	16	18	20.0	80	0.24	FM 753 evo	M16x151	C	80	24	110	80	100	160
75340B1617100	60743091	50	16	18	15.0	60	0.27	FM 753 evo	M16x171	D	80	24	110	80	100	160
75340B1620100	-	80	16	18	15.0	60	0.31	FM 753 evo	M16x201	E	100	24	110	80	100	160
75340B1622100	60743092	100	16	18	15.0	60	0.34	FM 753 evo	M16x221	F	100	24	110	80	100	160
75340B1624100	-	120	16	18	10.0	40	0.37	FM 753 evo	M16x241	G	110	24	110	80	100	160
75340B1626100	-	140	16	18	10.0	40	0.4	FM 753 evo	M16x261	H	110	24	110	80	100	160
75340B1628100	-	160	16	18	10.0	40	0.42	FM 753 evo	M16x281	I	125	24	110	80	100	160
75340B1632100	-	200	16	18	10.0	40	0.47	FM 753 evo	M16x321	L	150	24	110	80	100	160
75340B2017300	-	30	20	22	10.0	40	0.44	FM 753 evo	M20x173**	B	100	30	130	100	200	200
75340B2022300	-	80	20	22	10.0	-	0.54	FM 753 evo	M20x223**	D	125	30	130	100	200	200
75340B2026300	-	120	20	22	10.0	-	0.62	FM 753 evo	M20x263**	E	150	30	130	100	200	200

^*Anchors with reduced embedment depths
^** Not covered by CE certification

¹⁾Ident. mark, product length

Design capacities - single anchor - no edge distances

Reference	Metallic fixings dimensions	Metallic fixings loads
	Dimensions and drill holes[mm]	Design capacity - Non-cracked concrete (3)[kN]								Design capacity - Cracked concrete
	Dimensions[mm]	Tension - NRd (1)				Shear - VRd (1-2)[kN]				Bending moment MRd[Nm]
	Dimensions[mm]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]	Bending moment MRd[Nm]
75340B0604800	M6x48/*	4	4	4	4.1	5.1	5.1	5.1	5.1	7.3
75340B0606500	M6x65	4	4	4	4.1	5.1	5.1	5.1	5.1	7.3
75340B0608500	M6x85	4	4	4	4.1	5.1	5.1	5.1	5.1	7.3
75340B0610000	M6x100	4	4	4	4.1	5.1	5.1	5.1	5.1	7.3
75340B0805300	M8x53/*	8	8.3	8.5	8.7	7.9	7.9	7.9	7.9	21.5
75340B0806800	M8x68	8	8.3	8.5	8.7	7.9	7.9	7.9	7.9	21.5
75340B0807300	M8x73	8	8.3	8.5	8.7	7.9	7.9	7.9	7.9	21.5
75340B0808300	M8x83	8	8.3	8.5	8.7	7.9	7.9	7.9	7.9	21.5
75340B0809300	M8x93	8	8.3	8.5	8.7	7.9	7.9	7.9	7.9	21.5
75340B0810300	M8x103	8	8.3	8.5	8.7	7.9	7.9	7.9	7.9	21.5
75340B0811300	M8x113	8	8.3	8.5	8.7	7.9	7.9	7.9	7.9	21.5
75340B0813300	M8x133	8	8.3	8.5	8.7	7.9	7.9	7.9	7.9	21.5
75340B0816300	M8x163	8	8.3	8.5	8.7	7.9	7.9	7.9	7.9	21.5
75340B1006300	M10x63/*	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1007800	M10x78	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1008300	M10x83	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1009300	M10x93	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1010300	M10x103	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1011300	M10x113	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1012300	M10x123	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1014300	M10x143	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1017300	M10x173	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1021300	M10x213	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1208500	M12x85/*	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1210400	M12x104	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1210900	M12x109	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1211900	M12x119	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1212900	M12x129	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1213900	M12x139	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1214900	M12x149	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1217900	M12x179	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1219900	M12x199	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1221900	M12x219	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1223900	M12x239	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1225900	M12x259	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1226900	M12x269	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1229900	M12x299	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1231900	M12x319	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1233900	M12x339	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1236900	M12x369	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1611000	M16x110/*	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3
75340B1613100	M16x131	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3
75340B1615100	M16x151	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3
75340B1617100	M16x171	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3
75340B1620100	M16x201	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3
75340B1622100	M16x221	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3
75340B1624100	M16x241	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3
75340B1626100	M16x261	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3
75340B1628100	M16x281	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3
75340B1632100	M16x321	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3
75340B2017300	M20x173**	27.9	19.9	19.9	19.9	37.4	37.4	37.4	37.4	-
75340B2022300	M20x223**	27.9	19.9	19.9	19.9	37.4	37.4	37.4	37.4	-
75340B2026300	M20x263**	27.9	19.9	19.9	19.9	37.4	37.4	37.4	37.4	-

1. The design loads loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).

Recommended capacities - single anchor - no edge distances

Reference	Metallic fixings dimensions	Metallic fixings loads
	Dimensions and drill holes[mm]	Recommended loads - Non-cracked concrete								Design capacity - Non-cracked concrete (3)[kN]
	Dimensions[mm]	Tension - Nᵣₑc[kN]				Shear - Vᵣₑc[kN]				Bending moment MRd[Nm]
	Dimensions[mm]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]	Bending moment MRd[Nm]
75340B0604800	M6x48/*	2.2	2.9	2.9	2.9	2.9	3.6	3.6	3.6	3.6
75340B0606500	M6x65	2.2	2.9	2.9	2.9	2.9	3.6	3.6	3.6	3.6
75340B0608500	M6x85	2.2	2.9	2.9	2.9	2.9	3.6	3.6	3.6	3.6
75340B0610000	M6x100	2.2	2.9	2.9	2.9	2.9	3.6	3.6	3.6	3.6
75340B0805300	M8x53/*	2.4	5.7	5.9	6.1	6.2	5.6	5.6	5.6	5.6
75340B0806800	M8x68	2.4	5.7	5.9	6.1	6.2	5.6	5.6	5.6	5.6
75340B0807300	M8x73	2.4	5.7	5.9	6.1	6.2	5.6	5.6	5.6	5.6
75340B0808300	M8x83	2.4	5.7	5.9	6.1	6.2	5.6	5.6	5.6	5.6
75340B0809300	M8x93	2.4	5.7	5.9	6.1	6.2	5.6	5.6	5.6	5.6
75340B0810300	M8x103	2.4	5.7	5.9	6.1	6.2	5.6	5.6	5.6	5.6
75340B0811300	M8x113	2.4	5.7	5.9	6.1	6.2	5.6	5.6	5.6	5.6
75340B0813300	M8x133	2.4	5.7	5.9	6.1	6.2	5.6	5.6	5.6	5.6
75340B0816300	M8x163	2.4	5.7	5.9	6.1	6.2	5.6	5.6	5.6	5.6
75340B1006300	M10x63/*	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1007800	M10x78	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1008300	M10x83	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1009300	M10x93	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1010300	M10x103	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1011300	M10x113	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1012300	M10x123	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1014300	M10x143	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1017300	M10x173	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1021300	M10x213	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1208500	M12x85/*	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1210400	M12x104	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1210900	M12x109	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1211900	M12x119	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1212900	M12x129	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1213900	M12x139	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1214900	M12x149	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1217900	M12x179	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1219900	M12x199	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1221900	M12x219	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1223900	M12x239	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1225900	M12x259	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1226900	M12x269	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1229900	M12x299	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1231900	M12x319	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1233900	M12x339	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1236900	M12x369	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1611000	M16x110/*	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8
75340B1613100	M16x131	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8
75340B1615100	M16x151	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8
75340B1617100	M16x171	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8
75340B1620100	M16x201	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8
75340B1622100	M16x221	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8
75340B1624100	M16x241	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8
75340B1626100	M16x261	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8
75340B1628100	M16x281	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8
75340B1632100	M16x321	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8
75340B2017300	M20x173**	-	19.9	14.2	14.2	14.2	26.7	26.7	26.7	26.7
75340B2022300	M20x223**	-	19.9	14.2	14.2	14.2	26.7	26.7	26.7	26.7
75340B2026300	M20x263**	-	19.9	14.2	14.2	14.2	26.7	26.7	26.7	26.7

1. The recommended loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s) and with a partial safety factor for actions of γF=1.4. The loading figures
are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10 mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per
ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).

Design capacities - single anchor - no edge distances - reduced embedment depth

Reference	Metallic fixings dimensions	Metallic fixings loads	Installation data
	Dimensions and drill holes[mm]	Design loads - Tension & Shear - Nᵣd[kN]	Installation data	Spacing and edge distances
	Dimensions[mm]	Design loads - Tension & Shear - Nᵣd[kN]	Reduced setting depth [hₑf,ᵣₑD][mm]	Characteristic spacing for hₑf,ᵣ(⁵)[mm]	Min. setting depth [hₑf][mm]	Min. spacing for hₑf,ᵣ[mm]	Min. edge distance for hₑf,ᵣ
75340B0604800	M6x48/*	5.2	30	90	45	30	40
75340B0606500	M6x65	5.2	30	90	45	30	40
75340B0608500	M6x85	5.2	30	90	45	30	40
75340B0610000	M6x100	5.2	30	90	45	30	40
75340B0805300	M8x53/*	13.4	30	90	45	40	40
75340B0806800	M8x68	13.4	30	90	45	40	40
75340B0807300	M8x73	13.4	30	90	45	40	40
75340B0808300	M8x83	13.4	30	90	45	40	40
75340B0809300	M8x93	13.4	30	90	45	40	40
75340B0810300	M8x103	13.4	30	90	45	40	40
75340B0811300	M8x113	13.4	30	90	45	40	40
75340B0813300	M8x133	13.4	30	90	45	40	40
75340B0816300	M8x163	13.4	30	90	45	40	40
75340B1006300	M10x63/*	26.6	35	105	55	50	50
75340B1007800	M10x78	26.6	35	105	55	50	50
75340B1008300	M10x83	26.6	35	105	55	50	50
75340B1009300	M10x93	26.6	35	105	55	50	50
75340B1010300	M10x103	26.6	35	105	55	50	50
75340B1011300	M10x113	26.6	35	105	55	50	50
75340B1012300	M10x123	26.6	35	105	55	50	50
75340B1014300	M10x143	26.6	35	105	55	50	50
75340B1017300	M10x173	26.6	35	105	55	50	50
75340B1021300	M10x213	26.6	35	105	55	50	50
75340B1208500	M12x85/*	46.6	50	150	75	70	70
75340B1210400	M12x104	46.6	50	150	75	70	70
75340B1210900	M12x109	46.6	50	150	75	70	70
75340B1211900	M12x119	46.6	50	150	75	70	70
75340B1212900	M12x129	46.6	50	150	75	70	70
75340B1213900	M12x139	46.6	50	150	75	70	70
75340B1214900	M12x149	46.6	50	150	75	70	70
75340B1217900	M12x179	46.6	50	150	75	70	70
75340B1219900	M12x199	46.6	50	150	75	70	70
75340B1221900	M12x219	46.6	50	150	75	70	70
75340B1223900	M12x239	46.6	50	150	75	70	70
75340B1225900	M12x259	46.6	50	150	75	70	70
75340B1226900	M12x269	46.6	50	150	75	70	70
75340B1229900	M12x299	46.6	50	150	75	70	70
75340B1231900	M12x319	46.6	50	150	75	70	70
75340B1233900	M12x339	46.6	50	150	75	70	70
75340B1236900	M12x369	46.6	50	150	75	70	70
75340B1611000	M16x110/*	110.9	59	180	90	90	90
75340B1613100	M16x131	110.9	59	180	90	90	90
75340B1615100	M16x151	110.9	59	180	90	90	90
75340B1617100	M16x171	110.9	59	180	90	90	90
75340B1620100	M16x201	110.9	59	180	90	90	90
75340B1622100	M16x221	110.9	59	180	90	90	90
75340B1624100	M16x241	110.9	59	180	90	90	90
75340B1626100	M16x261	110.9	59	180	90	90	90
75340B1628100	M16x281	110.9	59	180	90	90	90
75340B1632100	M16x321	110.9	59	180	90	90	90

Shear value valid with distance from the edge c>10 x h_ef,r

Recommended capacities - single anchor - no edge distances - reduced embedment depth

Reference	Metallic fixings dimensions	Metallic fixings loads	Installation data
	Dimensions and drill holes[mm]	tension / shear load Rᵣₑc[kN]	Installation data	Spacing and edge distances
	Dimensions[mm]	tension / shear load Rᵣₑc[kN]	Reduced setting depth [hₑf,ᵣₑD][mm]	Characteristic spacing for hₑf,ᵣ(⁵)[mm]	Min. setting depth [hₑf][mm]	Min. spacing for hₑf,ᵣ[mm]	Min. edge distance for hₑf,ᵣ
75340B0604800	M6x48/*	1.6	30	90	45	30	40
75340B0606500	M6x65	1.6	30	90	45	30	40
75340B0608500	M6x85	1.6	30	90	45	30	40
75340B0610000	M6x100	1.6	30	90	45	30	40
75340B0805300	M8x53/*	1.7	30	90	45	40	40
75340B0806800	M8x68	1.7	30	90	45	40	40
75340B0807300	M8x73	1.7	30	90	45	40	40
75340B0808300	M8x83	1.7	30	90	45	40	40
75340B0809300	M8x93	1.7	30	90	45	40	40
75340B0810300	M8x103	1.7	30	90	45	40	40
75340B0811300	M8x113	1.7	30	90	45	40	40
75340B0813300	M8x133	1.7	30	90	45	40	40
75340B0816300	M8x163	1.7	30	90	45	40	40
75340B1006300	M10x63/*	3.4	35	105	55	50	50
75340B1007800	M10x78	3.4	35	105	55	50	50
75340B1008300	M10x83	3.4	35	105	55	50	50
75340B1009300	M10x93	3.4	35	105	55	50	50
75340B1010300	M10x103	3.4	35	105	55	50	50
75340B1011300	M10x113	3.4	35	105	55	50	50
75340B1012300	M10x123	3.4	35	105	55	50	50
75340B1014300	M10x143	3.4	35	105	55	50	50
75340B1017300	M10x173	3.4	35	105	55	50	50
75340B1021300	M10x213	3.4	35	105	55	50	50
75340B1208500	M12x85/*	5.2	50	150	75	70	70
75340B1210400	M12x104	5.2	50	150	75	70	70
75340B1210900	M12x109	5.2	50	150	75	70	70
75340B1211900	M12x119	5.2	50	150	75	70	70
75340B1212900	M12x129	5.2	50	150	75	70	70
75340B1213900	M12x139	5.2	50	150	75	70	70
75340B1214900	M12x149	5.2	50	150	75	70	70
75340B1217900	M12x179	5.2	50	150	75	70	70
75340B1219900	M12x199	5.2	50	150	75	70	70
75340B1221900	M12x219	5.2	50	150	75	70	70
75340B1223900	M12x239	5.2	50	150	75	70	70
75340B1225900	M12x259	5.2	50	150	75	70	70
75340B1226900	M12x269	5.2	50	150	75	70	70
75340B1229900	M12x299	5.2	50	150	75	70	70
75340B1231900	M12x319	5.2	50	150	75	70	70
75340B1233900	M12x339	5.2	50	150	75	70	70
75340B1236900	M12x369	5.2	50	150	75	70	70
75340B1611000	M16x110/*	6.5	59	180	90	90	90
75340B1613100	M16x131	6.5	59	180	90	90	90
75340B1615100	M16x151	6.5	59	180	90	90	90
75340B1617100	M16x171	6.5	59	180	90	90	90
75340B1620100	M16x201	6.5	59	180	90	90	90
75340B1622100	M16x221	6.5	59	180	90	90	90
75340B1624100	M16x241	6.5	59	180	90	90	90
75340B1626100	M16x261	6.5	59	180	90	90	90
75340B1628100	M16x281	6.5	59	180	90	90	90
75340B1632100	M16x321	6.5	59	180	90	90	90

The recommended loads N,V and F derive from the mean ultimate loads and are inclusive of the total safety factor γ=4 (shear γ=3).

Shear value valid with distance from the edge c>10 x hef,r

Product Dimension - D.I.Y

Table "Product Dimension - D.I.Y" cannot be displayed : no references available.

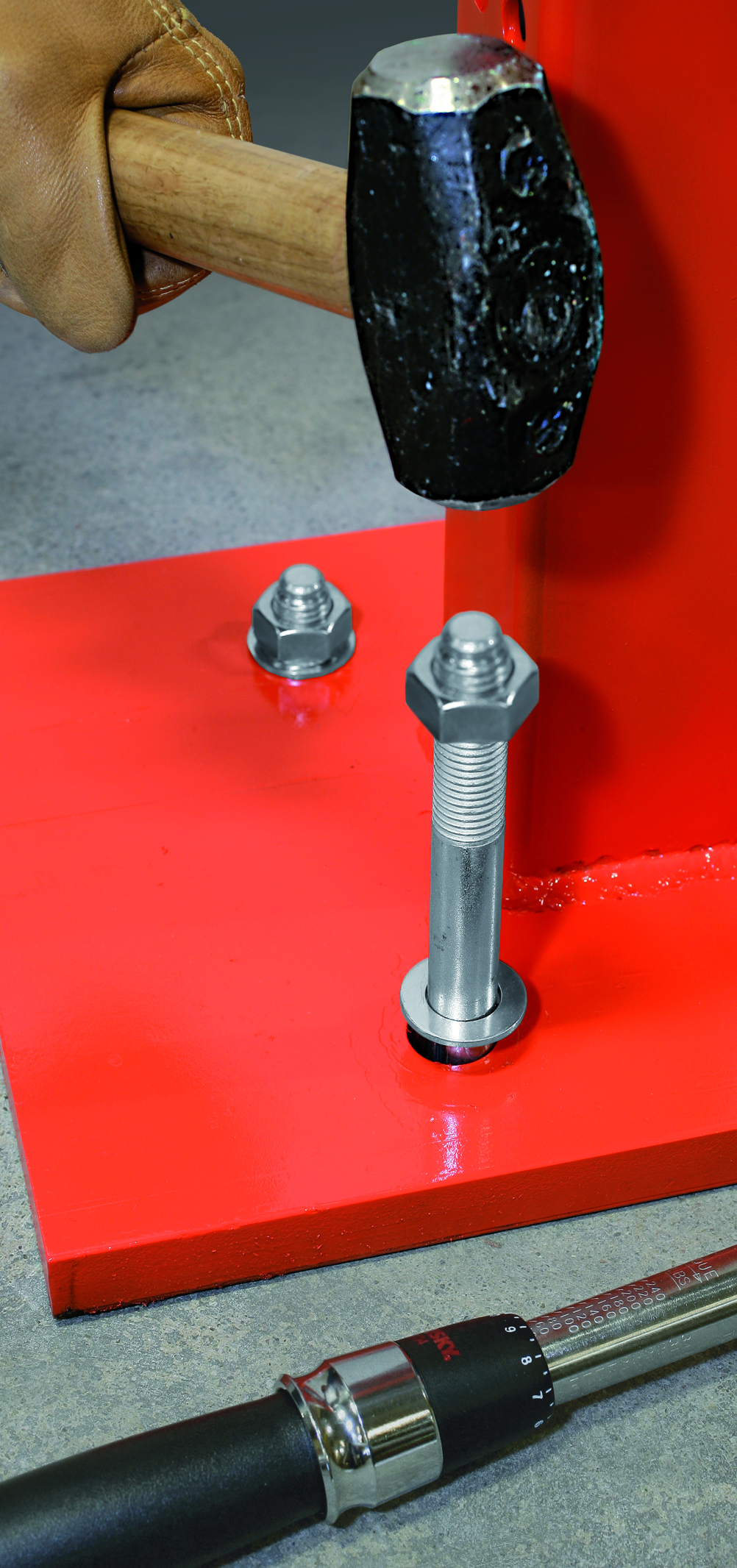

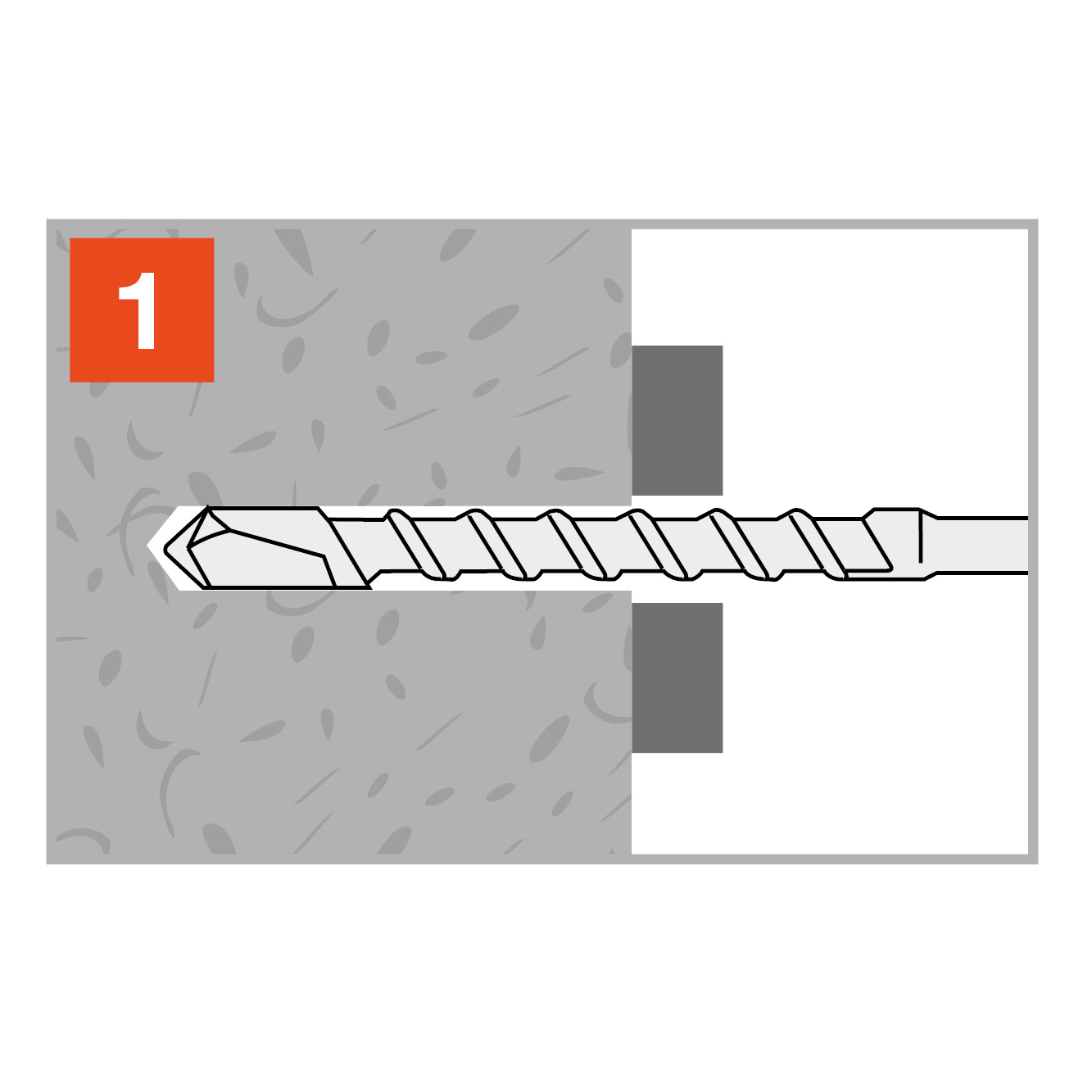

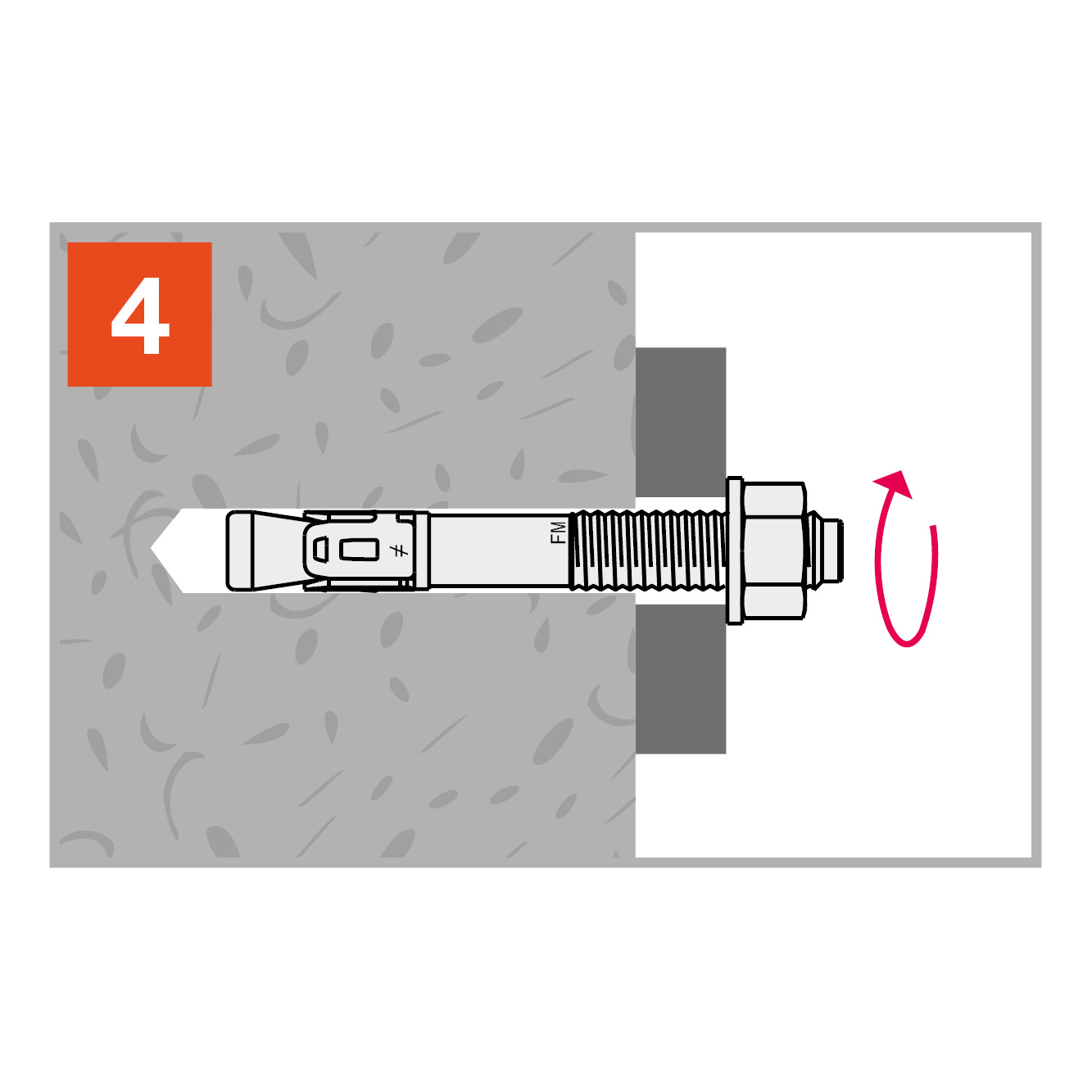

Installation

Spacing, Edge Distance and Member Thickness

Reference	Metallic fixings dimensions				Installation data
	Dimensions and drill holes[mm]		Other		Installation data			Spacing and edge distances - Rebar		Spacing and edge distances
	Dimensions[mm]	Wrench size[mm]	Hole diameter [dₒ][mm]	Hole diameter in fixture [df][mm]	Min. hole depth [h₁][mm]	Installation torque[Nm]	Embedment depth[mm]	Min. support thickness [hₘᵢₙ]	Min. edge distance[mm]	Characteristic spacing(5) - Scr,N[mm]	Characteristic edge distance[mm]	Min. spacing[mm]
75340B0604800	M6x48/*	10	6	7	45	8	30	90	40	120	60	30
75340B0606500	M6x65	10	6	7	55	8	40	100	40	120	60	30
75340B0608500	M6x85	10	6	7	55	8	40	100	40	120	60	30
75340B0610000	M6x100	10	6	7	55	8	40	100	40	120	60	30
75340B0805300	M8x53/*	13	8	9	50	15	30	90	40	135	68	40
75340B0806800	M8x68	13	8	9	65	15	45	100	40	135	68	40
75340B0807300	M8x73	13	8	9	65	15	45	100	40	135	68	40
75340B0808300	M8x83	13	8	9	65	15	45	100	40	135	68	40
75340B0809300	M8x93	13	8	9	65	15	45	100	40	135	68	40
75340B0810300	M8x103	13	8	9	65	15	45	100	40	135	68	40
75340B0811300	M8x113	13	8	9	65	15	45	100	40	135	68	40
75340B0813300	M8x133	13	8	9	65	15	45	100	40	135	68	40
75340B0816300	M8x163	13	8	9	65	15	45	100	40	135	68	40
75340B1006300	M10x63/*	17	10	12	55	30	35	90	50	150	75	50
75340B1007800	M10x78	17	10	12	70	30	50	100	50	150	75	50
75340B1008300	M10x83	17	10	12	70	30	50	100	50	150	75	50
75340B1009300	M10x93	17	10	12	70	30	50	100	50	150	75	50
75340B1010300	M10x103	17	10	12	70	30	50	100	50	150	75	50
75340B1011300	M10x113	17	10	12	70	30	50	100	50	150	75	50
75340B1012300	M10x123	17	10	12	70	30	50	100	50	150	75	50
75340B1014300	M10x143	17	10	12	70	30	50	100	50	150	75	50
75340B1017300	M10x173	17	10	12	70	30	50	100	50	150	75	50
75340B1021300	M10x213	17	10	12	70	30	50	100	50	150	75	50
75340B1208500	M12x85/*	19	12	14	75	50	50	120	70	195	98	70
75340B1210400	M12x104	19	12	14	90	50	65	130	70	195	98	70
75340B1210900	M12x109	19	12	14	90	50	65	130	70	195	98	70
75340B1211900	M12x119	19	12	14	90	50	65	130	70	195	98	70
75340B1212900	M12x129	19	12	14	90	50	65	130	70	195	98	70
75340B1213900	M12x139	19	12	14	90	50	65	130	70	195	98	70
75340B1214900	M12x149	19	12	14	90	50	65	130	70	195	98	70
75340B1217900	M12x179	19	12	14	90	50	65	130	70	195	98	70
75340B1219900	M12x199	19	12	14	90	50	65	130	70	195	98	70
75340B1221900	M12x219	19	12	14	90	50	65	130	70	195	98	70
75340B1223900	M12x239	19	12	14	90	50	65	130	70	195	98	70
75340B1225900	M12x259	19	12	14	90	50	65	130	70	195	98	70
75340B1226900	M12x269	19	12	14	90	50	65	130	70	195	98	70
75340B1229900	M12x299	19	12	14	90	50	65	130	70	195	98	70
75340B1231900	M12x319	19	12	14	90	50	65	130	70	195	98	70
75340B1233900	M12x339	19	12	14	90	50	65	130	70	195	98	70
75340B1236900	M12x369	19	12	14	90	50	65	130	70	195	98	70
75340B1611000	M16x110/*	24	16	18	89	100	59	140	90	240	120	90
75340B1613100	M16x131	24	16	18	110	100	80	160	90	240	120	90
75340B1615100	M16x151	24	16	18	110	100	80	160	90	240	120	90
75340B1617100	M16x171	24	16	18	110	100	80	160	90	240	120	90
75340B1620100	M16x201	24	16	18	110	100	80	160	90	240	120	90
75340B1622100	M16x221	24	16	18	110	100	80	160	90	240	120	90
75340B1624100	M16x241	24	16	18	110	100	80	160	90	240	120	90
75340B1626100	M16x261	24	16	18	110	100	80	160	90	240	120	90
75340B1628100	M16x281	24	16	18	110	100	80	160	90	240	120	90
75340B1632100	M16x321	24	16	18	110	100	80	160	90	240	120	90
75340B2017300	M20x173**	30	20	22	130	200	100	200	120	300	150	120
75340B2022300	M20x223**	30	20	22	130	200	100	200	120	300	150	120
75340B2026300	M20x263**	30	20	22	130	200	100	200	120	300	150	120
