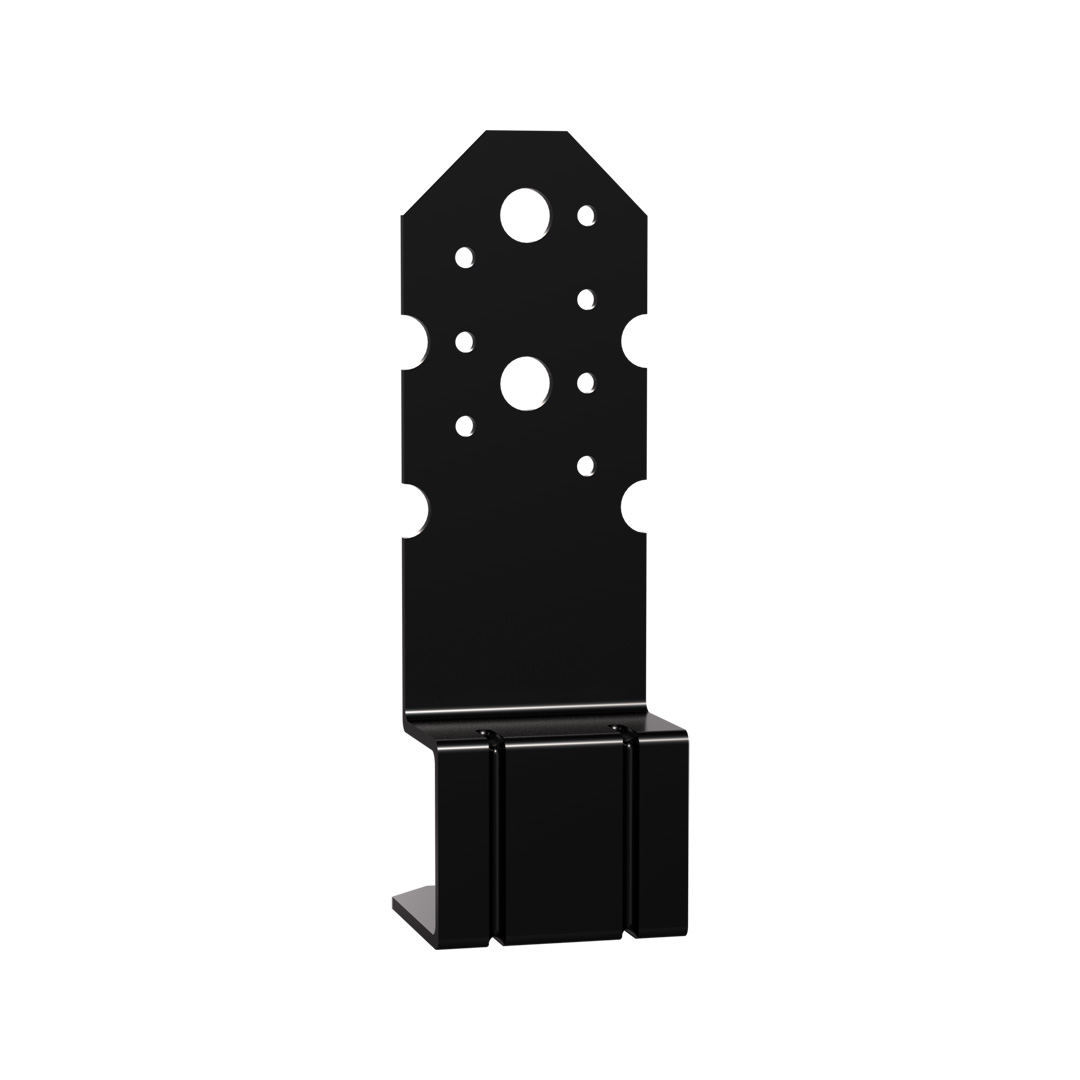

PBP60/50
Post Base

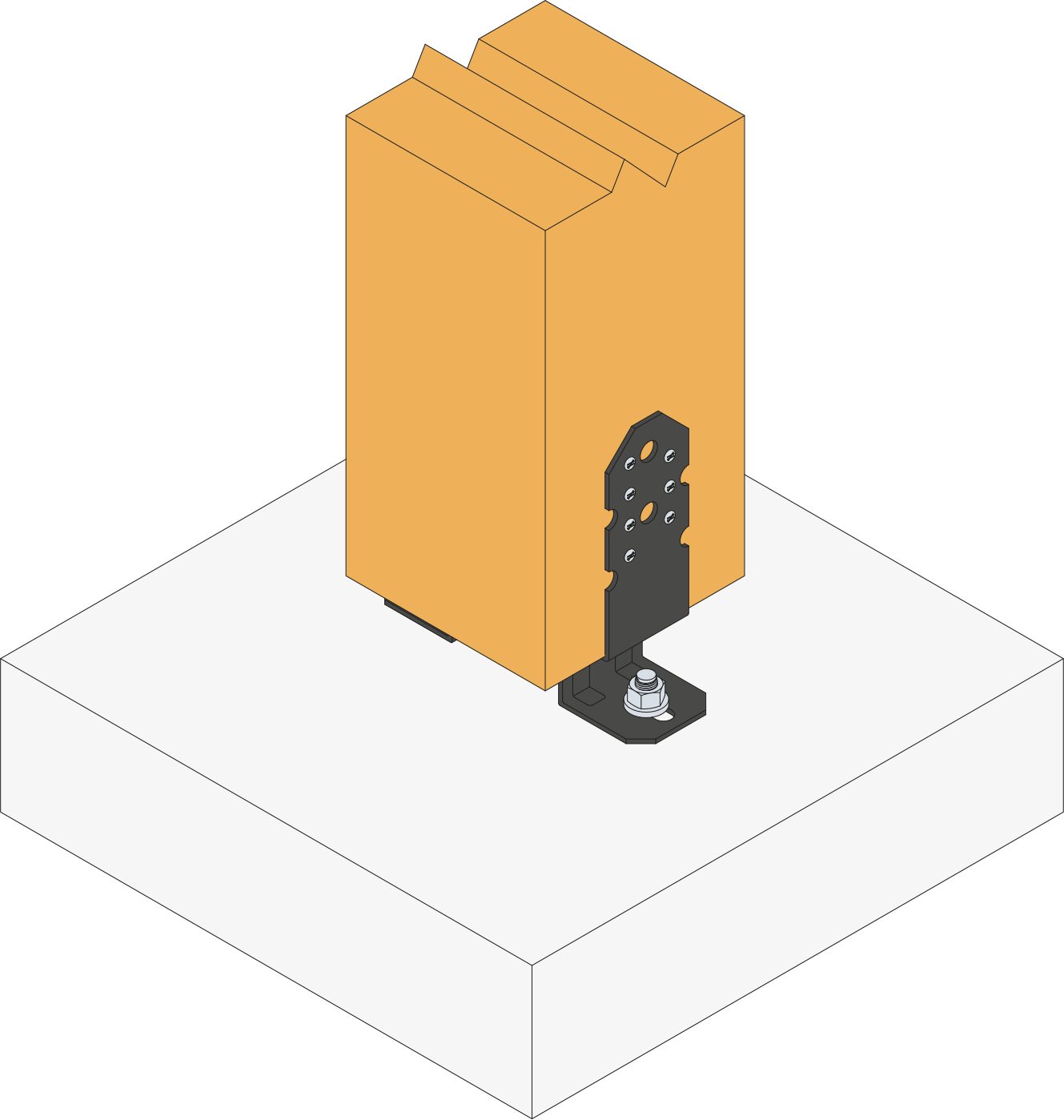

The PBP60/50 post base is most commonly use for pergola or porch type construction, but can be used in other situations.
It should be used by pair for square timber sections from 70 to 150 mm. For higher square timber section (250x250 maximum), the use of 4 post base per post is advocated.
CE Marking
ETA
Service class 3
EPD
Outdoor
Shérardisé
Product Details
Images

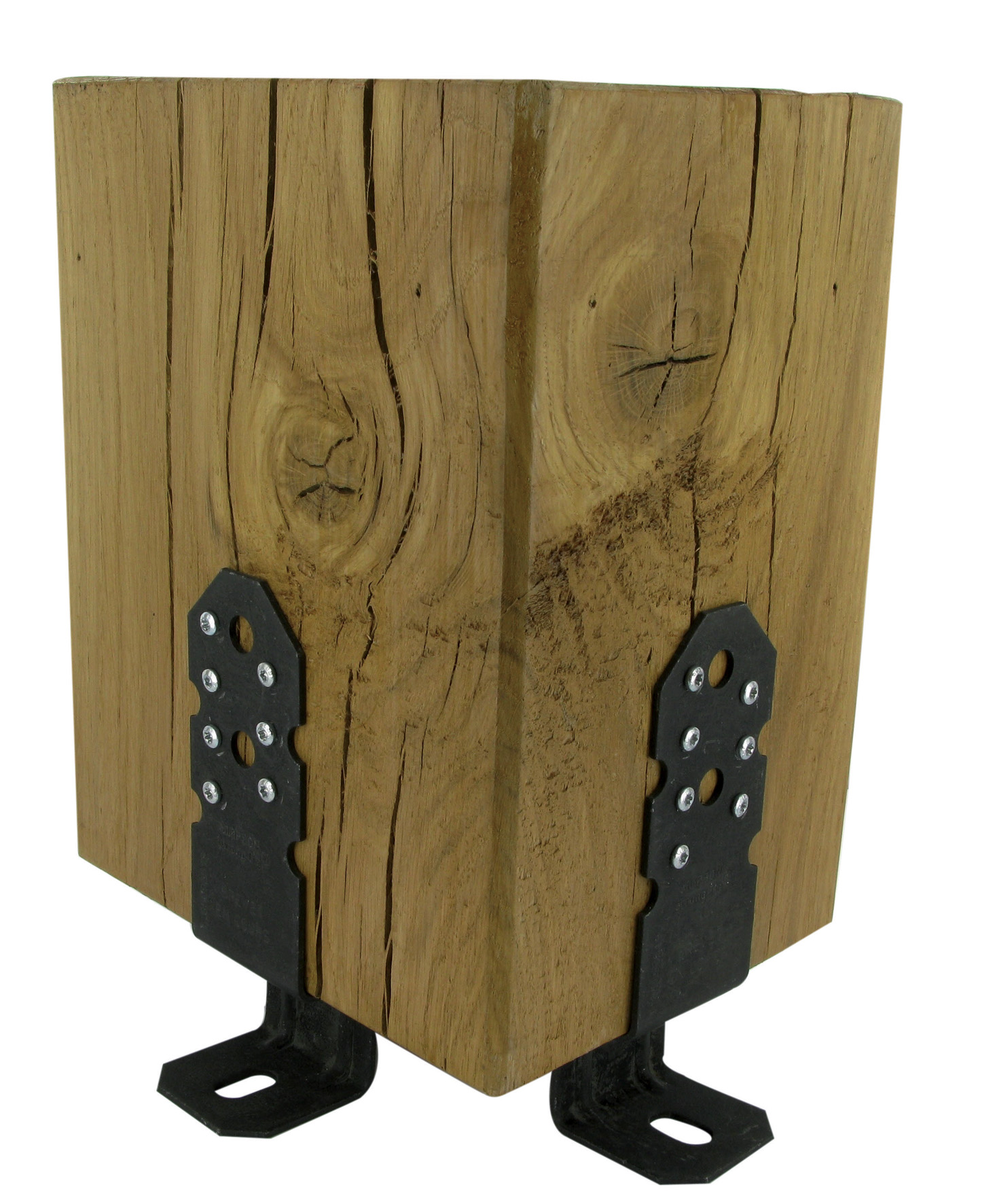

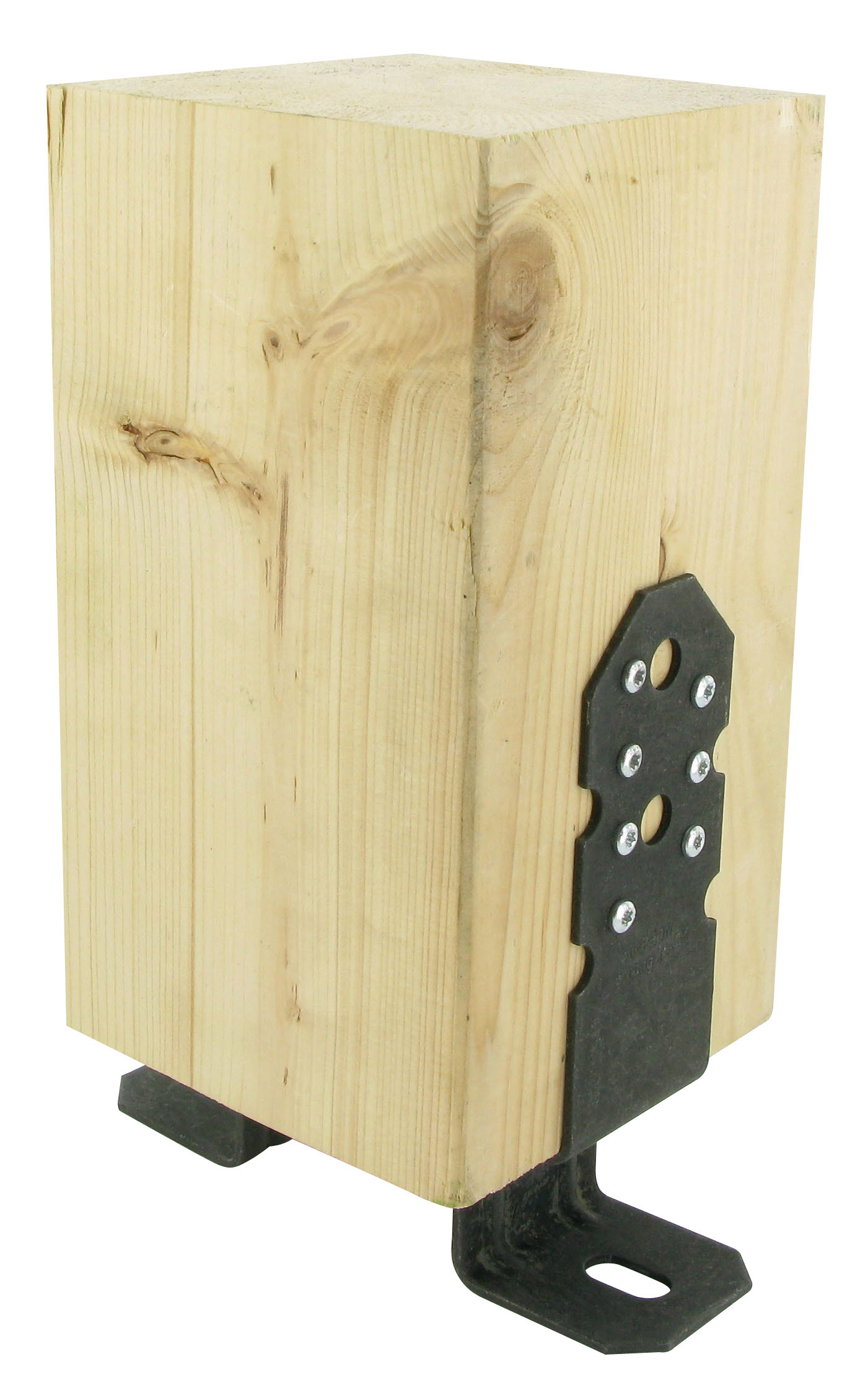

2 post bases - Timber section until 150x150 mm
4 post bases - Timber section until 250x250 mm
Features
Application
Technical Data
Product dimensions
Dimensions
| Reference | Connector Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Product Dimensions[mm] | Top plate holes | Bottom plate holes | Other | |||||||
| A[mm] | B[mm] | C[mm] | D[mm] | F[mm] | t[mm] | Round | Obround | Weight[kg] | ||
| Ø5[mm] | Ø13[mm] | Ø12x25 | ||||||||
| PBP60/50 | 35 | 60 | 140 | 62 | 49 | 3 | 7 | 2 | 1 | 0.36 |
Product simplified characterisic capacities - 2 post bases
Dimensions
| Reference | Post base capacity | |||||
|---|---|---|---|---|---|---|
| Product capacities - Timber to Concrete - 2 post bases | ||||||
| Simplified characteristic capacities - Timber C24[kN] | Number of Fasteners | |||||
| R₁.ₖ* | R₂.ₖ* | On post | On concrete | |||
| Qty | Type | Qty | Type | |||
| PBP60/50 | 43 | 12.7 | 4.0 | Ø12 | 2.0 | Ø10** |
* The published characteristic capacity is based on medium term load duration and service class 3 according to EC5 (EN 1995) (kmod = 0.65). For other load duration and service class, please refer to the ETA to get more accurate capacities
** Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions are AT-HP, depending on the concrete type, spacing and edge distances.
Product simplified characterisic capacities - 4 post bases
Dimensions
| Reference | Post base capacity | |||||
|---|---|---|---|---|---|---|
| Product capacities - Timber to Concrete - 4 post bases | ||||||
| Simplified characteristic capacities - Timber C24[kN] | Number of Fasteners | |||||
| R₁.ₖ* | R₂.ₖ* | On post | On concrete | |||
| Qty | Type | Qty | Type | |||
| PBP60/50 | 96.9 | 12.7 | 8.0 | Ø12 | 4.0 | Ø10** |
* The published characteristic capacity is based on medium term load duration and service class 3 according to EC5 (EN 1995) (kmod = 0.7). For other load duration and service class, please refer to the ETA to get more accurate capacities
** Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions are BOAXII, SET-XP, WA, AT-HP, depending on the concrete type, spacing and edge distances.
CAD and BIM Library
2D
PBP60/50
3D
PBP60/50
Nailing Pattern
PBP60/50
-
-
