CSA

CSA Connector Screw

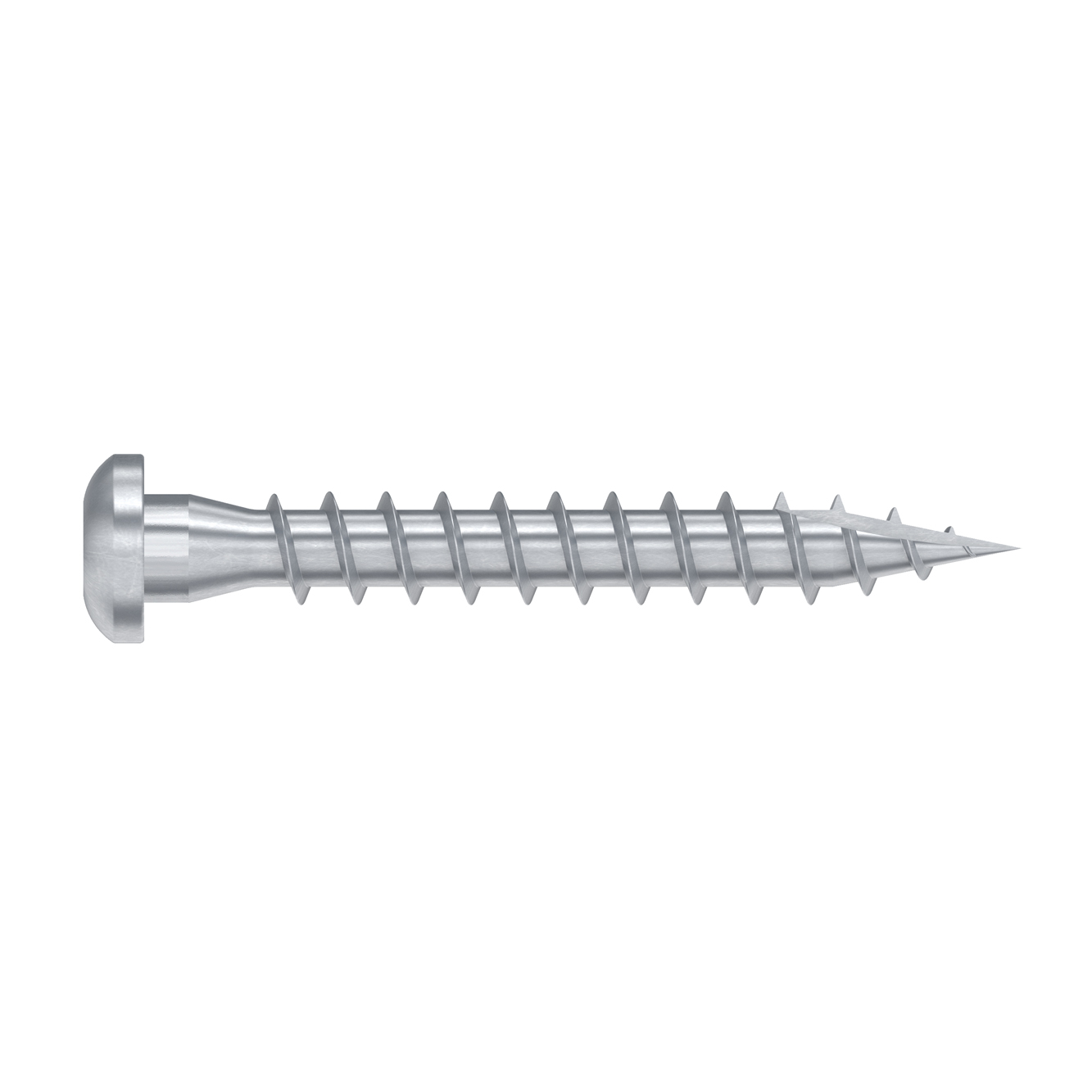

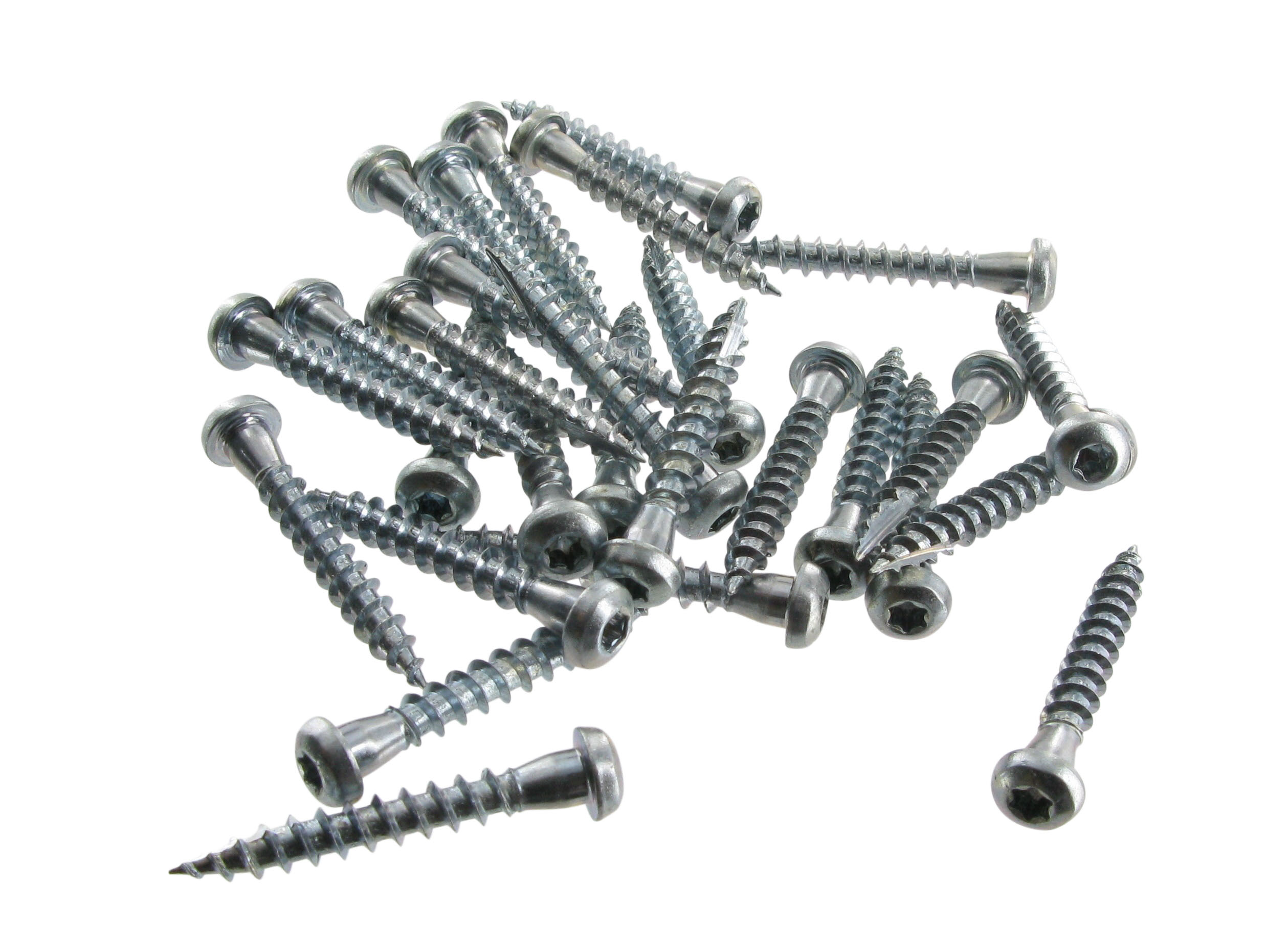

CSA connector screw is developed for installing Simpson Strong-Tie connectors to timber, in order to obtain the published load bearing capacities. The conical shape under the head ensures a full contact with the connector which increases the transfer of force. A fixed connection with larger cross-bearing capacity than for standard screws is obtained. The 6 lobe recess helps to fix the screw during insertion.



CE Marking
ETA
Service class 2
Indoor
Acier électrozingué 12µm

Product Details

Images

Connect timber battens.

Features

Material

  • Steel - Electro galvanised coating

Features

  • ETA approved (ETA-04/0013)
  • 6 lobe drive
  • Conical shape under the head for secure fit in connector holes
  • Type 17 point to prevent splitting of timber

Application

Suitable On

  • Supporting / Supported member: solid wood, composite lumber, glued-laminated wood.

Common Applications

Fixing connectors to timber:

  • Joist hangers
  • Angle brackets
  • Straps

Technical Data

Dimensions

Product Dimensions

References Fastener dimensions [mm] Driver Bit Box Quantity Stocked in UK
l lg d1 d dh
CSA4.0X30 30 24 2.5 3.95 7.3 TX15 250 Yes
CSA5.0X35 35 29 3.15 4.85 8.3 T20 250 Yes
CSA5.0X40 40 34 3.15 4.85 8.3 T20 250 Yes
CSA5.0X50 50 44 3.15 4.85 8.3 T20 250 Yes
CSA5.0X80 80 74 3.15 4.85 8.3 T20 200 -

Capacities are given for 2mm steel plate thickness and C24 timber. To determine the capacities for other steel thickness and / or timber grades, please refer to ETA-04/0013.

Performance values based upon timber density of 350 kg/m3

Characteristic Capacities

References Characteristic Capacities [kN]
Rax,k Rlat,k
CSA4.0X30 1.28 1.36
CSA5.0X35 2.11 1.99
CSA5.0X40 2.47 2.25
CSA5.0X50 3.2 2.63
CSA5.0X80 5.38 3.5

Characteristic Capacities - used in Timber C24, for other material please refer to ETA-04/0013

Rax = axial withdrawal capacity

Rlat = lateral capacity
