Light Reinforced Angle Bracket

Light reinforced angle brackets are used to assemble small structural joinery for internal and external applications.

Technical Data Sheet

Service class 2

EPD

Electrogalvanized steel Z275

Indoor

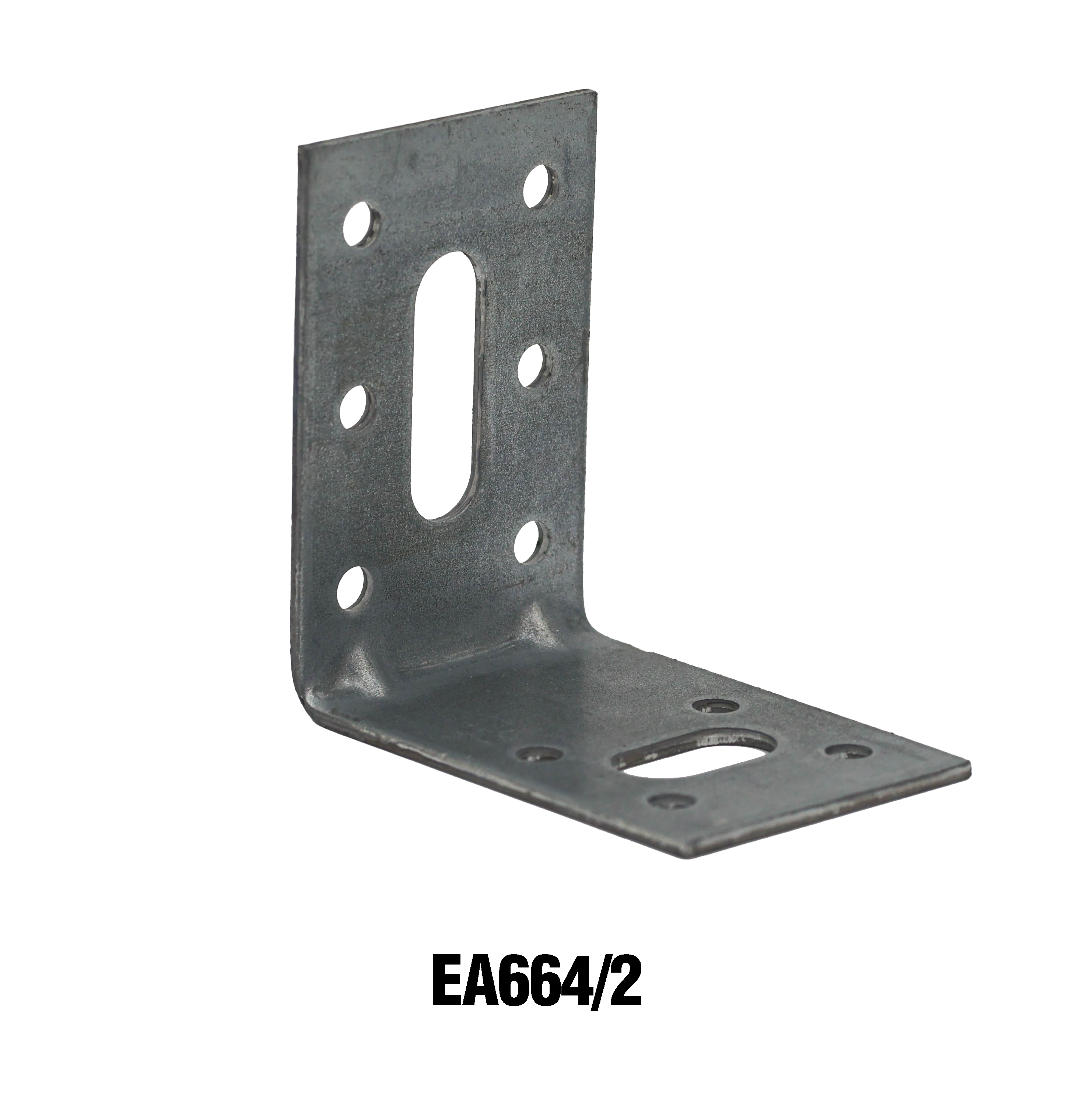

EA main image

Product Details

Images

EA in situ

EA in situ - zoom

EA in situ - from above

Wood to wood connection.

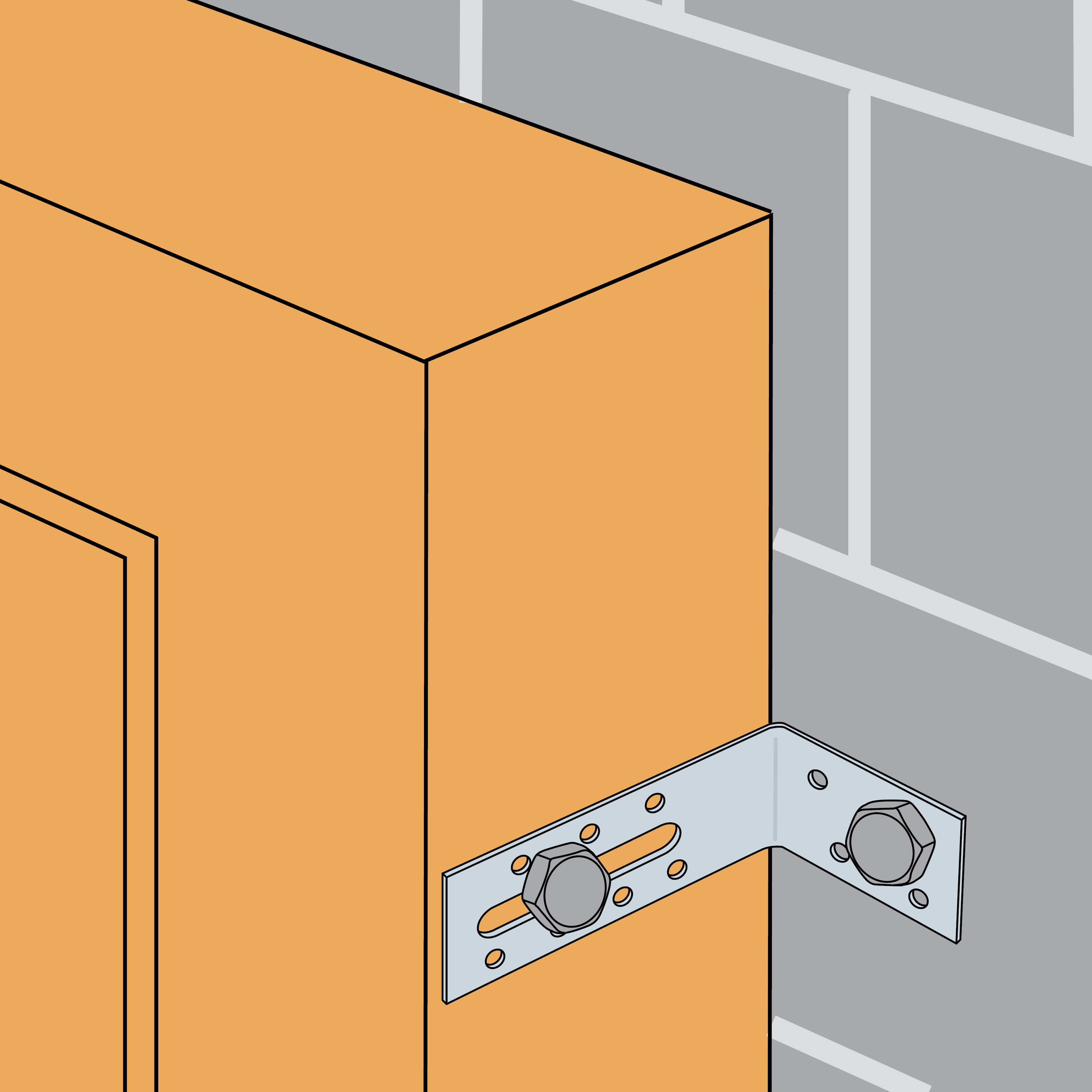

Timber to masonry connection

EA444/2

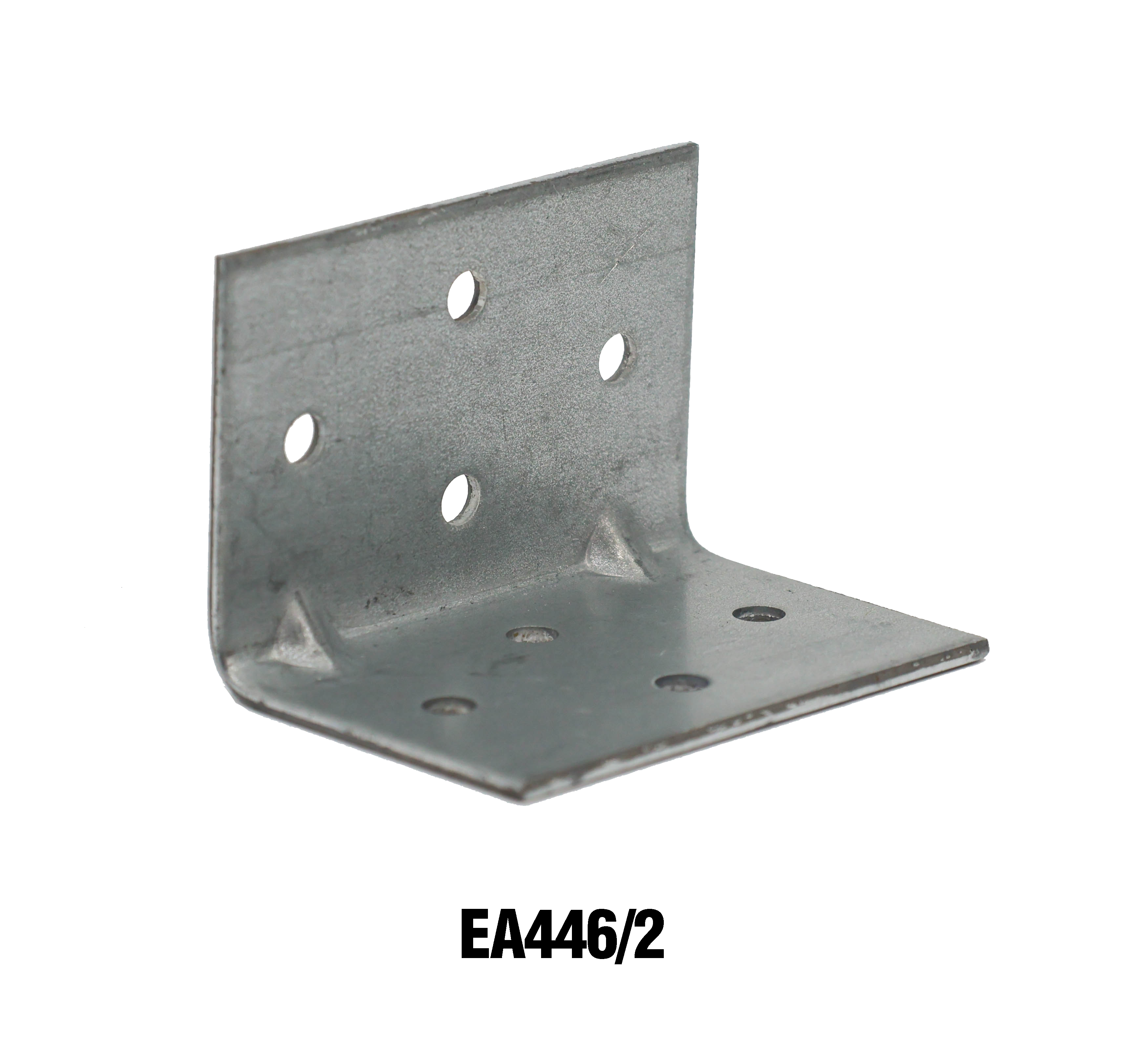

EA446/2

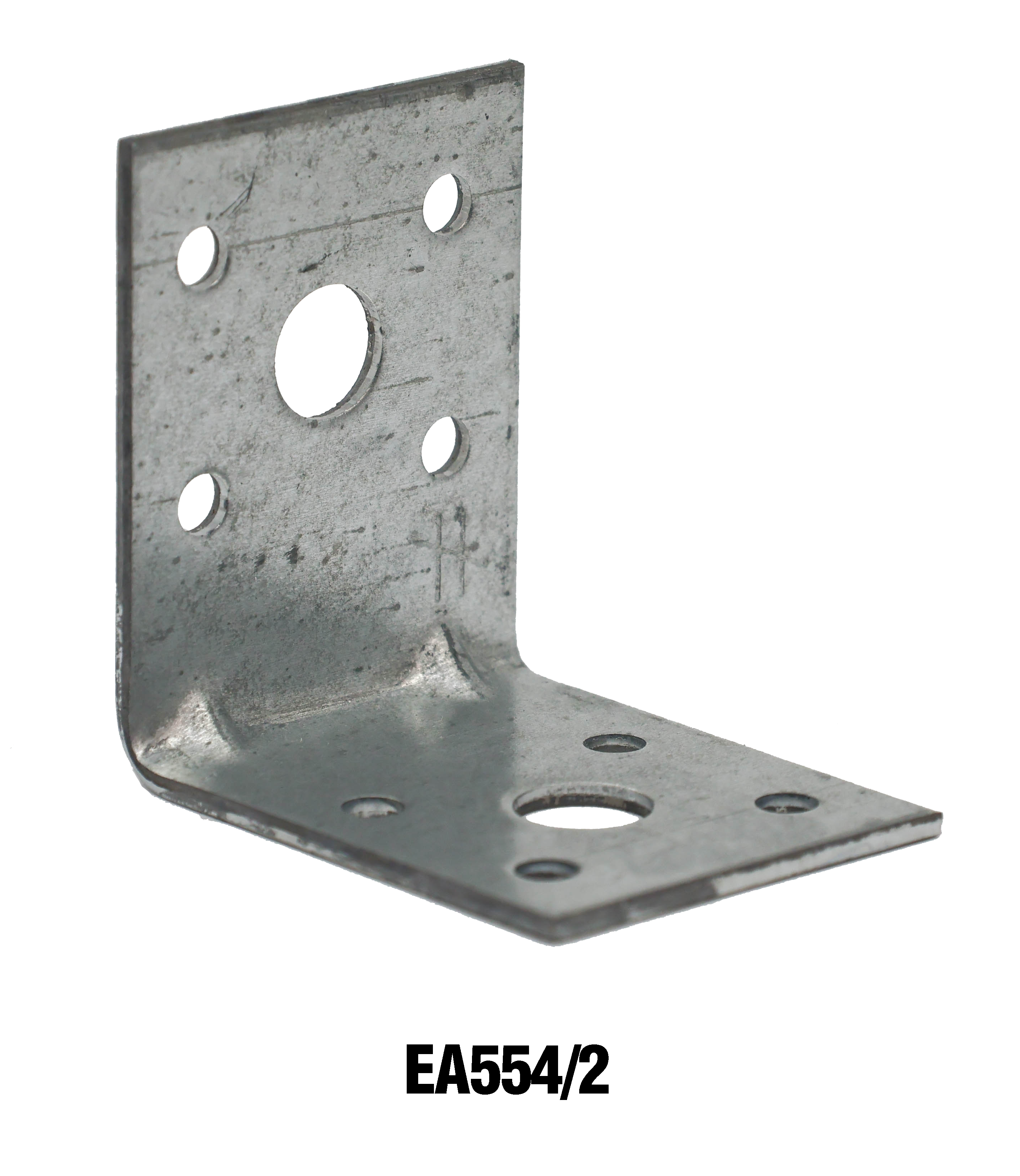

EA554/2

EA664/2

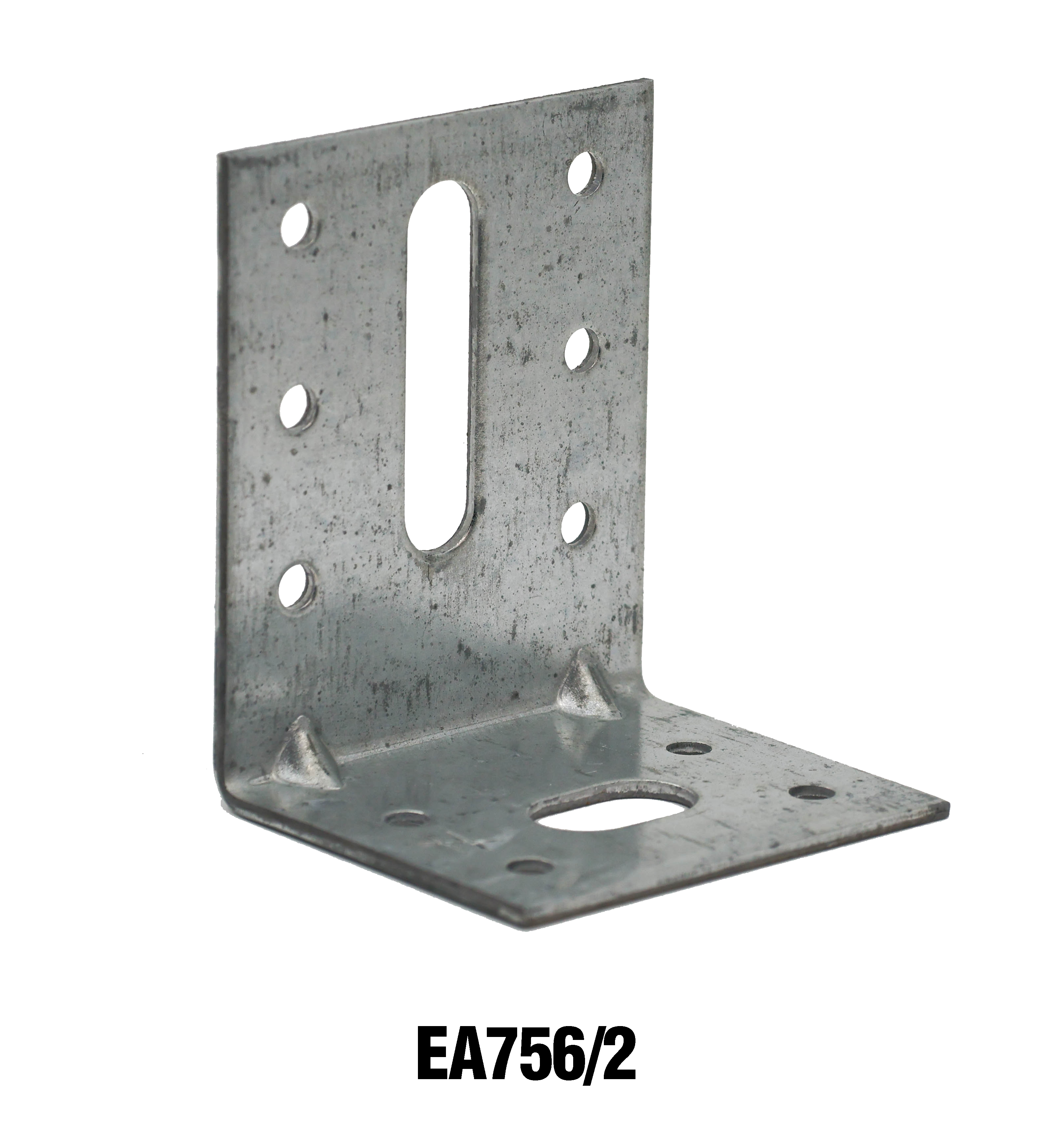

EA756/2

Features

Material

Pre-galvanised mild steel.

Benefits

Multiple applications.

Application

Header member

Supporting member: solid wood, composite lumber, glued-laminated wood, triangular trusses, profiles, etc.
Supported member: wood, concrete, steel, etc.

For Use With

Interior fittings.
Furniture.
Small frames, etc.

Technical Data

Product Dimensions

Dimensions

Product Dimensions

Product Dimensions

Reference	Connector Dimensions
	Product Dimensions[mm]				Joist			Flange B					Other
	A[mm]	B[mm]	C[mm]	Thickness[mm]	Round		Obround	Round		Obround			Weight[kg]
	A[mm]	B[mm]	C[mm]	Thickness[mm]	∅[mm]	Ø11[mm]	Ø10x20	Ø5[mm]	Ø11	Ø10x30	Ø10x42	Ø10x52	Weight[kg]
EA444/2C50	42	42	40	2	3		-	3		-	-	-	0.04
EA446/2C50	42	42	60	2	4	-	-	4	-	-	-	-	0.3
EA554/2C50	52	52	40	2	4	1	-	4	1	-	-	-	0.06
EA664/2C50	62	62	40	2	6		1	6		1	-	-	0.07
EA756/2C50	52	72	60	2	4		-	6		-	1	-	0.1

The EA844/2, EA954/2,5 and EA1064/2,5 do not have ribs in the angle.

Installation

Installation

Fixings

Onto wood:

3.75 x 30mm square twist nail.
CNA annular ring-shank nails 4.0 mm.
CSA screw 5.0 mm.

Onto concrete:

HIPC 6-40/10 drive anchors or HIPC 8-60/20.
LMAS resin anchors with AT-HP resin

Onto metal:

Bolts.
HR bolts.
Tek Screws
Rivets, etc.

Installation

Fasteners to be specified by the engineer, depending on the application & fixing medium

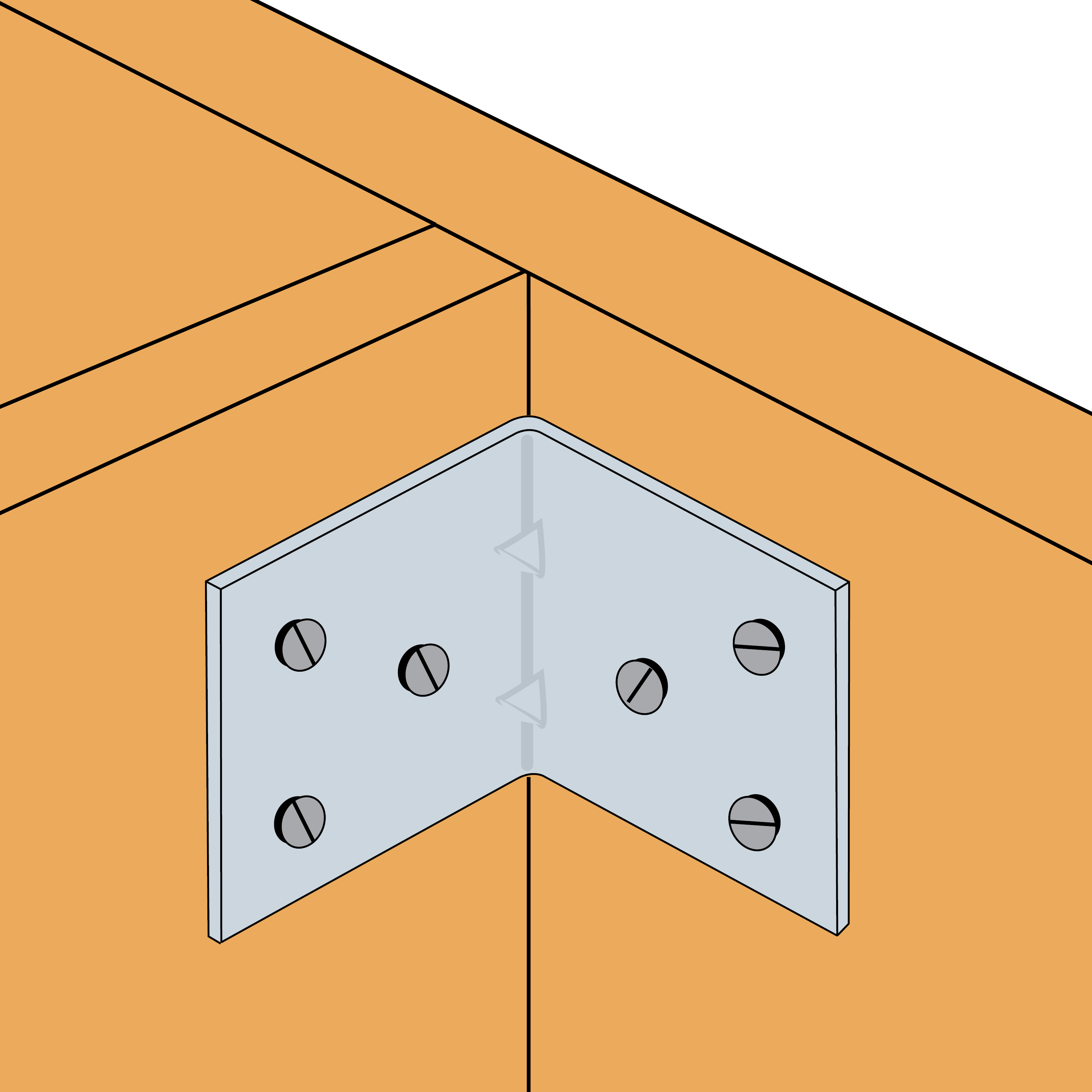

Wood to wood connection.

Timber to masonry connection
