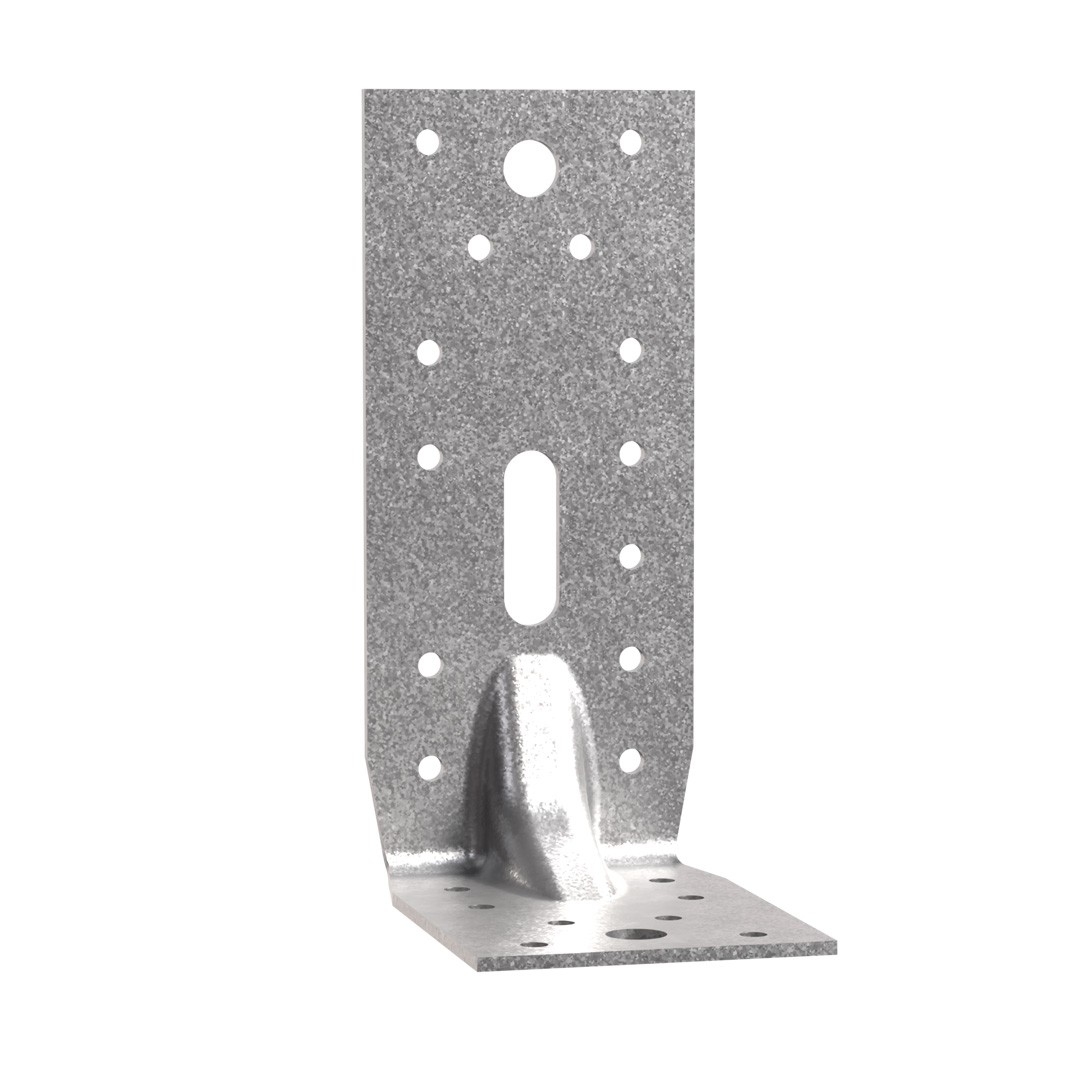

E9S/2.5

Large Reinforced Angle Brackets

Reinforced angle brackets are suitable for structural applications in framing and wood-frame houses.

CE Marking
ETA
Service class 2
Indoor
Electrogalvanized steel Z275

Product Details

Images

Features

Material

  • Pre-galvanised mild steel.

Benefits

  • Reinforced.
  • Multiple applications.

Application

Suitable On

  • Supporting member: solid wood, glued-laminated wood, concrete, steel, etc.
  • Supported member: solid wood, composite lumber, glued-laminated wood, triangular trusses, profiles, etc.

Scope

  • Fastening of small trusses.
  • Cladding plates, cladding uprights.
  • Rafter anchors, cantilevers, headers, etc.

Technical Data

Dimensions

Product Dimensions

References Product Dimensions [mm] Joist Holes flange B
A B C t Ø5 Ø11 Ø11x34 Ø5 Ø11
E9S/2.5 150 90 65 2.5 14 1 1 8 1

Wood/wood connection beam/beam type - assembly with 2 angle brackets

References Simplified product capacities - Timber beam to timber beam
Number of Fasteners Simplified characteristic capacities - Timber C24 - 2 angle brackets per connection [kN]
Joist Flange B R1.k* R2.k = R3.k
Qty Qty CNA4.0x35 CNA4.0x50 CNA4.0x35 CNA4.0x50
E9S/2.5 12 8 4.7 7.9 8.8 11.8

* The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0.9. For other load duration and service class, please refer to the ETA to get more accurate capacities.

To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.

Wood/wood connection post/beam type - assembly with 2 angle brackets

References Product capacities - Timber beam to timber post
Number of Fasteners Characteristic capacities - Timber C24 - 2 angle brackets per connection [kN]
Joist Flange B R1.k R2.k = R3.k
Qty Qty CNA4.0x35 CNA4.0x50 CNA4.0x35 CNA4.0x50
E9S/2.5 10 8 2.8 4.6 7 9.6

To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.

Installation

Installation

Fasteners

On wood:

  • CNA annular ring-shank nails dia. 4.0 x 35 or dia. 4.0 x 50 mm.
  • CSA screws dia. 5.0 x 35 mm or CSA screws dia. 5.0 x 40 mm.
  • Bolts.
  • LAG screws.

On concrete:
Concrete substrate

  • Mechanical anchor: WA M10-78/5 OR WA M12-104/5 pin.
  • Chemical anchor: AT-HP resin + LMAS M10-120/25 or LMAS M12-150/35 threaded rod.

Hollow masonry substrate:

  • Chemical anchor: AT-HP or POLY-GP resin + LMAS M12-150/35 threaded rod + SH M16-130 screen.

On steel:

  • Bolts.

Installation

Use specified nails.

Technical Notes

Technical data

F1: tensile force in the central axis of the angle-bracket
Particular situation of a fastening with only one angle-bracket:

  • If the overall structure prevents the rotation of the purlin or the post, the tensile strength is equal to half of the given value for two angle-brackets.
  • Otherwise, the connection resistance depends on the « f » distance between the vertical contact surface and the point of load application.

F2 and F3: shear lateral force
Particular situation of a connection with only one angle-bracket:

  • The resistance value to consider is equal to half of the one given for two angle-brackets.

F4 and F5: transversal force directed towards or opposite the angle-bracket

  • The connection resistance depends on the « e » distance between the base of the angle-bracket and the point of load application.
  • To consult corresponding loads, contact us.

Only F1, F2 and F3 forces for connections with 2 angle-brackets are present on this sheet.
For more information, contact us.

Certification

European Technical Assessment (ETA)
