Multi Angle Bracket

END type angle brackets have been completely redesigned for greater versatility in their applications.

Technical Data Sheet
Service class 2
Service class 2
EPD
EPD
Indoor
Indoor
Electrogalvanized steel Z275
Electrogalvanized steel Z275

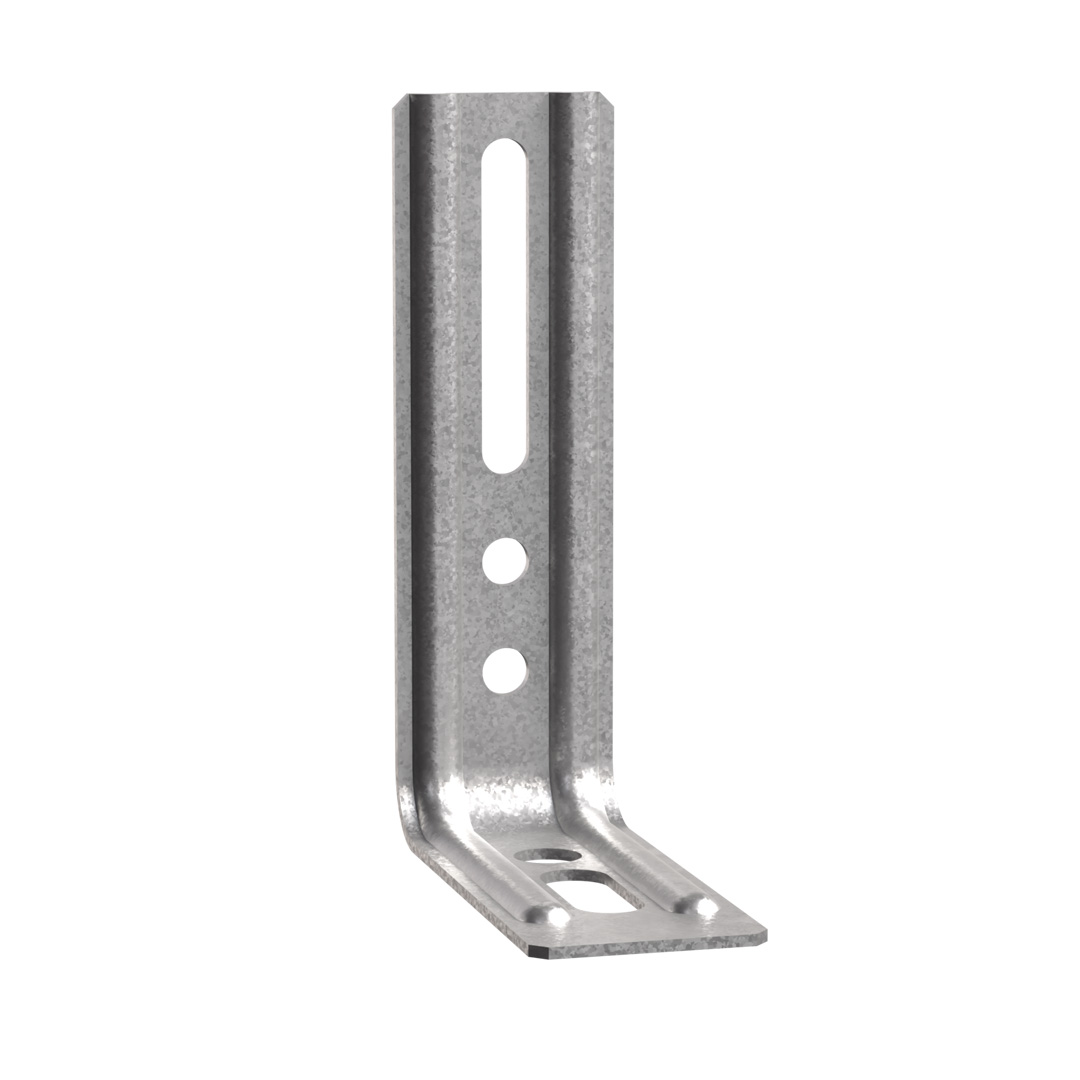

END main image

Product Details

Images

end-situation-2 2.jpg

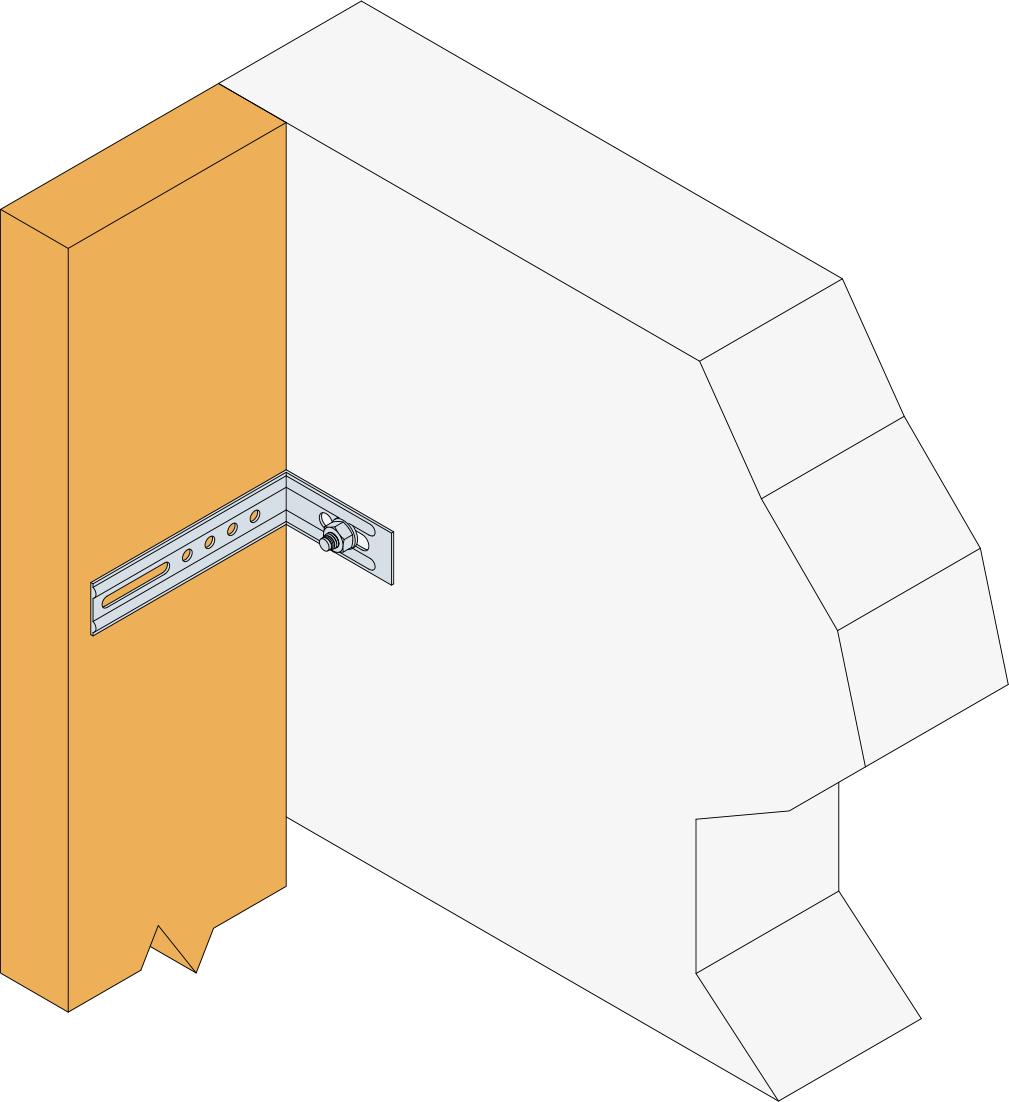

Timber to masonry connection
Timber to masonry connection

Features

Material

  • Galvanized steel S250GD + Z275 according to NF EN 10346.

Benefits

  • Wide variety of uses.
  • Wood to wood or wood to concrete.
  • Oblong slot for simpler alignment and adjustment.

Application

Header member

  • Supporting member: wood, concrete, steel, etc.
  • Supported member: PVC, wood, aluminium, steel joinery, etc.

For Use With

  • Fastening of interior and exterior joinery, etc.

Technical Data

Dimensions and Allowable values

Dimensions

Dimensions and Allowable values
Dimensions and Allowable values
ReferenceConnector Dimensions
Product Dimensions[mm]JoistFlange BOther
A[mm]B[mm]C[mm]Thickness[mm]ObroundRoundObroundRound Weight[kg]
Ø6.5Ø9
END55/1.5 55 71.5 30 1.5---10.036
END100/1.5 100 71.5 30 1.5-2-10.05

Installation

Installation

Fixing

On wood:

  • CNA annular ring-shank nails 4.0 mm.
  • CSA screw 5.0 mm.

On concrete:

  • HIPC 8-60/20 drive anchors.

On metal:

  • Bolts dia. 8 mm.

Installation

  • Use appropriate screws.

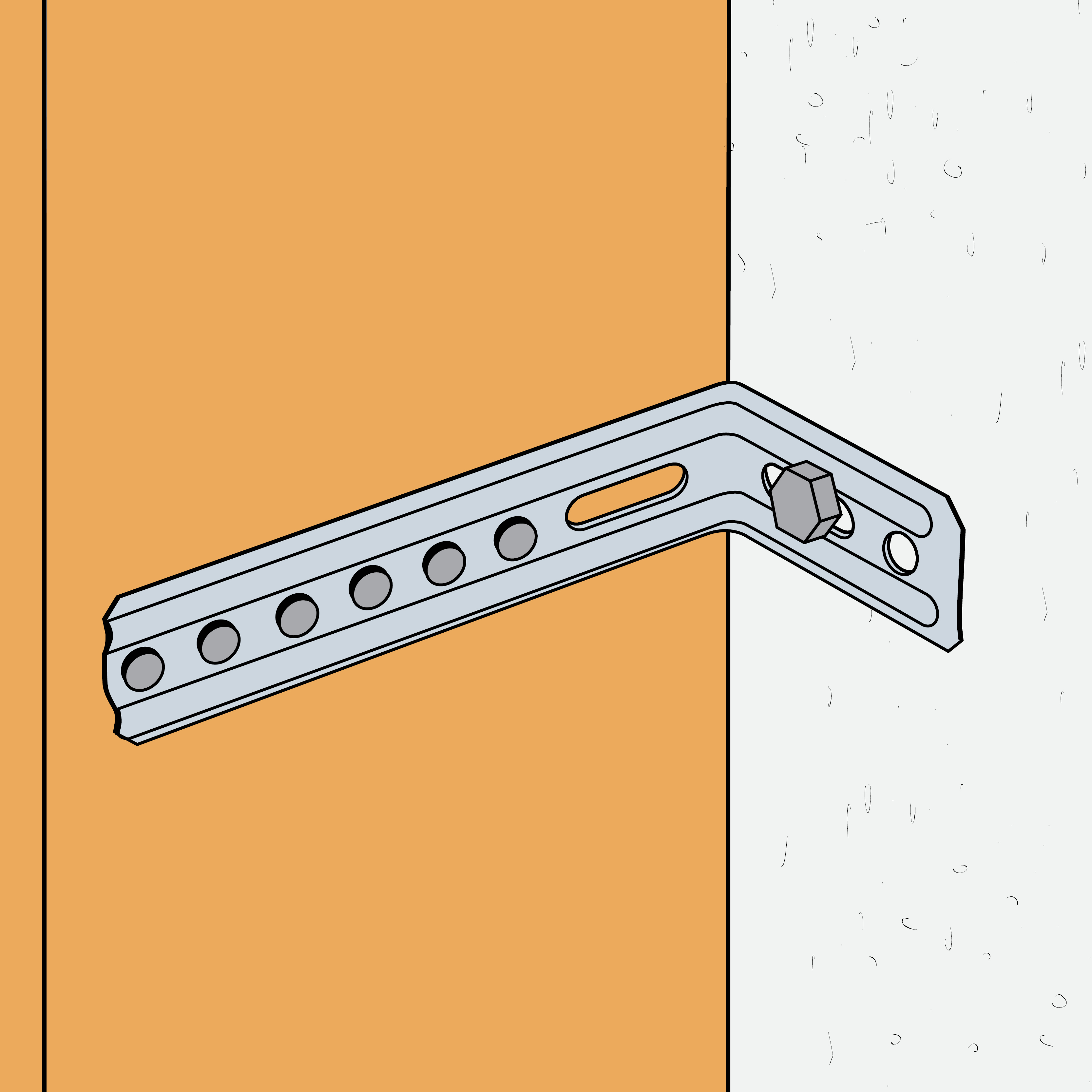

end-situation-2 2.jpg

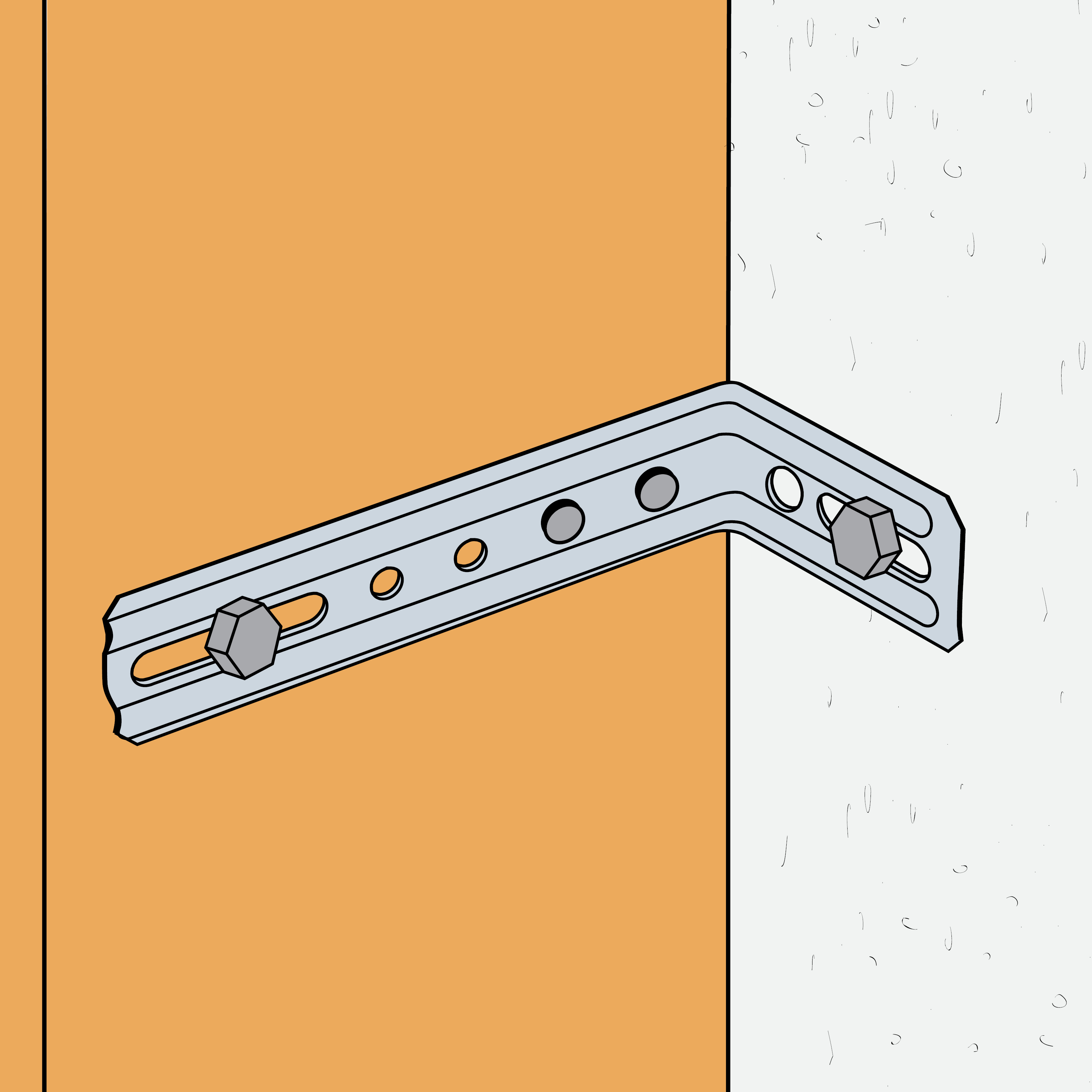

Timber to masonry connection
Timber to masonry connection

Certification

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors

Related Products

CAD and BIM Library

2D

END100/1.5

END55/1.5

3D

END100/1.5

END55/1.5

ZIP Packages
