SAE-SAEL

Heavy Duty Face Fix Hangers

SAE and SAI ranges are heavy-duty hangers designed for applications requiring additional strength.

SAE hangers are nailed using square twist nails but have bolt holes for 12mm fasteners into the face. SAE Timber Bolted capacity to be determined according to the relevant standards.
The hanger depth is to be at least 60% of the carried member depth to prevent rotation, unless additional lateral restraint is added to the top of the carried member.

Technical Data Sheet

CE Marking

ETA

Service class 2

Indoor

Electrogalvanized steel Z275

EPD

Product Details

Images

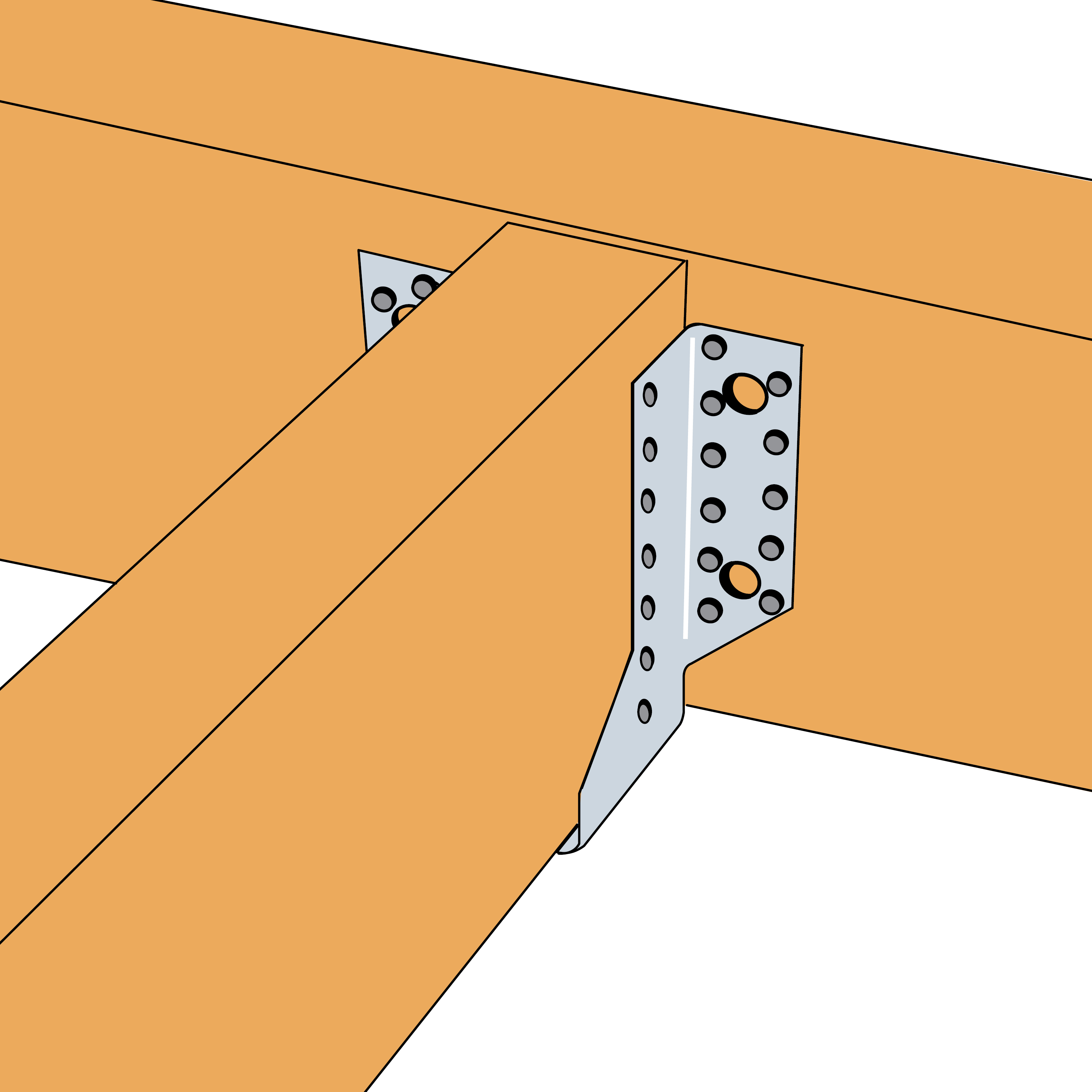

Partial Nailing on Timber

Features

Material

Pre-galvanised mild steel

Advantage

Quick and simple installation

Application

Header member

Solid Timber
I-Joists
Steel

For Use With

Solid sawn timber joists
Purlins

Technical Data

Dimensions

Product Dimensions

References	Joist dimensions [mm]		Product Dimensions [mm]						Header holes			Joist holes	Weight [kg]
	Width		A	B	C	D	F	t	Ø5	Ø11	Ø13	Ø5
	Min	Max.	A	B	C	D	F	t	Ø5	Ø11	Ø13	Ø5
SAE200/38/2	36	38	38	81	84	41.5	86	2	8	2	-	5	0.26
SAE250/38/2	36	38		106	84	41.5	86	2	12	2	-	7	0.33
SAE380/38/2	35	38		171	84	41.5	86	2	20	-	4	10	0.5
SAE500/38/2	35	38		231	84	41.5	86	2	32	-	6	16	0.66
SAE600/38/2	35	38		281	88	36	90	2	36	-	4	20	0.786
SAE200/40/2	38	40	40	80	84	41.5	86	2	8	2	-	5	0.261
SAE250/40/2	38	40		105	84	41.5	86	2	12	2	-	7	0.33
SAE380/40/2	37	40		170	84	41.5	86	2	20	-	4	10	0.49
SAE500/40/2	37	40		230	84	41.5	86	2	32	-	6	16	0.66
SAE600/40/2	37	40		280	88	36	90	2	36	-	4	20	0.786
SAE200/47/2	44	47	47	76.5	88	41.5	90	2	8	2	-	5	0.26
SAE250/47/2	44	47		101.5	88	41.5	90	2	12	2	-	7	0.33
SAE380/47/2	44	47		166.5	84	41.5	86	2	20	-	4	10	0.49
SAE500/47/2	44	47		226.5	84	41.5	86	2	32	-	6	16	0.65
SAE600/47/2	44	47		276.5	88	36	90	2	36	-	4	20	0.786
SAE200/50/2	48	50	50	75	84	41.5	86	2	8	2	-	5	0.26
SAE250/50/2	48	50		100	84	41.5	86	2	12	2	-	7	0.33
SAE500/50/2	48	50		225	84	41.5	86	2	34	-	6	18	0.66
SAE380/50/2	47	50		165	84	41.5	86	2	20	-	4	10	0.49
SAE600/50/2	47	50		275	88	36	90	2	36	-	4	20	0.786
SAE380/56/2	53	56	56	162	84	41.5	86	2	20	-	4	10	0.001
SAE500/56/2	53	56		222	84	41.5	86	2	32	-	6	16	0.66
SAE600/56/2	53	56		272	88	36	90	2	36	-	4	20	0.786
SAE380/63/2	60	63	63	158.5	84	41.5	86	2	20	-	4	10	0.49
SAE500/63/2	60	63		218.5	84	41.5	86	2	32	-	6	16	0.66
SAE600/63/2	60	63		268.5	88	36	90	2	36	-	4	20	0.786
SAE380/66/2	64	66	66	157	84	41.5	86	2	22	-	4	12	0.49
SAE500/66/2	63	66		217	84	41.5	86	2	32	-	6	16	0.66
SAE600/66/2	63	66		267	88	36	90	2	36	-	4	20	0.786
SAE380/72/2	70	72	72	154	84	41.5	86	2	22	-	4	12	0.49
SAE500/72/2	69	72		214	84	41.5	86	2	32	-	6	16	0.66
SAE600/72/2	69	72		264	88	36	90	2	36	-	4	20	0.786
SAE380/75/2	72	75	75	152.5	84	41.5	86	2	20	-	4	10	0.49
SAE500/75/2	72	75		212.5	84	41.5	86	2	32	-	6	16	0.66
SAE600/75/2	72	75		262.5	88	36	90	2	36	-	4	20	0.786
SAE380/78/2	75	78	78	151	84	41.5	86	2	20	-	4	10	0.49
SAE500/78/2	75	78		211	84	41.5	86	2	32	-	6	16	0.66
SAE600/78/2	75	78		261	88	36	90	2	36	-	4	20	0.786
SAE380/91/2	88	91	91	144.5	84	41.5	86	2	20	-	4	10	0.49
SAE500/91/2	88	91		204.5	84	41.5	86	2	32	-	6	16	0.66
SAE600/91/2	88	91		254.5	88	36	90	2	36	-	4	20	0.786
SAE380/96/2	93	96	96	142	84	41.5	86	2	20	-	4	10	0.49
SAE500/96/2	93	96		202	84	41.5	86	2	32	-	6	16	0.66
SAE600/96/2	93	96		252	88	36	90	2	36	-	4	20	0.786
SAE380/99/2	96	99	99	140.5	84	41.5	86	2	20	-	4	10	0.49
SAE500/99/2	96	99		200.5	84	41.5	86	2	32	-	6	16	0.66
SAE600/99/2	96	99		250.5	88	36	90	2	36	-	4	20	0.786
SAE380/109/2	106	109	109	135.5	84	41.5	86	2	20	-	4	10	0.001
SAE500/109/2	106	109		195.5	84	41.5	86	2	32	-	6	16	0.66
SAE600/109/2	106	109		245.5	88	36	90	2	36	-	4	20	0.786
SAE500/118/2	115	118	118	191	84	41.5	86	2	32	-	6	16	0.66
SAE600/118/2	115	118	118	241	88	36	90	2	36	-	4	20	0.786
SAE500/122/2	119	122	122	189	84	41.5	86	2	32	-	6	16	0.66
SAE600/122/2	119	122	122	239	88	36	90	2	36	-	4	20	0.786
SAE500/125/2	122	125	125	187.5	84	41.5	86	2	32	-	6	16	0.66
SAE600/125/2	122	125	125	237.5	88	36	90	2	36	-	4	20	0.786
SAE500/128/2	125	128	128	186	84	41.5	86	2	32	-	6	16	0.66
SAE600/128/2	125	128	128	236	88	36	90	2	36	-	4	20	0.786
SAEL500/140/2	138	140	140	180	84	41.5	86	2	32	-	6	16	0.65
SAE500/142/2	139	142	142	179	84	41.5	86	2	32	-	6	16	0.66
SAE600/142/2	139	142	142	229	88	36	90	2	36	-	4	20	0.786
SAE500/146/2	143	146	146	177	84	41.5	86	2	32	-	6	16	0.66
SAE600/146/2	143	146	146	227	88	36	90	2	36	-	4	20	0.786
SAEL500/150/2	148	150	150	175	84	41.5	86	2	32	-	6	16	0.65
SAE600/150/2	147	150	150	225	88	36	90	2	36	-	4	20	0.786
SAE600/182/2	179	182	182	209	88	36	90	2	36	-	4	20	0.825
SAE720/182/2	179	182	182	269	75	38	77	2	38	-	6	20	0.943
SAE600/196/2	193	196	196	202	88	41.5	90	2	36	-	4	20	0.845
SAE720/196/2	193	196	196	262	75	38	77	2	38	-	6	20	0.943
SAE590/200/2	197	200	200	195	88	41.5	90	2	30	-	6	20	0.8

Product characteristic capacities - Timber to timber - full nailing

References	Characteristic capacities - Timber to timber - Full nailing
	Number of Fasteners		Product characteristic capacities - Timber C24 [kN]			Safe Working Load [kN]
	Header	Joist	R_1.k		R_2.k	R_{1,SWL,Long term}		R_{2,SWL,Short term}
	Qty	Qty	N3.75x30 - C16 Header	N3.75x30 - C24 Header	N3.75x30 - C16 Joist	C16 header	C24 header	C16 Joist
	Qty	Qty	N3.75x30 - C16 Header	N3.75x30 - C24 Header	N3.75x30 - C16 Joist	N3.75x30	N3.75x30	N3.75x30
SAE200/38/2	8	5	7.6	8.1	4.2	3.2	3.4	2.1
SAE250/38/2	12	7	12.7	13.5	5.9	5.3	5.6	3
SAE200/40/2	8	5	7.6	8.1	4.2	3.2	3.4	2.1
SAE250/40/2	12	7	12.7	13.5	5.9	5.3	5.6	3
SAE200/50/2	8	5	7.6	8.1	4.2	3.2	3.4	2.1
SAE250/50/2	12	7	12.7	13.5	5.9	5.3	5.6	3
SAE500/50/2	34	18	33.3	35.6	12.2	13.9	14.8	6.1
SAE380/66/2	22	12	18.2	19.4	8.5	7.6	8.1	4.2
SAE380/72/2	22	12	18.2	19.4	8.5	7.6	8.1	4.2
SAEL500/140/2	32	16	33.3	35.6	12.2	13.9	14.8	6.1
SAEL500/150/2	32	16	33.3	35.6	12.2	13.9	14.8	6.1
SAE380/38/2	20	10	18.2	19.4	8.5	7.6	8.1	4.2
SAE500/38/2	32	16	33.3	35.6	12.2	13.9	14.8	6.1
SAE600/38/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE380/40/2	20	10	18.2	19.4	8.5	7.6	8.1	4.2
SAE500/40/2	32	16	33.3	35.6	12.2	13.9	14.8	6.1
SAE600/40/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE200/47/2	8	5	7.6	8.1	4.2	3.2	3.4	2.1
SAE250/47/2	12	7	12.7	13.5	5.9	5.3	5.6	3
SAE380/47/2	20	10	18.2	19.4	8.5	7.6	8.1	4.2
SAE500/47/2	32	16	33.3	35.6	12.2	13.9	14.8	6.1
SAE600/47/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE380/50/2	20	10	18.2	19.4	8.5	7.6	8.1	4.2
SAE600/50/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE380/56/2	20	10	18.2	19.4	8.5	7.6	8.1	4.2
SAE500/56/2	32	16	33.3	35.6	12.2	13.9	14.8	6.1
SAE600/56/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE380/63/2	20	10	18.2	19.4	8.5	7.6	8.1	4.2
SAE500/63/2	32	16	33.3	35.6	12.2	13.9	14.8	6.1
SAE600/63/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE500/66/2	32	16	33.3	35.6	12.2	13.9	14.8	6.1
SAE600/66/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE500/72/2	32	16	33.3	35.6	12.2	13.9	14.8	6.1
SAE600/72/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE380/75/2	20	10	18.2	19.4	8.5	7.6	8.1	4.2
SAE500/75/2	32	16	33.3	35.6	12.2	13.9	14.8	6.1
SAE600/75/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE380/78/2	20	10	18.2	19.4	8.5	7.6	8.1	4.2
SAE500/78/2	32	16	33.3	35.6	12.2	13.9	14.8	6.1
SAE600/78/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE380/91/2	20	10	18.2	19.4	8.5	7.6	8.1	4.2
SAE500/91/2	32	16	33.3	35.6	12.2	13.9	14.8	6.1
SAE600/91/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE380/96/2	20	10	18.2	19.4	8.5	7.6	8.1	4.2
SAE500/96/2	32	16	33.3	35.6	12.2	13.9	14.8	6.1
SAE600/96/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE380/99/2	20	10	18.2	19.4	8.5	7.6	8.1	4.2
SAE500/99/2	32	16	33.3	35.6	12.2	13.9	14.8	6.1
SAE600/99/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE380/109/2	20	10	18.2	19.4	8.5	7.6	8.1	4.2
SAE500/109/2	32	16	33.3	35.6	12.2	13.9	14.8	6.1
SAE600/109/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE500/118/2	32	16	33.3	35.6	12.2	13.9	14.8	6.1
SAE600/118/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE500/122/2	32	16	33.3	35.6	12.2	13.9	14.8	6.1
SAE600/122/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE500/125/2	32	16	33.3	35.6	12.2	13.9	14.8	6.1
SAE600/125/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE500/128/2	32	16	33.3	35.6	12.2	13.9	14.8	6.1
SAE600/128/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE500/142/2	32	16	33.3	35.6	12.2	13.9	14.8	6.1
SAE600/142/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE500/146/2	32	16	33.3	35.6	12.2	13.9	14.8	6.1
SAE600/146/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE600/150/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE600/182/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE720/182/2	38	20	44.6	47.6	16.7	18.6	19.8	8.4
SAE600/196/2	36	20	42.2	45.1	15.9	17.6	18.8	8.4
SAE720/196/2	38	20	44.6	47.6	16.7	18.6	19.8	8.4
SAE590/200/2	30	20	29.4	31.4	16.7	12.3	13.1	8.4

Product characteristic capacities - Timber to timber - with connector screw SSH

References	Product capacities - Timber to Timber - with connector screw SSH
	Number of Fasteners				Characteristic capacities - Timber C24 [kN]
	Header		Joist		R_1.k		R_2.k		R_3.k		R_4.k
	Qty	Type	Qty	Type	CNA4.0x35	CNA4.0x50	CNA4.0x35	CNA4.0x50	CNA4.0x35	CNA4.0x50	CNA4.0x35	CNA4.0x50
SAE200/2X	2	SSH10.0x40	5	CNA*	5.6	6.3	5.7	6.4	2.1	3.6	5	5
SAE250/2X	2	SSH10.0x40	7	CNA*	7	7.2	6.9	7.2	2	2.7	5	5
SAE380	4	SSH12.0x60	12	CNA*	18.4	21	18.4	21	3.8	5.6	10	10
SAE500	6	SSH12.0x60	18	CNA*	27.7	33.4	27.7	33.4	4.5	6.5	15	15

Transversal tension shall be checked by the user and may govern.

These values are valid if the following minimum distances from SSH screws to edges are fullfilled:

Screw	Min. distance to loaded edge a_2.c	Min. distance to unloaded edge a_2.c
SSH10.0	50	40
SSH12.0	80	40

for lower distances, check ETA-06/0270 and EN1995.

The minimum thickness of the supporting timber member to use with SSH10x40 is 47 mm and for SSH12x60 is 75 mm.

For values with other SSH length, please refer to the ETA-06/0270

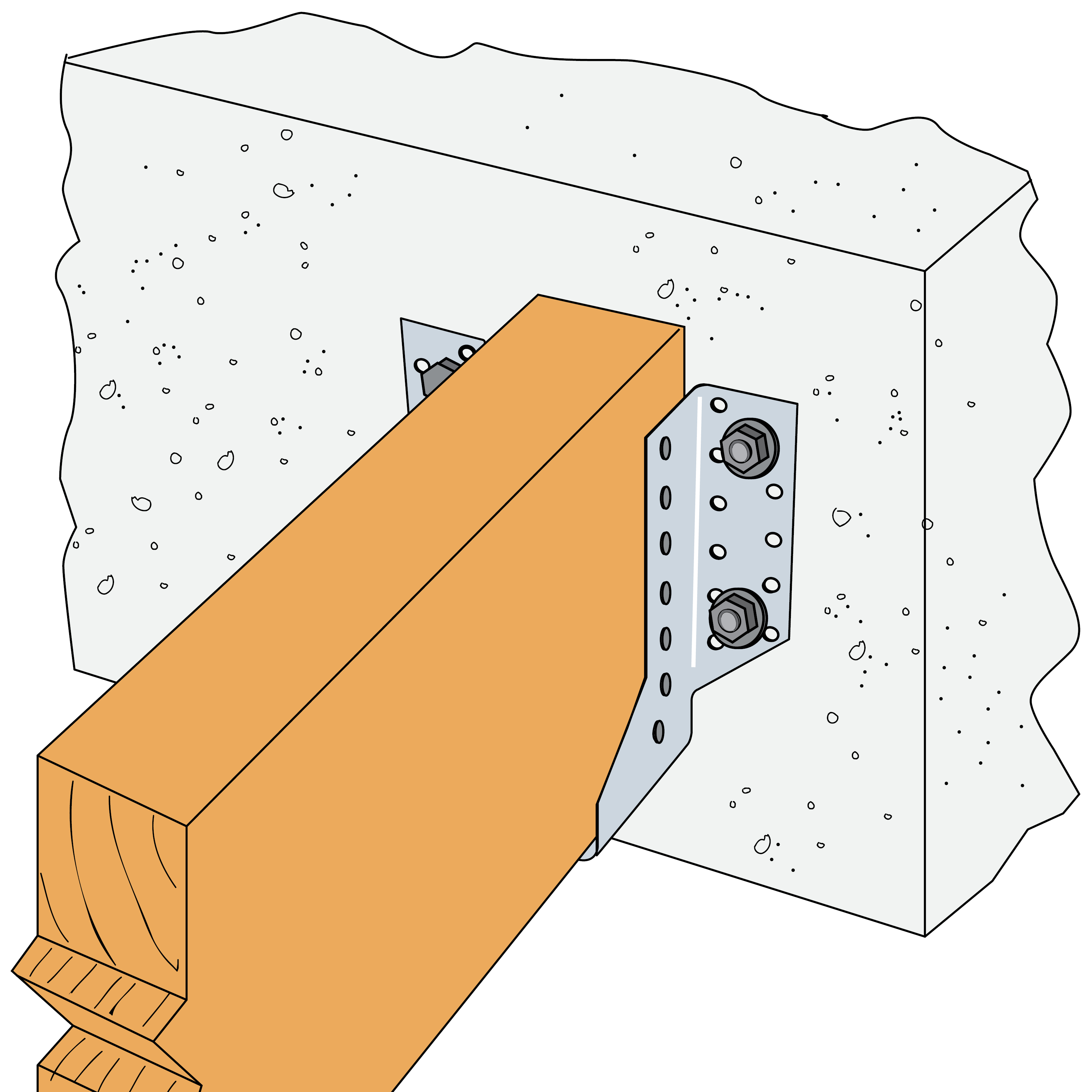

Installation

Fasteners

Install using 3.75 x 30mm square twist nails

Installation

The hanger depth is to be at least 60% of the carried member depth to prevent rotation, unless additional lateral restraint is added to the top of the carried member.
• SAE hangers have bolt holes for 12mm fasteners if required
• SAE timber bolted capacity to be determined according to the relevant standards
