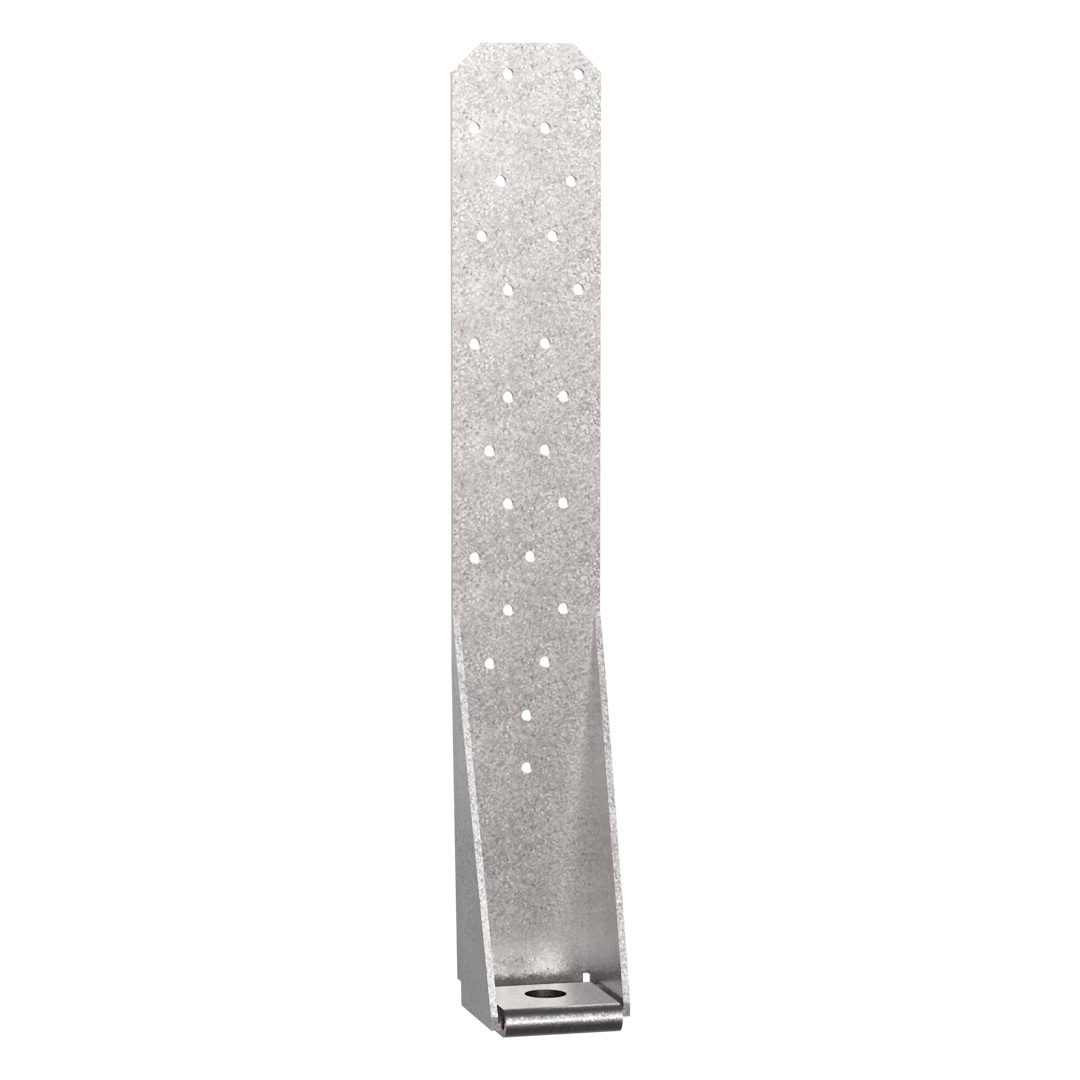

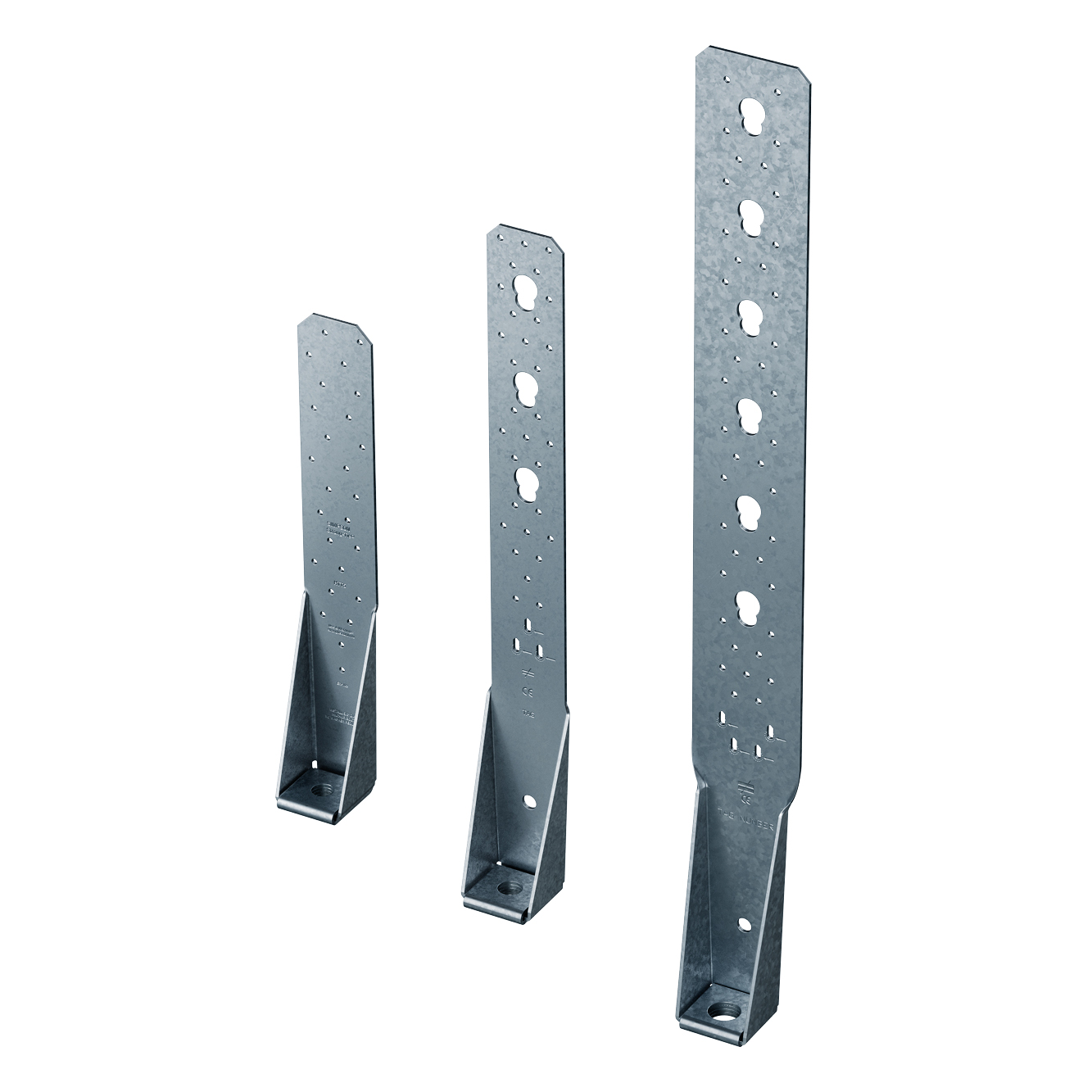

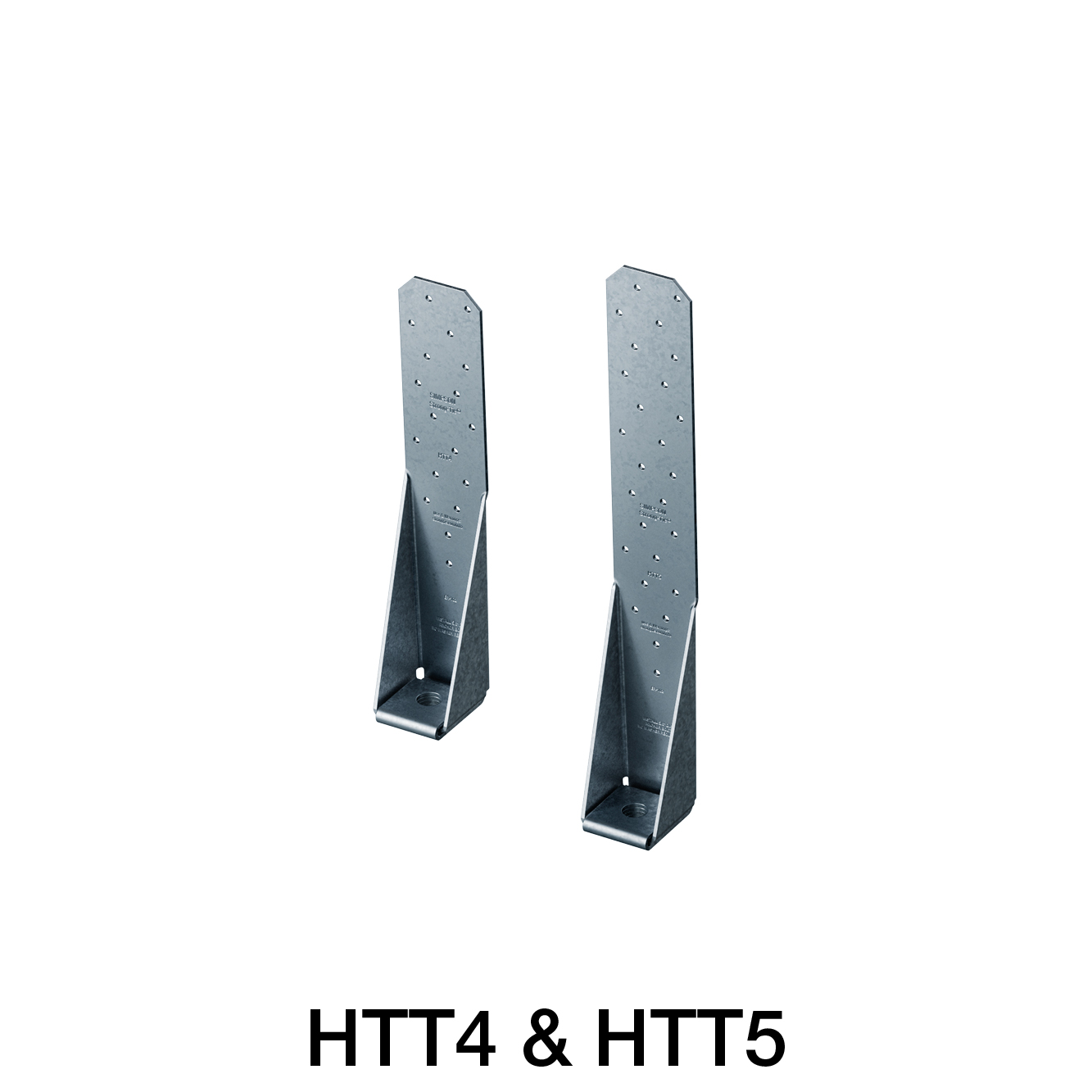

HTT

Hold Down

Ideal for existing or new construction, HTT Tension ties provide a high strength timber to concrete, or timber to masonry, tension connection

The long vertical leg makes it possible to add the required number of fasteners (CNA Nails and CSA Screws) in a vertical post and still comply to relevant standards with regards to fastener spacing requirements.

The unique design of the HTT - a multi ply seat formed from a single piece of steel - gives the tension tie extra strength at the concrete / masonry anchorage point

Technical Data Sheet

CE Marking

ETA

Service class 2

Indoor

EPD

Electrogalvanized steel Z275

HTT_SSTBP_homepage_LV_en

Product Details

Images

Features

Material

Z275 Pre-galvanised mild steel.

Benefits

Enables a connection to concrete structure.

Application

Connections

Timber Members

When to Use

Timber structures which exerted to high uplift forces can be connected to concrete structures with the HTT Hold Down.
Tension force connection between timber floor joists and masonry walls

Technical Data

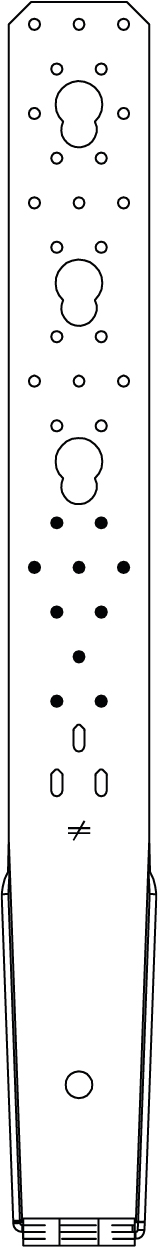

Product Dimensions

Dimensions

Reference	Connector Dimensions
	Other			Product Dimensions[mm]						Joist				Flange B
	Tun / DB nr.	NOB nr.	Qty per Box	A[mm]	B[mm]	C[mm]	d[mm]	E[mm]	t[mm]	Round			Obround	Round
	Tun / DB nr.	NOB nr.	Qty per Box	A[mm]	B[mm]	C[mm]	d[mm]	E[mm]	t[mm]	Ø4.7	Ø5[mm]	Ø21	Ø5x12	Ø17.5	Ø25
HTT4	1388657	42922721	16.0	314	60	64	11.4	35	2.8	18	-	-	-	1	-
HTT5	1388655	42922755	10.0	403	56	64	11.4	35	2.8	26	-	-	-	1	-
HTT22E	2049836	-	10.0	558	60	63	12	33	3	-	31	3	3	-	-
HTT31	2151752	-	5.0	790	60	90	12	33	3	-	41	6	4	-	1

Product capacities - simplified values

Dimensions

Reference	Holdowns capacity
	Simplified product capacities - Timber to Concrete
	Number of Fasteners						Simplified Characteristic capacities - Timber C24 to concrete[kN]
	Joist				Flange B		R1,k (without US50/50/8 washer)
	Qty	Type	Qty 2	Type 2	Qty	Type	CNA4.0x50	CNA4.0x60	CSA5.0x50	CSA5.0x80
HTT4	18.0	CNA	-	-	1.0	M16	24.7	31	-	-
HTT5	18.0	CNA	-	-	1.0	M16	24.7	31	-	-
HTT22E	26.0	CNA/CSA	-	-	1.0	M16	42.3	52.3	52.3	52.3
HTT31	39.0	CNA/CSA	-	-	1.0	M24	77.4	77.4	77.4	77.4

Simplified numerical characteristic capacities values are based on load duration and service class assumption (Instantaneous, Service class 2, k_mod = 1.1). For other load duration, service class and fasteners, please refer to ETA-07/0285.

For HTT31, 4 CSA5.0x50 must always be installed on the bottom extremity of the oblong holes to reach the capacities given in the table. For other fasteners in these holes, the calculation shall be calculated according to ETA.

LGS Performance Values - 1.2mm Thick - Single Stud

Reference	Holdowns capacity
	Characteristic capacities - Timber C24			LGS Performance values
	Number of Fasteners			LGS Performance Values - 1.2mm Thick - Single Stud
	Joist	Flange B		LGS Performance Values - 1.2mm Thick - Single Stud
	Stud (X34B1016)	Anchor Bolt		Characteristic Capacities[kN]
	Qty	Qty	Diameter[mm]	R₂,ₖ	Deflection at Load[mm]
HTT4	18.0	1.0	16	21.2	4.7
HTT5	26.0	1.0	16	28.9	6.4
HTT22E	-	-	-	-	-
HTT31	-	-	-	-	-

1. Performance Values are based upon tests completed by Simpson strong Tie U.S I accordance to ICC-ES AC261 - acceptance criteria for connectors used with Cold Formed Steel Structural Members

2. Deflection at Load is the deflection of the hold down measured between the anchor bolt and the strap portion of the hold down when loaded to the stated tension load

3. The engineer or designer shall be responsible for specifying suitable anchor type, embedment & configuration

LGS Performance Values - 1.6mm Thick - Single Stud

Reference	Holdowns capacity
	Characteristic capacities - Timber C24			LGS Performance values
	Number of Fasteners			LGS Performance Values - 1.6mm Thick - Single Stud
	Joist	Flange B		LGS Performance Values - 1.6mm Thick - Single Stud
	Stud (X34B1016)	Anchor Bolt		Characteristic Capacities[kN]
	Qty	Qty	Diameter[mm]	R₂,ₖ	Deflection at Load[mm]
HTT5	26.0	1.0	16	28.6	6.4

1. Performance Values are based upon tests completed by Simpson strong Tie U.S I accordance to ICC-ES AC261 - acceptance criteria for connectors used with Cold Formed Steel Structural Members

2. Deflection at Load is the deflection of the hold down measured between the anchor bolt and the strap portion of the hold down when loaded to the stated tension load

3. The engineer or designer shall be responsible for specifying suitable anchor type, embedment & configuration

LGS Performance Values - 1.2mm Thick - Back to Back

Reference	Holdowns capacity
	Characteristic capacities - Timber C24			LGS Performance values
	Number of Fasteners			LGS Performance Values - 1.2mm Thick - Back to Back
	Joist	Flange B		LGS Performance Values - 1.2mm Thick - Back to Back
	Stud (X34B1016)	Anchor Bolt		Characteristic Capacities[kN]
	Qty	Qty	Diameter[mm]	R₂,ₖ	Deflection at Load[mm]
HTT4	18.0	1.0	16	29.7	6.4
HTT5	26.0	1.0	16	31.0	6.4

1. Performance Values are based upon tests completed by Simpson strong Tie U.S I accordance to ICC-ES AC261 - acceptance criteria for connectors used with Cold Formed Steel Structural Members

2. Deflection at Load is the deflection of the hold down measured between the anchor bolt and the strap portion of the hold down when loaded to the stated tension load

3. The engineer or designer shall be responsible for specifying suitable anchor type, embedment & configuration

Installation

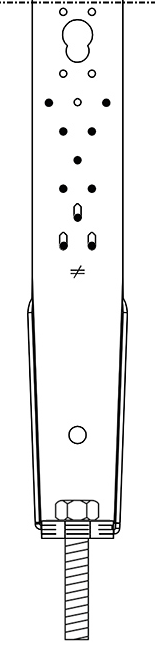

Fixing

Fastening into Timber Stud:

4mm CNA Nails
5mm CSA Screws

for fastener & capacity options see 'Product Capacities - Simplified Values' table

Fastening to the concrete:

Mechanical anchors: M16 WA Anchor or BOAX-II
Chemical anchors: injection mortar SET-XP or AT-HP + M16 threaded rod LMAS

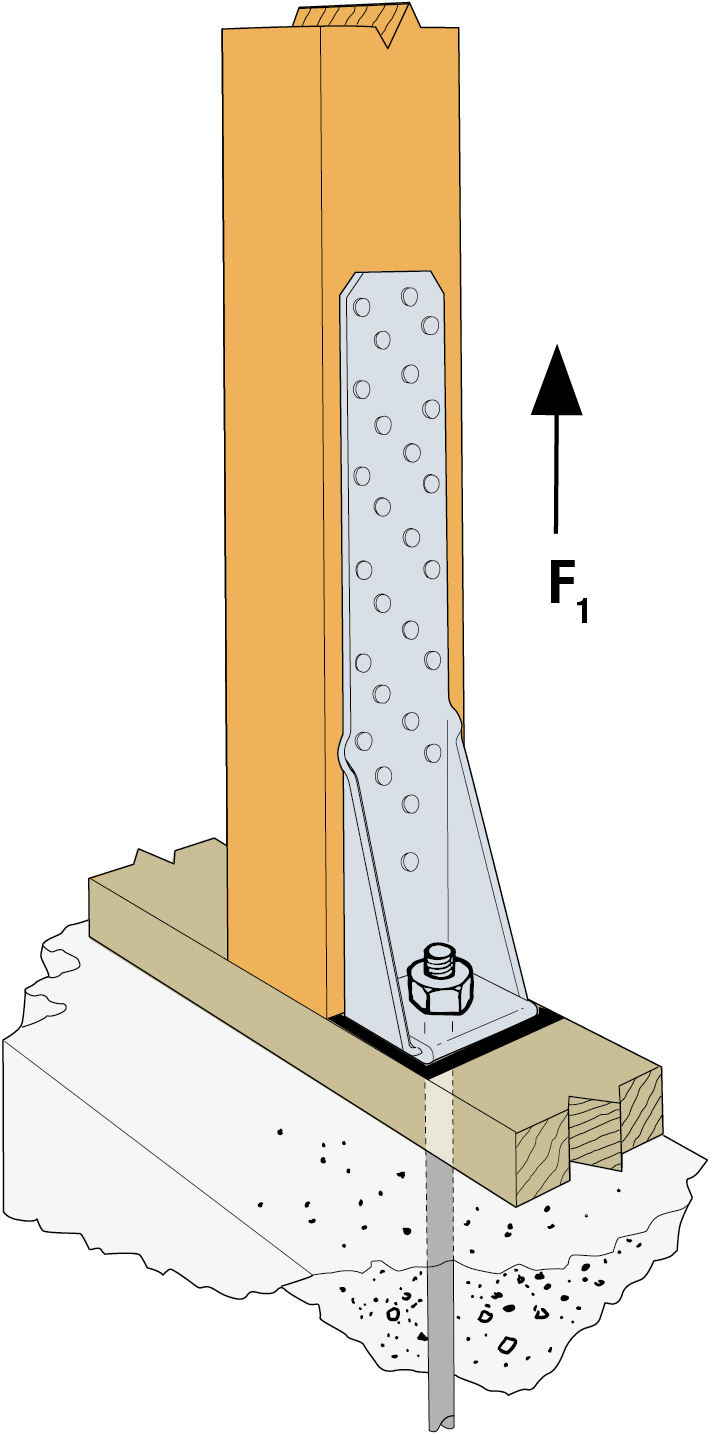

Installation

The connector is mounted with a suitable M16 bolt to the concrete or masonry wall, and the vertical leg is fastened with 4mm CNA Nails, or 5.0mm CSA Screws, to the timber.
