PPA

Elevated Post Base with 100mm Stand Off

The PPA is for post base installations requiring a higher standoff distance.



CE Marking
ETA
Service class 3
Hot-dip galvanised steel
Outdoor

Product Details

Images

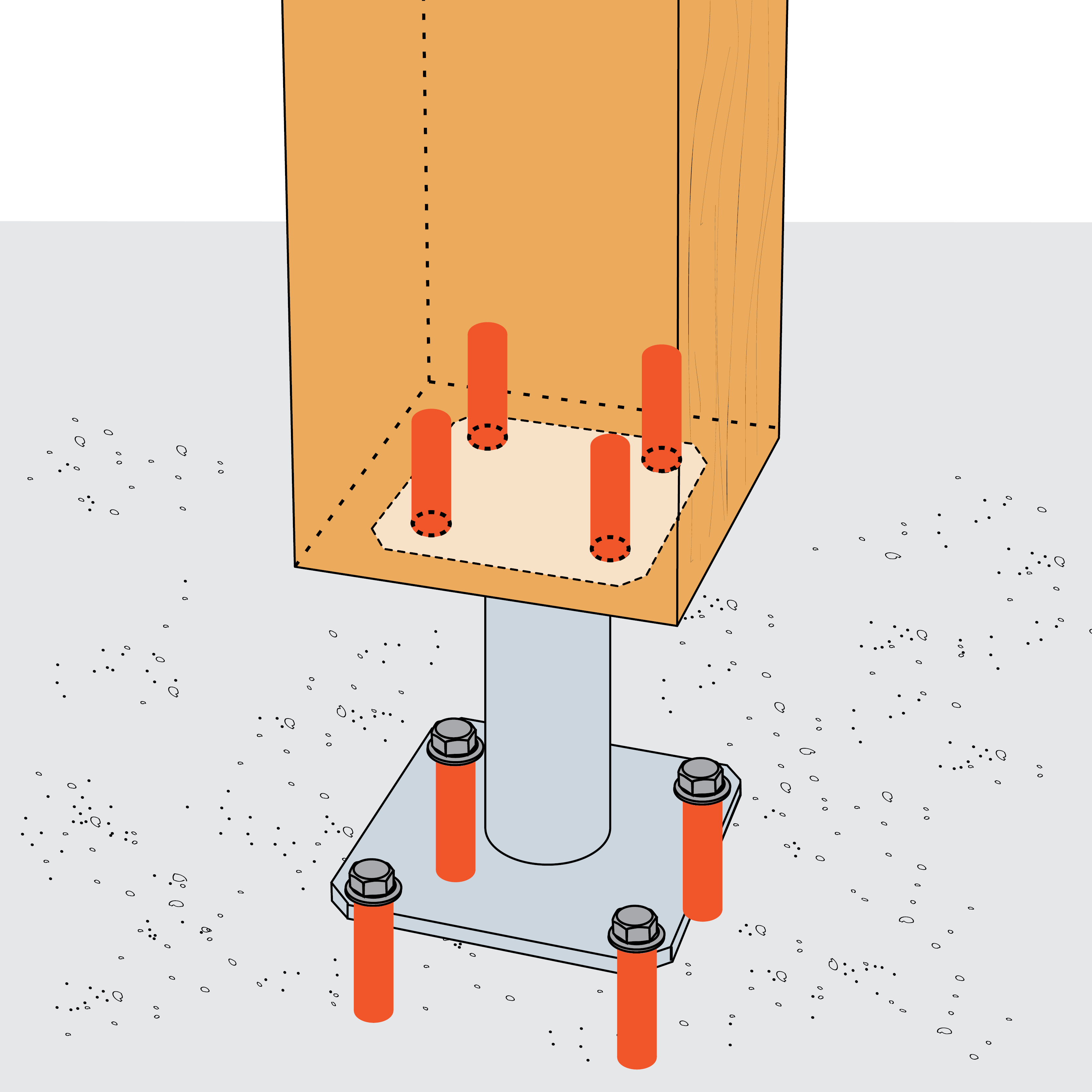

Fixations utilisées pour pied de poteau type PPA

Features

Material

  • Steel S235JR according to NF EN 10025
  • Hotdip galvanized according to NF EN ISO 1461

Benefits

  • No machining necessary

Application

Header member

  • Supporting member: solid wood, glued-laminated wood, concrete
  • Supported member: solid wood, composite lumber, glued-laminated wood

Applications

  • Awning posts
  • Pergola
  • Veranda

Technical Data

Dimensions

Product Dimensions

References Product Dimensions [mm] Top plate holes Bottom plate holes
A B D E F G t Ø12 Ø12
PPA100 100 100 130 130 100 48.3 4 4 4

Product simplified characteristic capacities

References Simplified product capacities - Timber to Concrete
Number of Fasteners Simplified characteristic capacities - Timber C24 [kN]
On post On concrete R1.k*
Qty Type Qty Type
PPA100 4 LAG Ø10x80 4 Ø10** 85.7

*The published characteristic capacity is based on medium term load duration and service class 3 according to EC5 (EN 1995)(kmod = 0.7). For other load duration and service class, please refer to the ETA to get more accurate capacities.

** Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions are SET-XP and AT-HP, depending on the concrete type, spacing and edge distances.

Installation

Installation

Fixing

On post:

  • Bolts
  • LAG lag screws 10 x 80 mm

On concrete:

  • Mechanical anchor: WA M10-78/5 pin
  • Chemical anchor: AT-HP resin + LMAS M10-120/25 threaded rod

Installation

Fix to the foundation with concrete screw/mechanical anchor or resin anchor system. Fix to the post using M10 coach screws.
• Not recommended when the top of post/column is not restrained (e.g. fence post)



ATTENTION: Post with maximum cross-section 200 x 200 mm.

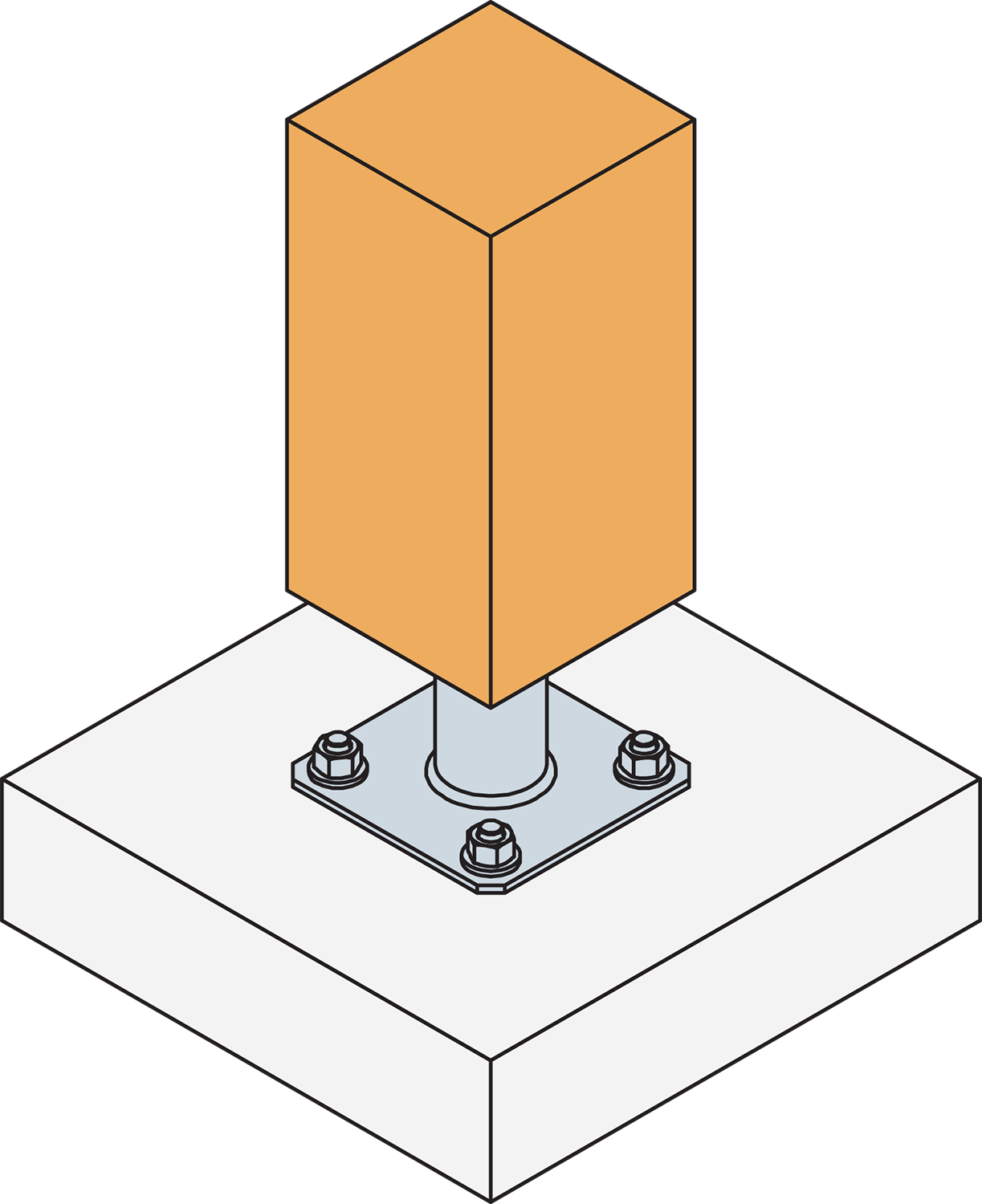

The bases are always installed in the same direction:

  • Plate 130 x 130 mm on the ground.
  • Plate 100 x 100 mm fastened on the post.

PPRC can be adjusted with a 30 mm wrench after both the plates are attached.
PPRIX requires the use of stainless steel fasteners.

Certification

European Technical Assessment (ETA)
