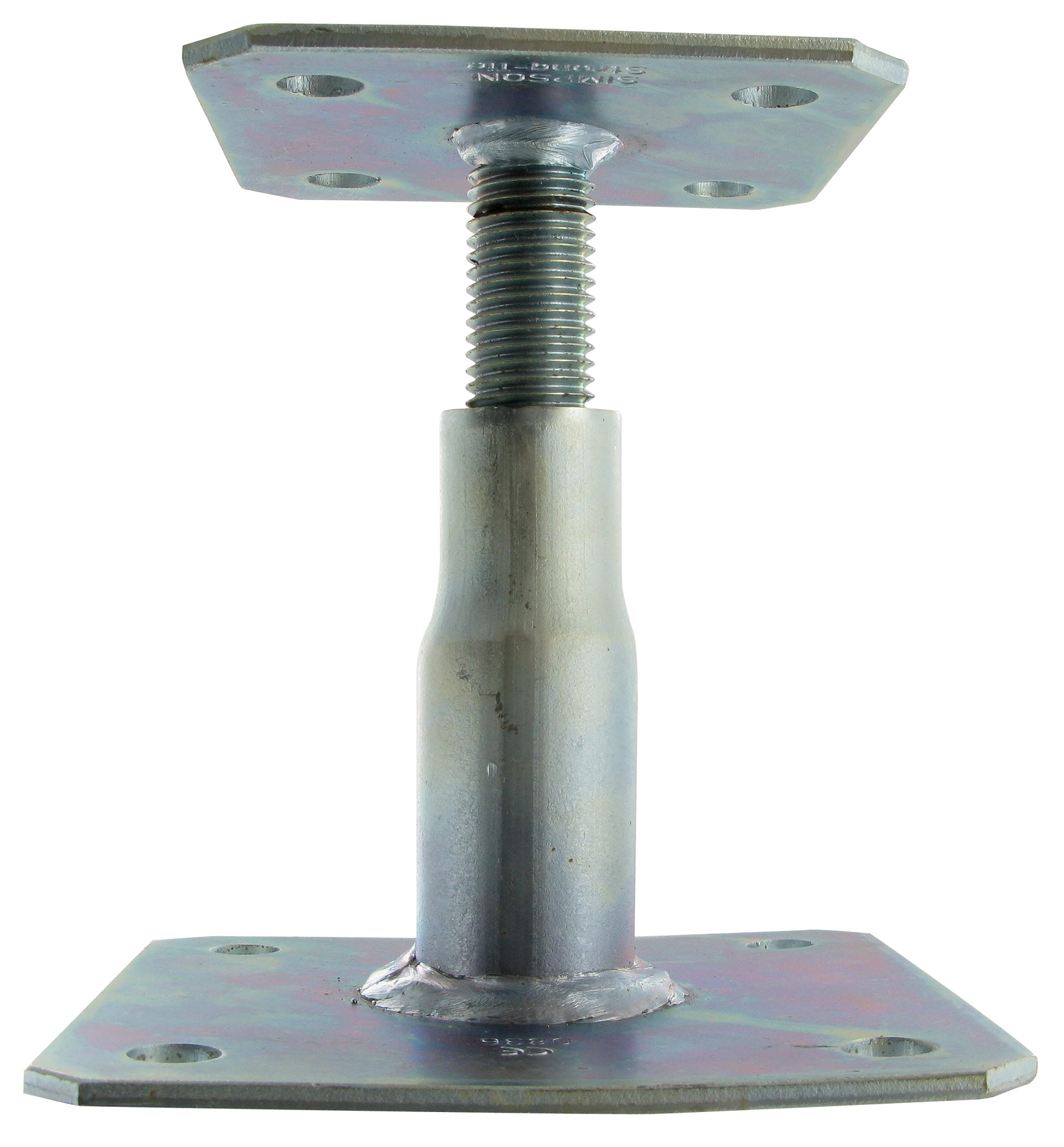

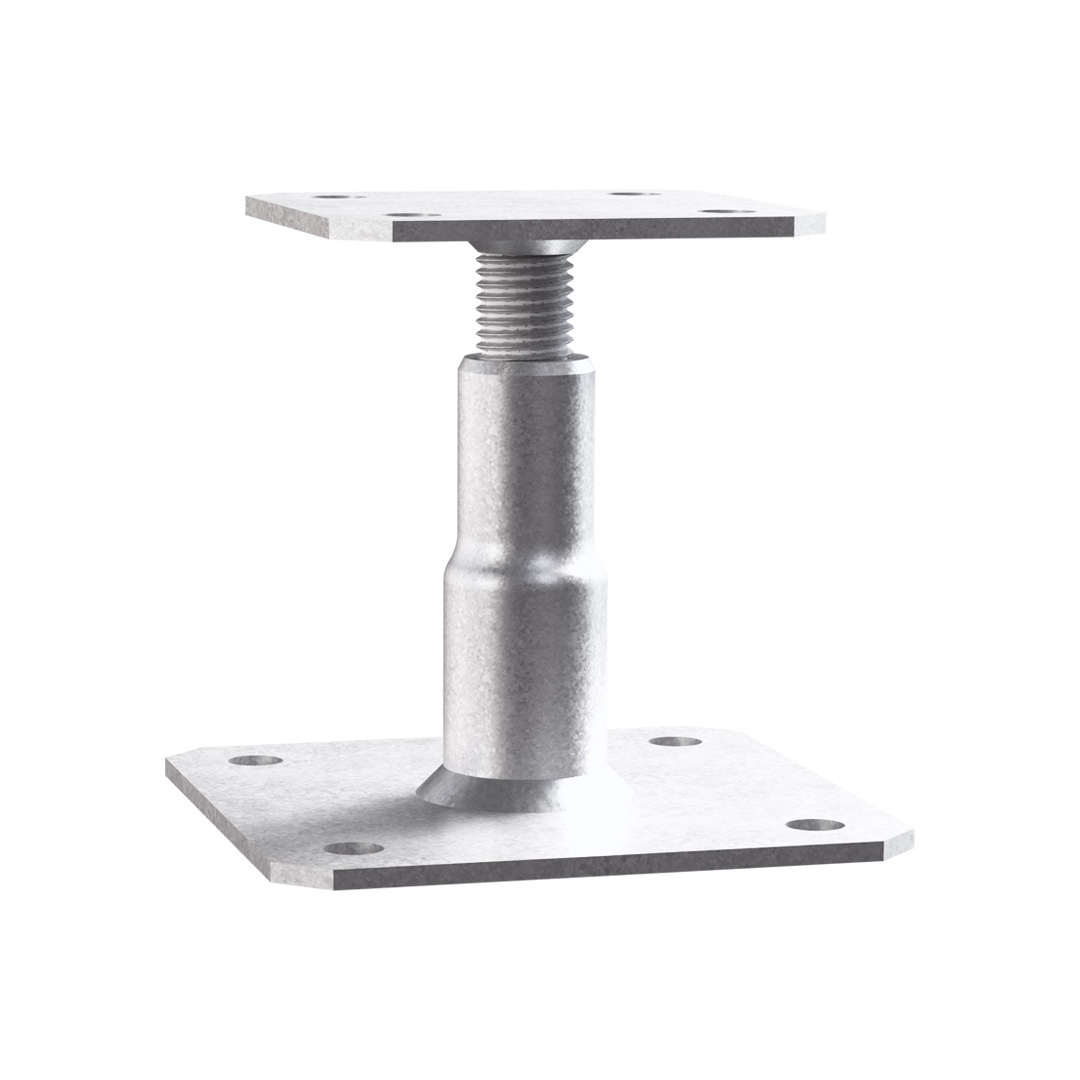

APB100/150

Adjustable Elevated Post Base

The APB features a post mounting plate on a screw allowing it to be adjusted to
a specific standoff height ranging from 100-150mm.

Suitable for post sizes 100 x 100mm to 200 x 200mm.

CE Marking
ETA
Service class 2
Electrogalvanized steel 20 µm

Product Details

Images

Features

Material

  • Pre-galvanised mild steel

Benefits

  • Simple, height adjustable

Application

Header member

  • Solid or glulam timber

Applications

  • Post support
  • Garage ports
  • Pergola

Technical Data

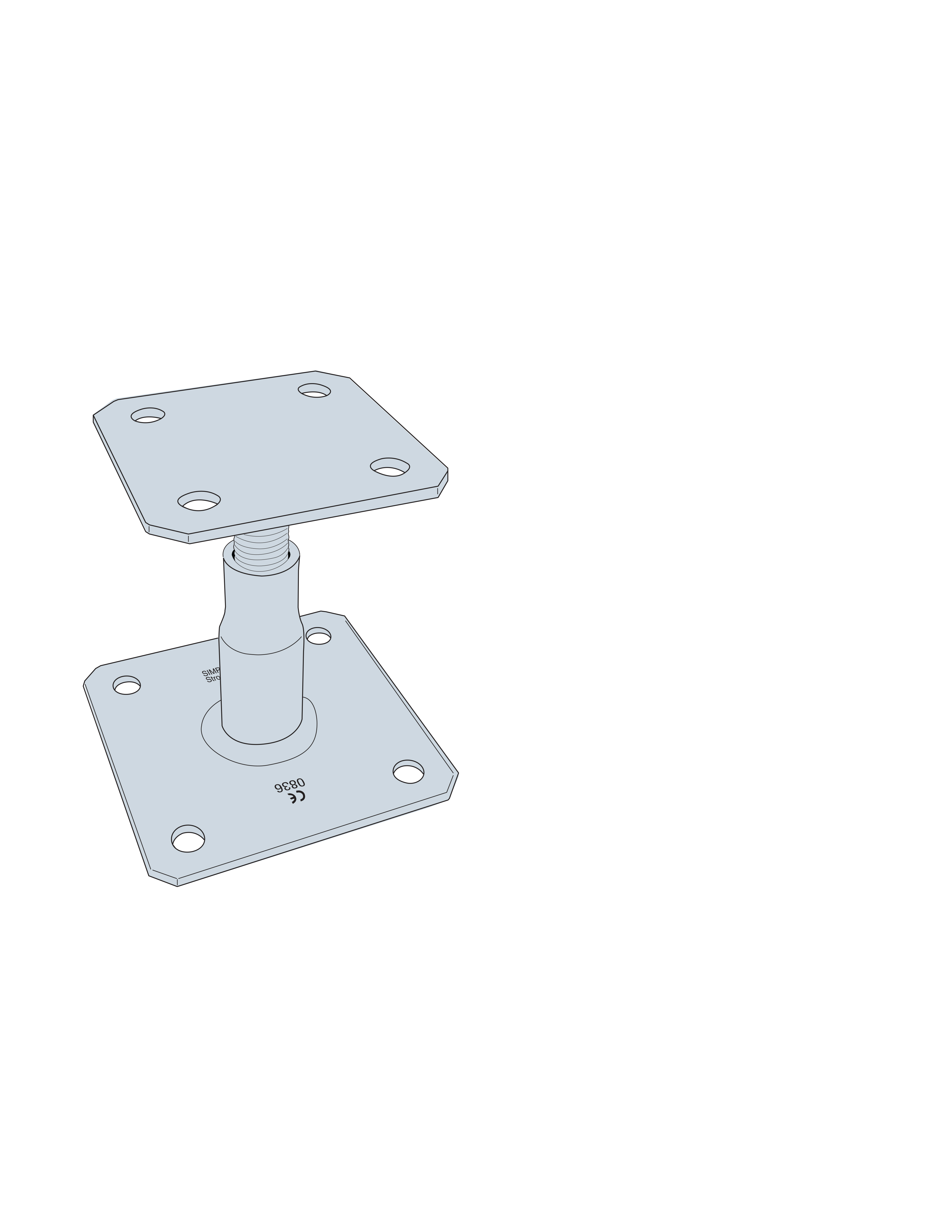

Dimensions

Product Dimensions

References Timber Post Size [mm] Product Dimensions [mm] Holes Flange A/B Holes Flange C/D
A B D E F G t Ø12 Ø12
APB100/150 100x100 to 200x200 100 100 130 130 100-150 20 4 4 4

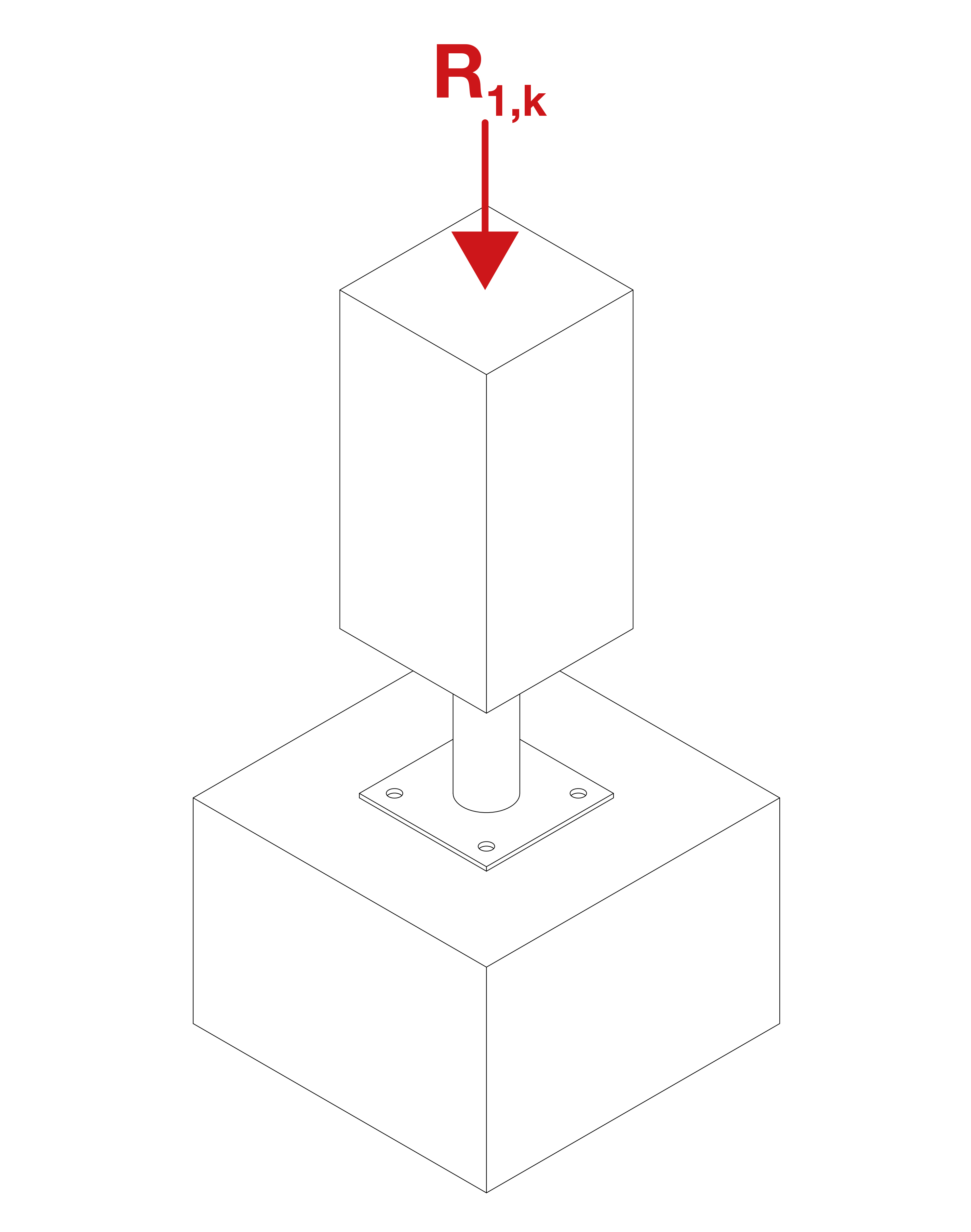

Product capacities - Timber to concrete

References Number of Fasteners Characteristic capacities - Timber C24 [kN]
On post On concrete R1,k*
Qty Type Qty Type
APB100/150 4 Ø10 4 Ø10 ** 69.3

*The published characteristic capacity is based on medium term load duration and service class 3 according to EC5 (EN 1995). For other load duration and service class, please refer to the ETA to get more accurate capacities

** Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions are SET-XP and  AT-HP, depending on the concrete type, spacing and edge distances.

Installation

Installation

Installation

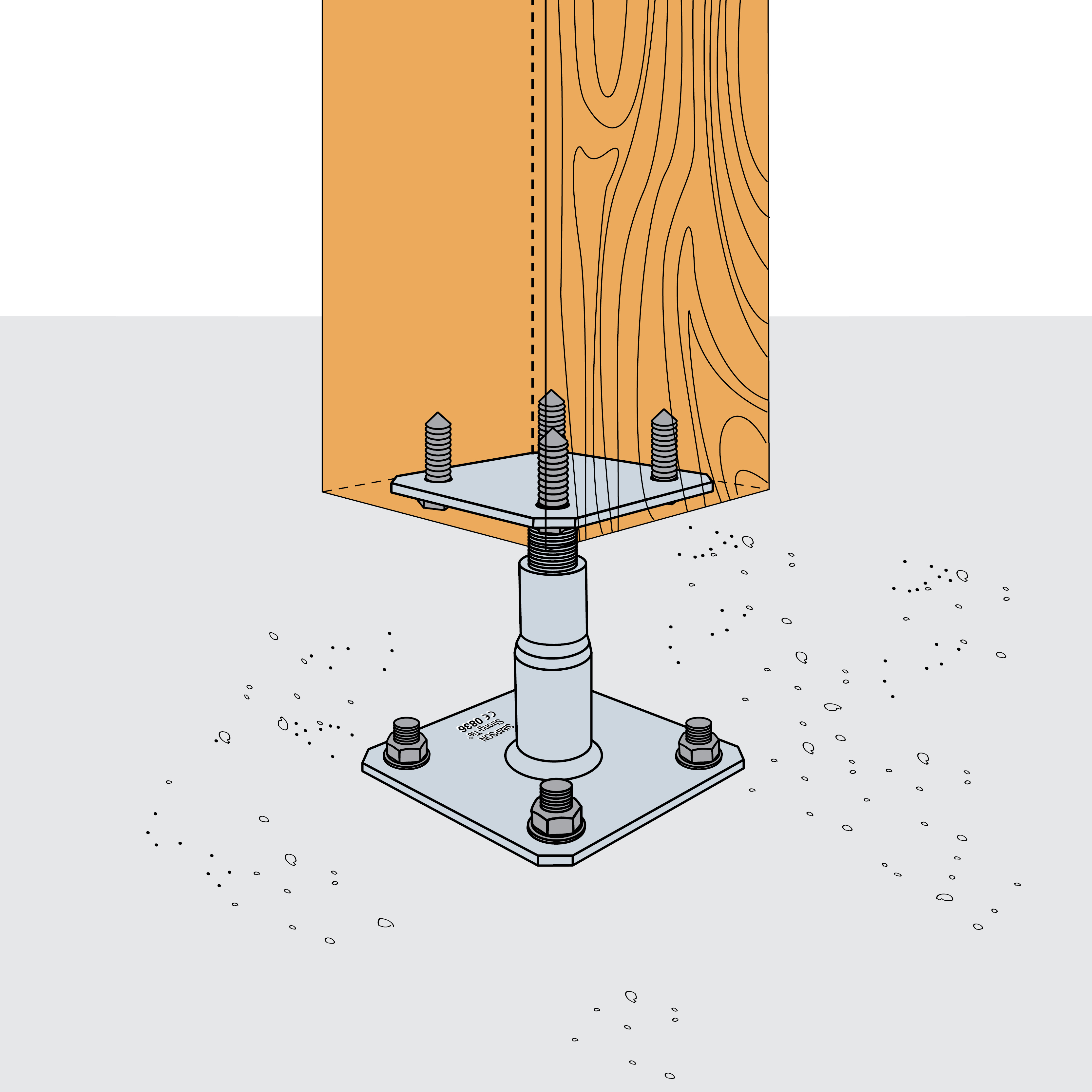

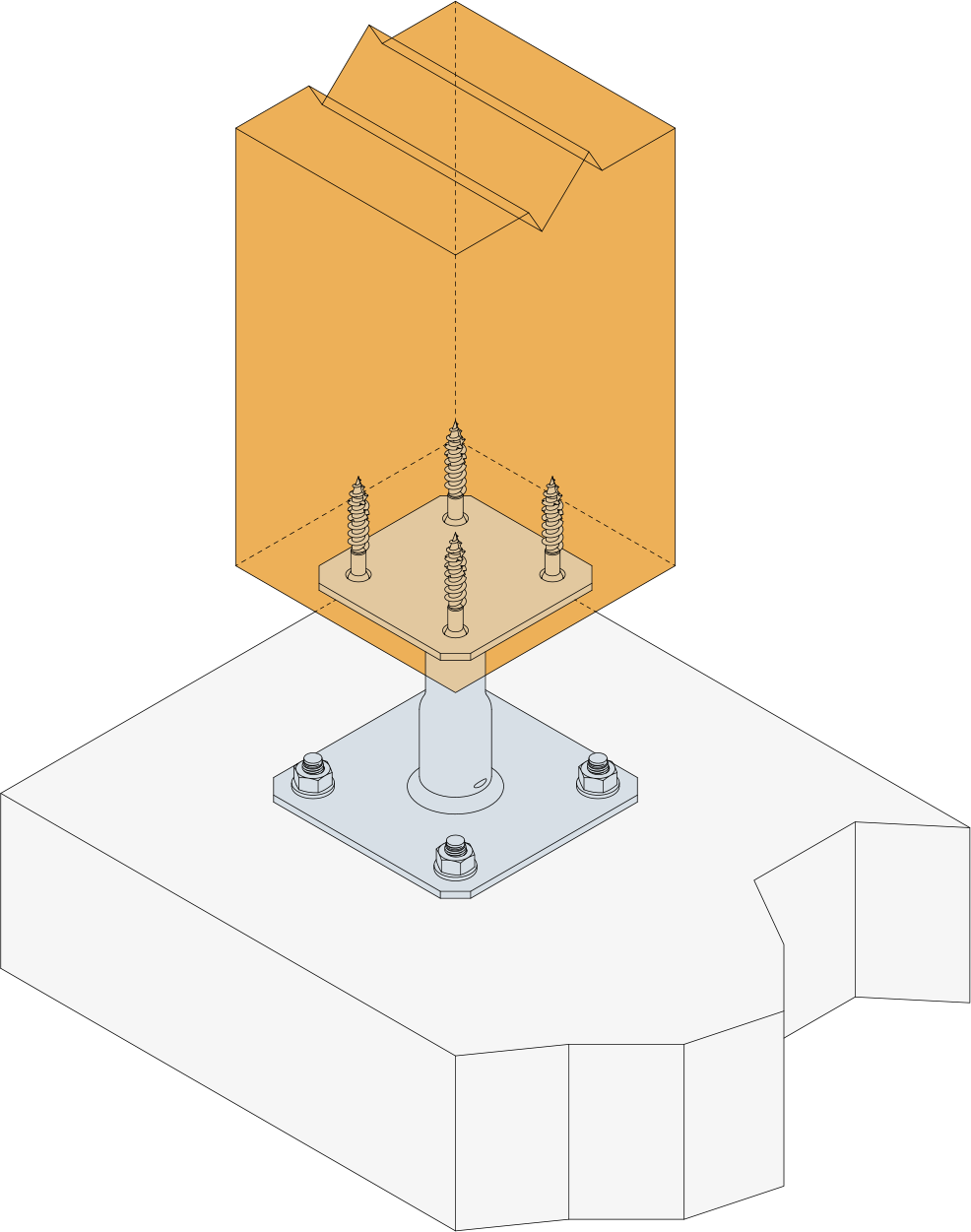

  • Fix to the foundation with 10mm resin anchors
  • Adjust to the required stand off height
  • Fix post to top plate using M10 coach screws
  • Not recommended when the top of post/column not restrained (eg. fence post)
