Connectors for Masonry, Timber and Steel Construction

PPRC

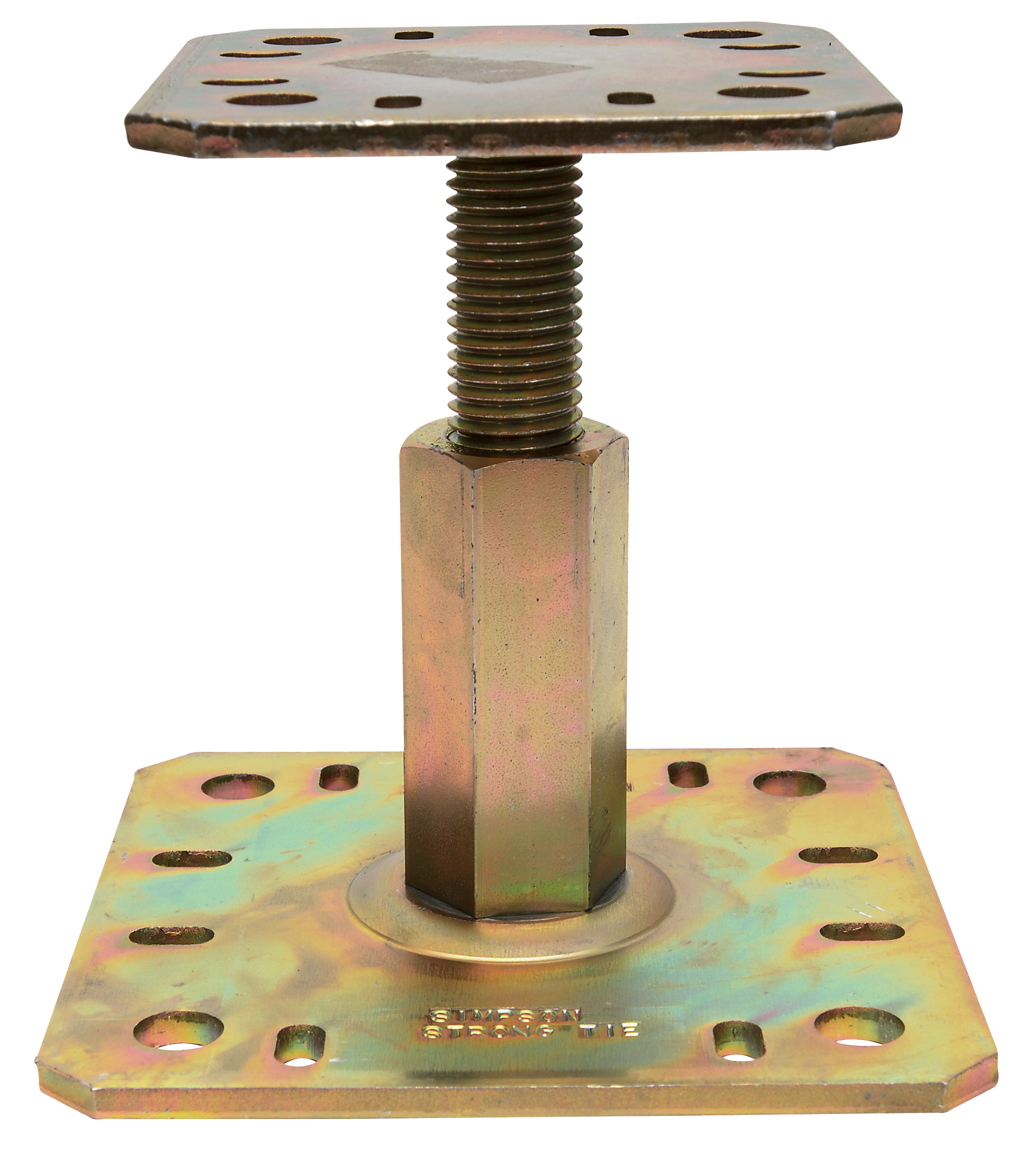

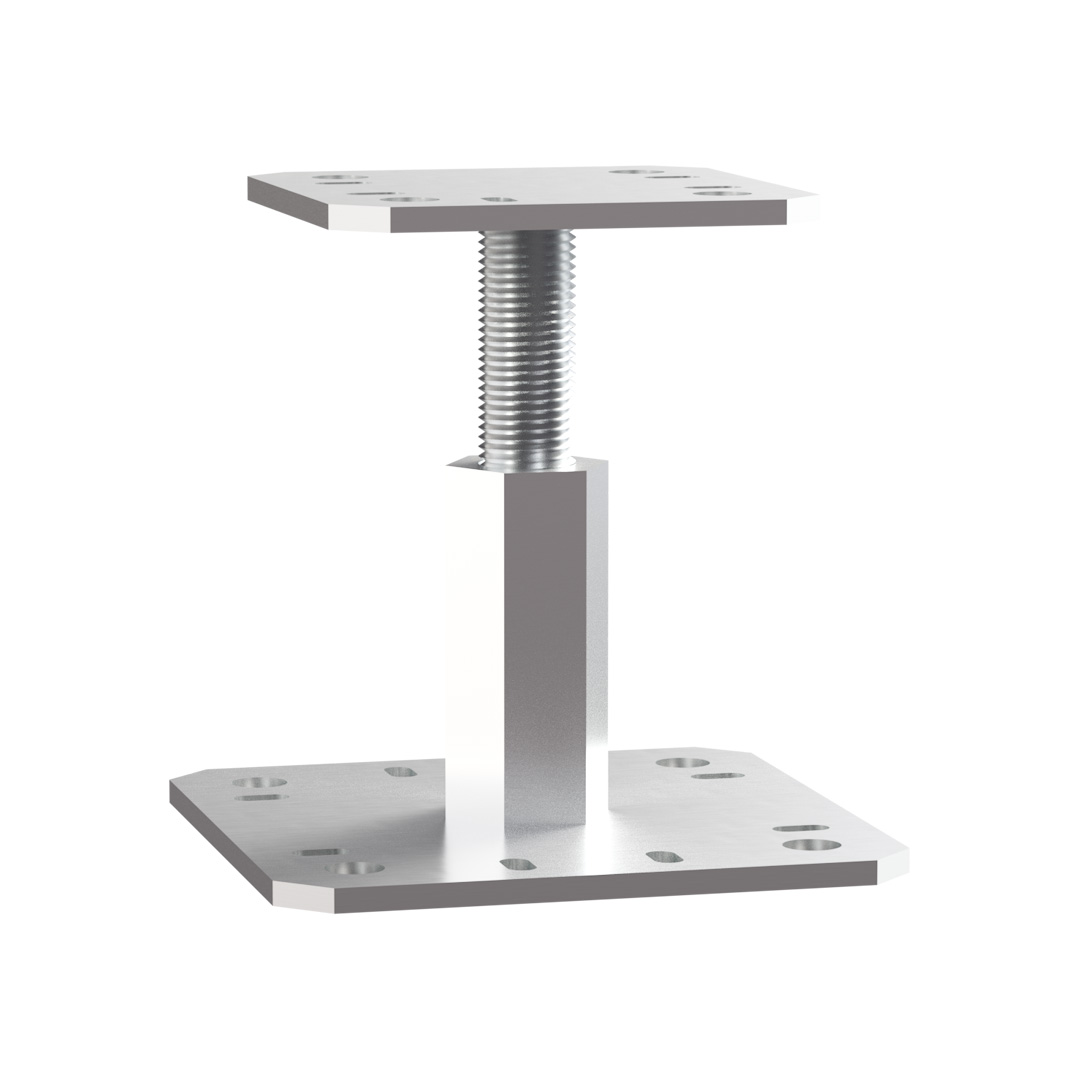

Adjustable Post Base

The PPRC allows the structure to be adjusted after it has been built.

Adjust the off the ground height from 100 to 150mm even after the post has been installed.

Suitable for posts 100x100mm to 200x200mm

Technical Data Sheet

CE Marking

ETA

Service class 2

Electro-galvanized steel

EPD

Product Details

Images

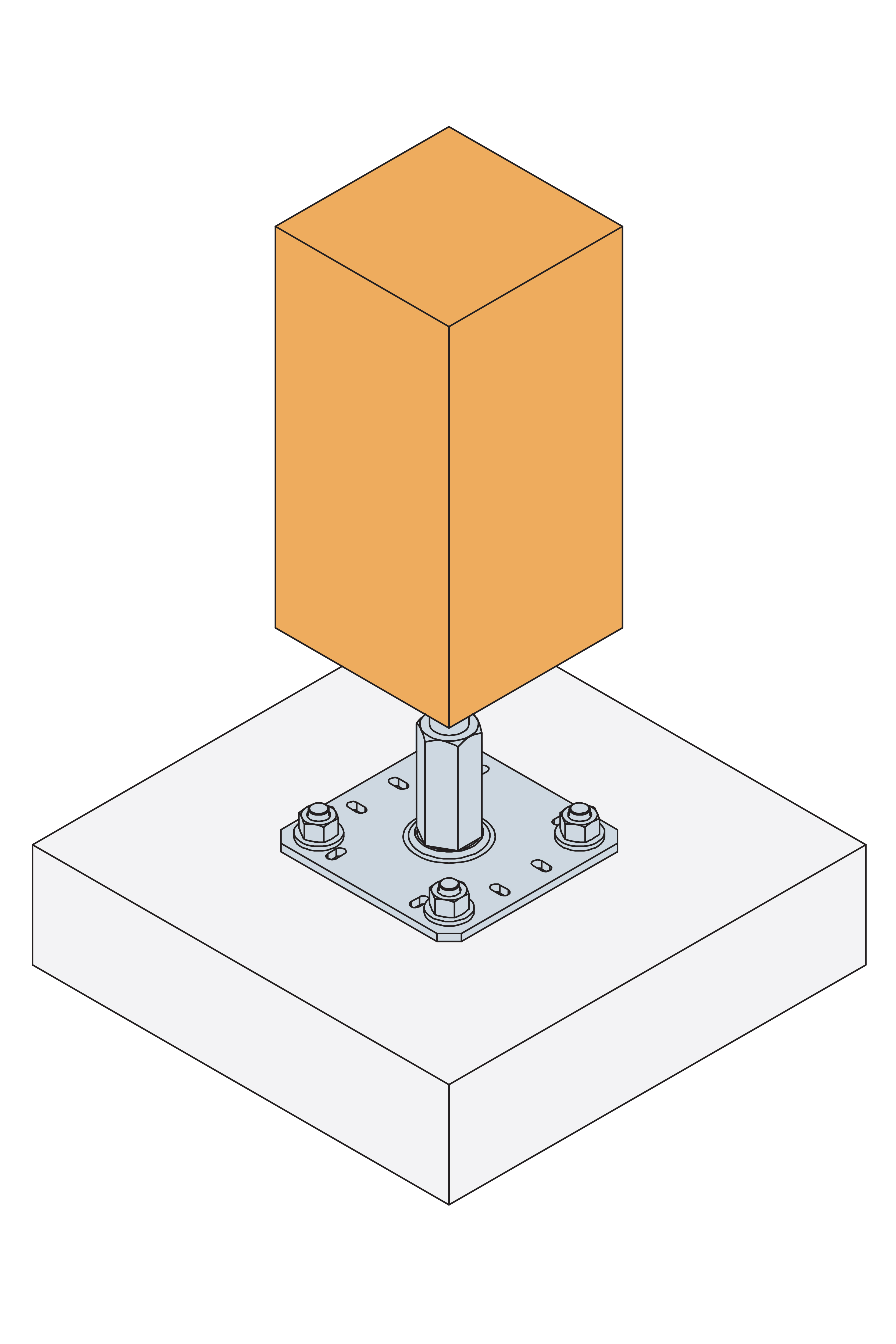

PPRC fixed to rigid support

C_PPRC_InstDtl_Ills_Instld_PPRC_EU_EN_CN (1).jpg

Features

Material

dichromate coated galvanised mild steel.

Benefits

PPRC can be adjusted after the installation.
Does not require machining.

Application

Suitable On

Supporting member: solid wood, glued-laminated wood, concrete.
Supported member: solid wood, composite lumber, glued-laminated wood.

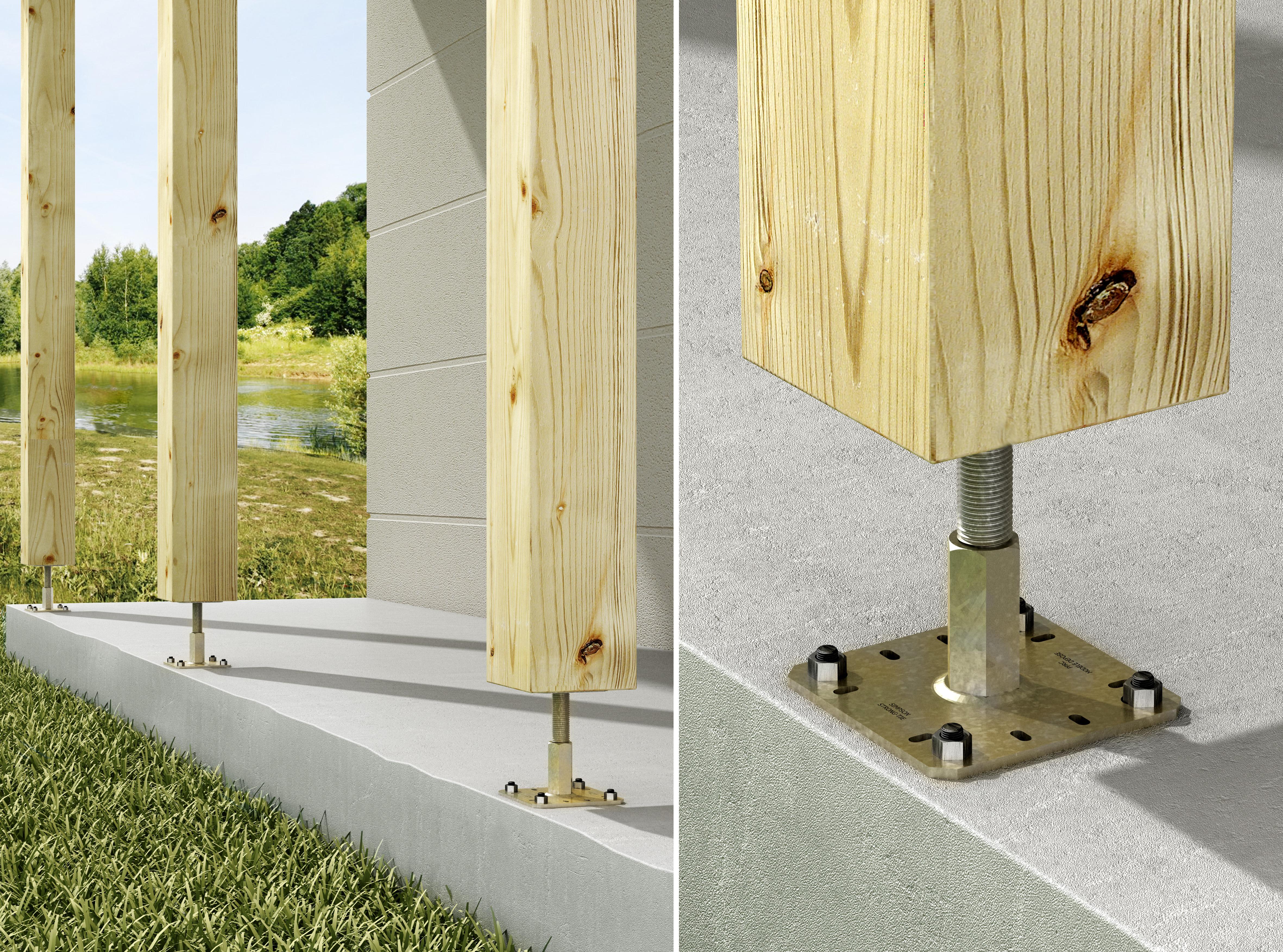

Applications

Awning posts.
Pergola.
Veranda.

Technical Data

Dimensions

Product Dimensions

References	Timber Post Size [mm]	Product Dimensions [mm]							Holes Flange A/B	Holes Flange C/D	Weight [kg]
References	Timber Post Size [mm]	A	B	D	E	F	G	t	Ø12	Ø12	Weight [kg]
PPRC	100x100 to 200x200	100	100	130	130	100 - 150	30	5	4	4	1.4

Characteristic Capacites - Timber to Concrete

References	Fasteners				Simplified characteristic capacities - Timber C24 [kN]
	On post		On concrete		R_1,k**
	Qty	Type	Qty	Type	R_1,k**
PPRC	4	Ø10	4	Ø10*	57.1

* Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions are SET-XP and AT-HP, depending on the concrete type, spacing and edge distances.

**The published characteristic capacity is based on medium term load duration and service class 2 according to EC5 (EN 1995). For other load duration and service class, please refer to the ETA to get more accurate capacities.

Installation

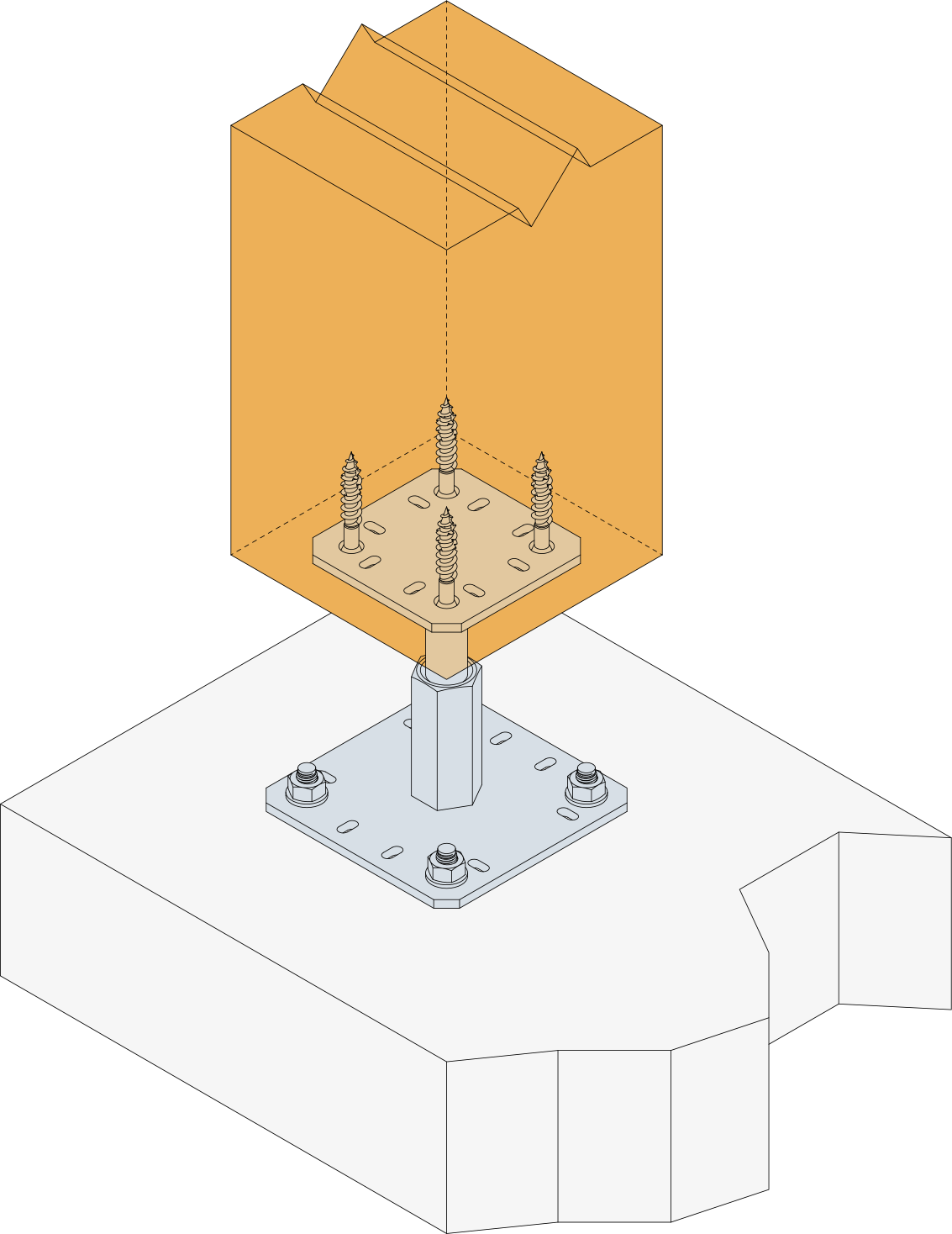

Timber install

Place post in Post base
Sit timber onto the post bases, and nail in the required nails into the side of the post through the holes provided

Fixing

Fixing Installation to Concrete

Mechanical Fixing

SST Recommended Fixings: FM753 3DG – M10x75 (code 75320c10075)

Recommended Concrete Pad Size: 300mm Wide x 300mm Long x 300mm Deep (see illustration below)

Recommended Concrete Grade: C25 (mixing ratio of 1:1.5:3 (Cement:Sharp Sand:Aggregate) with typically 0.5 water-cement ratio)

Installation Instructions:

Position the post-base centrally on the concrete pad.
Identify and mark out the position for the anchors.
Drill holes perpendicular to the concrete surface, Ø10 x 70mm deep.
Clean the dust from the holes 3 times using a brush, pump or vacuum. This is a crucial step.
Reposition the post base and insert the anchors (tap gently with a hammer if needed) and use a torque wrench to tighten to the recommended installation torque of 50Nm

Resin Fixing

SST Recommended Fixings: LMAS M10x110 (code LMAS1016085010)

SST Recommended Resin: ATHP

Recommended Concrete Pad Size: 300mm Wide x 300mm Long x 300mm Deep (see illustration below)

Recommended Concrete Grade: C25 (mixing ratio of 1:1.5:3 (Cement:Sharp Sand:Aggregate) with typically 0.5 water-cement ratio)

Installation Instructions:

Position the post-base centrally on the concrete pad.
Identify and mark out the position for the anchors.
Drill holes perpendicular to the concrete surface, Ø12 x 85mm deep.
Clean the dust from the holes 3 times using a brush, pump or vacuum. This is a crucial step.
Add Resin using dispenser and fill the hole half-way
Remove nut and washer from anchors, then Insert the anchors carefully into the holes
Once resin has hardened (check for a change in colour) reposition the post base over the top of the anchors, after carefully cleaning excess resin from the area
Use a torque wrench to tighten to the recommended installation torque of 50Nm

PLEASE NOTE – Anchor performance will only be valid when using Simpson AT-HP Resin
