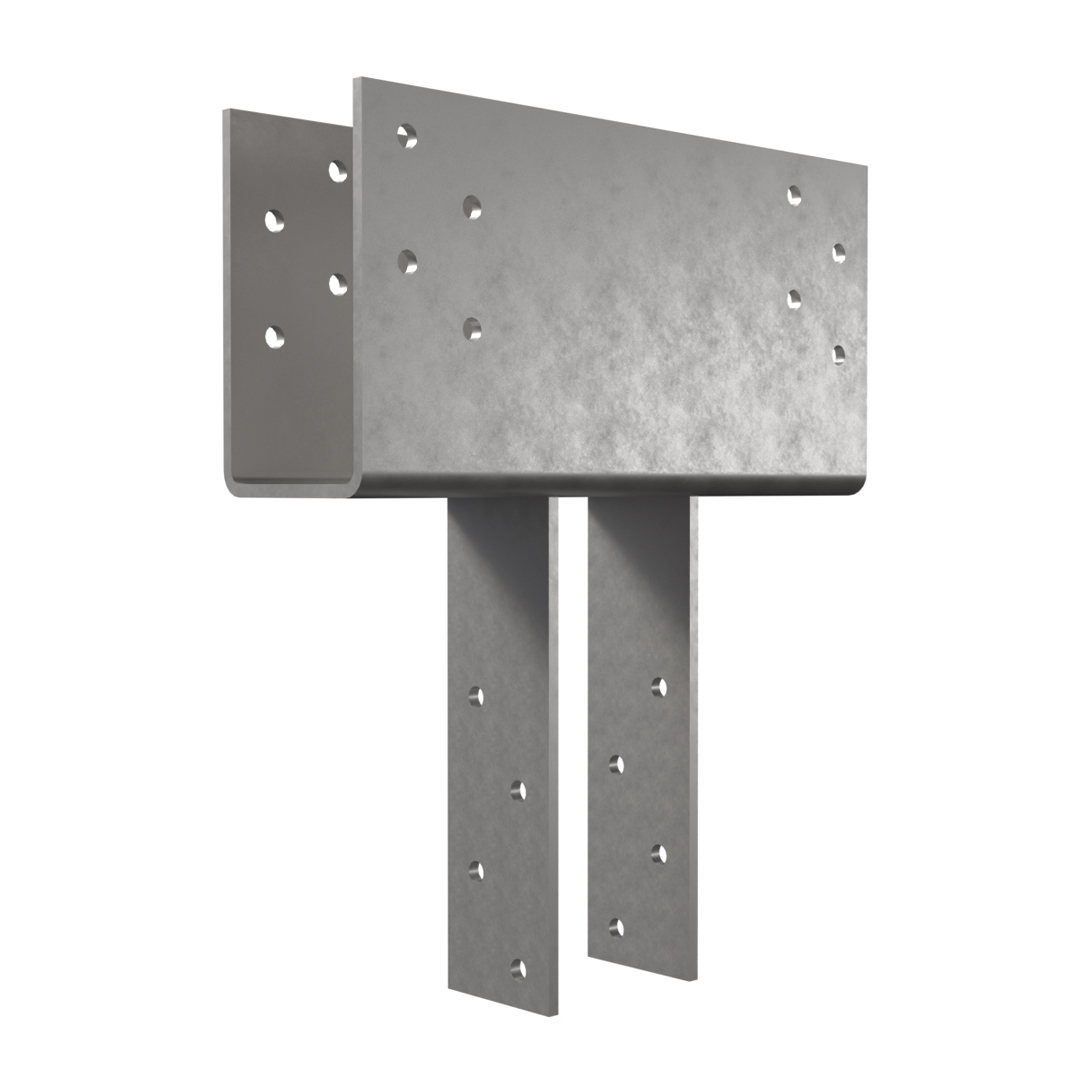

CCQ
Column Cap for use with SSH Screws
The CCQ type Column Caps can be made to order for all standard timber or engineered timber sizes.CCQ Column Caps are suitable for most post to beam installations using SSH8.0X60 connector screws supplied with the caps. Specify the variable dimensions as shown in the Column Cap Made to Order Form below.
Service class 3
Hot-dip galvanised steel
Indoor
Outdoor
Product Details
Images
Features
Technical Data
Product Dimensions
| References | Dimensions [mm] | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A, A2, A3 | B | C, C1, C2 | H | tbody | tlegs | Holes | |||||
| Min | Max | Min | Max | Min | Max | Body | Legs | ||||
| ∅9 | ∅9 | ||||||||||

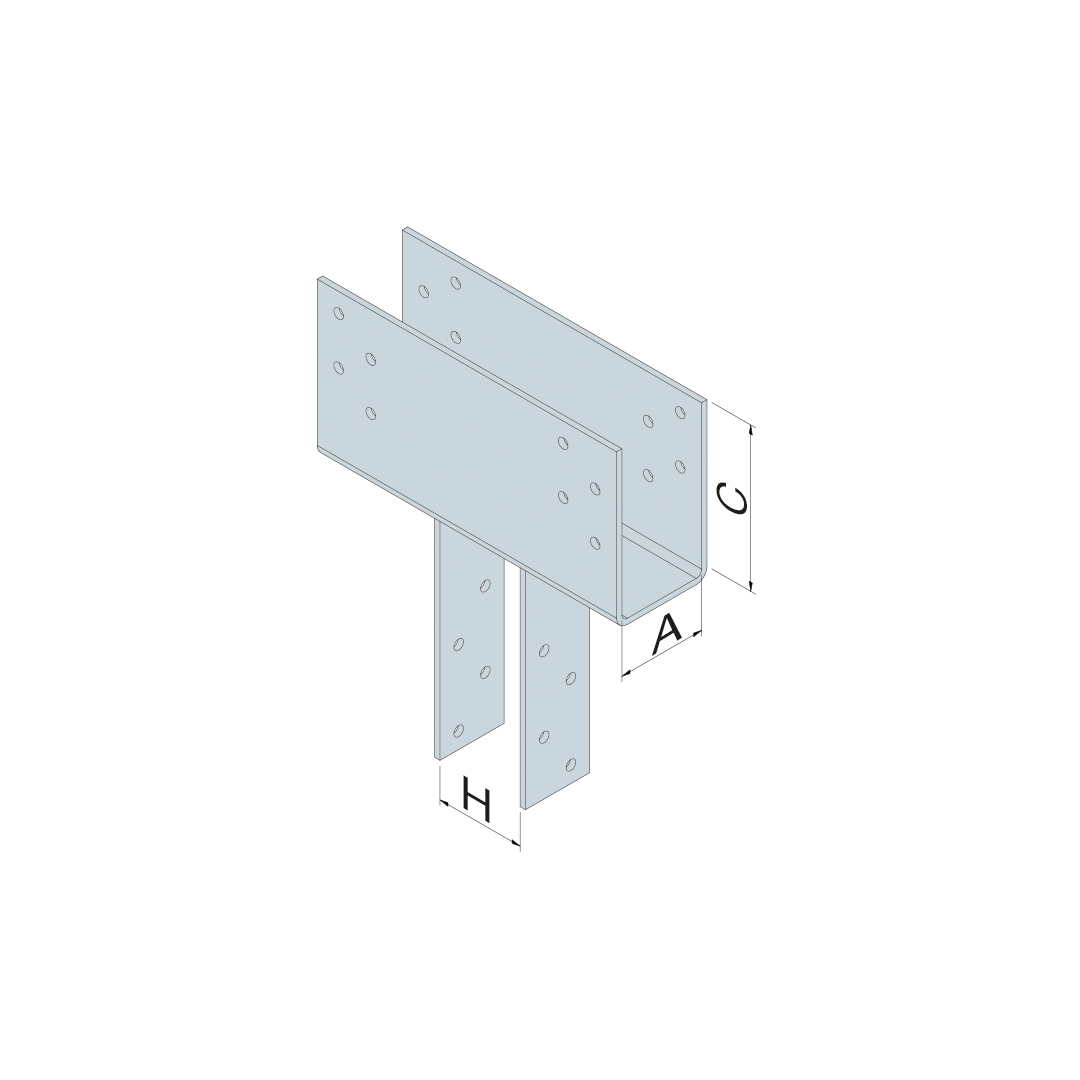

| SPEC E CCQ | 75 | 250 | 280 | 140 | 190 | 75 | 250 | 5 | 5 | 16 | 8 |

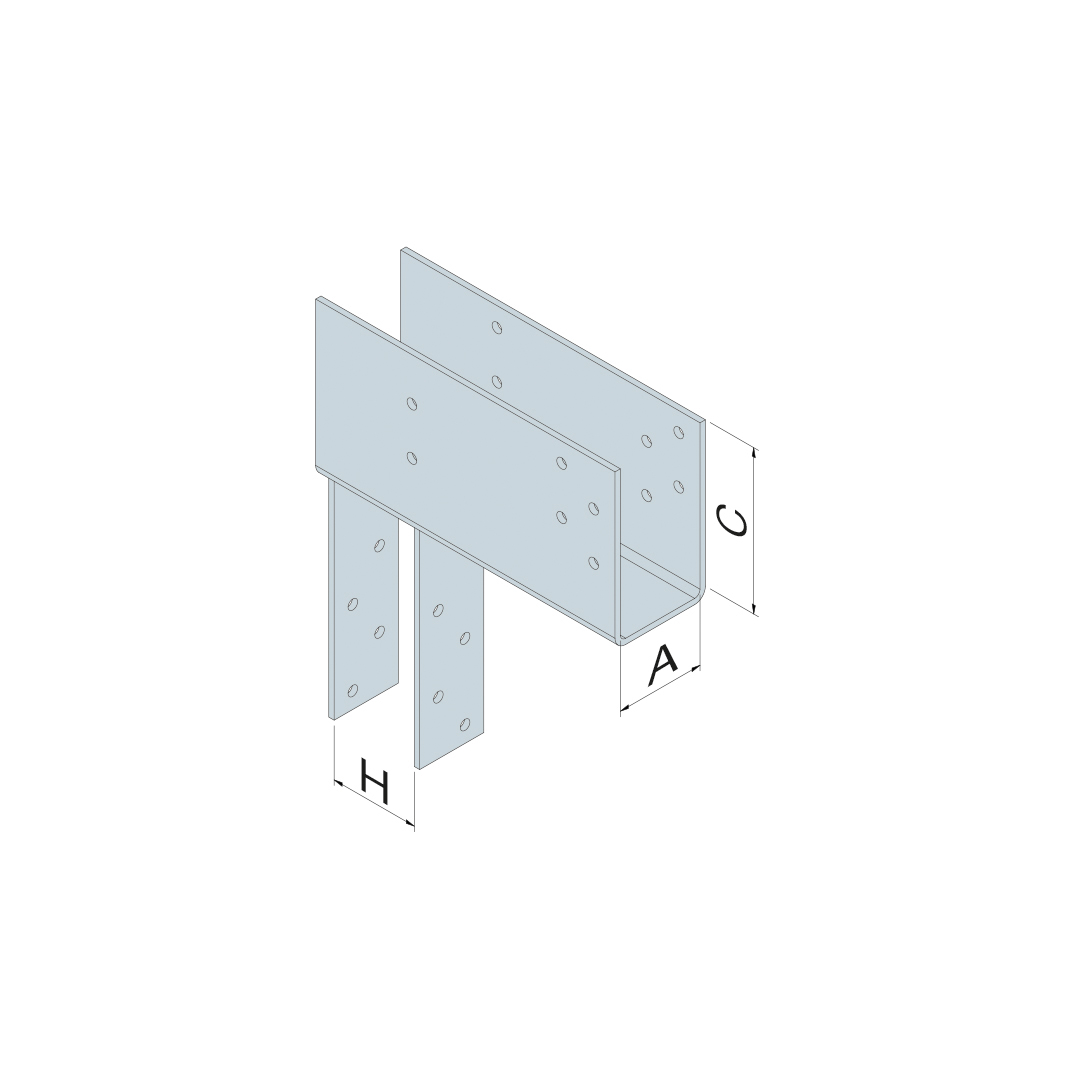

| SPEC E ECCQ | 75 | 250 | 280 | 140 | 190 | 75 | 250 | 5 | 5 | 12 | 8 |

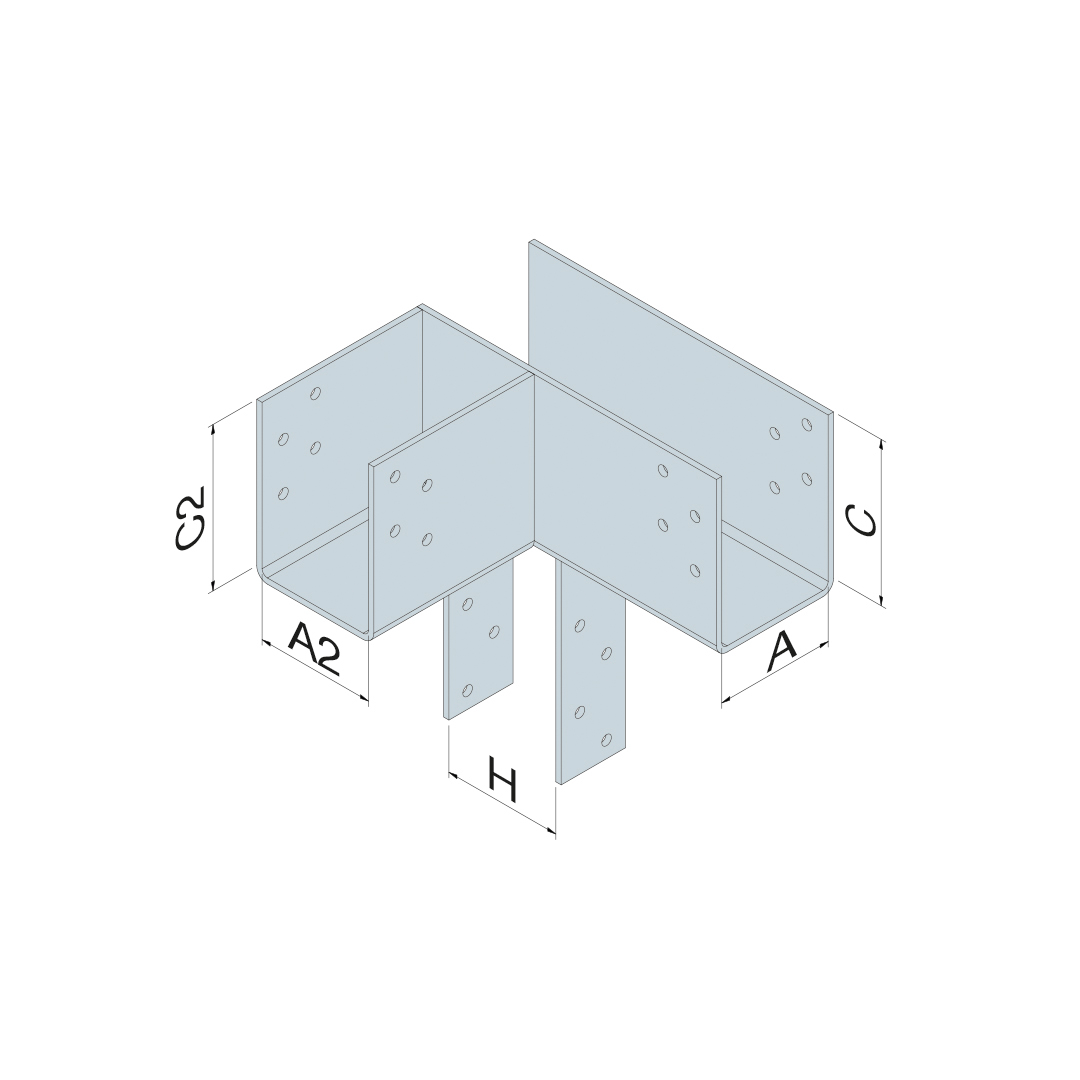

| SPEC E ECCLLQ | 75 | 250 | 300 | 140 | 190 | 75 | 250 | 5 | 5 | 16 | 8 |

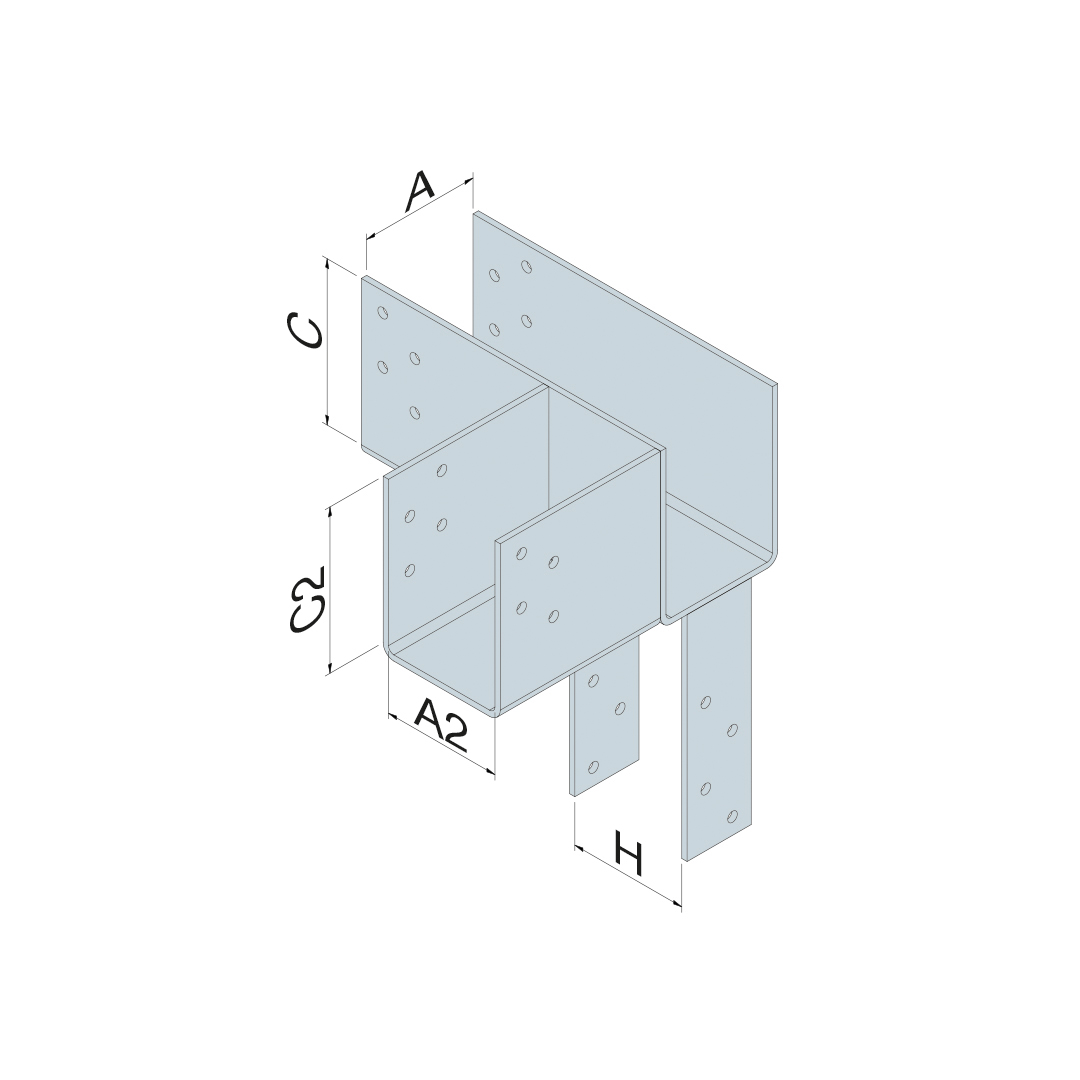

| SPEC E ECCLRQ | 75 | 250 | 300 | 140 | 190 | 75 | 250 | 5 | 5 | 16 | 8 |

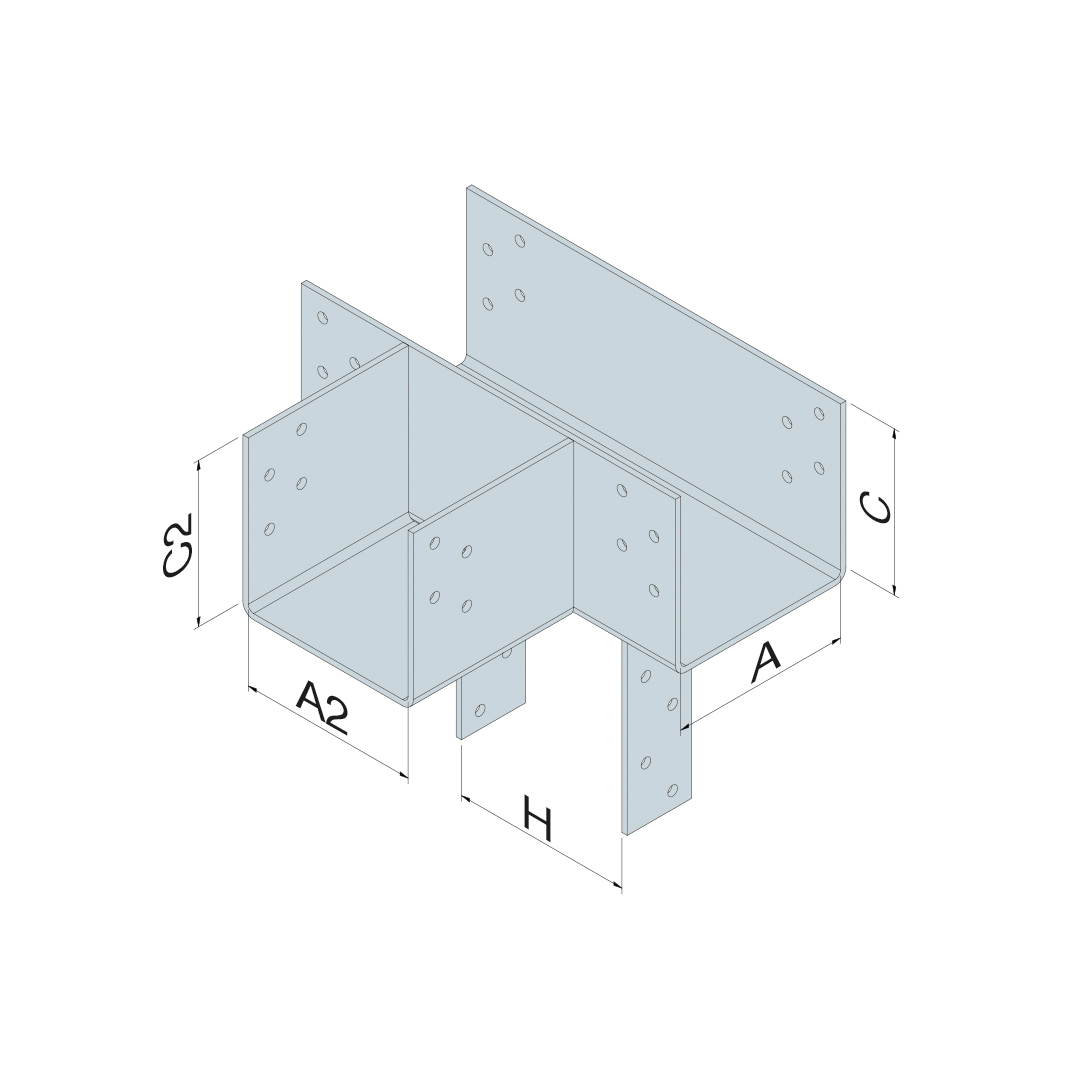

| SPEC E CCTQ | 75 | 250 | 300 - 450 | 140 | 190 | 75 | 250 | 5 | 5 | 24 | 8 |

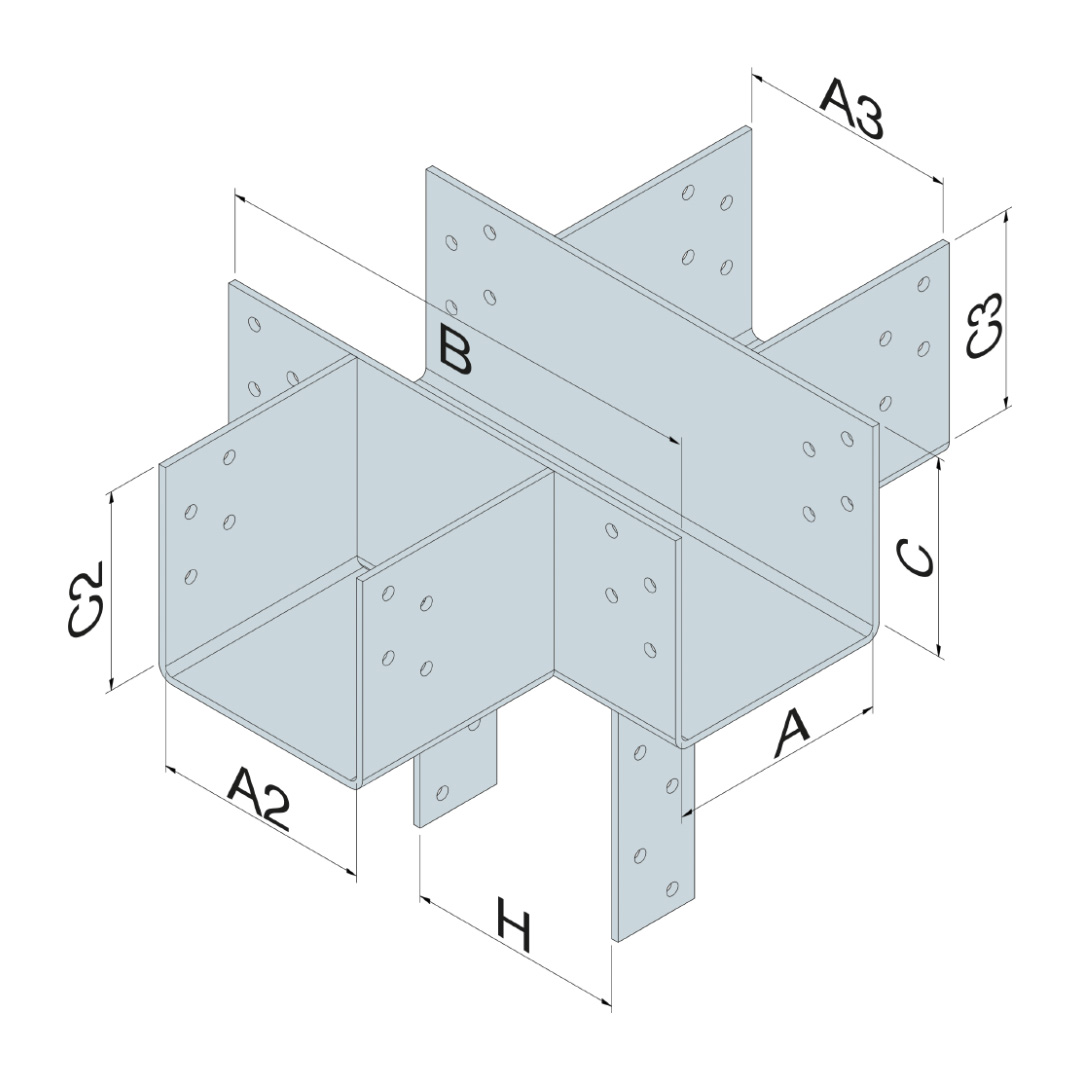

| SPEC E CCCQ | 75 | 250 | 300 - 450 | 140 | 190 | 75 | 250 | 5 | 5 | 32 | 8 |
- Refer to individual dimensioned drawings (in product gallery) or order form for relevant dimension.
- All referenced column cap dimensions are internal
Installation
Installation
CCQ Installation

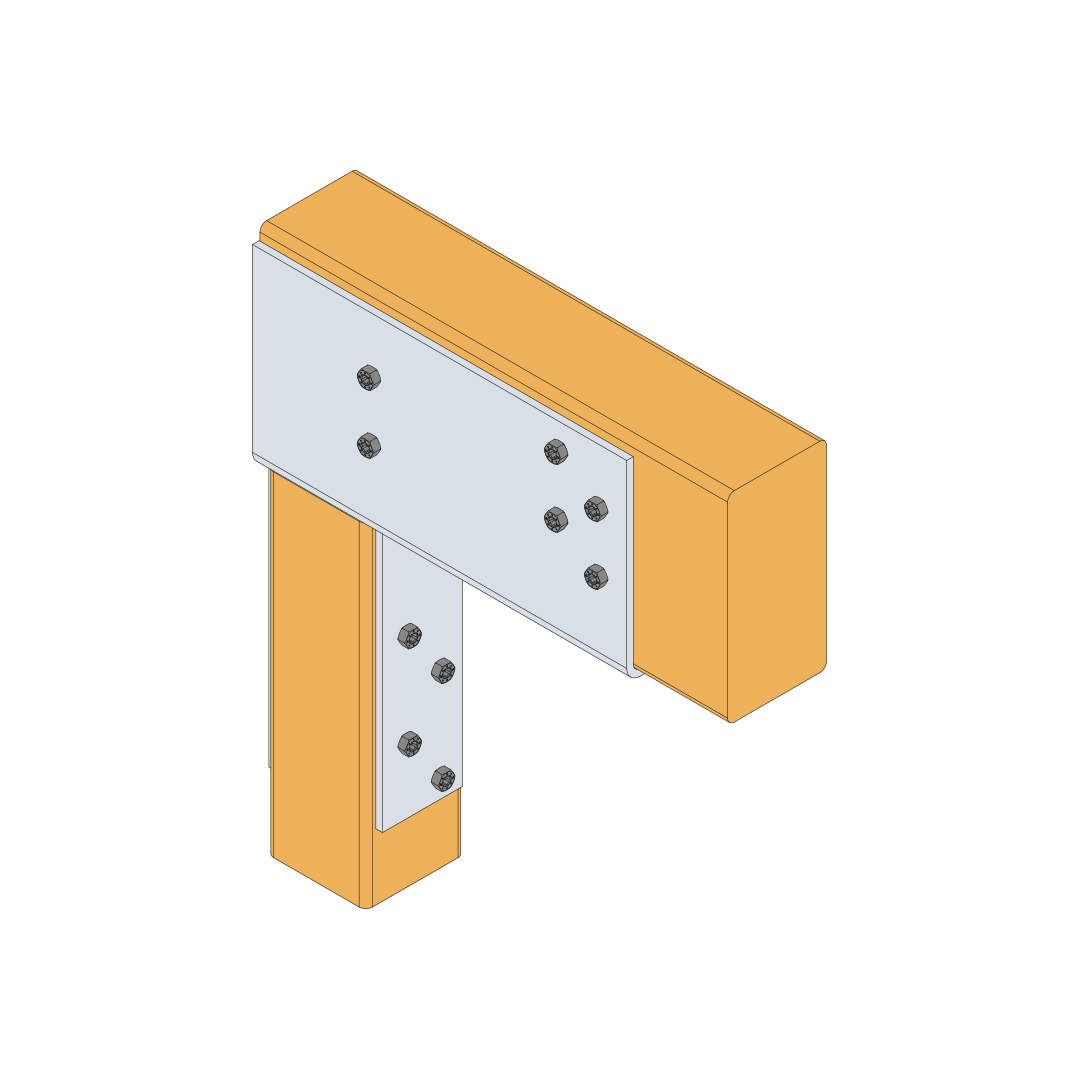

ECCQ Installation

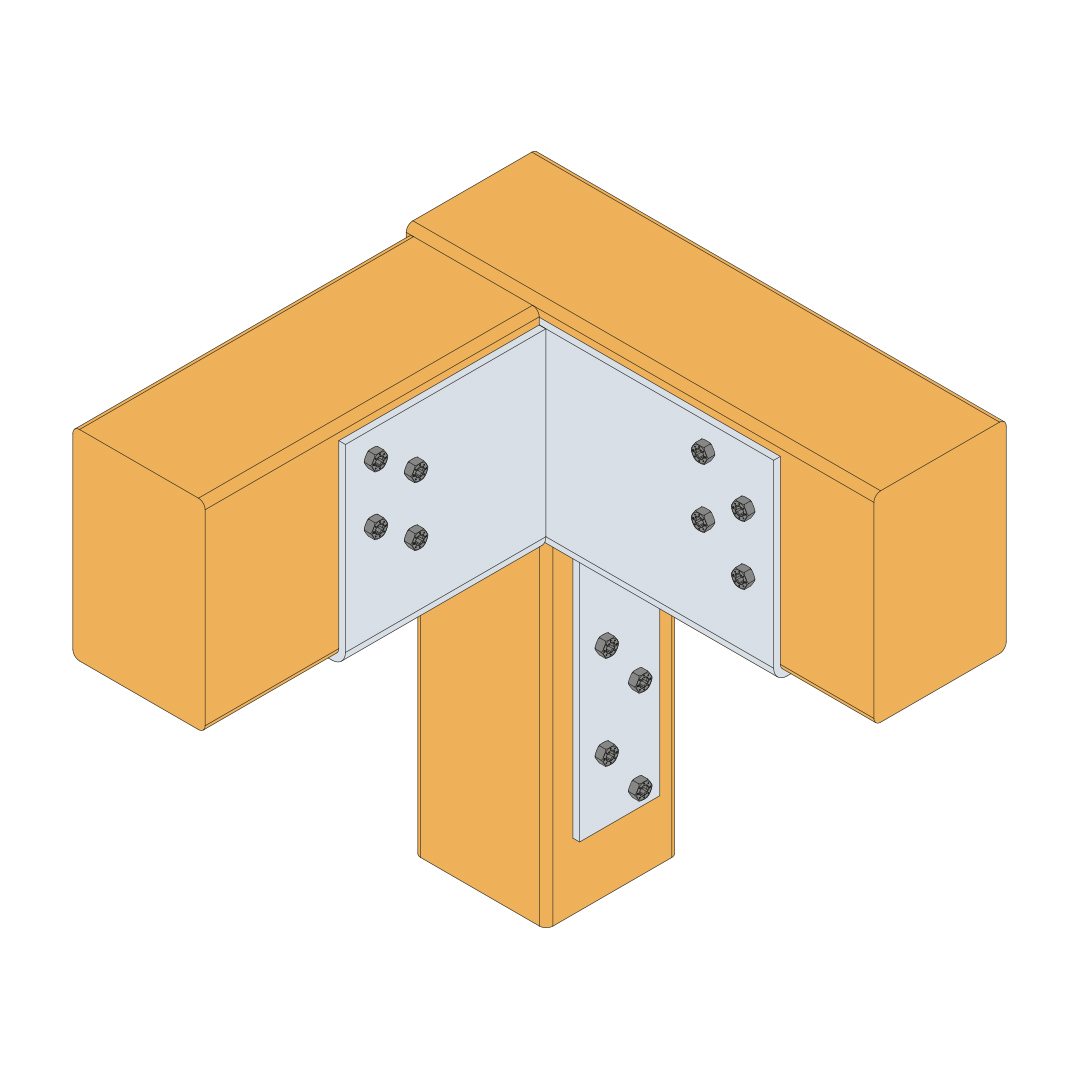

ECCLLQ Installation

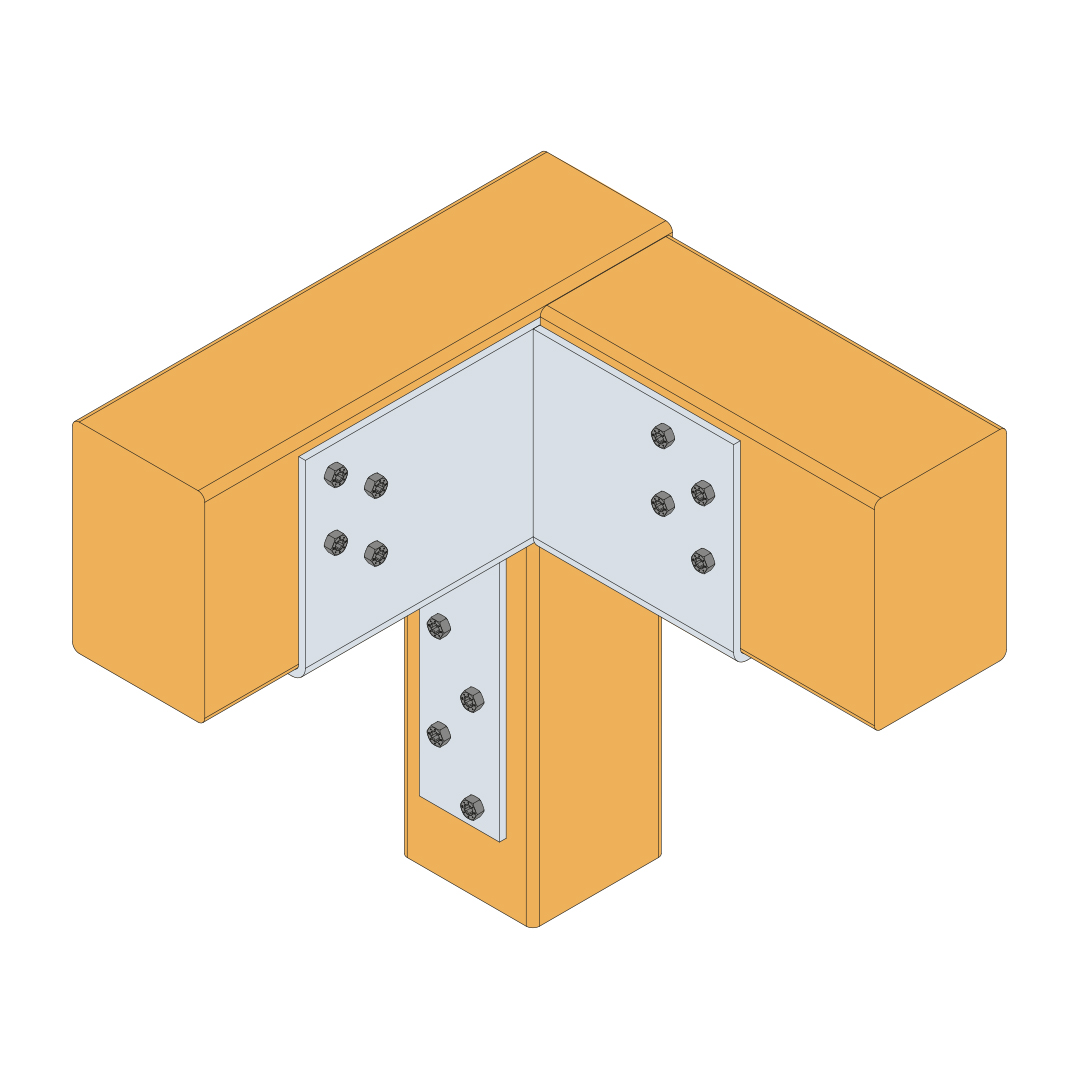

ECCLRQ Installation

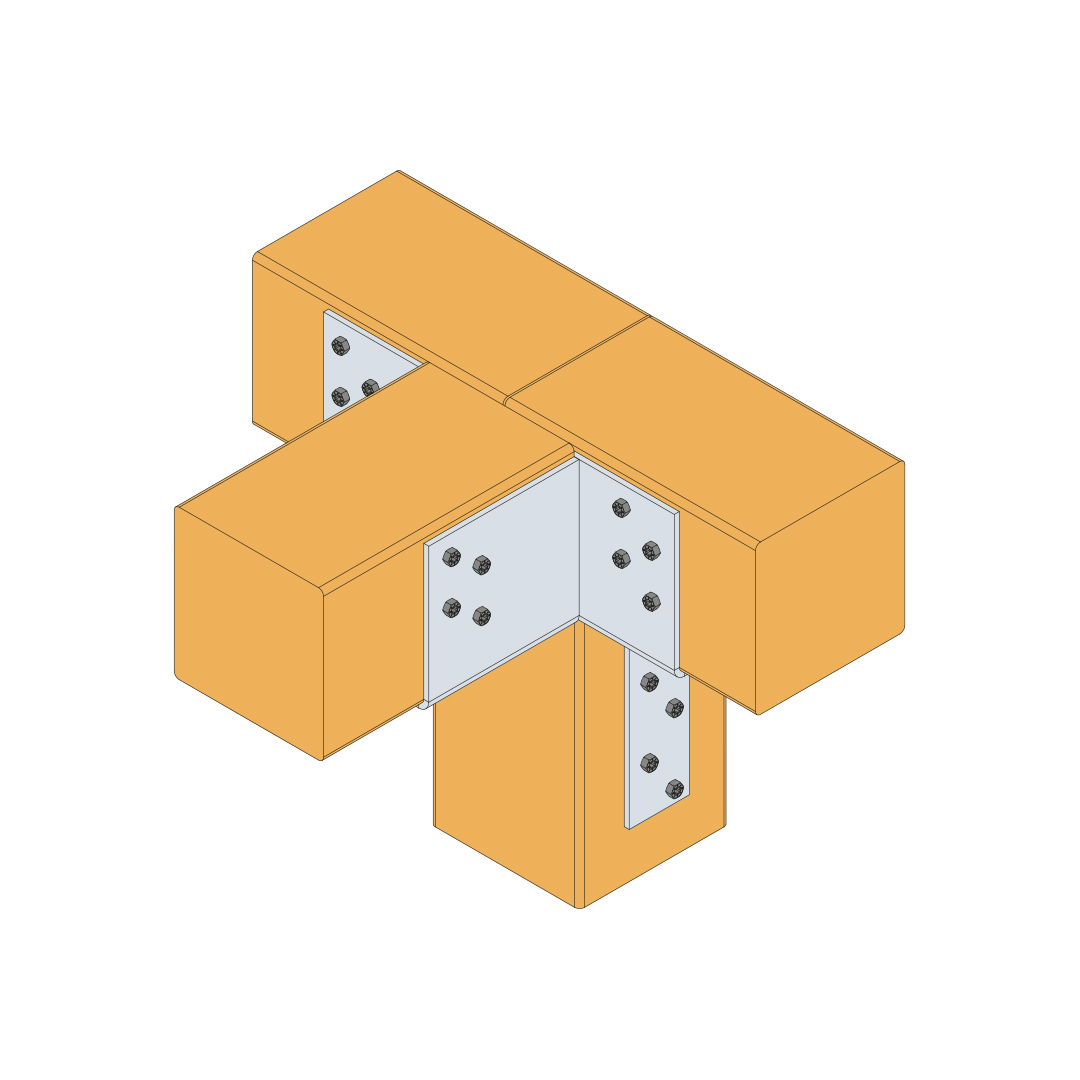

CCTQ Installation

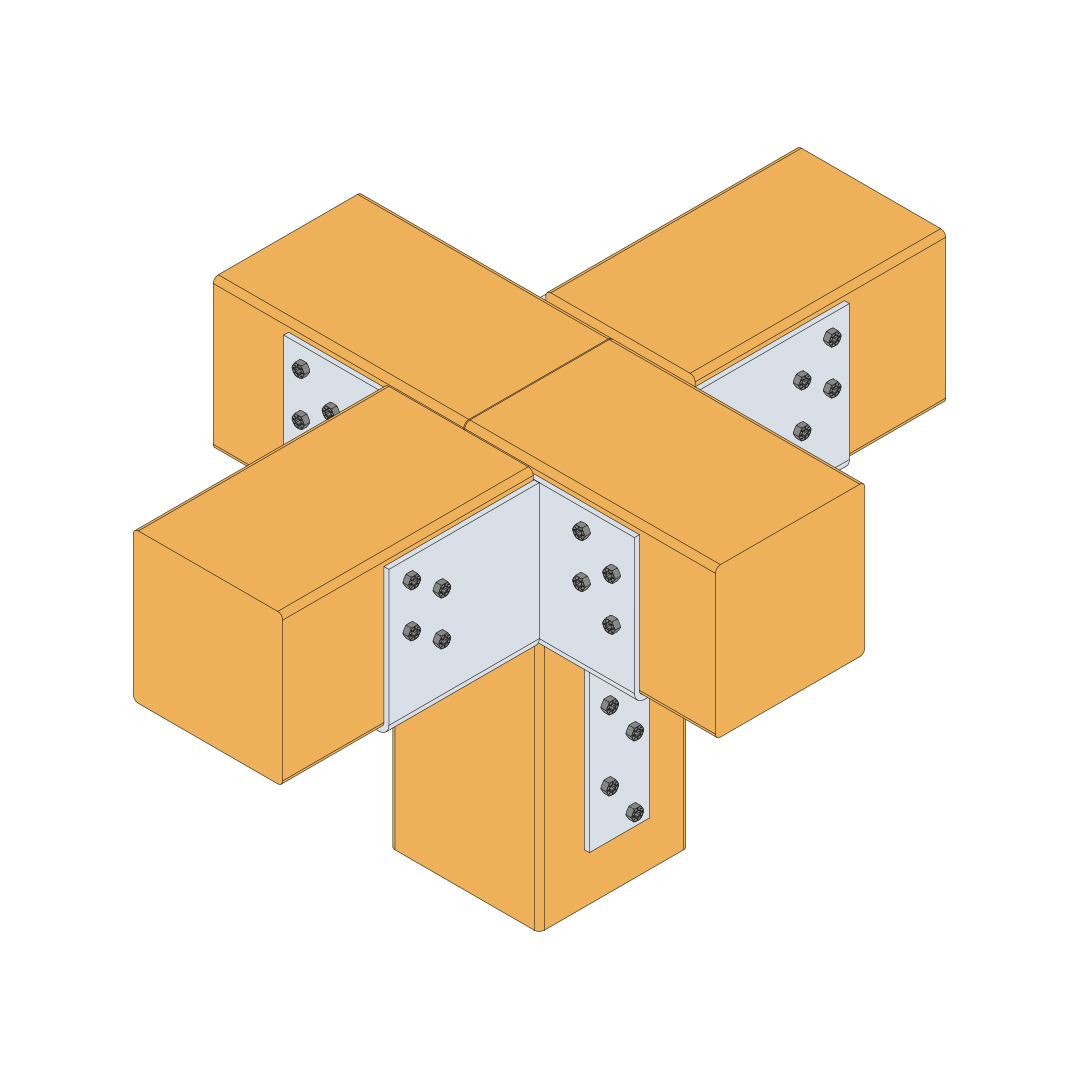

CCCQ Installation
