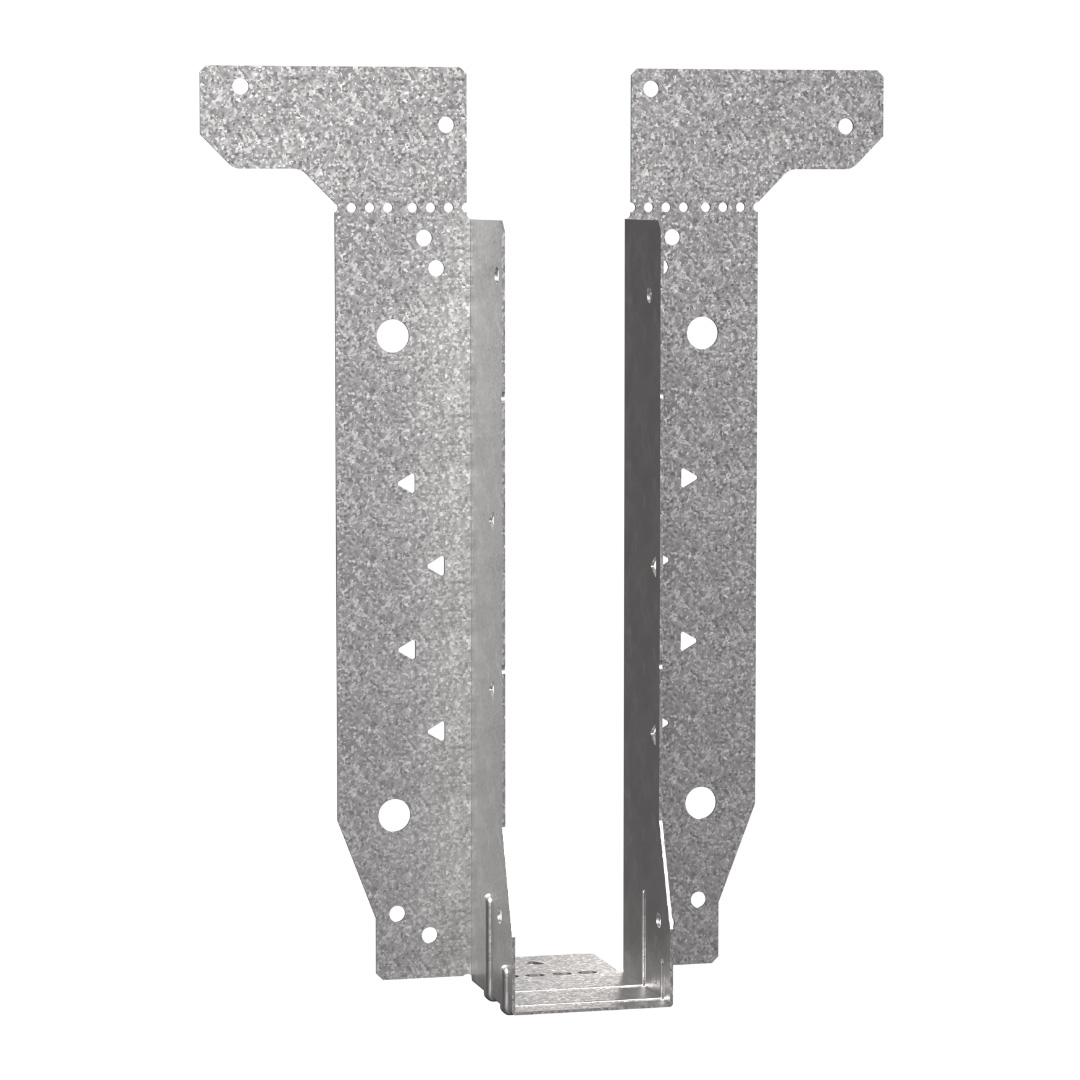

Engineered Wood Hanger
Universal, flexible and simple to install, the EWH is an engineered hanger that has been designed to fulfil a wide variety of installation options.
Product Details
Features
Material
- 275 g/m2 Pre-galvanised Mild Steel.
Features
- Choice of installation options - Top Fix, Face Fix.
- Hanger supplied with top flange straight so that it can be bent on site to accommodate a range of joist heights.
- Perforations allow the top flange to be snapped off for face fix installation option.
- Optional triangular holes for increased download and uplift performances.
- Seat tab for ease of installation.
- Seat tab can be bent upwards for installations where the header is deeper than the joist.
Suitability
Suitable for use with combinations of the following:
- Headers: I-Joists, Metal Web Joists, Solid Timber and SIP’s.
- Joists: I-Joists, Metal Web Joists, and Solid Timber.
(Note: Solid timber refers to LVL, Glulam or Solid Sawn Timber)
Technical Data
Height & Width Suitability
Joist Heights [mm] | Hanger Height | Joist Widths [mm] | ||||||||||||||||||||||||
38 | 45 | 47 | 53 | 58 | 60 | 63 | 69 | 72 | 75 2*38 | 89 | 2*47 | 96 | 2*53 | 2*58 | 2*60 | 122 | 2*63 | 140 2*69 2*70 | 2*72 | 147 2*75 | 2*89 2*90 | 2*96 2*97 | 2*122 | 2*147 | ||
Hanger Width (A) [mm] | ||||||||||||||||||||||||||
40 | 47 | 50 | 56 | 61 | 63 | 66 | 72 | 75 | 79 | 91 | 96 | 99 | 109 | 119 | 122 | 125 | 128 | 142 | 146 | 150 | 182 | 196 | 246 | 296 | ||
195, 200, 202 | 195 | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | ||
219, 220, 225 | 219 | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
235, 240 | 235 | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | ||||
245, 250 | 245 | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | ||||||||||
253, 254 | 253 | X | X | X | X | X | X | X | X | X | X | X | ||||||||||||||
295 | 295 | X | X | |||||||||||||||||||||||
300, 304 | 300 | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
350, 356 | 350 | X | X | X | X | X | X | X | X | X | X | |||||||||||||||
360 | 360 | X | X | X | X | X | X | X | X | X | X | X | X | X | ||||||||||||
373 | 370 | X | X | X | ||||||||||||||||||||||
400 | 400 | X | X | X | X | X | X | X | X | X | X | X | X | X | ||||||||||||
417, 421 | 417 | X | X | X |
Product Dimensions
References | Equivalent IUSE | Dimensions [mm] | Holes | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A | B | C | D | E | t | Flange B | Flange C | Flange E | |||||
Ø5 | Ø10 | Tri | Ø5 | Tri | Ø5 | ||||||||
EWH195/40 | - | 40 | 195 | 49 | 80 | 40 | 0.9 | 8 | 4 | 6 | 4 | 4 | 4 |
EWH195/47 | IUSE199/48 | 47 | 49 | 80 | 40 | 0.9 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH195/50 | IUSE199/50 | 50 | 49 | 80 | 40 | 0.9 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH195/56 | - | 56 | 49 | 80 | 40 | 0.9 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH195/61 | IUSE199/61 | 61 | 49 | 80 | 40 | 0.9 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH195/63 | IUSE199/63 | 63 | 49 | 80 | 40 | 0.9 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH195/72 | - | 72 | 49 | 80 | 40 | 0.9 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH195/75 | - | 75 | 49 | 80 | 40 | 0.9 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH195/79 | - | 79 | 49 | 80 | 40 | 0.9 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH195/91 | IUSE199/92 | 91 | 49 | 80 | 40 | 0.9 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH195/96 | - | 96 | 49 | 80 | 40 | 0.9 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH195/99 | - | 99 | 49 | 80 | 40 | 0.9 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH195/109 | - | 109 | 49 | 80 | 40 | 1.2 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH195/119 | - | 119 | 49 | 80 | 40 | 1.2 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH195/122 | - | 122 | 49 | 80 | 40 | 1.2 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH195/125 | - | 125 | 49 | 80 | 40 | 1.2 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH195/142 | - | 142 | 49 | 80 | 40 | 1.2 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH195/146 | - | 146 | 49 | 80 | 40 | 1.2 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH195/150 | - | 150 | 49 | 80 | 40 | 1.2 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH195/182 | - | 182 | 49 | 80 | 40 | 1.2 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH195/196 | - | 196 | 49 | 80 | 40 | 1.2 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH195/246 | - | 246 | 49 | 80 | 40 | 1.2 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH195/296 | - | 296 | 49 | 80 | 40 | 1.2 | 8 | 4 | 6 | 4 | 4 | 4 | |
EWH219/40 | - | 40 | 219 | 49 | 80 | 40 | 0.9 | 8 | 4 | 8 | 4 | 4 | 4 |
EWH219/47 | IUSE219/48 | 47 | 49 | 80 | 40 | 0.9 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/50 | IUSE219/50 | 50 | 49 | 80 | 40 | 0.9 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/56 | - | 56 | 49 | 80 | 40 | 0.9 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/61 | IUSE219/61 | 61 | 49 | 80 | 40 | 0.9 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/63 | IUSE219/63 | 63 | 49 | 80 | 40 | 0.9 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/66 | IUSE219/66 | 66 | 49 | 80 | 40 | 0.9 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/72 | IUSE219/73 | 72 | 49 | 80 | 40 | 0.9 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/75 | - | 75 | 49 | 80 | 40 | 0.9 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/79 | - | 79 | 49 | 80 | 40 | 0.9 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/91 | IUSE219/92 | 91 | 49 | 80 | 40 | 0.9 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/96 | - | 96 | 49 | 80 | 40 | 0.9 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/99 | - | 99 | 49 | 80 | 40 | 0.9 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/109 | - | 109 | 49 | 80 | 40 | 1.2 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/119 | - | 119 | 49 | 80 | 40 | 1.2 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/122 | - | 122 | 49 | 80 | 40 | 1.2 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/125 | - | 125 | 49 | 80 | 40 | 1.2 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/128 | - | 128 | 49 | 80 | 40 | 1.2 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/142 | - | 142 | 49 | 80 | 40 | 1.2 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/146 | - | 146 | 49 | 80 | 40 | 1.2 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/150 | - | 150 | 49 | 80 | 40 | 1.2 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/182 | - | 182 | 49 | 80 | 40 | 1.2 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/196 | - | 196 | 49 | 80 | 40 | 1.2 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/246 | - | 246 | 49 | 80 | 40 | 1.2 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH219/296 | - | 296 | 49 | 80 | 40 | 1.2 | 8 | 4 | 8 | 4 | 4 | 4 | |
EWH235/40 | - | 40 | 235 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 |
EWH235/47 | IUSE239/48 | 47 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH235/50 | IUSE239/50 | 50 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH235/56 | IUSE239/56 | 56 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH235/61 | IUSE239/61 | 61 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH235/63 | IUSE239/63 | 63 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH235/66 | IUSE239/66 | 66 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH235/72 | IUSE239/73 | 72 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH235/75 | - | 75 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH235/79 | - | 79 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH235/91 | IUSE239/92 | 91 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH235/96 | - | 96 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH235/99 | IUSE239/100 | 99 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH235/109 | - | 109 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH235/119 | - | 119 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH235/122 | - | 122 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH235/128 | - | 128 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH235/142 | - | 142 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH235/146 | - | 146 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH235/182 | - | 182 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH235/196 | - | 196 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH245/40 | - | 40 | 245 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 |
EWH245/47 | - | 47 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH245/50 | IUSE239/50 | 50 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH245/61 | IUSE249/61 | 61 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH245/66 | - | 66 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH245/75 | - | 75 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH245/79 | - | 79 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH245/91 | IUSE249/92 | 91 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH245/96 | - | 96 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH245/99 | IUSE249/100 | 99 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH245/119 | - | 119 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH245/128 | - | 128 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH245/146 | - | 146 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH245/182 | - | 182 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH245/196 | - | 196 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH253/47 | - | 47 | 253 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 |
EWH253/50 | - | 50 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH253/75 | - | 75 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH253/91 | IUSE254/92 | 91 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH253/99 | - | 99 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH253/125 | - | 125 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH253/146 | - | 146 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH253/150 | - | 150 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH253/196 | - | 196 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH253/246 | - | 246 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH253/296 | - | 296 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH295/72 | IUSE294/73 | 72 | 295 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 |
EWH295/99 | IUSE294/98 | 99 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/40 | - | 40 | 300 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 |
EWH300/47 | IUSE299/48 | 47 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/50 | IUSE299/50 | 50 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/56 | IUSE299/56 | 56 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/61 | IUSE299/61 | 61 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/63 | IUSE299/63 | 63 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/66 | IUSE299/66 | 66 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/72 | IUSE299/73 | 72 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/75 | - | 75 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/79 | - | 79 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/91 | IUSE299/92 | 91 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/96 | - | 96 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/99 | IUSE299/100 | 99 | 49 | 80 | 40 | 0.9 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/109 | - | 109 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/119 | - | 119 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/122 | - | 122 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/125 | - | 125 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/128 | - | 128 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/142 | - | 142 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/146 | - | 146 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/150 | - | 150 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/182 | - | 182 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/196 | - | 196 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/246 | - | 246 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH300/296 | - | 296 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH350/47 | IUSE349/48 | 47 | 350 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 |
EWH350/50 | - | 50 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH350/63 | - | 63 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH350/72 | IUSE349/73 | 72 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH350/75 | - | 75 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH350/91 | - | 91 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH350/96 | - | 96 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH350/99 | IUSE349/100 | 99 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH350/122 | - | 122 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH350/142 | - | 142 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH360/47 | IUSE359/48 | 47 | 360 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 |
EWH360/50 | - | 50 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH360/61 | IUSE359/61 | 61 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH360/63 | IUSE359/63 | 63 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH360/66 | IUSE359/66 | 66 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH360/72 | IUSE359/73 | 72 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH360/79 | - | 79 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH360/91 | IUSE359/92 | 91 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH360/96 | - | 96 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH360/99 | IUSE359/98 | 99 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH360/119 | - | 119 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH360/122 | - | 122 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH360/182 | - | 182 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH370/50 | - | 50 | 370 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 |
EWH370/75 | - | 75 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH370/99 | - | 99 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH400/47 | IUSE399/48 | 47 | 400 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 |
EWH400/50 | - | 50 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH400/61 | IUSE399/61 | 61 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH400/63 | IUSE399/63 | 63 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH400/66 | IUSE399/66 | 66 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH400/72 | IUSE399/73 | 72 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH400/75 | - | 75 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH400/91 | IUSE399/92 | 91 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH400/96 | - | 96 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH400/99 | IUSE399/98 | 99 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH400/119 | - | 119 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH400/122 | - | 122 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH400/182 | - | 182 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH417/50 | - | 50 | 417 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 |
EWH417/75 | - | 75 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 | |
EWH417/99 | - | 99 | 49 | 80 | 40 | 1.2 | 8 | 4 | 10 | 4 | 4 | 4 |
Characteristic Loads - I-Joist Headers
References | Fasteners | Characteristic Capacities [kN] | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Face (Flange B) |
Top (Flange E) |
Joist (Flange C) | R1,k | R2,k | |||||||||||
Ø5 Holes | Tri Holes | Ø5 Holes | Ø5 Holes | Tri Holes |
LVL I-Joist 36mm |
LVL I-Joist 39mm |
SS I-Joist 45mm |
LVL I-Joist Enhanced |
SS I-Joist Enhanced |
LVL I-Joist 36mm |
LVL I-Joist 39mm |
SS I-Joist 45mm |
LVL, Glulam Solid Sawn Timber | ||
N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | CNA4.0x35 | N3.75x30 | ||||||
EWH (TF) | 8 | - | 4 | 4 | - | 11 | 13 | 12.1 | - | - | 2.3 | 2.5 | 3.5 | 3.5 | 3.5 |
EWH (TF + 6 TRI) | 8 | 6 | 4 | 4 | - | - | - | - | 18.3 | 18.2 | 2.3 | 2.5 | 3.5 | 3.5 | 3.5 |
EWH (TF + 8 TRI) | 8 | 8 | 4 | 4 | - | - | - | - | 19.9 | 19.6 | 2.3 | 2.5 | 3.5 | 3.5 | 3.5 |
EWH (TF + 10 TRI) | 8 | 10 | 4 | 4 | - | - | - | - | 20.3 | 20.6 | 2.3 | 2.5 | 3.5 | 3.5 | 3.5 |
EWH (FF) | 8 | - | - | 4 | - | 6 | 9.2 | 8 | - | - | 2.3 | 2.5 | 3.5 | 3.5 | 3.5 |
EWH (FF + 6 TRI) | 8 | 6 | - | 4 | - | - | - | - | 15.5 | 16.3 | 2.3 | 2.5 | 3.5 | 3.5 | 3.5 |
EWH (FF + 8 TRI) | 8 | 8 | - | 4 | - | - | - | - | 16.9 | 16.6 | 2.3 | 2.5 | 3.5 | 3.5 | 3.5 |
EWH (FF + 10 TRI) | 8 | 10 | - | 4 | - | - | - | - | 17.6 | 17.7 | 2.3 | 2.5 | 3.5 | 3.5 | 3.5 |
Footnote:
→ (TF) = Top Fix | (FF) = Face Fix | ( +6 TRI) = quanity of additional face nails installed through the triangular holes
→ For EWH > 300mm deep, a backer block installed onto the front face of the supporting I-joist is required for the standard performance values to apply. The installation of the backer block is to be in accordance to the I-Joist manufacturers specification
→ The enhanced installation requires a backer block to be installed onto the front face of the supporting I-joist, and the specified number of triangular holes to be filled. The installation of the backer block is to be in accordance to the I-Joist manufacturers specification
→ R2 values relate to the joist type supported by the hanger
Safe Working Loads - I-Joist Headers
References | Fasteners | Safe Working Loads [kN] | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Face (Flange B) |
Top (Flange E) |
Joist (Flange C) | R1,SWL,LT | R2,SWL,ST | ||||||||||
Ø5 Holes | Tri Holes | Ø5 Holes | Ø5 Holes | Tri Holes |
LVL I-Joist 36mm |
LVL I-Joist 39mm |
SS I-Joist 45mm |
LVL I-joist Enhanced |
SS I-Joist Enhanced |
LVL I-Joist 36mm |
LVL I-joist 39mm |
SS I-Joist 45mm |
LVL, Glulam, Solid Sawn Timber | |
N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | ||||||
EWH (TF) | 8 | - | 4 | 4 | - | 4.6 | 5.4 | 5 | - | - | 1.2 | 1.3 | 1.8 | 1.8 |
EWH (TF + 6 TRI) | 8 | 6 | 4 | 4 | - | - | - | - | 7.6 | 7.6 | 1.2 | 1.3 | 1.8 | 1.8 |
EWH (TF + 8 TRI) | 8 | 8 | 4 | 4 | - | - | - | - | 8.3 | 8.2 | 1.2 | 1.3 | 1.8 | 1.8 |
EWH (TF + 10 TRI) | 8 | 10 | 4 | 4 | - | - | - | - | 8.5 | 8.6 | 1.2 | 1.3 | 1.8 | 1.8 |
EWH (FF) | 8 | - | - | 4 | - | 2.5 | 3.8 | 3.3 | - | - | 1.2 | 1.3 | 1.8 | 1.8 |
EWH (FF + 6 TRI) | 8 | 6 | - | 4 | - | - | - | - | 6.5 | 6.8 | 1.2 | 1.3 | 1.8 | 1.8 |
EWH (FF + 8 TRI) | 8 | 8 | - | 4 | - | - | - | - | 7 | 6.9 | 1.2 | 1.3 | 1.8 | 1.8 |
EWH (FF + 10 TRI) | 8 | 10 | - | 4 | - | - | - | - | 7.3 | 7.4 | 1.2 | 1.3 | 1.8 | 1.8 |
Footnote:
→ (TF) = Top Fix | (FF) = Face Fix | ( +6 TRI) = quanity of additional face nails installed through the triangular holes
→ For EWH > 300mm deep, a backer block installed onto the front face of the supporting I-joist is required for the standard performance values to apply. The installation of the backer block is to be in accordance to the I-Joist manufacturers specification
→ The enhanced installation requires a backer block to be installed onto the front face of the supporting I-joist, and the specified number of triangular holes to be filled. The installation of the backer block is to be in accordance to the I-Joist manufacturers specification
→ R2 values relate to the joist type supported by the hanger
Characteristic Loads - Metal Web Headers
References | Fasteners | Characteristic Capacities [kN] | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Face (Flange B) |
Top (Flange E) |
Joist (Flange C) | R1,k | R2,k | |||||||
Ø5 Holes | Tri Holes | Ø5 Holes | Ø5 Holes | Tri Holes | Metal Web |
Metal Web Enhanced | Metal Web |
LVL, Glulam Solid Sawn Timber | |||
N3.75x30 | CSA5.0x50 | N3.75x30 | CSA5.0x50 | N3.75x30 | N3.75x30 | ||||||
EWH (TF) | 8 | - | 4 | 4 | - | 13 | 16.4 | - | - | 3.5 | 3.5 |
EWH (TF + 6 TRI) | 8 | 6 | 4 | 4 | - | - | - | 17.1 | 17.4 | 3.5 | 3.5 |
EWH (TF + 8 TRI) | 8 | 8 | 4 | 4 | - | - | - | 18 | 18.3 | 3.5 | 3.5 |
EWH (TF + 10 TRI) | 8 | 10 | 4 | 4 | - | - | - | 18.6 | 18.9 | 3.5 | 3.5 |
EWH (FF) | 8 | - | - | 4 | - | 9.9 | 13.7 | - | - | 3.5 | 3.5 |
EWH (FF + 6 TRI) | 8 | 6 | - | 4 | - | - | - | 15.5 | 16.6 | 3.5 | 3.5 |
EWH (FF + 8 TRI) | 8 | 8 | - | 4 | - | - | - | 17.3 | 18.4 | 3.5 | 3.5 |
EWH (FF + 10 TRI) | 8 | 10 | - | 4 | - | - | - | 19.1 | 20.2 | 3.5 | 3.5 |
Footnote:
→ (TF) = Top Fix | (FF) = Face Fix | ( +6 TRI) = quanity of additional face nails installed through the triangular holes
→ Enhanced installation requires a 18mm plywood gusset to be fixed to the face of the metal web joist. The plywood gusset is to be at least 400mm long and full depth of the metal web joist. The plywood gusset is installed with 8 No ESCR8.0x80mm screws. The screws are to be positioned in accordance to illustration within the Installation Notes section.
→ R2 values relate to the joist type supported by the hanger
Safe Working Loads - Metal Web Headers
References | Fasteners | Safe Working Loads [kN] | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Face (Flange B) |
Top (Flange E) |
Joist (Flange C) | R1,SWL,LT | R2,SWL,ST | |||||||
Ø5 Holes | Tri Holes | Ø5 Holes | Ø5 Holes | Tri Holes | Metal Web |
Metal Web Enhanced | Metal Web |
LVL, Glulam, Solid Sawn Timber | |||
N3.75x30 | CSA5.0x50 | N3.75x30 | CSA5.0x50 | N3.75x30 | N3.75x30 | ||||||
EWH (TF) | 8 | - | 4 | 4 | - | 5.4 | 6.8 | - | - | 1.8 | 1.8 |
EWH (TF + 6 TRI) | 8 | 6 | 4 | 4 | - | - | - | 7.1 | 7.3 | 1.8 | 1.8 |
EWH (TF + 8 TRI) | 8 | 8 | 4 | 4 | - | - | - | 7.5 | 7.6 | 1.8 | 1.8 |
EWH (TF + 10 TRI) | 8 | 10 | 4 | 4 | - | - | - | 7.8 | 7.9 | 1.8 | 1.8 |
EWH (FF) | 8 | - | - | 4 | - | 4.1 | 5.7 | - | - | 1.8 | 1.8 |
EWH (FF + 6 TRI) | 8 | 6 | - | 4 | - | - | - | 6.5 | 6.9 | 1.8 | 1.8 |
EWH (FF + 8 TRI) | 8 | 8 | - | 4 | - | - | - | 7.2 | 7.7 | 1.8 | 1.8 |
EWH (FF + 10 TRI) | 8 | 10 | - | 4 | - | - | - | 8 | 8.4 | 1.8 | 1.8 |
Footnote:
→ (TF) = Top Fix | (FF) = Face Fix | ( +6 TRI) = quanity of additional face nails installed through the triangular holes
→ Enhanced installation requires a 18mm plywood gusset to be fixed to the face of the metal web joist. The plywood gusset is to be at least 400mm long and full depth of the metal web joist. The plywood gusset is installed with 8 No ESCR8.0x80mm screws. The screws are to be positioned in accordance to illustration within the Installation Notes section.
→ R2 values relate to the joist type supported by the hanger
Characteristic Loads - Solid Headers
References | Fasteners | Characteristic Capacities [kN] | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Face (Flange B) |
Top (Flange E) |
Joist (Flange C) | R1,k | R2,k | |||||||||
Ø5 Holes | Tri Holes | Ø5 Holes | Ø5 Holes | Tri Holes | LVL | Glulam |
C24 Solid Sawn Timber |
LVL I-Joist 36mm |
LVL I-Joist 39mm |
SS I-Joist 45mm | Metal Web |
LVL, Glulam Solid Sawn Timber | |
N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | ||||||
EWH (TF) | 8 | - | 4 | 4 | - | 15.5 | 12.9 | 12.8 | 2.3 | 2.5 | 3.5 | 3.5 | 3.5 |
EWH (TF + 6 TRI) | 8 | 6 | 4 | 4 | - | 18.8 | 18.5 | 17.6 | 2.3 | 2.5 | 3.5 | 3.5 | 3.5 |
EWH (TF + 8 TRI) | 8 | 8 | 4 | 4 | - | 19 | 19 | 18.5 | 2.3 | 2.5 | 3.5 | 3.5 | 3.5 |
EWH (TF + 10 TRI) | 8 | 10 | 4 | 4 | - | 20.4 | 19.4 | 19.1 | 2.3 | 2.5 | 3.5 | 3.5 | 3.5 |
EWH (FF) | 8 | - | - | 4 | - | 11.1 | 9 | 6.6 | 2.3 | 2.5 | 3.5 | 3.5 | 3.5 |
EWH (FF + 6 TRI) | 8 | 6 | - | 4 | - | 18.7 | 16.3 | 13.4 | 2.3 | 2.5 | 3.5 | 3.5 | 3.5 |
EWH (FF + 8 TRI) | 8 | 8 | - | 4 | - | 20.4 | 17.9 | 15.2 | 2.3 | 2.5 | 3.5 | 3.5 | 3.5 |
EWH (FF + 10 TRI) | 8 | 10 | - | 4 | - | 21.3 | 18.6 | 17.1 | 2.3 | 2.5 | 3.5 | 3.5 | 3.5 |
Footnote:
→ (TF) = Top Fix | (FF) = Face Fix | ( +6 TRI) = quanity of additional face nails installed through the triangular holes.
→ Solid timber refers to LVL, Glulam or Solid Sawn Timber
→ R2 values relate to the joist type supported by the hanger
Safe Working Loads - Solid Headers
References | Fasteners | Safe Working Loads [kN] | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Face (Flange B) |
Top (Flange E) |
Joist (Flange C) | R1,SWL,LT | R2,SWL,ST | |||||||||
Ø5 Holes | Tri Holes | Ø5 Holes | Ø5 Holes | Tri Holes | LVL | Glulam |
C24 Solid Sawn Timber |
LVL I-Joist 36mm |
LVL I-joist 39mm |
SS I-Joist 45mm | Metal Web |
LVL, Glulam, Solid Sawn Timber | |
N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | ||||||
EWH (TF) | 8 | - | 4 | 4 | - | 6.5 | 5.4 | 5.3 | 1.2 | 1.3 | 1.8 | 1.8 | 1.8 |
EWH (TF + 6 TRI) | 8 | 6 | 4 | 4 | - | 7.8 | 7.7 | 7.3 | 1.2 | 1.3 | 1.8 | 1.8 | 1.8 |
EWH (TF + 8 TRI) | 8 | 8 | 4 | 4 | - | 7.9 | 7.9 | 7.7 | 1.2 | 1.3 | 1.8 | 1.8 | 1.8 |
EWH (TF + 10 TRI) | 8 | 10 | 4 | 4 | - | 8.5 | 8.1 | 8 | 1.2 | 1.3 | 1.8 | 1.8 | 1.8 |
EWH (FF) | 8 | - | - | 4 | - | 4.6 | 3.8 | 2.8 | 1.2 | 1.3 | 1.8 | 1.8 | 1.8 |
EWH (FF + 6 TRI) | 8 | 6 | - | 4 | - | 7.8 | 6.8 | 5.6 | 1.2 | 1.3 | 1.8 | 1.8 | 1.8 |
EWH (FF + 8 TRI) | 8 | 8 | - | 4 | - | 8.5 | 7.5 | 6.3 | 1.2 | 1.3 | 1.8 | 1.8 | 1.8 |
EWH (FF + 10 TRI) | 8 | 10 | - | 4 | - | 8.9 | 7.8 | 7.1 | 1.2 | 1.3 | 1.8 | 1.8 | 1.8 |
Footnote:
→ (TF) = Top Fix | (FF) = Face Fix | ( +6 TRI) = quanity of additional face nails installed through the triangular holes.
→ Solid timber refers to LVL, Glulam or Solid Sawn Timber
→ R2 values relate to the joist type supported by the hanger
Characteristic Loads - Timber Nailer Headers
References | Fasteners | Characteristic Capacities [kN] | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Face (Flange B) |
Top (Flange E) |
Joist (Flange C) | R1,k | R2,k | |||||||||
Ø5 Holes | Tri Holes | Ø5 Holes | Ø5 Holes | Tri Holes | Timber Nailer |
LVL I-Joist 36mm |
LVL I-Joist 39mm |
SS I-Joist 45mm | Metal Web |
LVL, Glulam Solid Sawn Timber | |||
N3.75x30 | N3.75x75 | CSA5.0x40 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | ||||||
EWH (Nailer 38-74mm) | 4 | - | 4 | 4 | - | 9.8 | - | 13.9 | 2.3 | 2.5 | 3.5 | 3.5 | 3.5 |
EWH (Nailer 75-100mm) | 4 | - | 4 | 4 | - | 9.8 | 13.5 | 13.9 | 2.3 | 2.5 | 3.5 | 3.5 | 3.5 |
Footnote:
→ Timber nailers can be either Solid Sawn Timber (C24 minimum grade), LVL or Glulam
→ (38 - 50mm) refers to depth range of timber nailer
→ Minimum width of timber nailer is 89mm
→ R2 values relate to the joist type supported by the hanger
Safe Working Loads - Timber Nailer Headers
References | Fasteners | Safe Working Loads [kN] | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Face (Flange B) |
Top (Flange E) |
Joist (Flange C) | R1,SWL,LT | R2,SWL,ST | |||||||||
Ø5 Holes | Tri Holes | Ø5 Holes | Ø5 Holes | Tri Holes | Timber Nailer |
LVL I-Joist 36mm |
LVL I-joist 39mm |
SS I-Joist 45mm | Metal Web |
LVL, Glulam, Solid Sawn Timber | |||
N3.75x30 | N3.75x75 | CSA5.0x40 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | ||||||
EWH (Nailer 38-74mm) | 4 | - | 4 | 4 | - | 4.1 | - | 5.8 | 1.2 | 1.3 | 1.8 | 1.8 | 1.8 |
EWH (Nailer 75-100mm) | 4 | - | 4 | 4 | - | 4.1 | 5.6 | 5.8 | 1.2 | 1.3 | 1.8 | 1.8 | 1.8 |
Footnote:
→ Timber nailers can be either Solid Sawn Timber (C24 minimum grade), LVL or Glulam
→ (38 - 50mm) refers to depth range of timber nailer
→ Minimum width of timber nailer is 89mm
→ R2 values relate to the joist type supported by the hanger
Characteristic Loads - SIP Headers
References | Fasteners | Characteristic Capacities [kN] | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Face (Flange B) |
Top (Flange E) |
Joist (Flange C) | R1,k | R2,k | |||||||
Ø5 Holes | Tri Holes | Ø5 Holes | Ø5 Holes | Tri Holes | SIP |
LVL I-Joist 36mm |
LVL I-Joist 39mm |
SS I-Joist 45mm | Metal Web |
LVL, Glulam Solid Sawn Timber | |
CSA5.0x50 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | ||||||
EWH (11mm OSB) | 4 | - | - | 4 | - | 9.7 | 2.3 | 2.5 | 3.5 | 3.5 | 3.5 |
EWH (15mm OSB) | 4 | - | - | 4 | - | 10.2 | 2.3 | 2.5 | 3.5 | 3.5 | 3.5 |
Footnote:
→ SIP requires a minimum 47mm deep top rail
→ R2 values relate to the joist type supported by the hanger
Safe Working Loads - SIP Headers
References | Fasteners | Safe Working Loads [kN] | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Face (Flange B) |
Top (Flange E) |
Joist (Flange C) | R1,SWL,LT | R2,SWL,ST | |||||||
Ø5 Holes | Tri Holes | Ø5 Holes | Ø5 Holes | Tri Holes | SIP |
LVL I-Joist 36mm |
LVL I-joist 39mm |
SS I-Joist 45mm | Metal Web |
LVL, Glulam, Solid Sawn Timber | |
CSA5.0x50 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | ||||||
EWH (11mm OSB) | 4 | - | - | 4 | - | 4 | 1.2 | 1.3 | 1.8 | 1.8 | 1.8 |
EWH (15mm OSB) | 4 | - | - | 4 | - | 4.3 | 1.2 | 1.3 | 1.8 | 1.8 | 1.8 |
Footnote:
→ SIP requires a minimum 45mm deep top rail
→ R2 values relate to the joist type supported by the hanger
Enhanced Uplift
References | Fasteners | Characteristic Loads [kN] | Safe Working Loads [kN] | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Face (Flange B) |
Top (Flange E) |
Joist (Flange C) | R2,k | R2,SWL,ST | |||||||
Ø5 Holes | Tri Holes | Ø5 Holes | Ø5 Holes | Tri Holes |
I-Joist + Web Stiffener | Metal Web |
LVL, Glulam Solid Sawn Timber |
I-Joist + Web Stiffener | Metal Web |
LVL, Glulam, Solid Sawn Timber | |
N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | N3.75x30 | ||||||
EWH (Enhanced Uplift) | 4 | 6, 8 or 10 | 0, 4 | 4 | 4 | 8 | 8 | 8 | 4 | 4 | 4 |
Footnote:
→ Fill all round and triangular holes with the relevant fastener.
→ If the incoming joist is an I-Joist then web stiffeners are required. (The web stiffener’s size and installation requirements shall be in accordance to relevant I-Joist manufacturer’s specification).
→ R2 values relate to the joist type supported by the hanger
Installation
Installation
Installation
- Use all specified fasteners.
- For STANDARD installation all round holes to be filled.
- For ENHANCED installation, all round and triangular holes to be filled, (excluding triangular hole in the hanger’s seat tab).

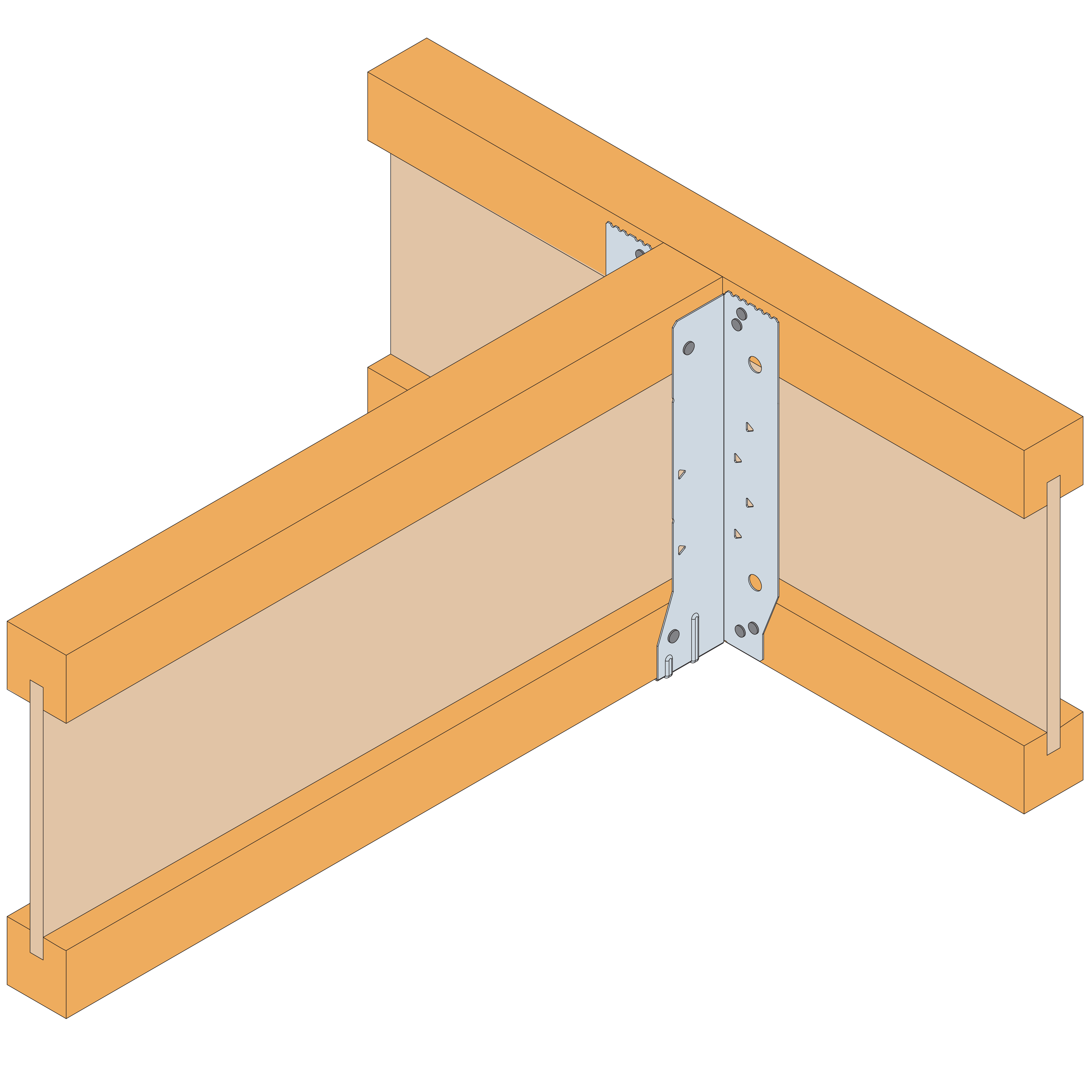

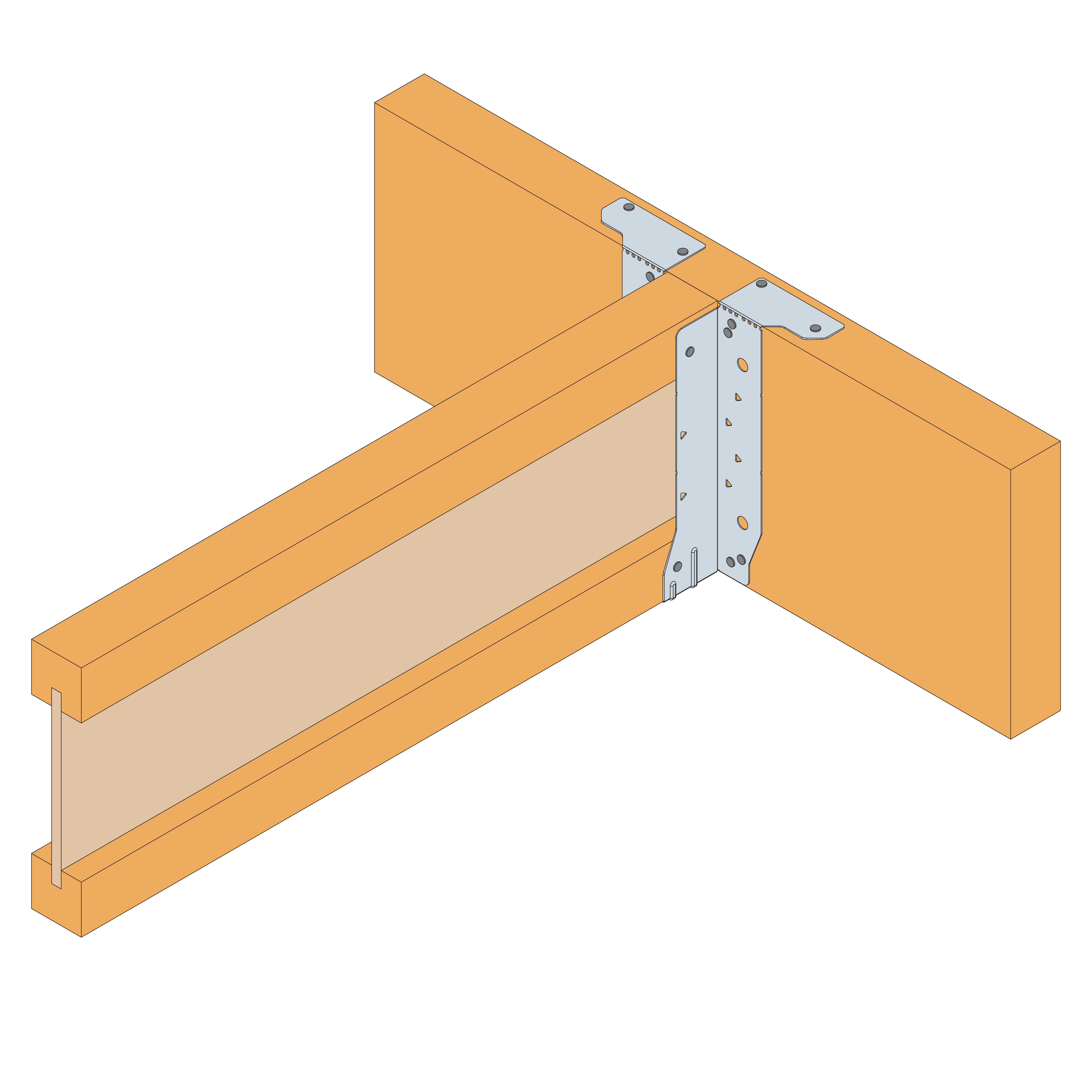

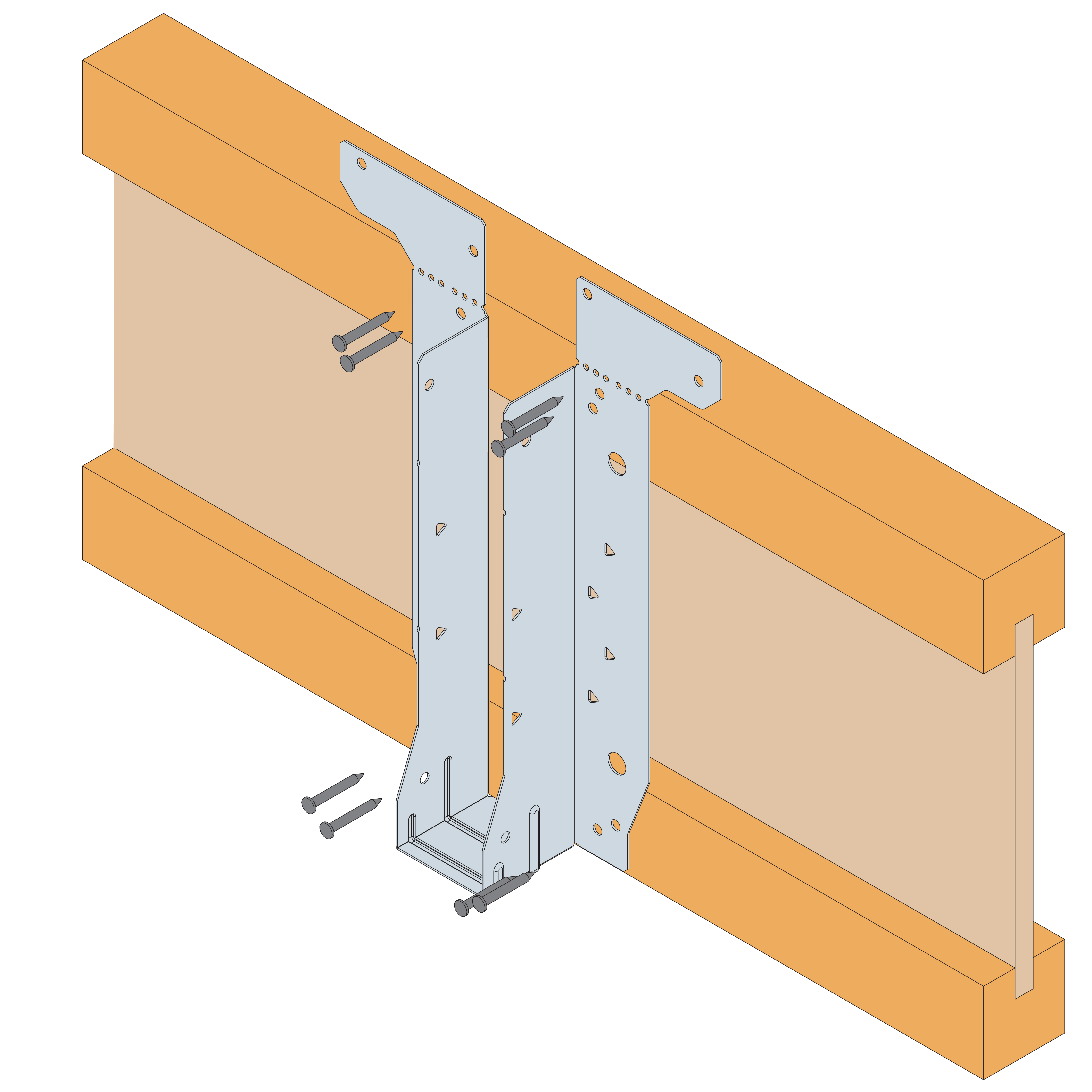

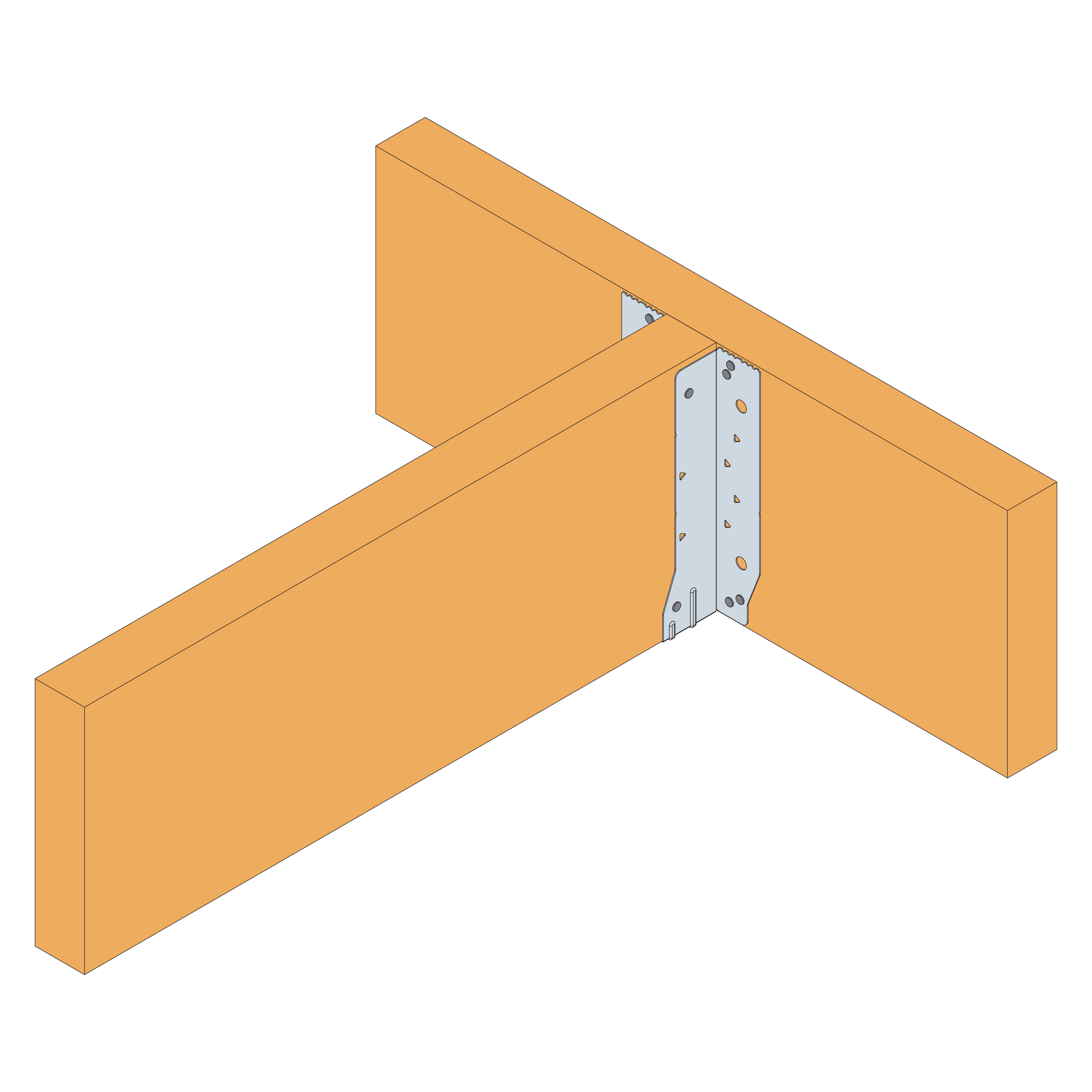

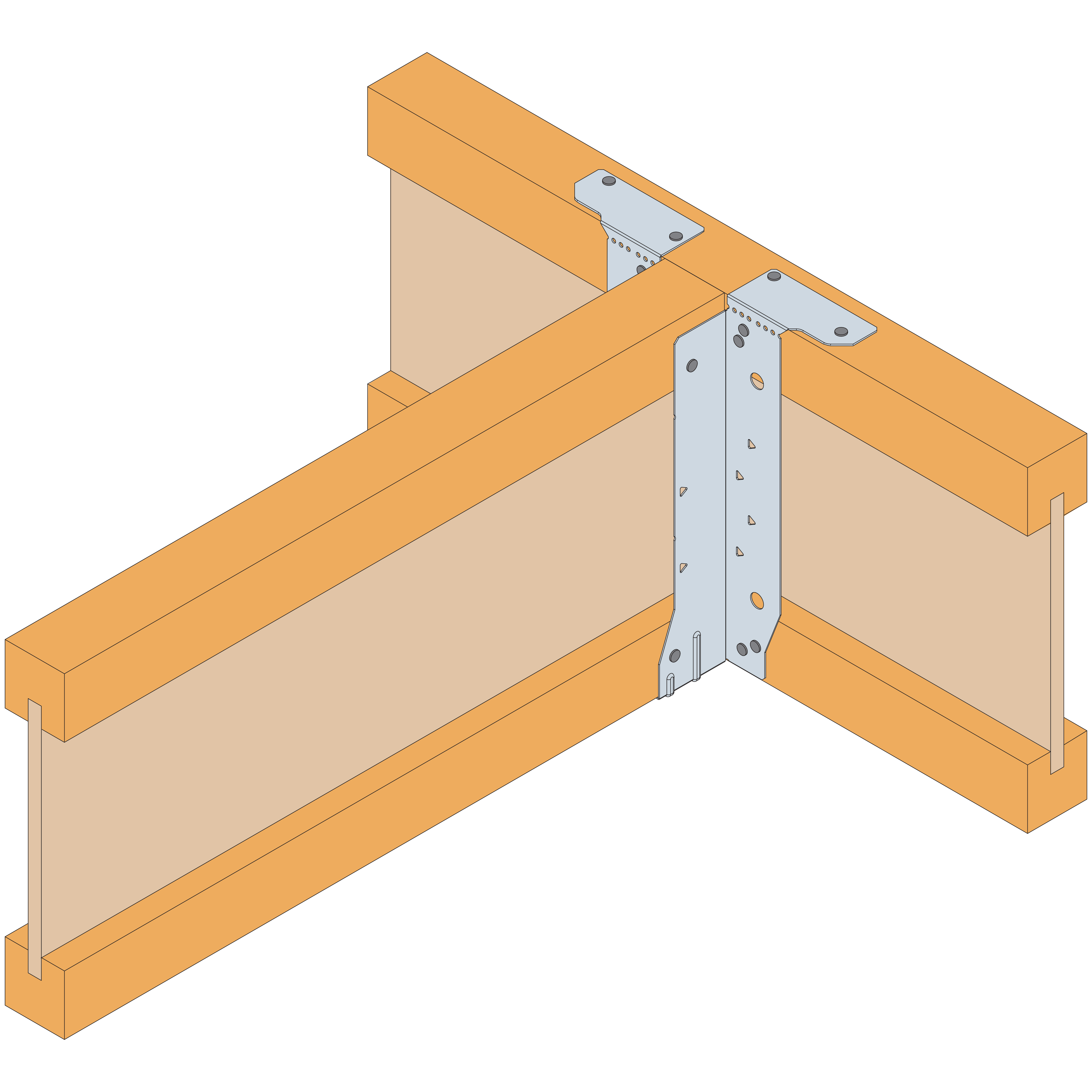

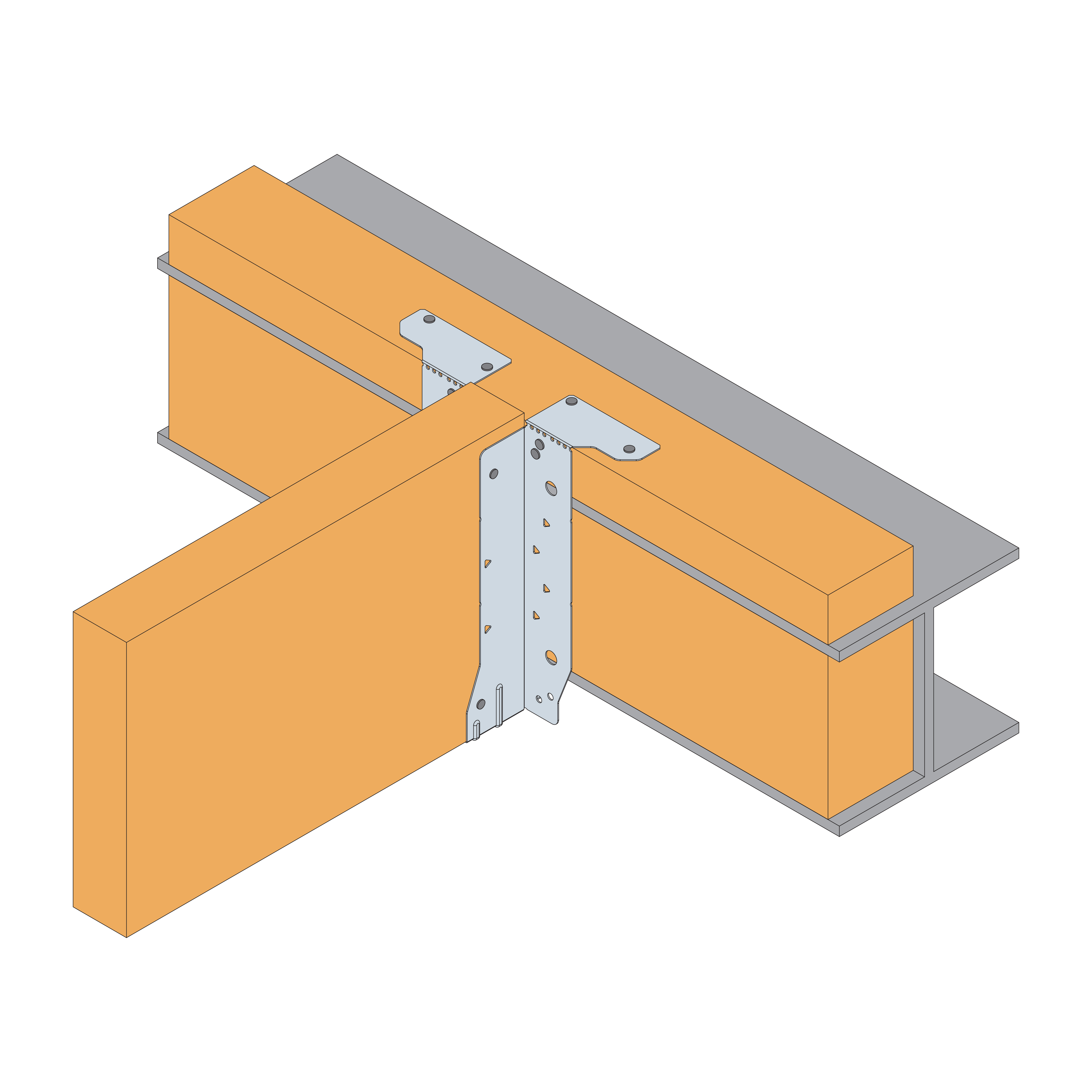

EWH Standard Installation Instructions – Applicable to I-Joist, Metal Web Joist & Solid Timber Headers

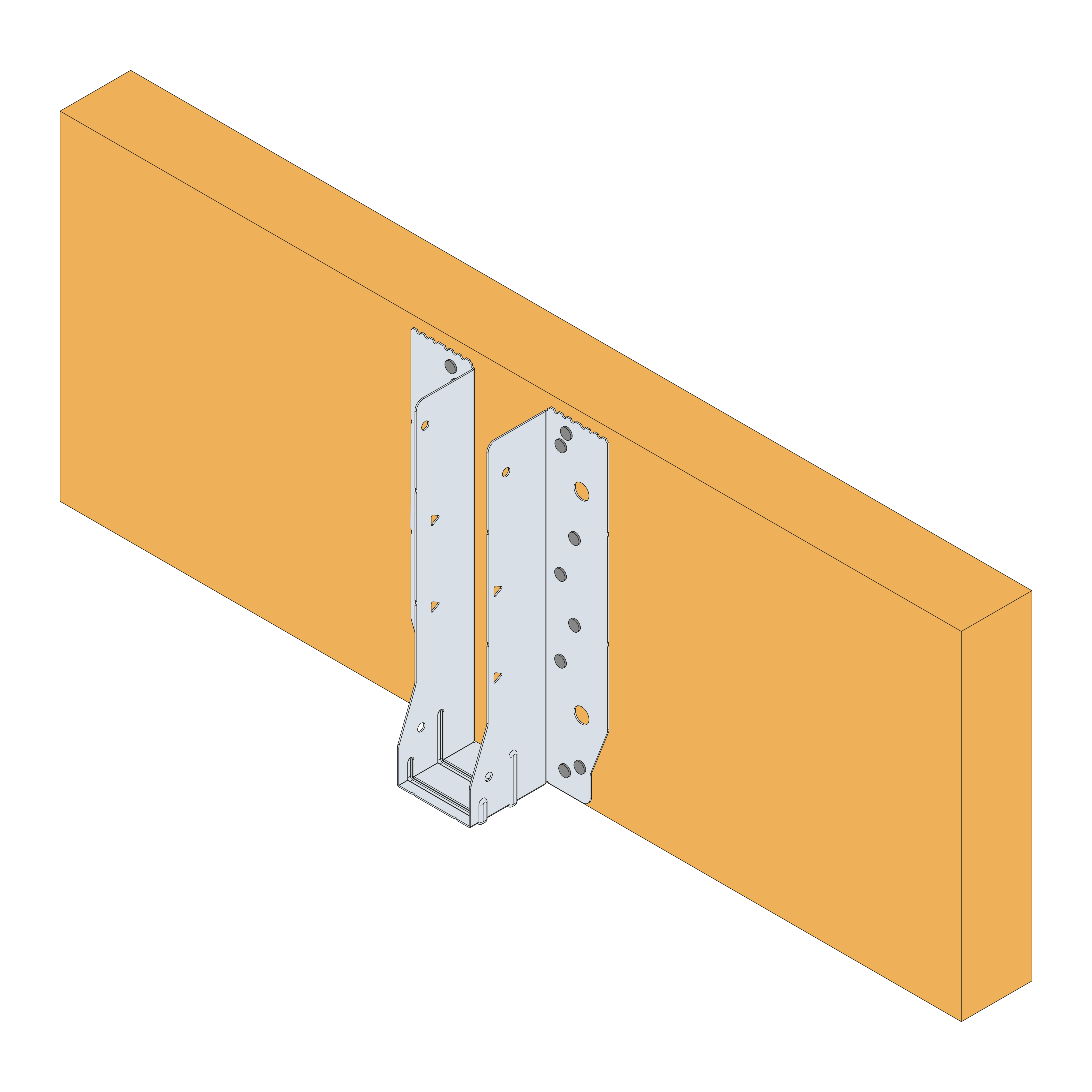

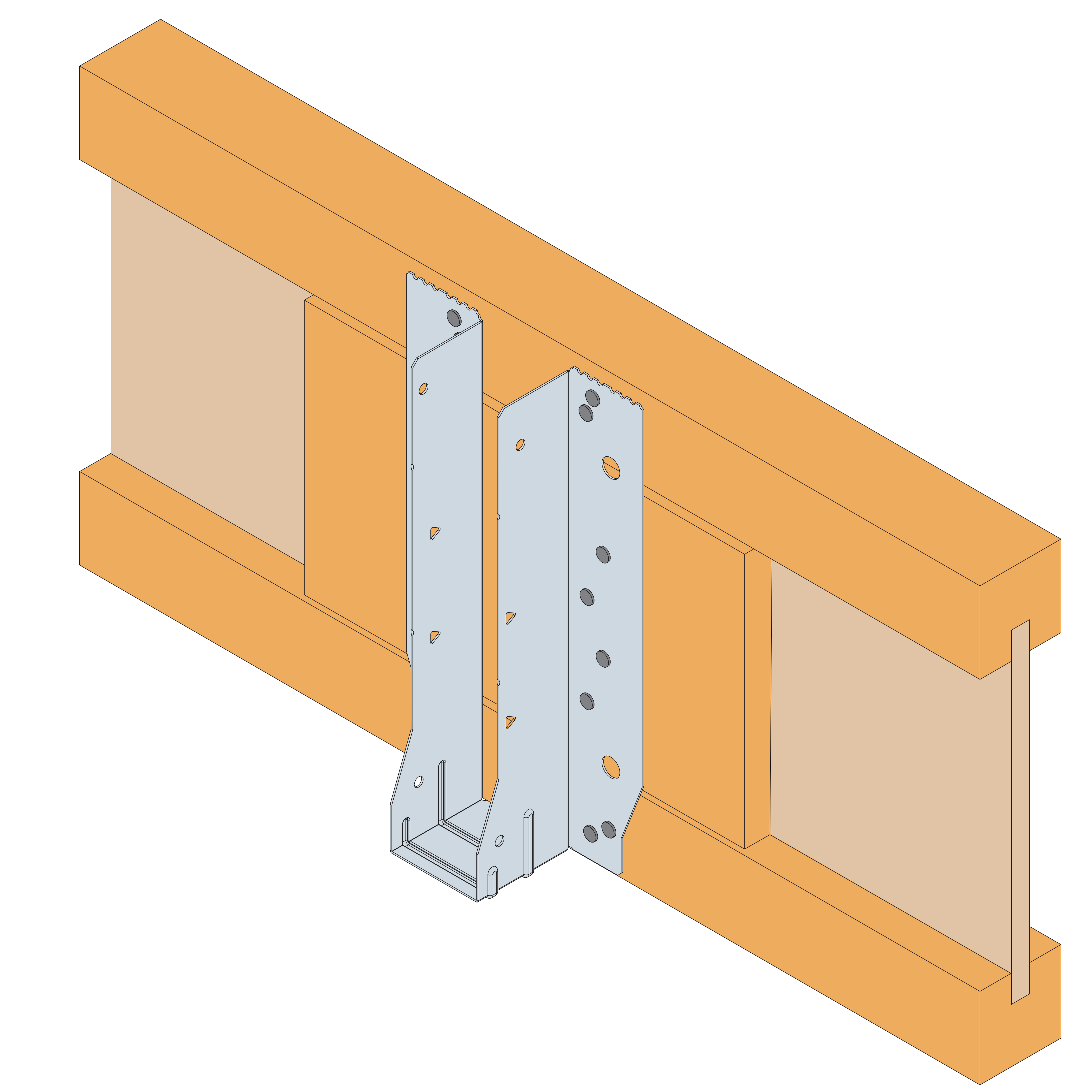

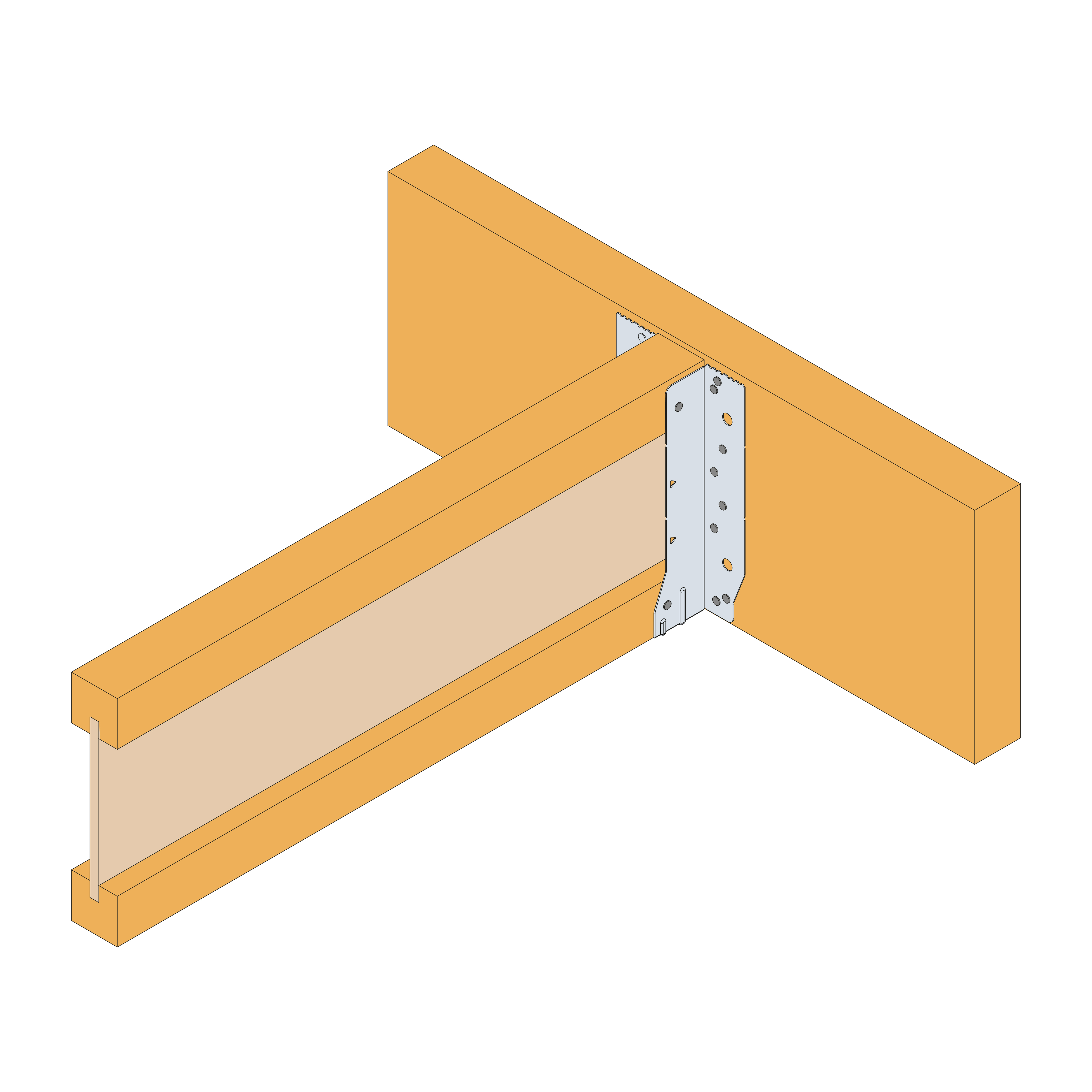

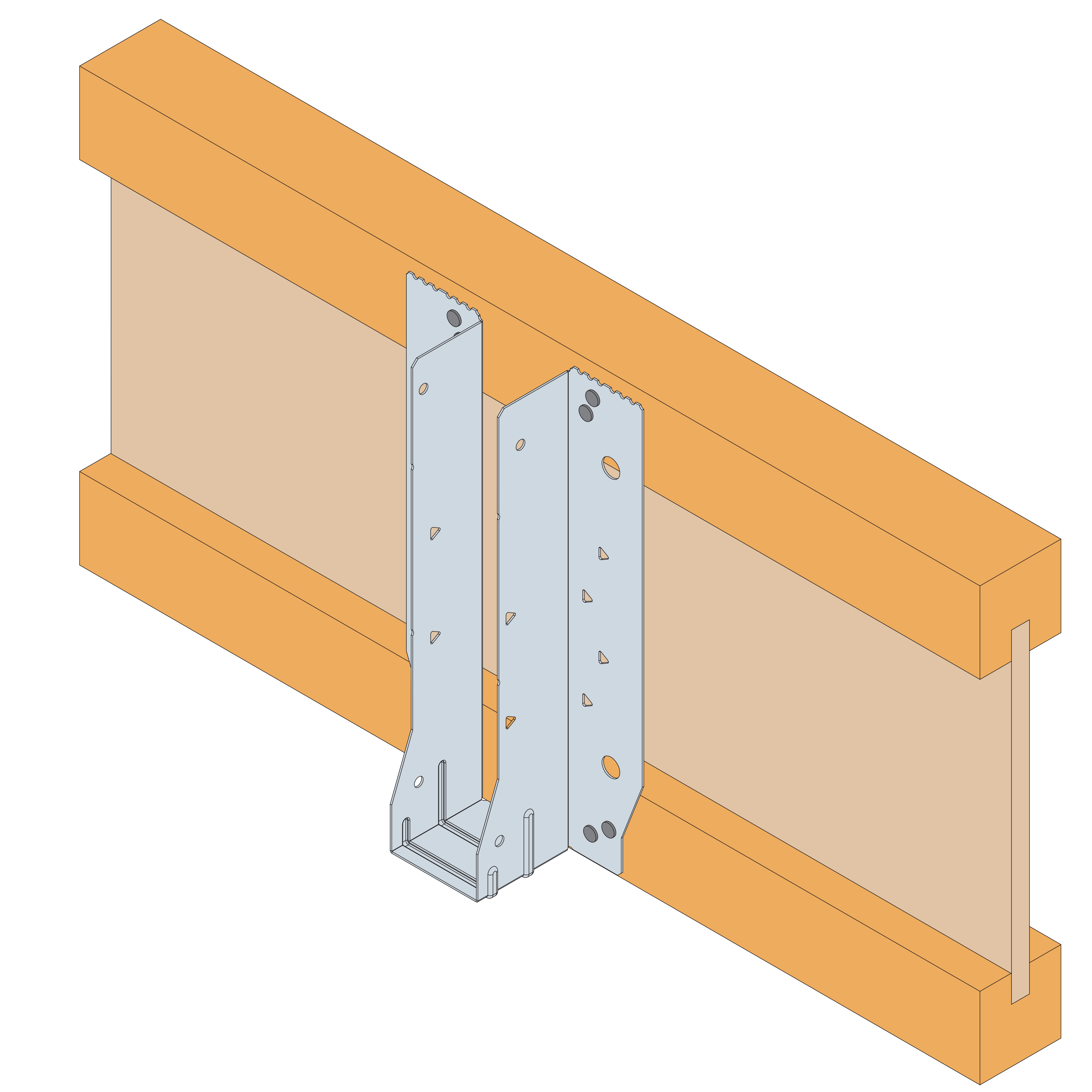

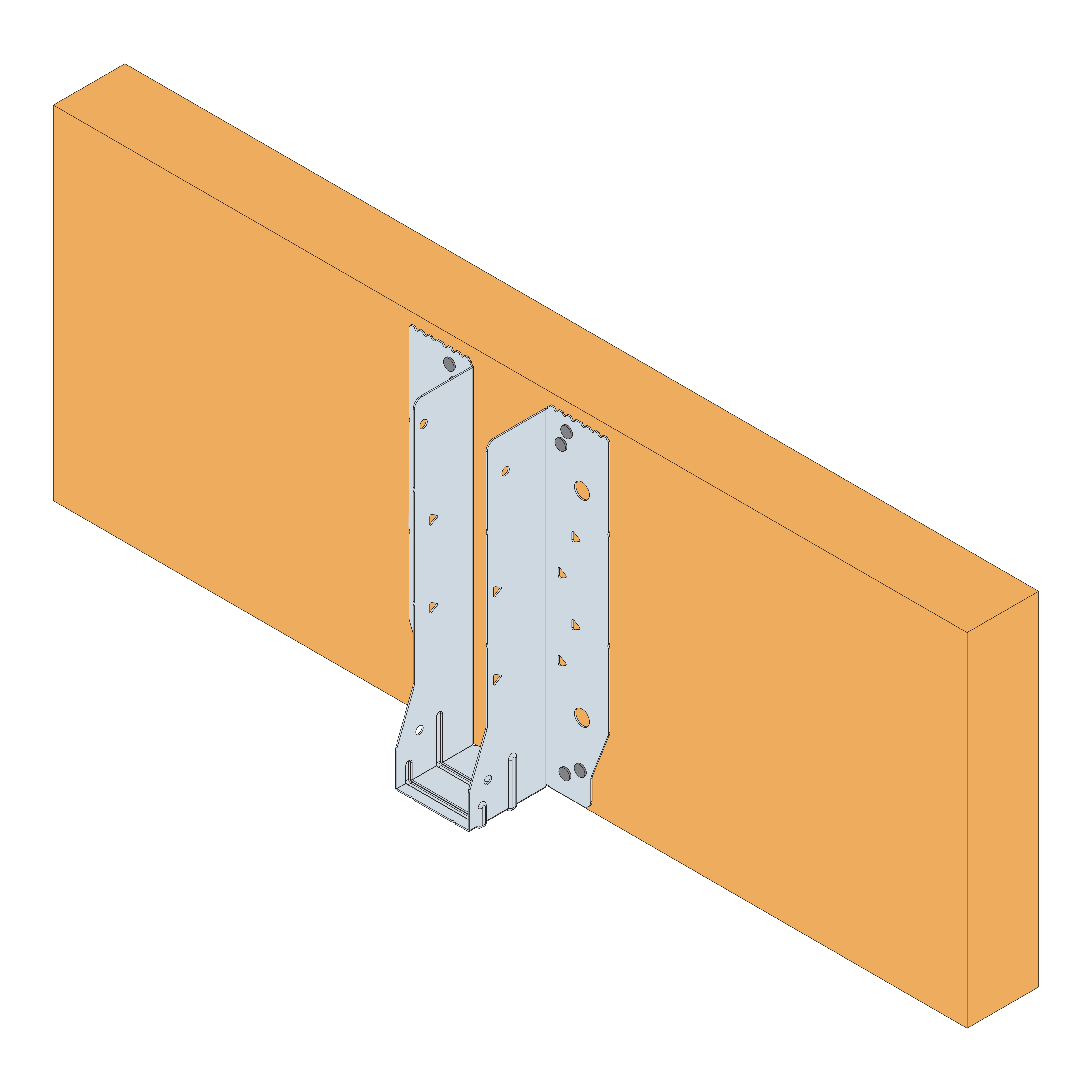

- Position EWH hanger onto the face of the supporting Joist, ensuring the seat tab is tight up against the underside of the supporting joist.

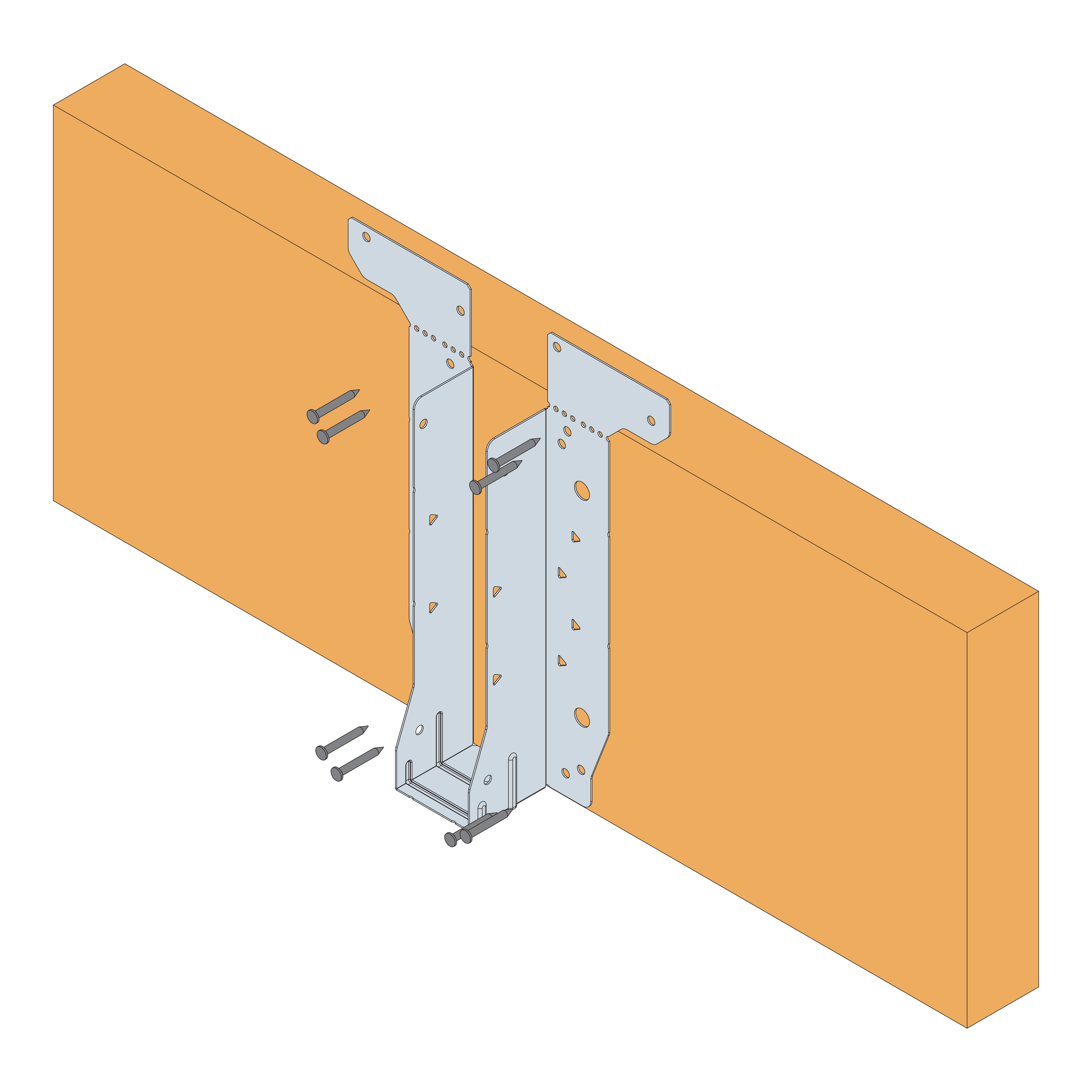

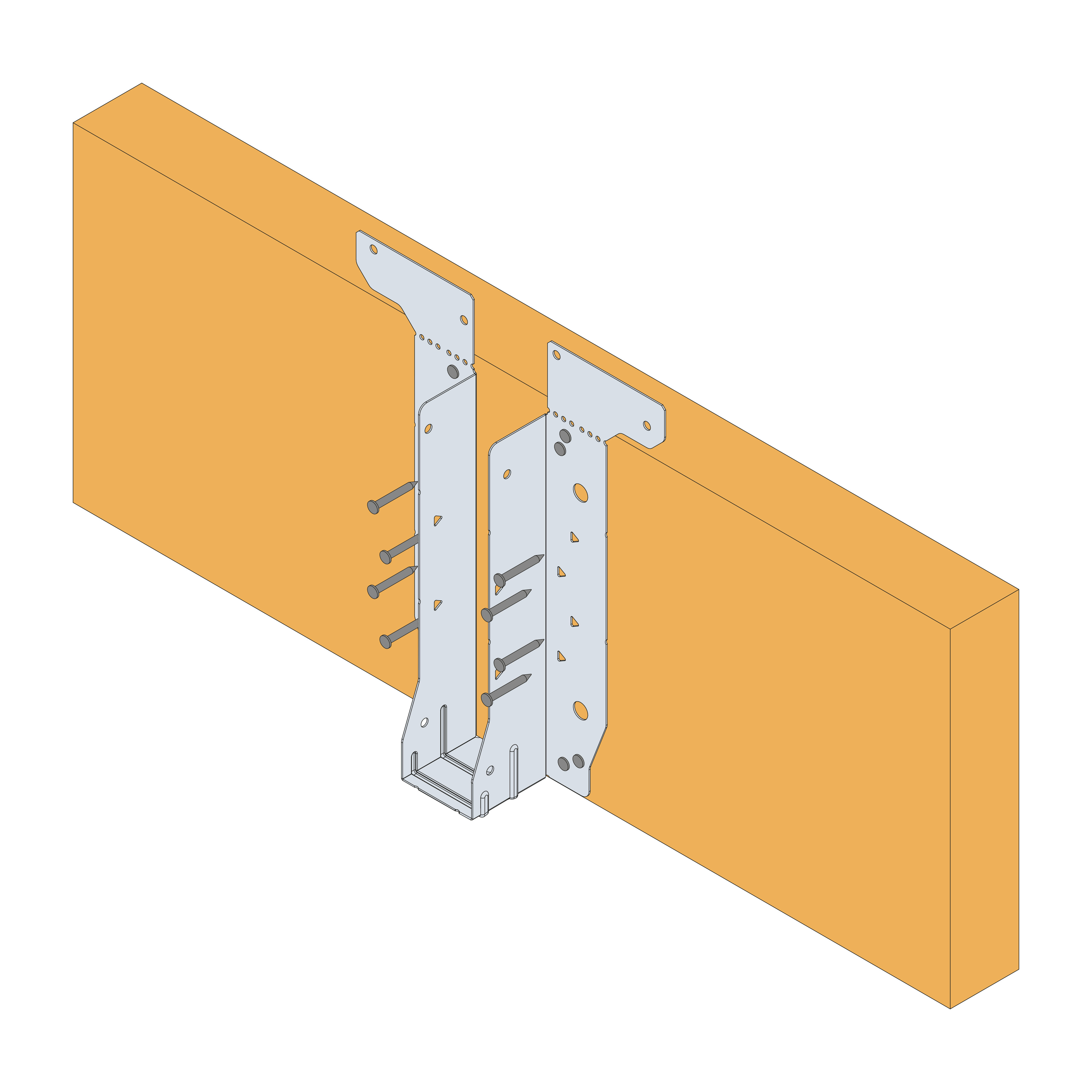

- Ensure hanger sides are vertical; fill all face round holes, starting from bottom upwards, with the specified fastener.

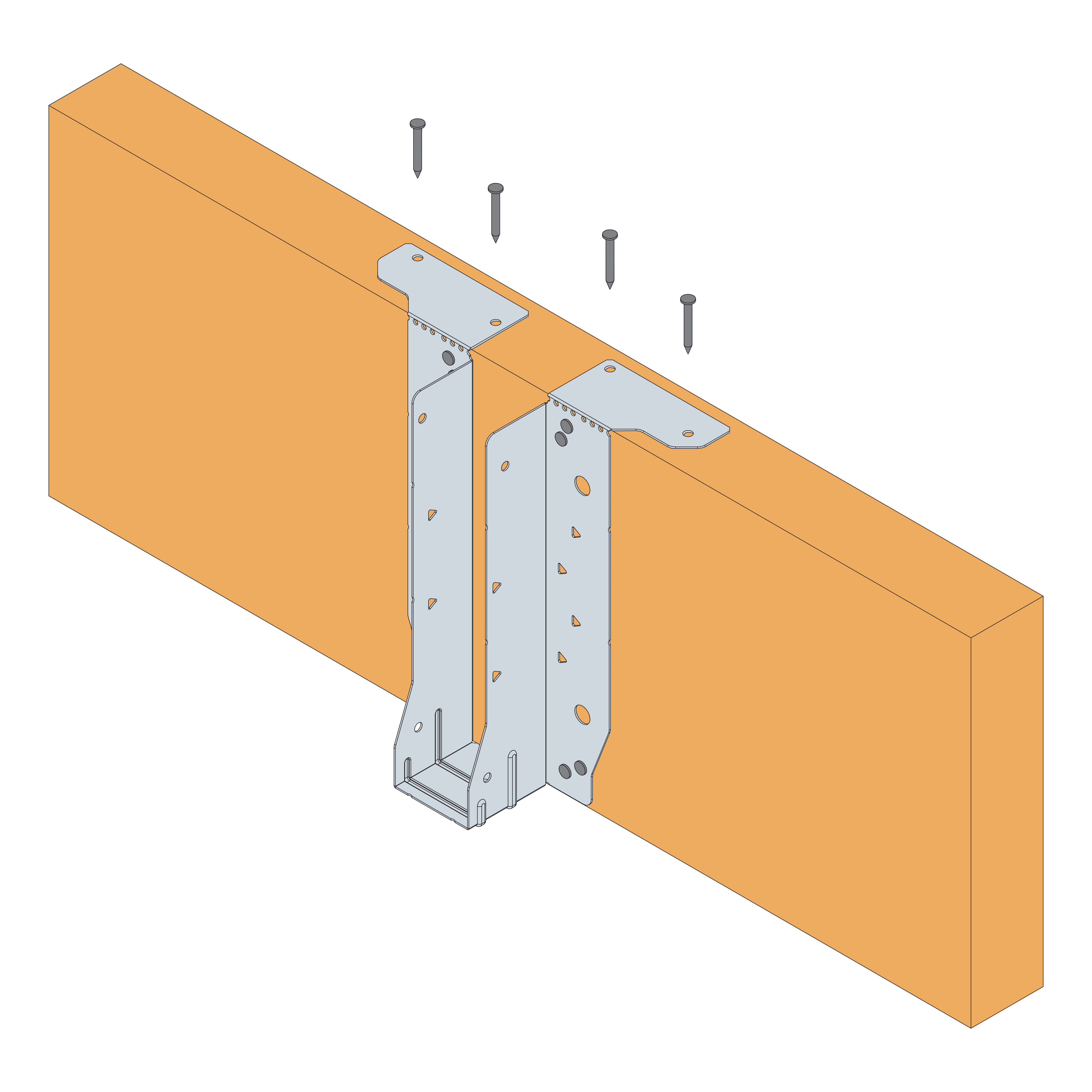

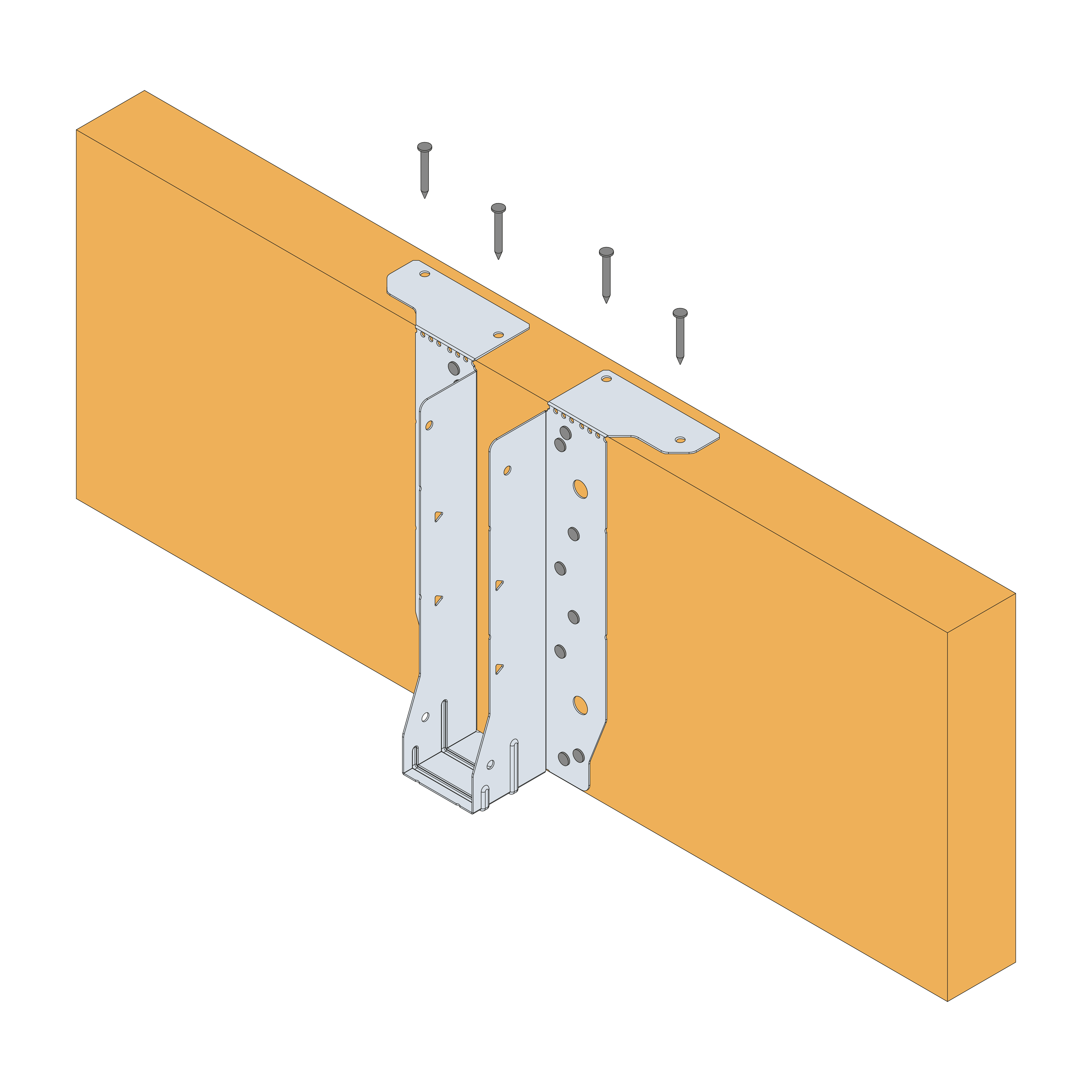

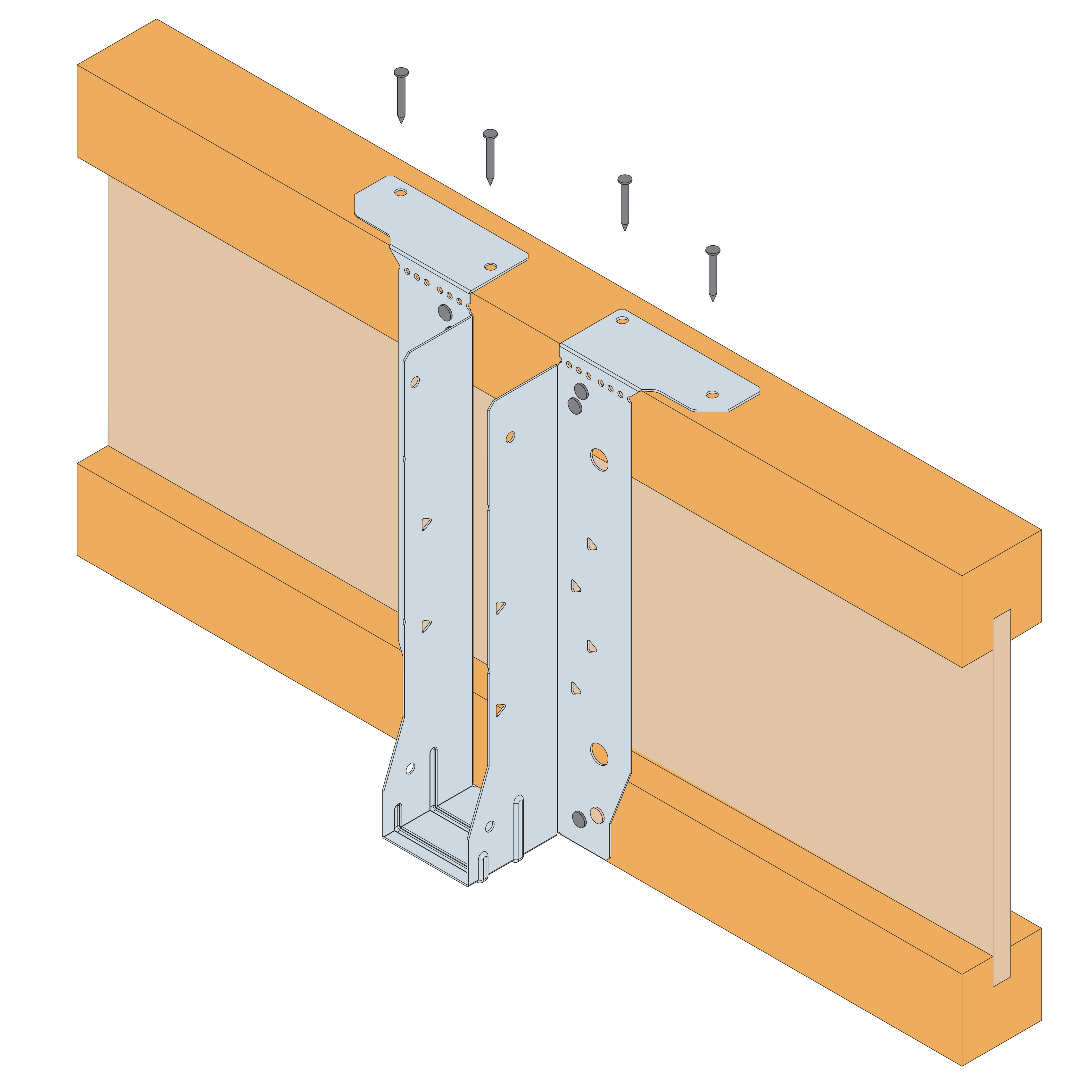

- For top fix installations, fold over the top flange, ensuring a tight fold line along the top edge of the supporting timber, and fill all top round holes with the specified fasteners (NOTE: Depending upon the joist depth, the fold line may be up to 6mm above the perforation lines).
- For face fix installations, snap off the top flange along the perforation line (NOTE: The top flange may be snapped off pre or post installation).
- Insert the incoming joist, ensuring it is tight against the back of the EWH (maximum allowable gap is 3mm between end of incoming joist and face of hanger) and fill all round holes in the side flanges.
- For instances where the supporting member is deeper than the hanger, bend the seat tab upwards so the hanger fits tight against the face of the supporting member.

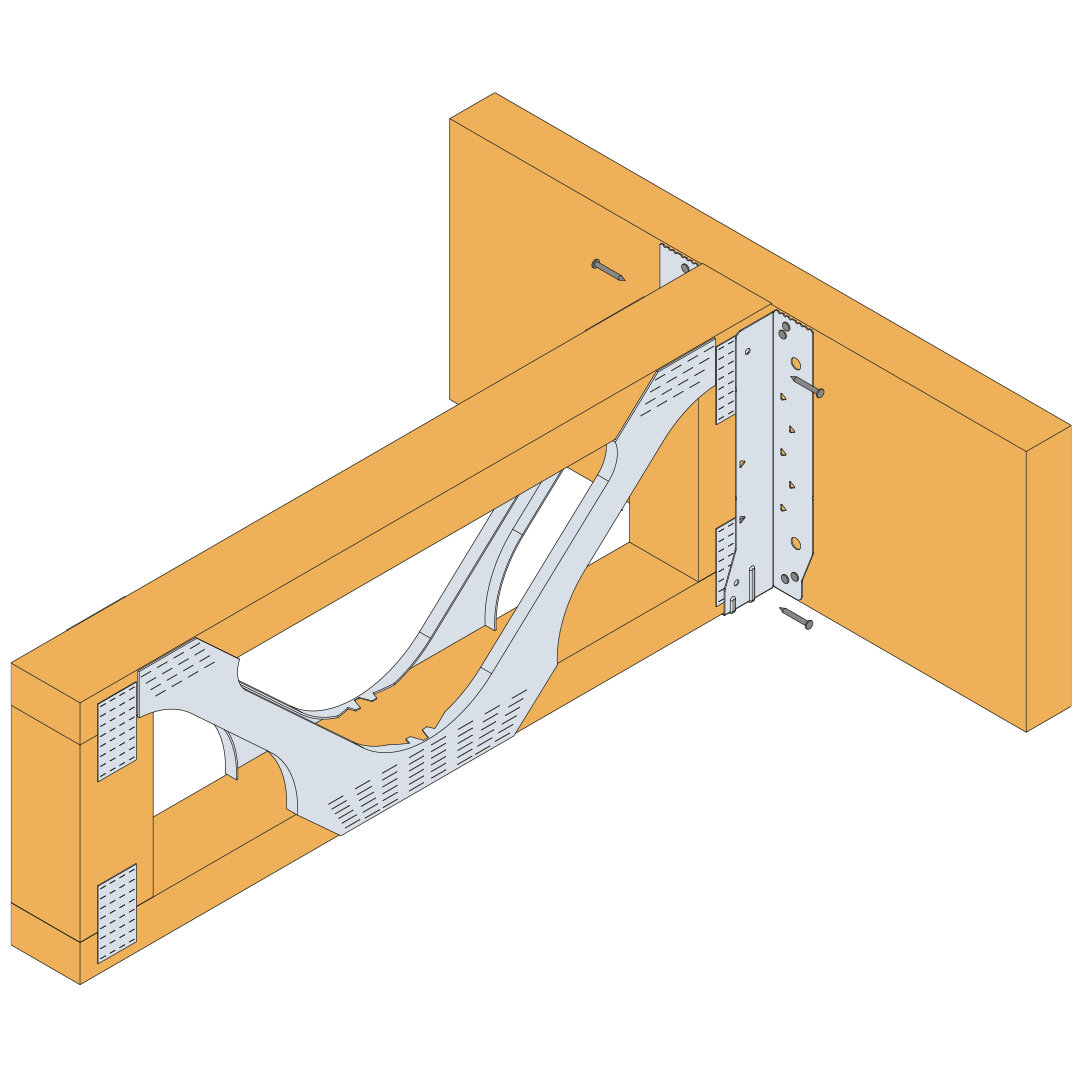

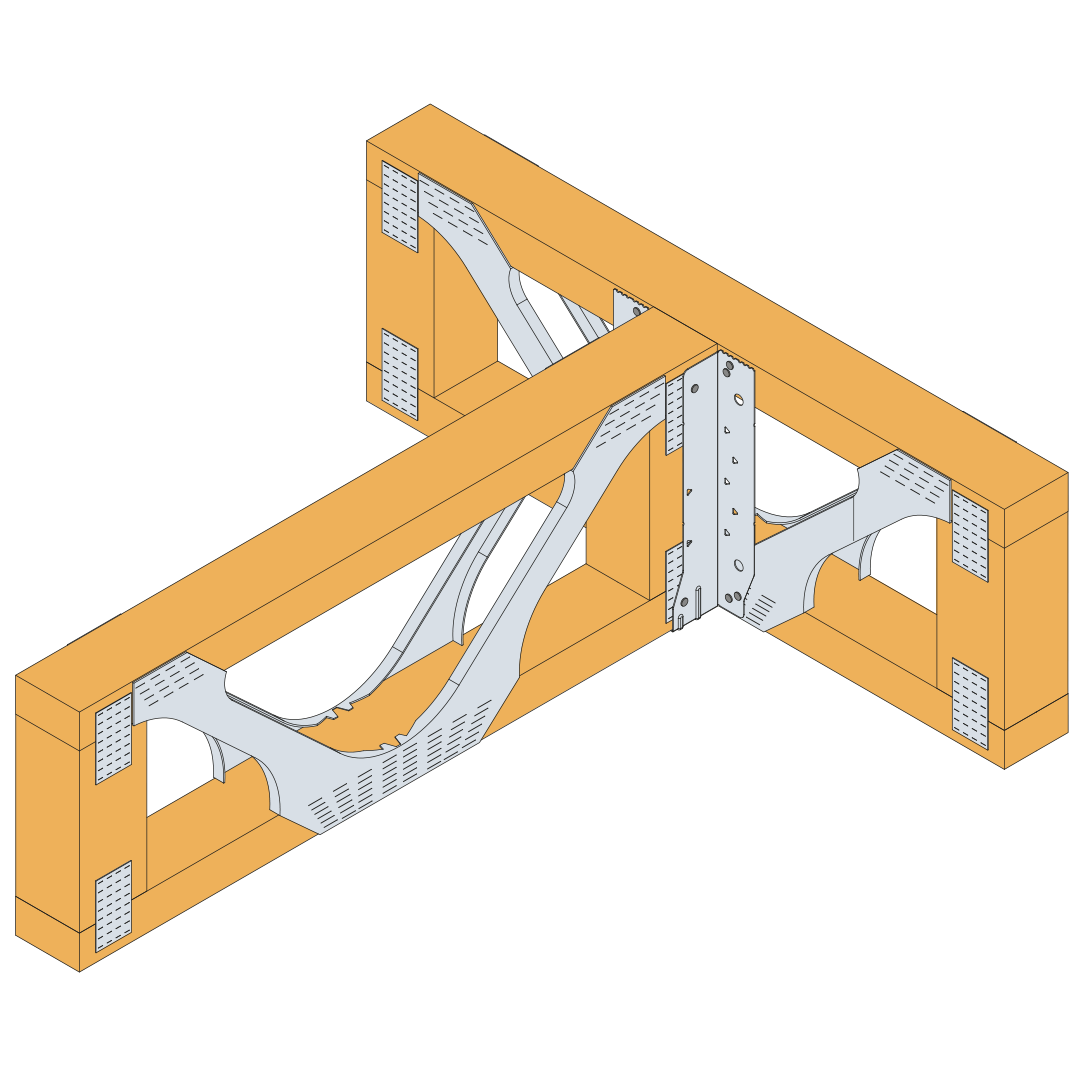

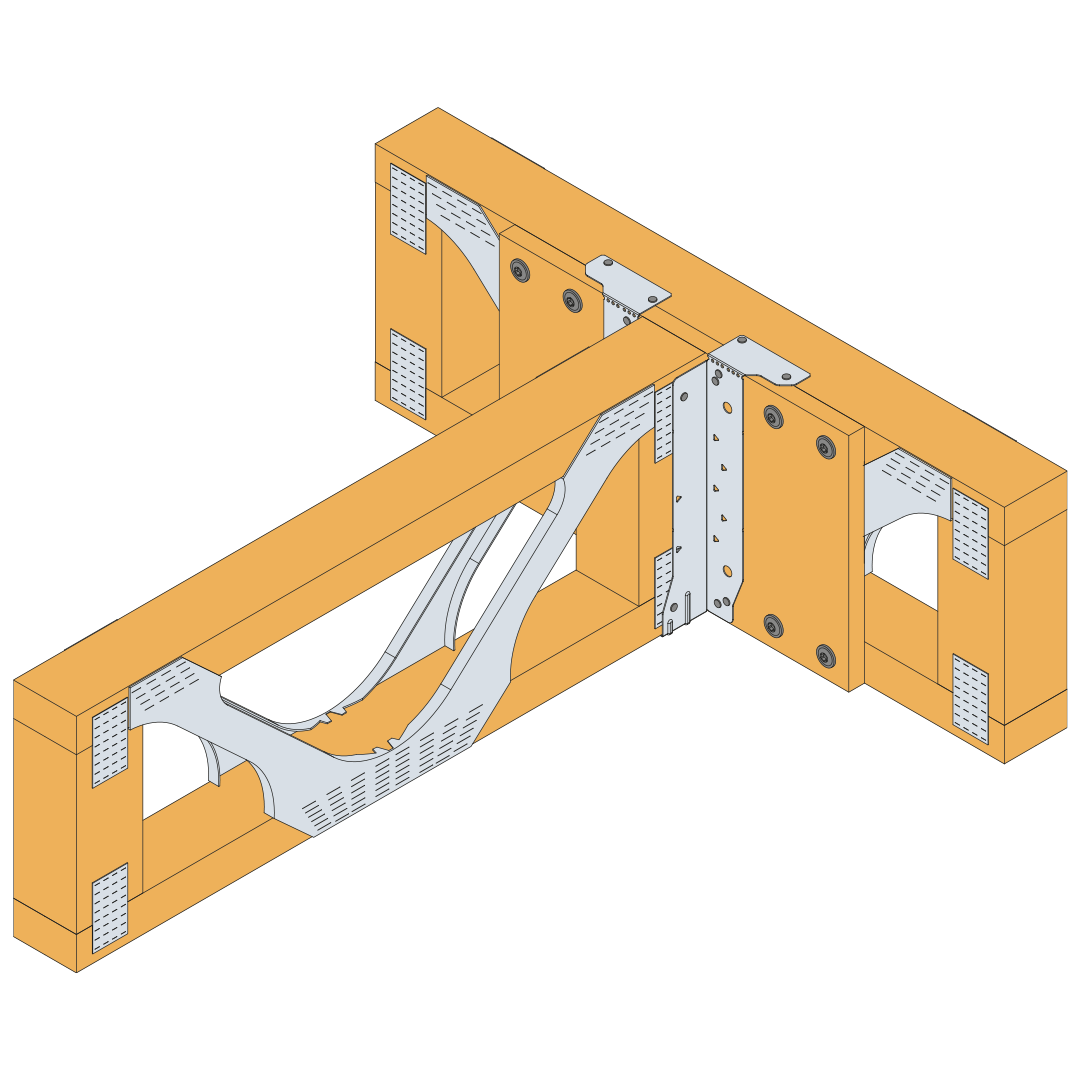

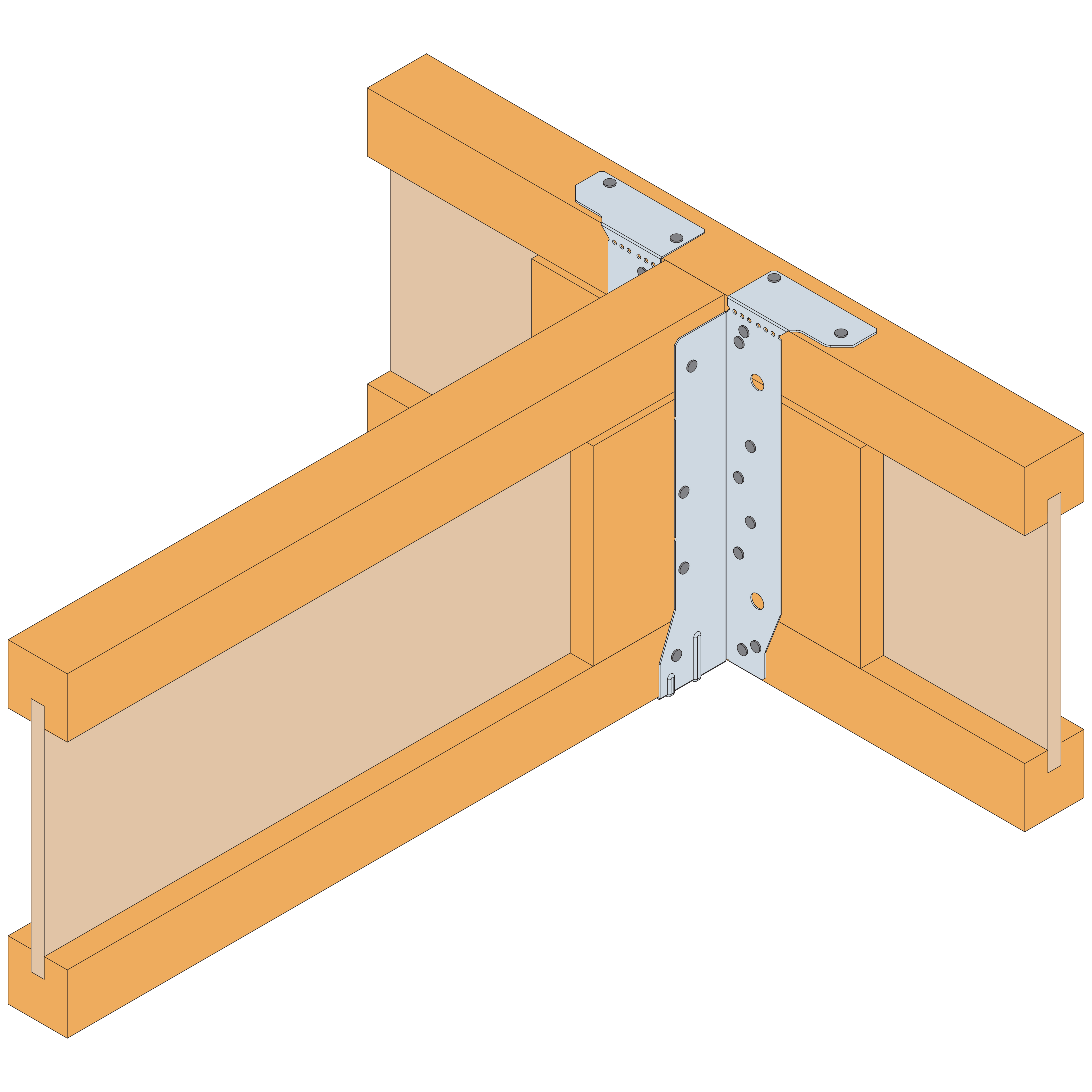

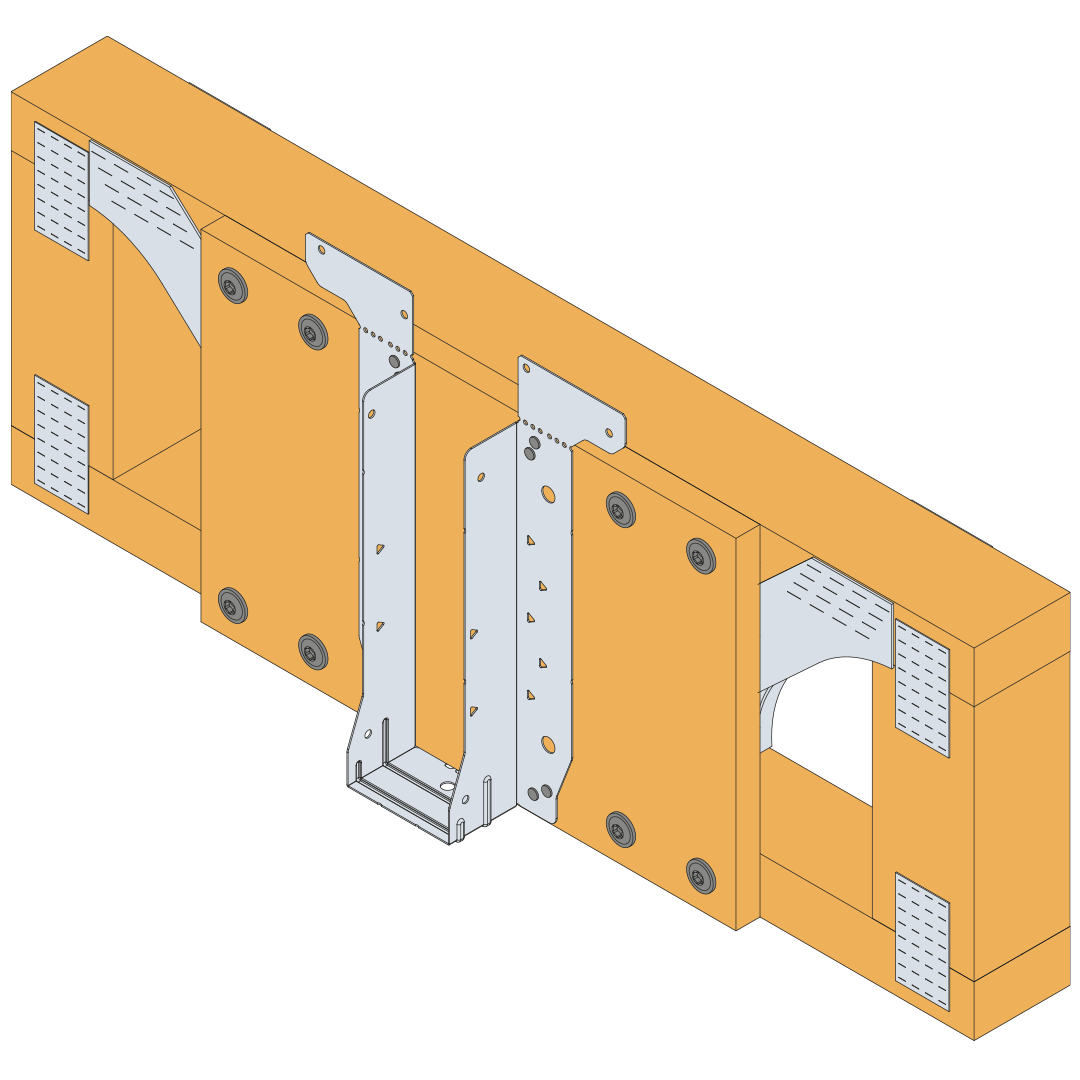

EWH Enhanced Installation Instructions – Applicable to I-Joist, Metal Web Joist & Solid Timber Headers

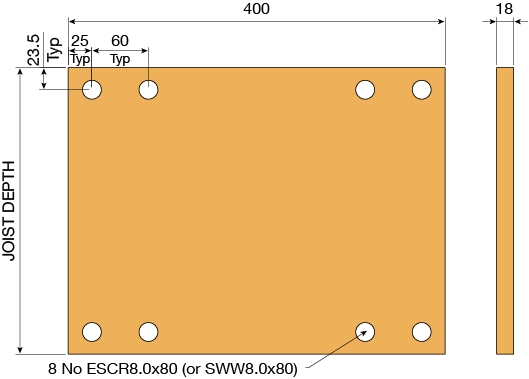

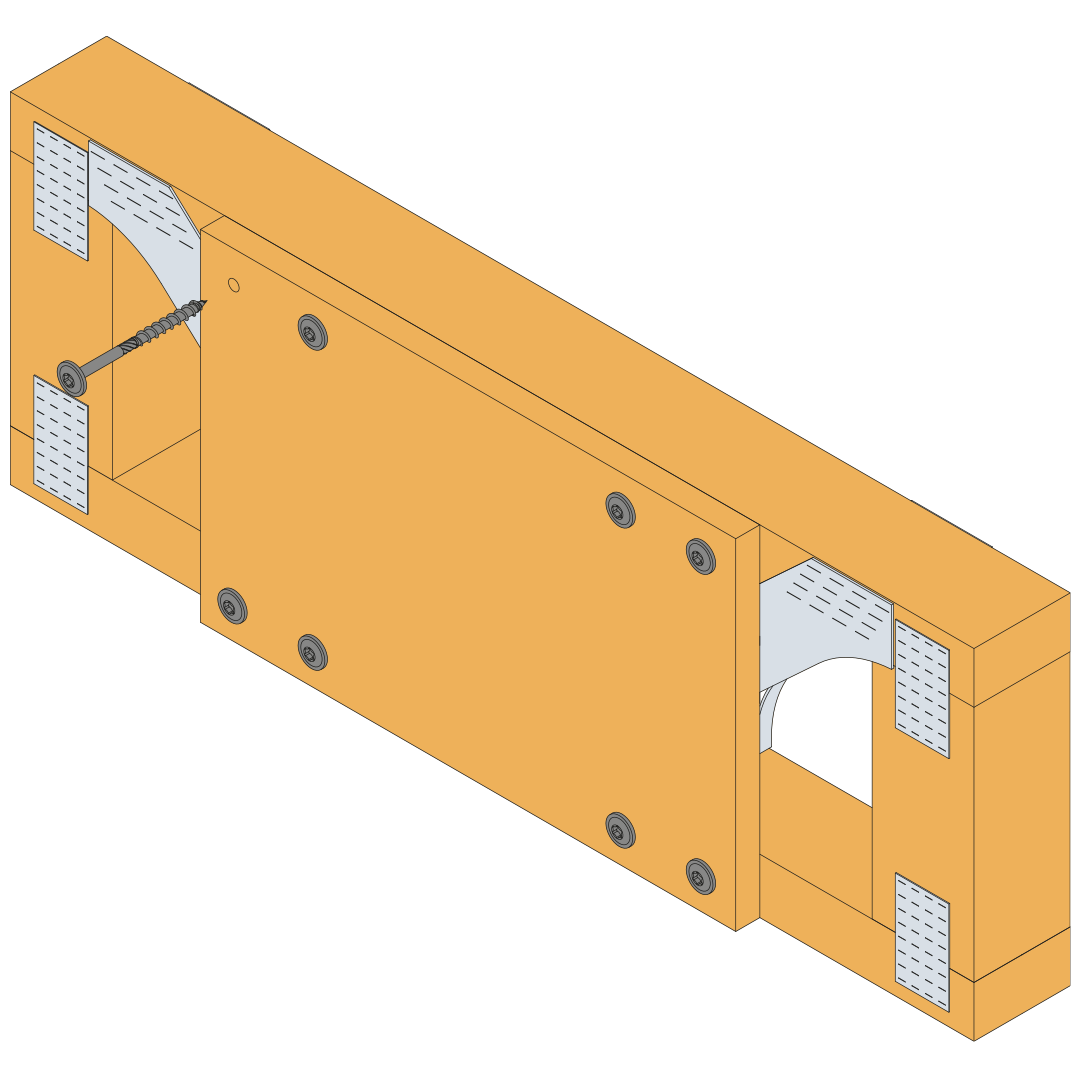

- Metal Web Headers Only: Install an 18mm plywood gusset to the face of the metal web joist. The plywood gusset is to be at least 400mm long and full depth of the metal web joist. The plywood gusset is installed with 8 No ESCR8.0x80mm screws. The screws are to be positioned in accordance to illustration below.

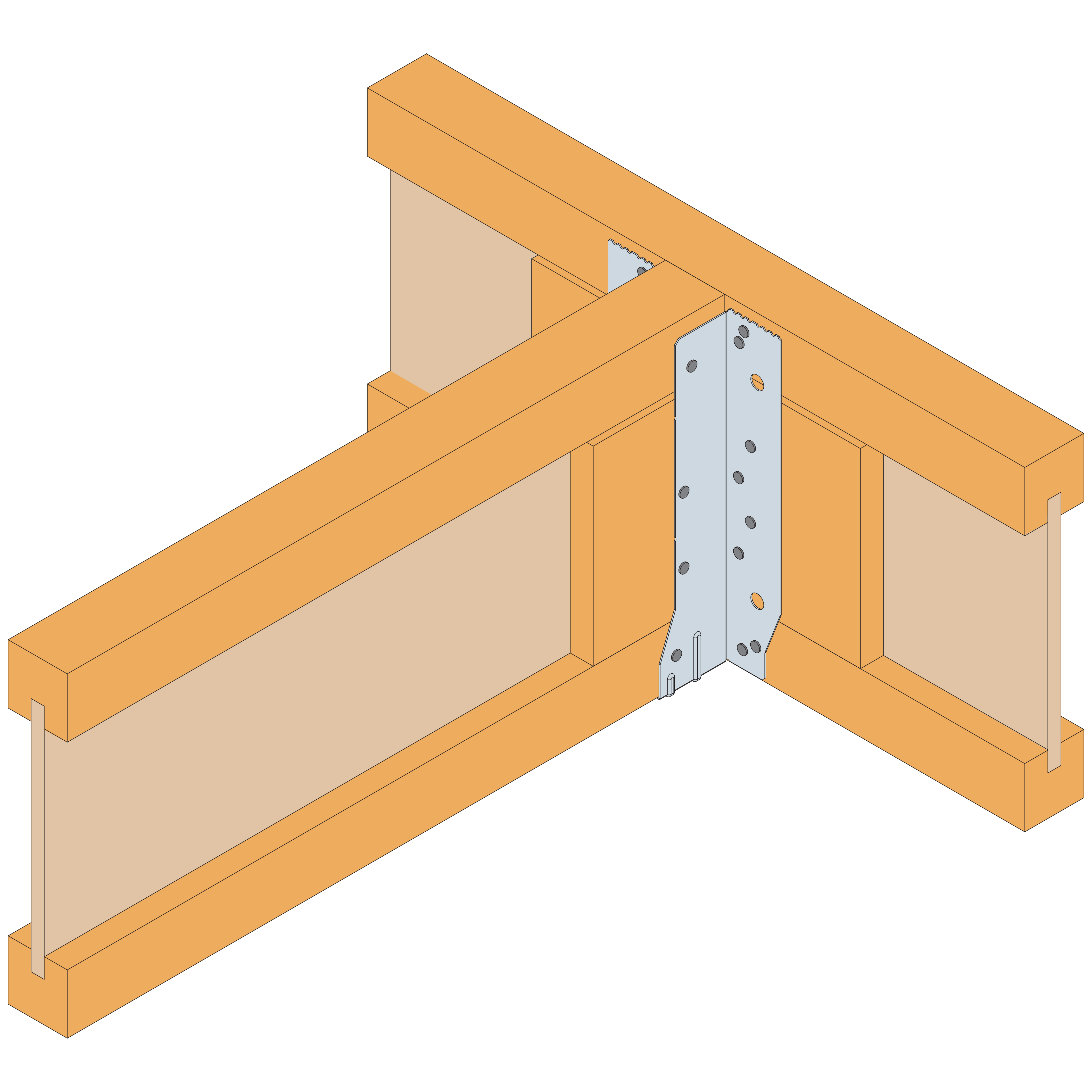

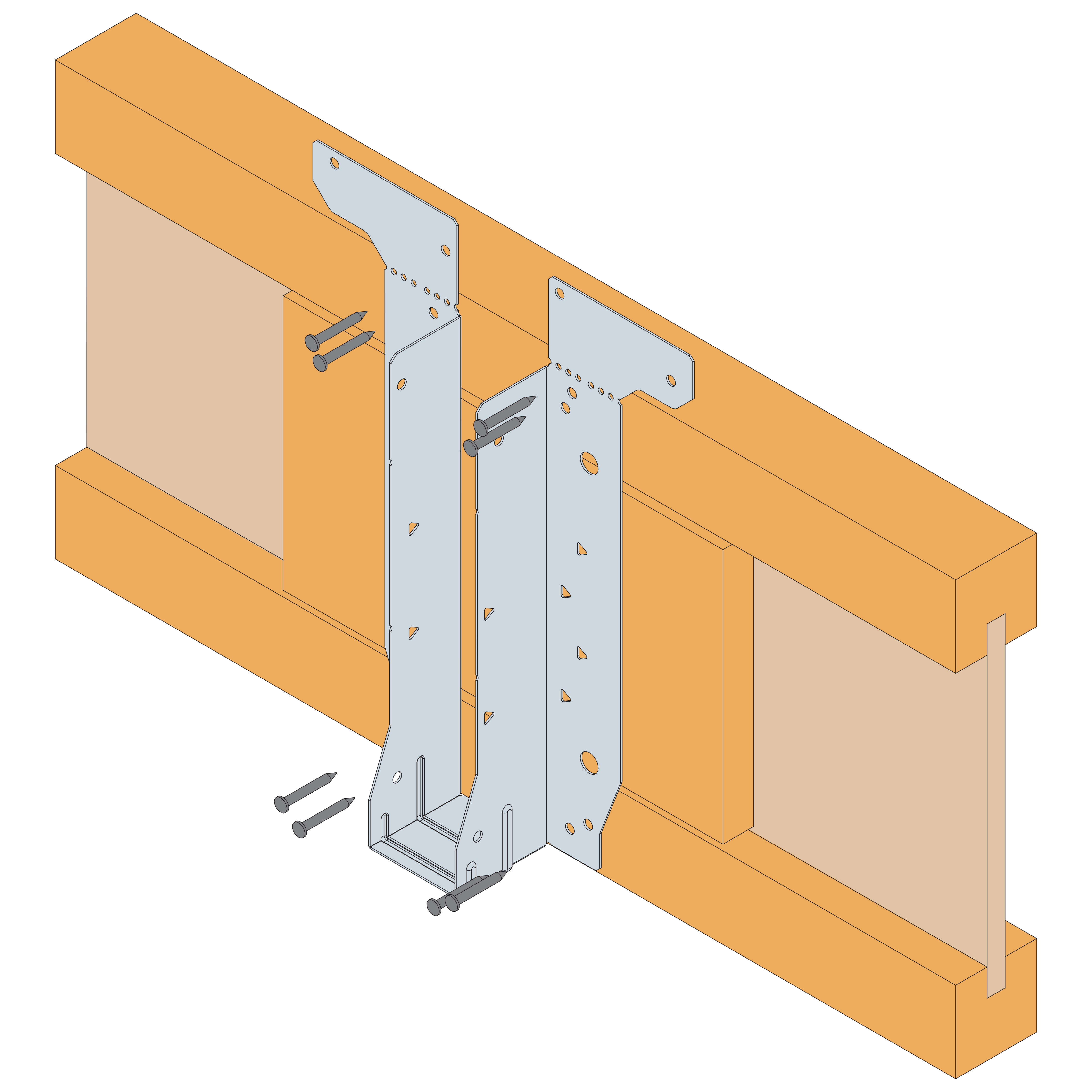

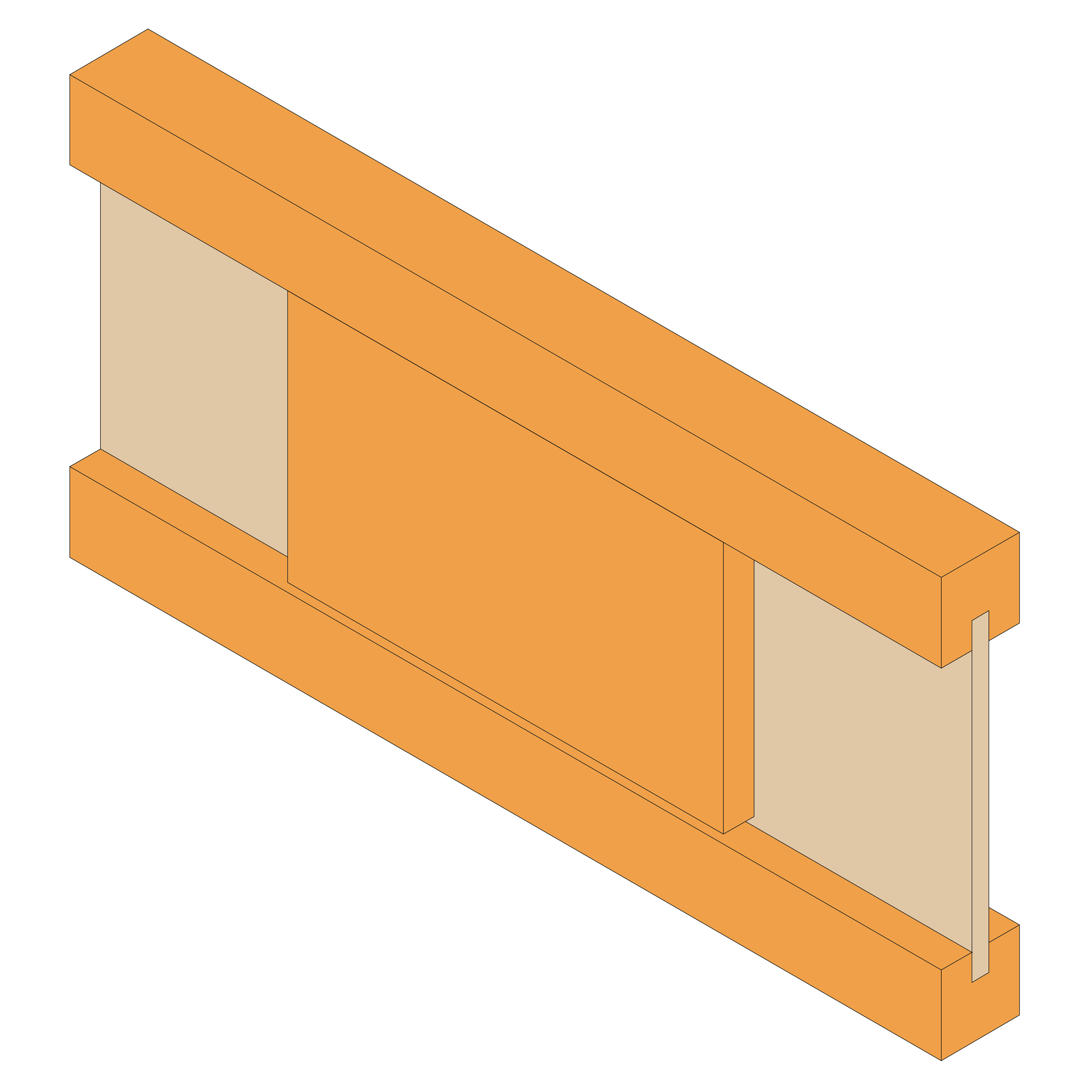

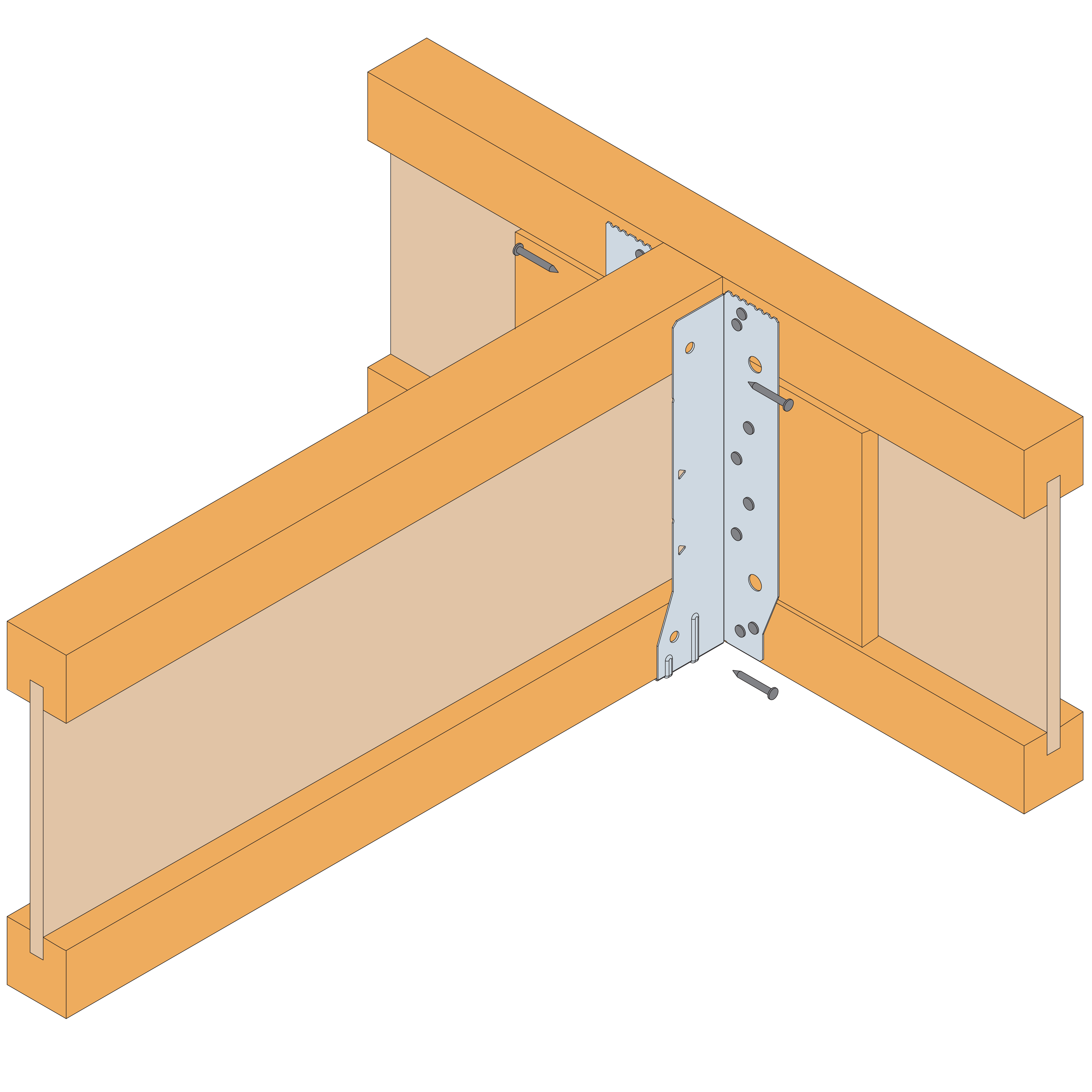

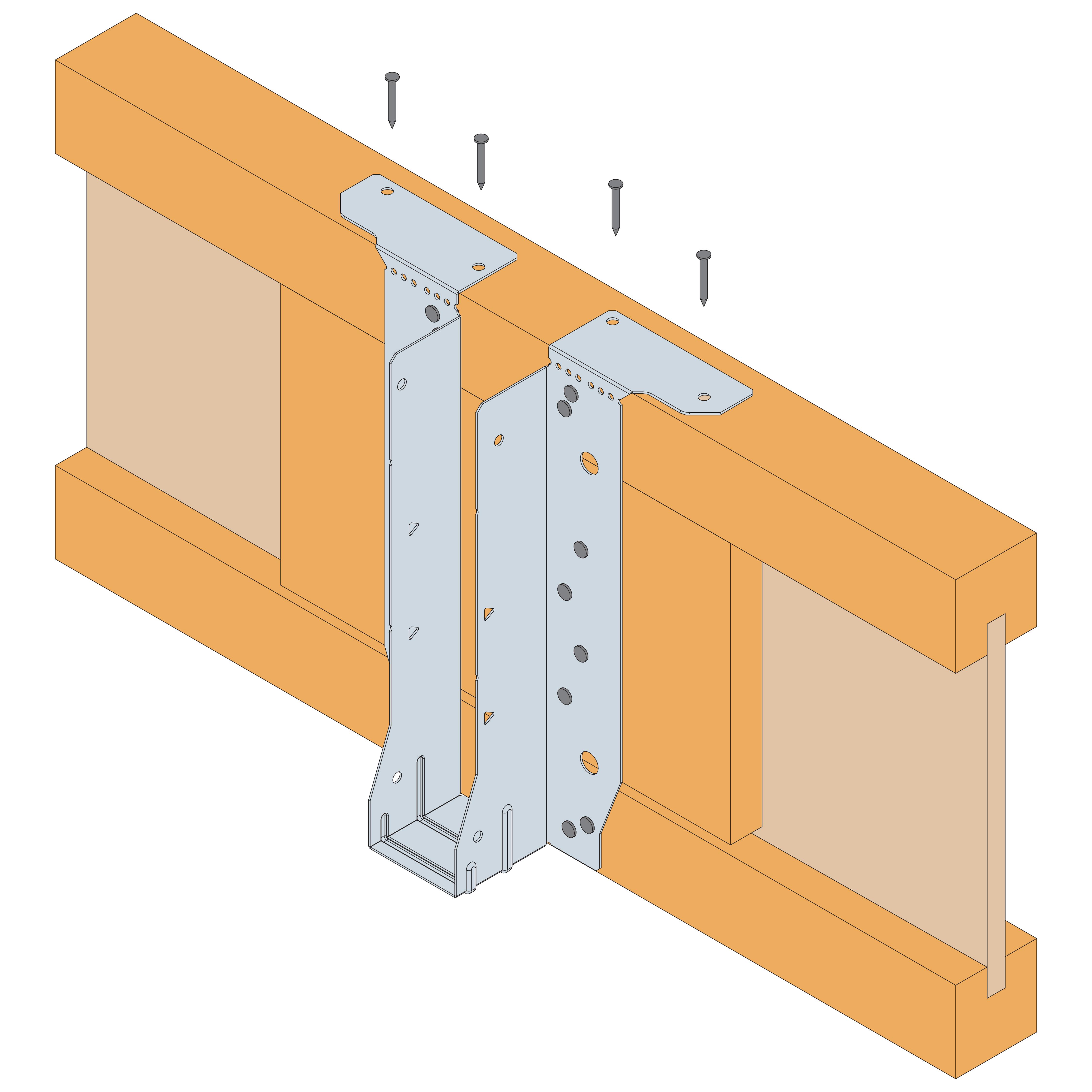

- I-Joist Headers Only: Install a backer block onto the front face of the I-Joist. The backer blocks size and installation requirements shall be in accordance to the relevant I-Joist manufacturer’s specifications.

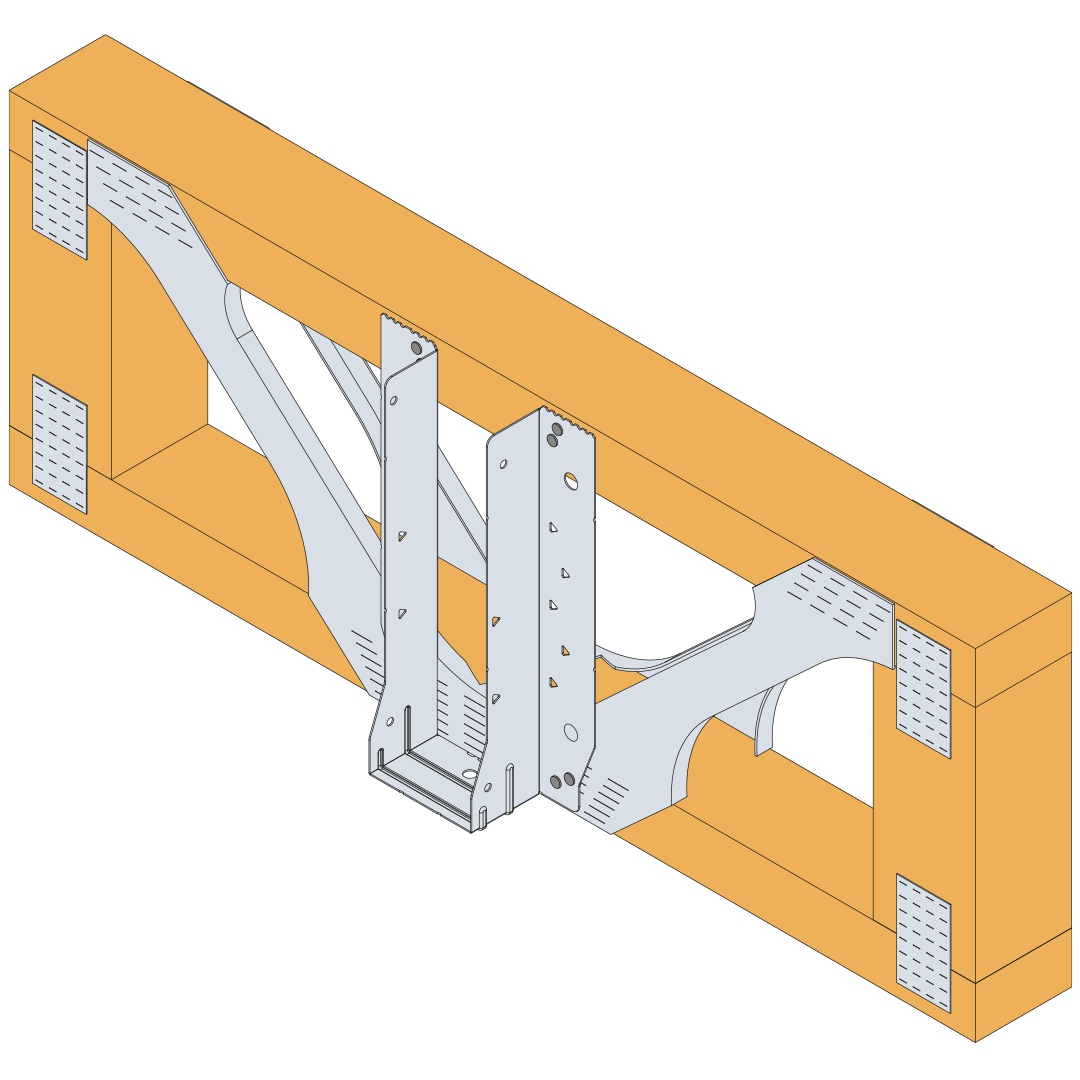

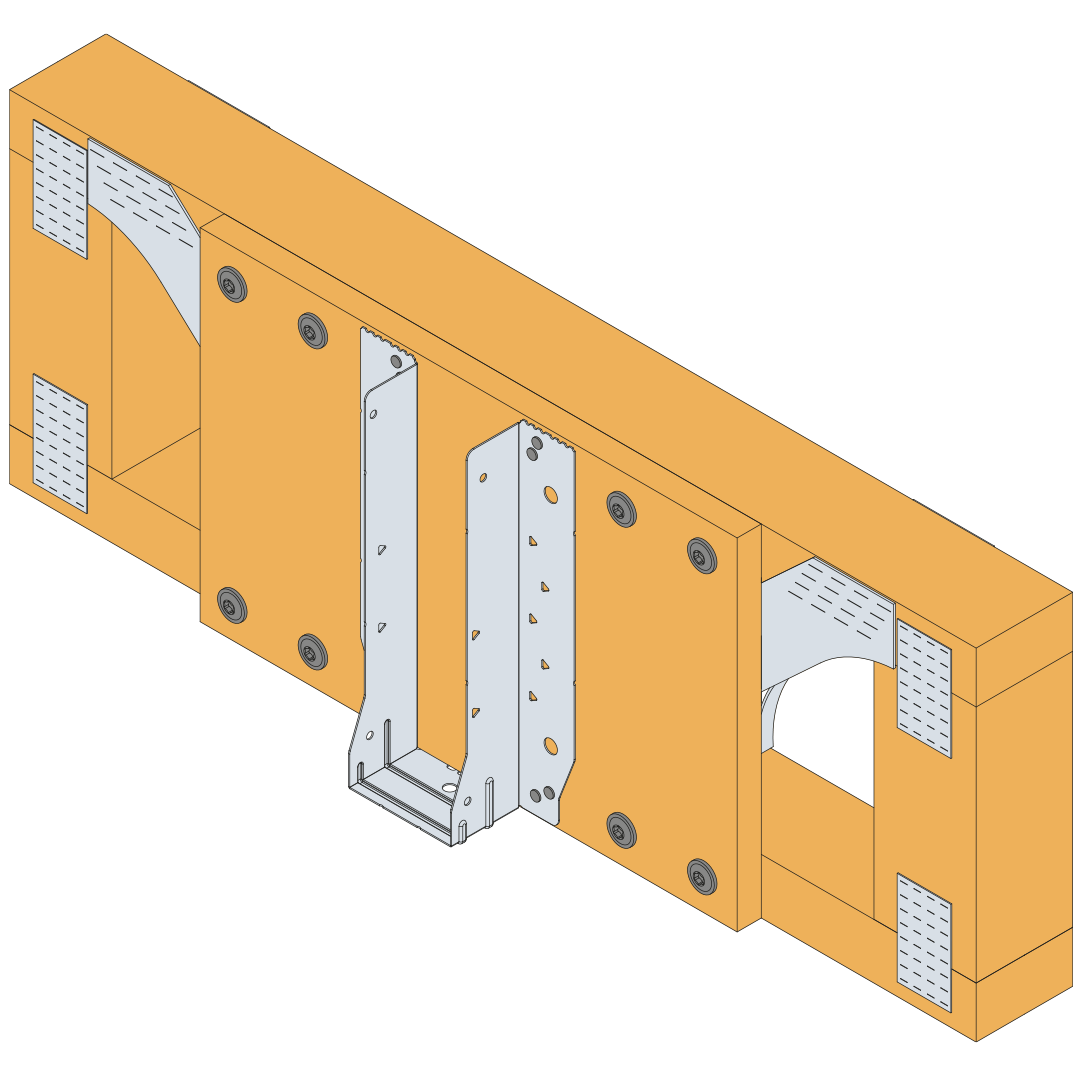

- Position EWH hanger onto the face of the supporting joist, ensuring the seat tab is tight up against the underside of the supporting joist’s bottom chord.

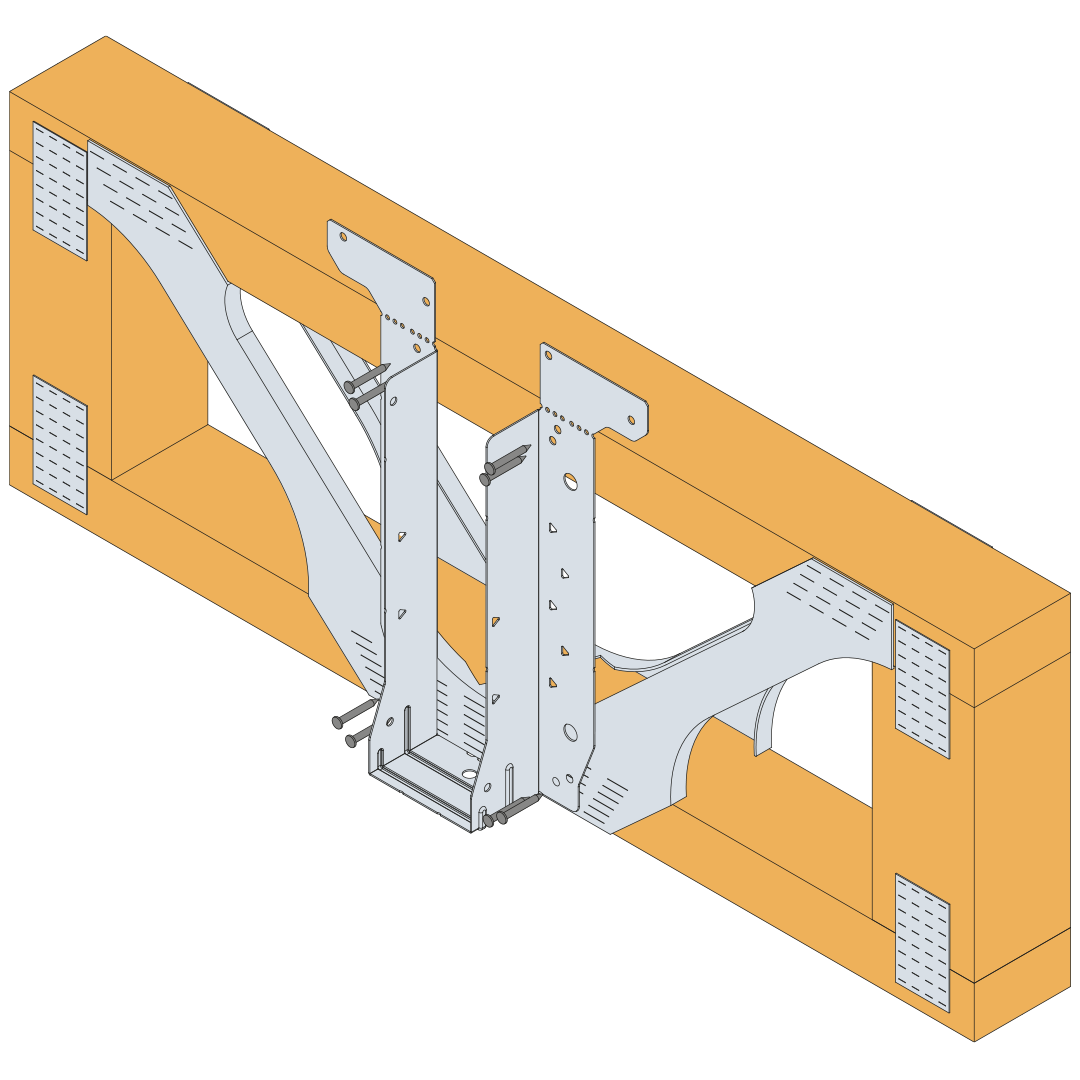

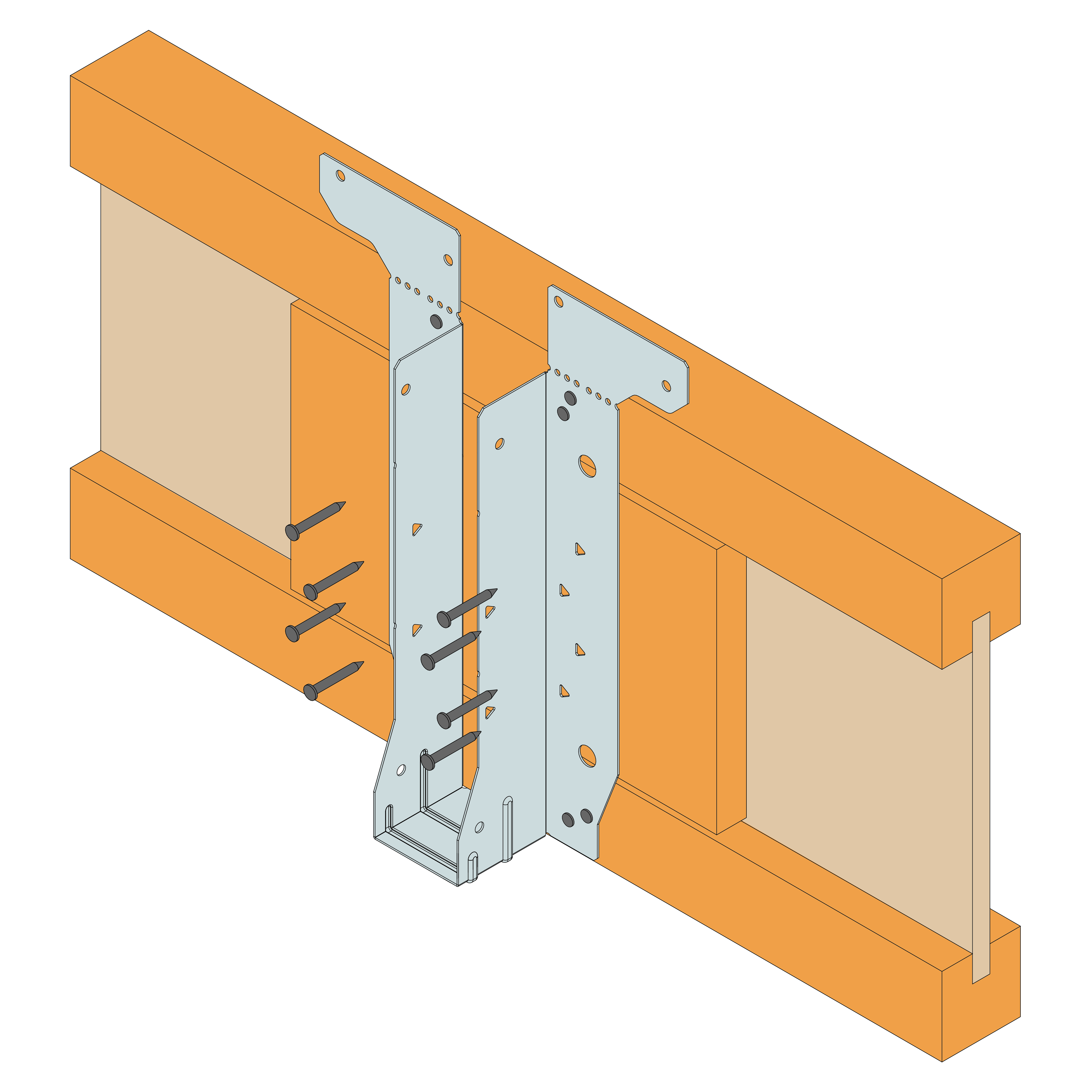

- Ensure hanger sides are vertical and fill all face round holes then the triangular holes, starting from bottom upwards, with the specified fastener.

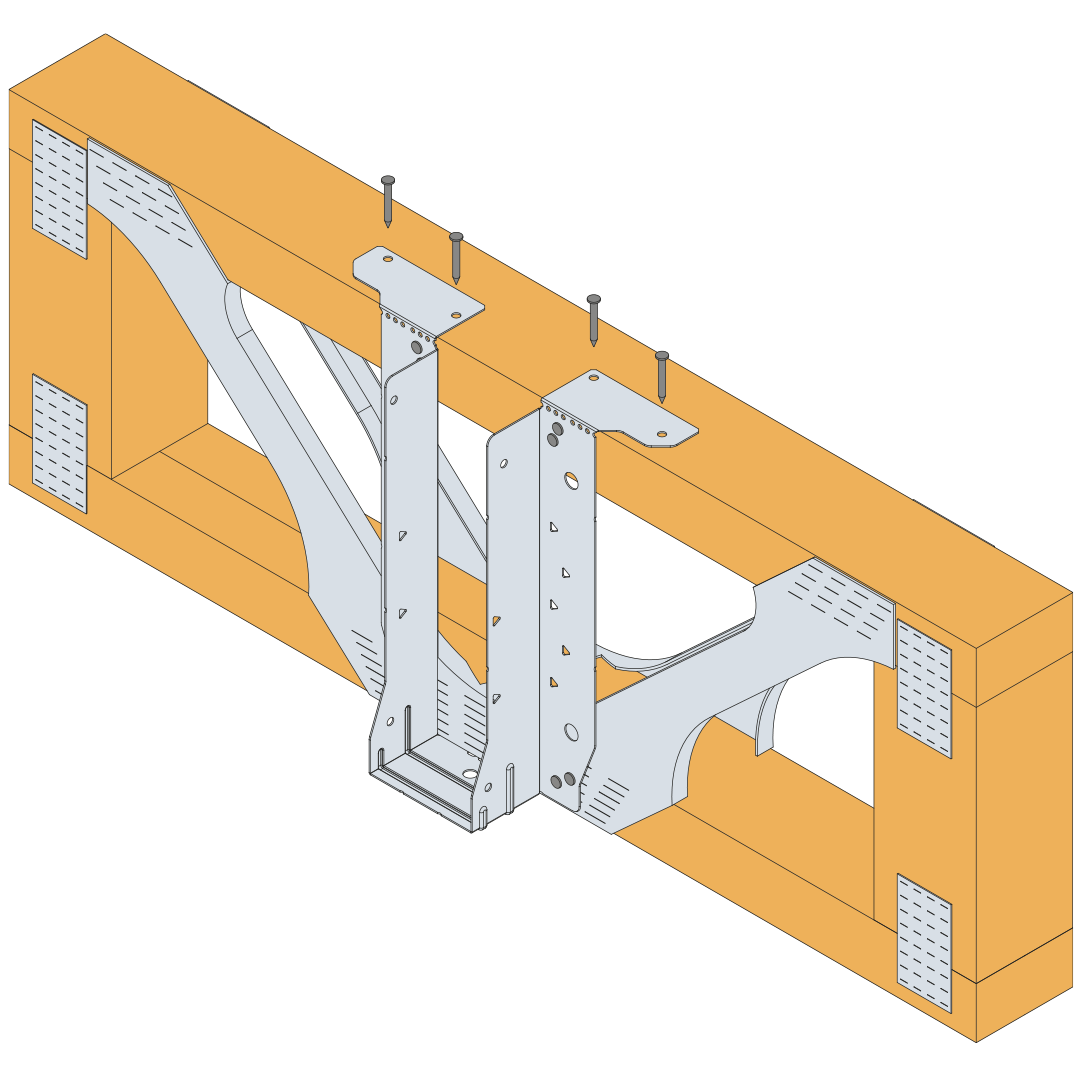

- For top fix installations, fold over the top flange, ensuring a tight fold line along the top edge of the supporting timber, and fill the round holes with the specified fasteners (NOTE: Depending upon joist depth, the fold line may be up to 6mm above the perforation lines).
- For face fix installations, snap off the top flange along the perforation line (NOTE: The top flange may be snapped off pre or post installation).

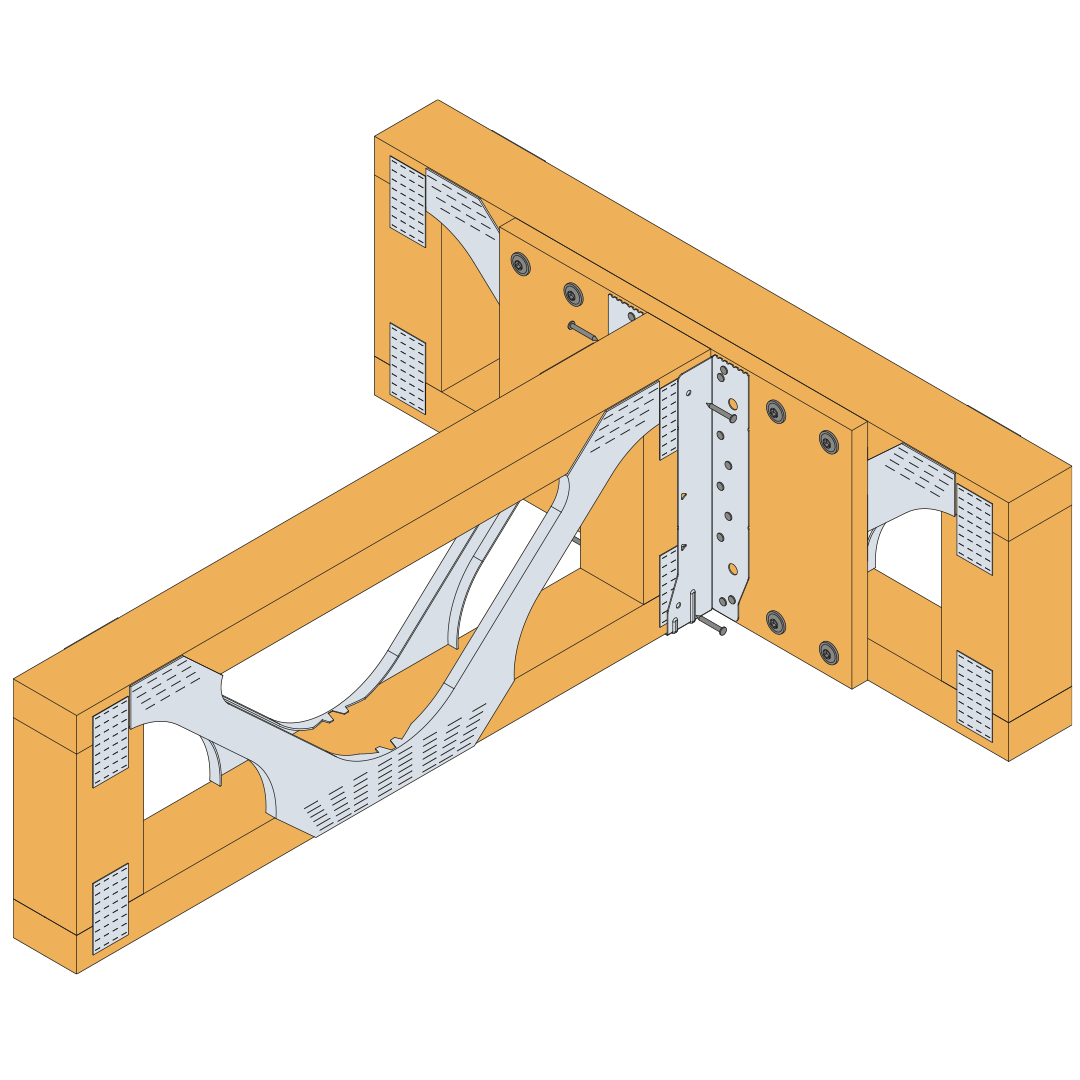

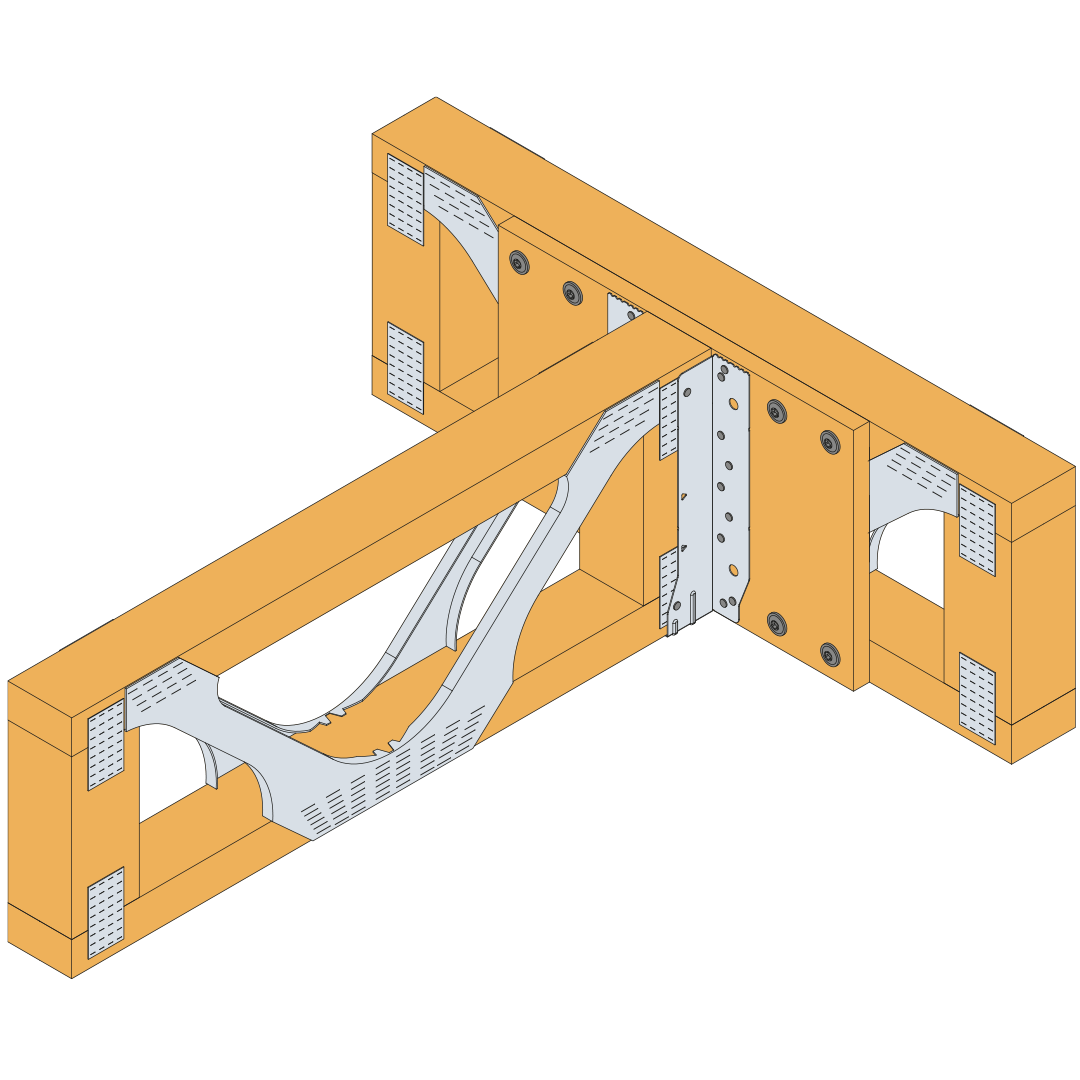

- Insert the incoming joist, ensuring it is tight against the back of the EWH (maximum allowable gap is 3mm between end of incoming joist and face of hanger) and fill all round holes in the side flanges.
- For enhanced uplift installations, if the incoming joist is an I-Joist then web stiffeners are required. (The web stiffener’s size and installation requirements shall be in accordance to relevant I-Joist manufacturer’s specification). Fill all round and triangular holes with the relevant fastener.

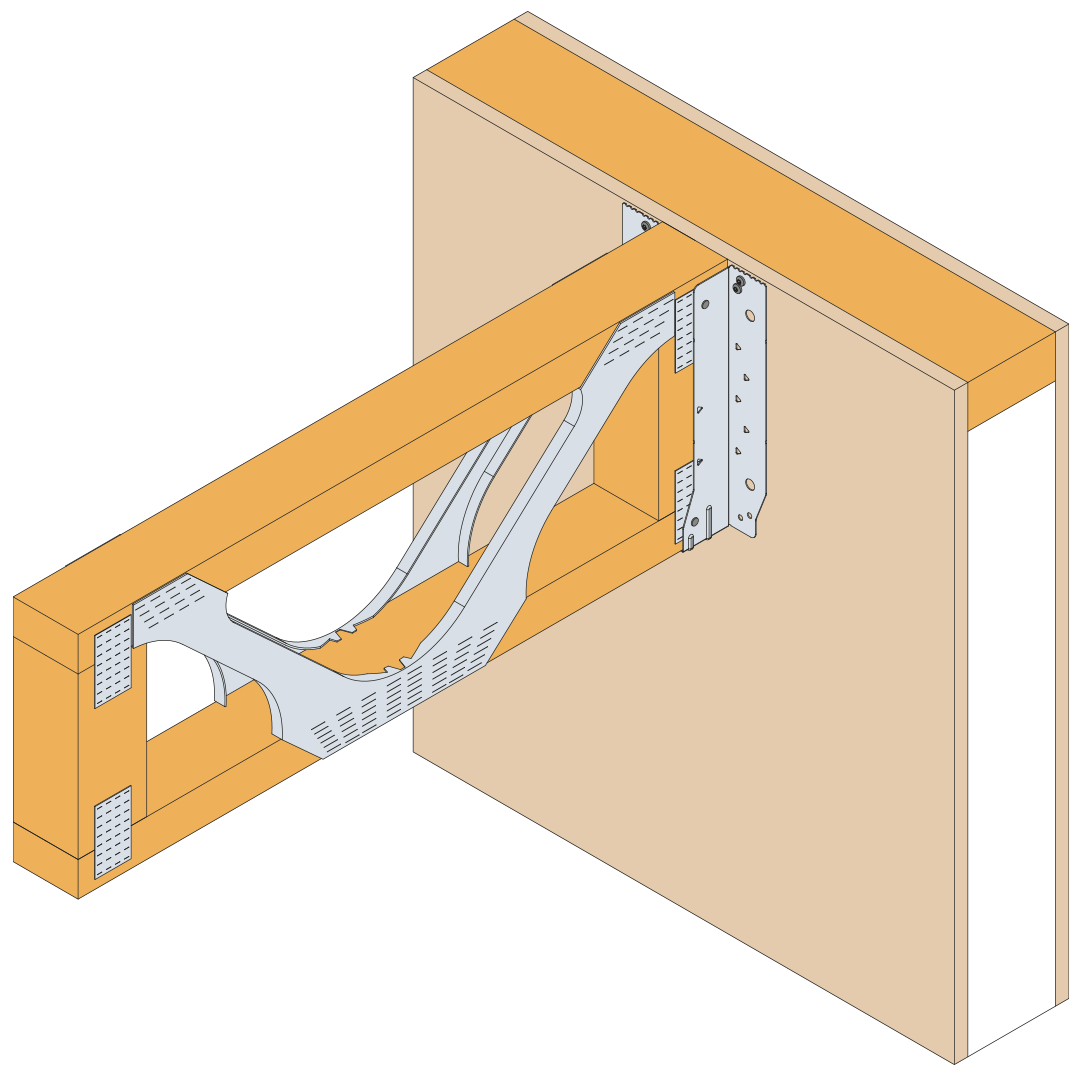

EWH Installation Instructions – SIP
- It is recommended for SIP installation that the EWH is installed face fix only.

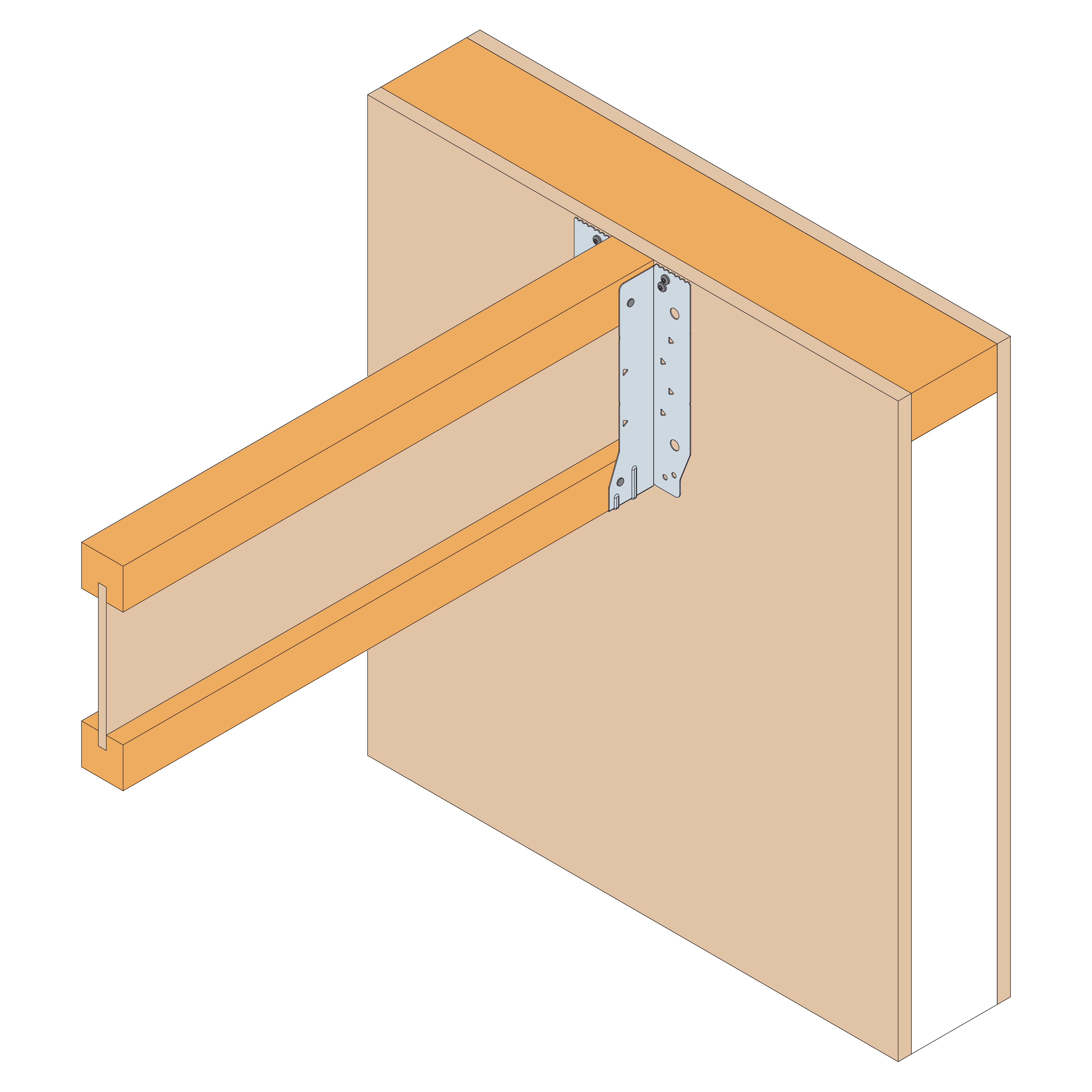

- Bend the seat tab upwards so the hanger fits tight against the face of the SIP.
- Position the EWH hanger onto the face of the SIP so that the top of the carried member will finish level with the top of the SIP.
- Install 4 No CSA 5.0x50mm screws through the upper 4 round holes on the face of the EWH.
- Tear off the hanger’s top flange, along its perforation line.

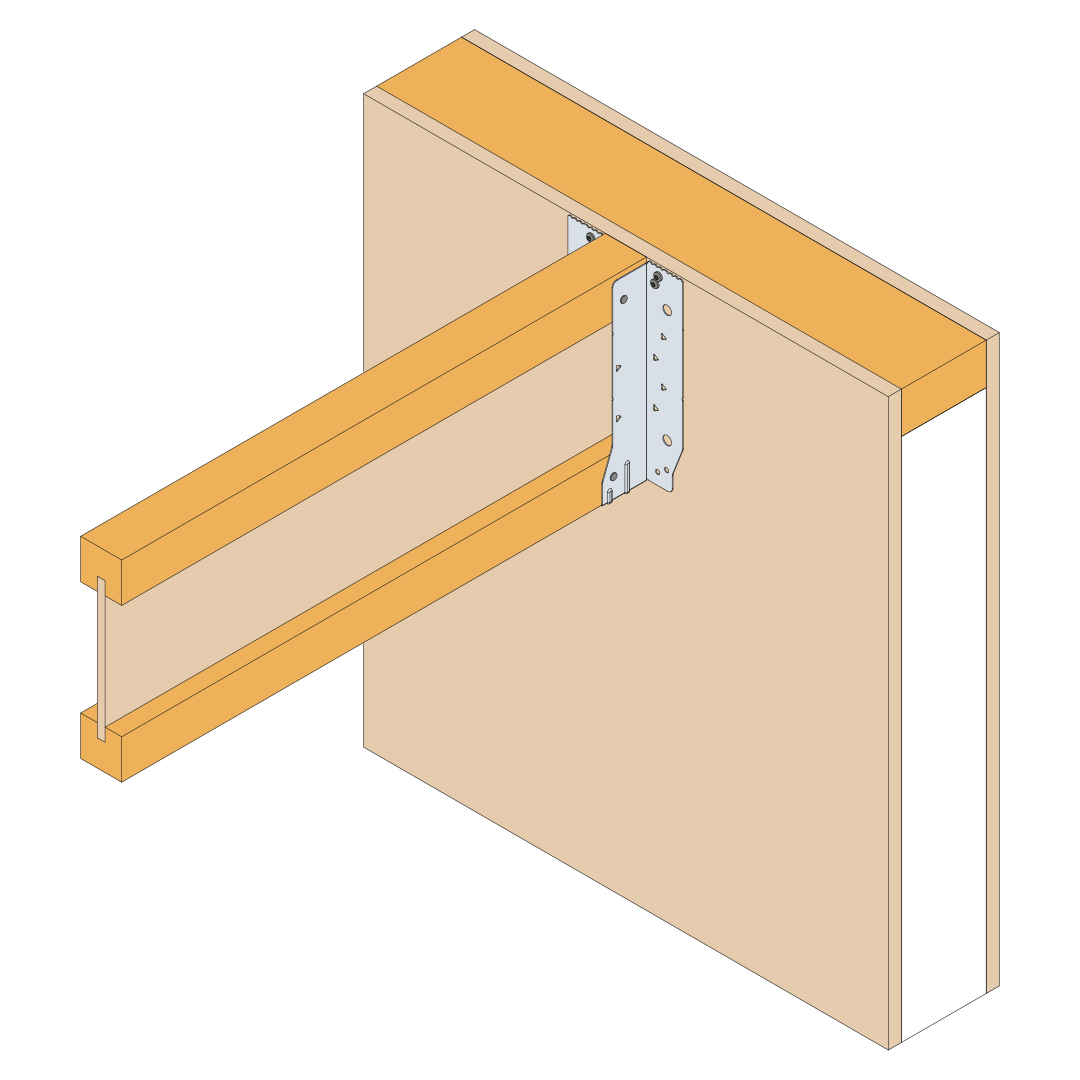

- Sit the carried member into the hanger and install 4 No 3.75x30mm square twist nails through the round holes into the side of the supported member.
