66T

Flat T Shaped Bracket

''T'' Shaped Bracket

Technical Data Sheet
Service class 2
Service class 2
Indoor
Indoor
Electrogalvanized steel Z275
Electrogalvanized steel Z275
EPD
EPD
66T main image

Product Details

Images

66T-situation

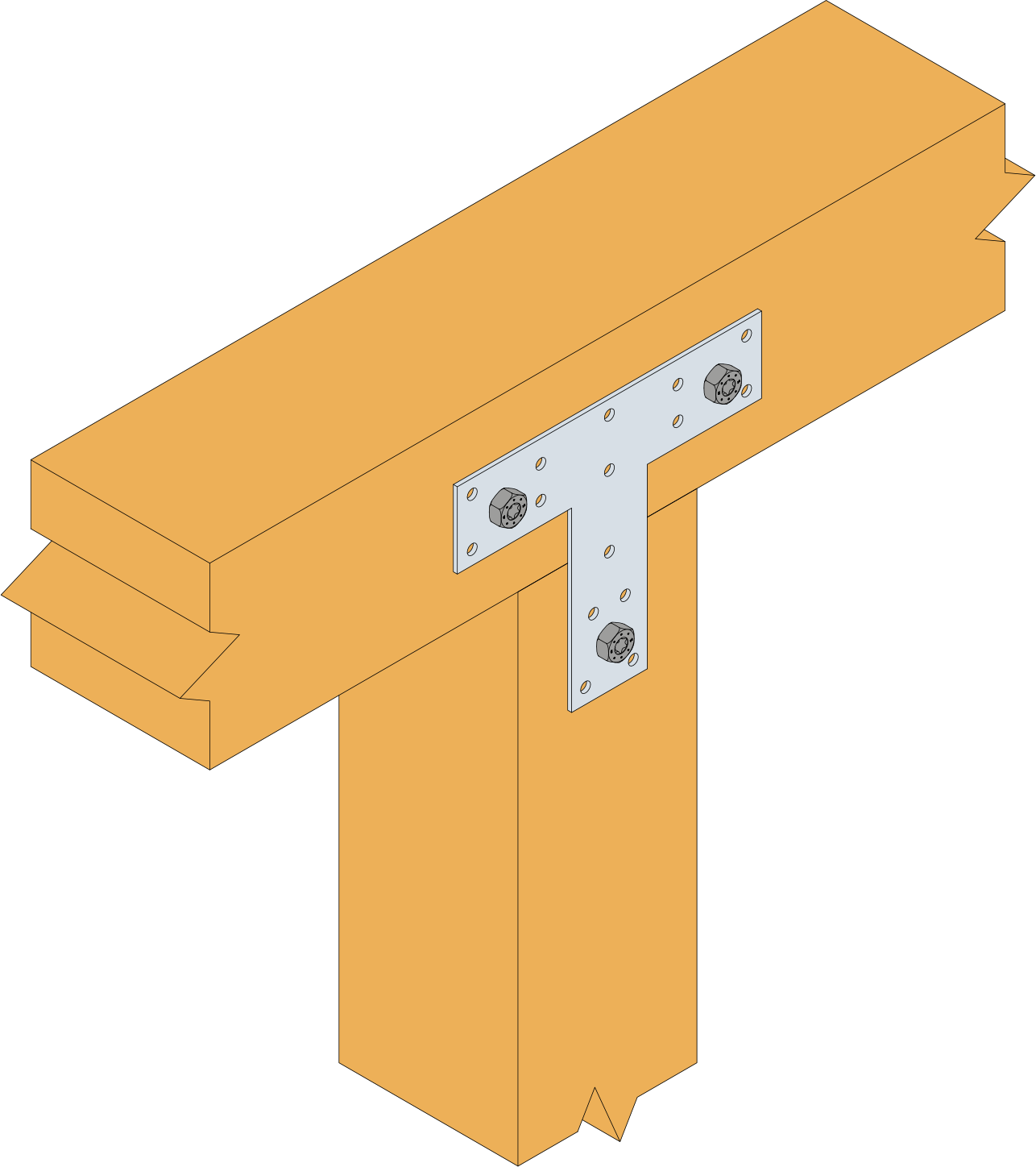

Installation example

Features

Material

  • Pre-galvanised Mild Steel

Benefits

Can be used to reinforce the ''T'' junction in post to beam/column to beam connection in timber structures.

Application

Header member

  • Column to beam connections.

For Use With

  • Post to beam.

Technical Data

Dimensions

Dimensions

Dimensions
Dimensions
ReferenceConnector Dimensions
Product Dimensions[mm]Holes[mm]Other
A[mm]B[mm]C[mm]Thickness[mm]RoundQty per BoxWeight[kg]
Ø4.1Ø11
66T15212738283100.14

Installation

Installation

Fixing

  • Boulons,
  • Pointes annelées CNA 3,1x35 mm ou CNA 3,7x50 mm...

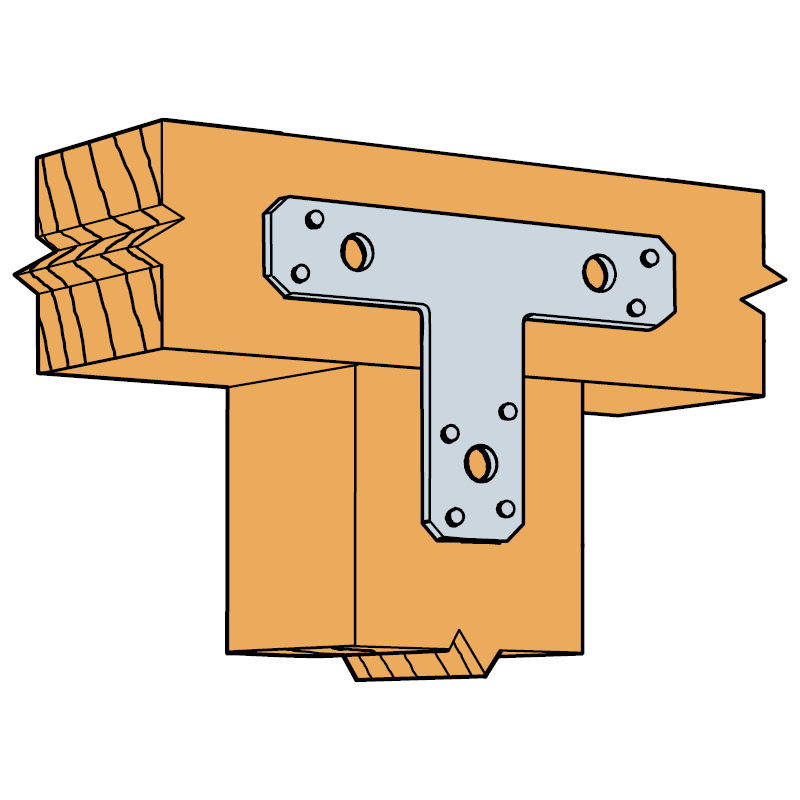

66T-situation
Installation example

Certification

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors

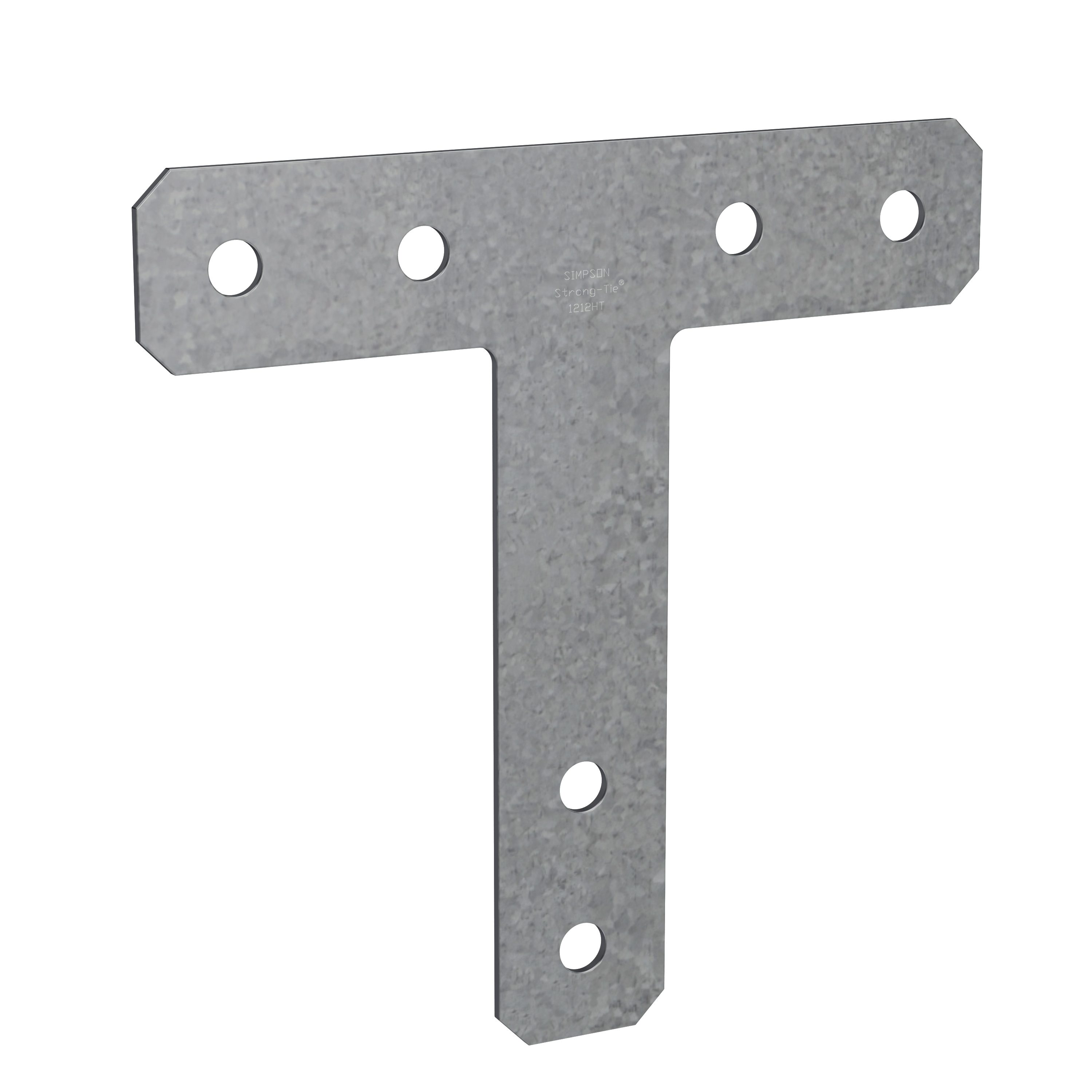

Related Products

CAD and BIM Library

2D

66T

3D

66T

3D Simplified

66T
