A35E
Framing Anchors

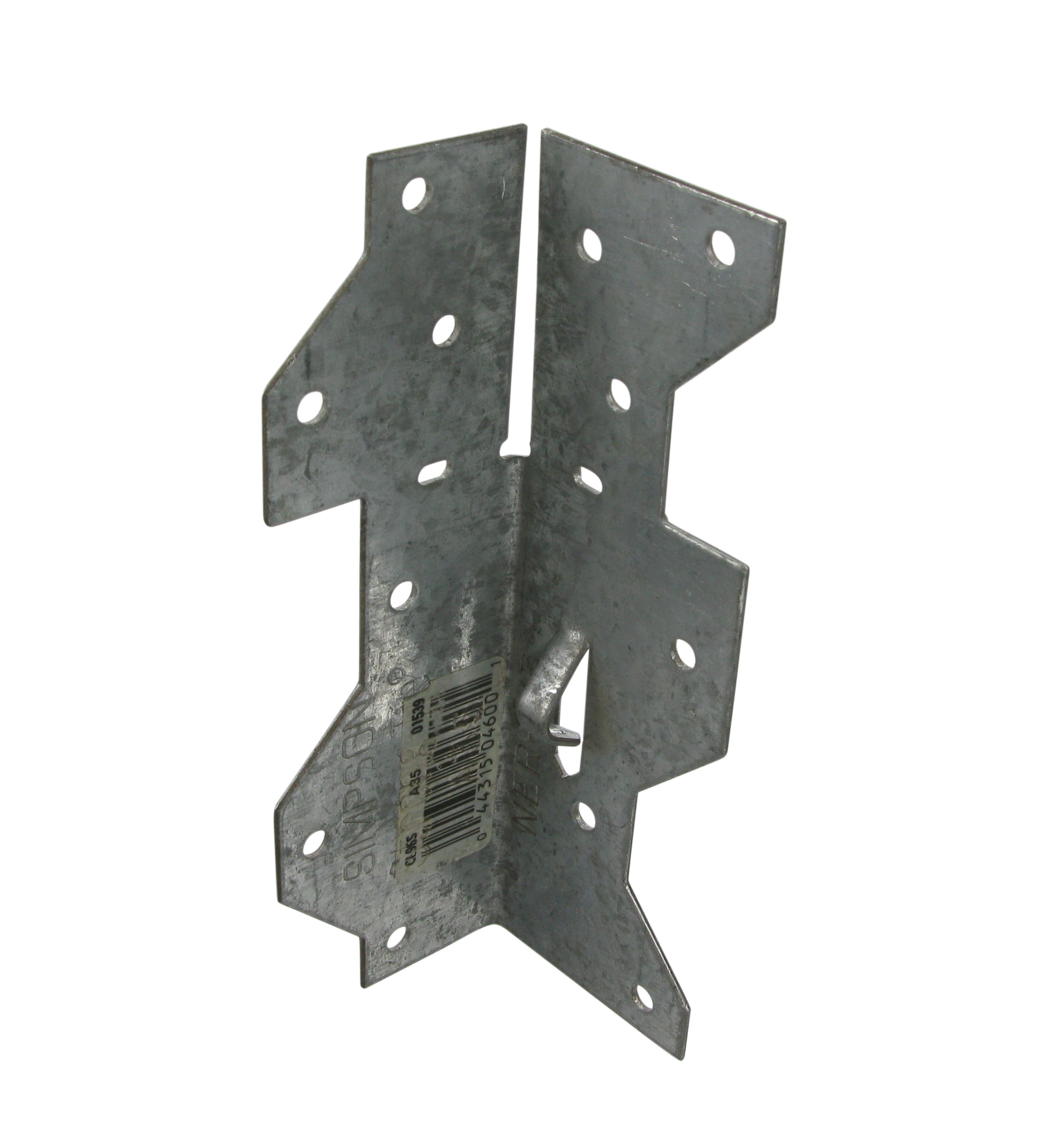

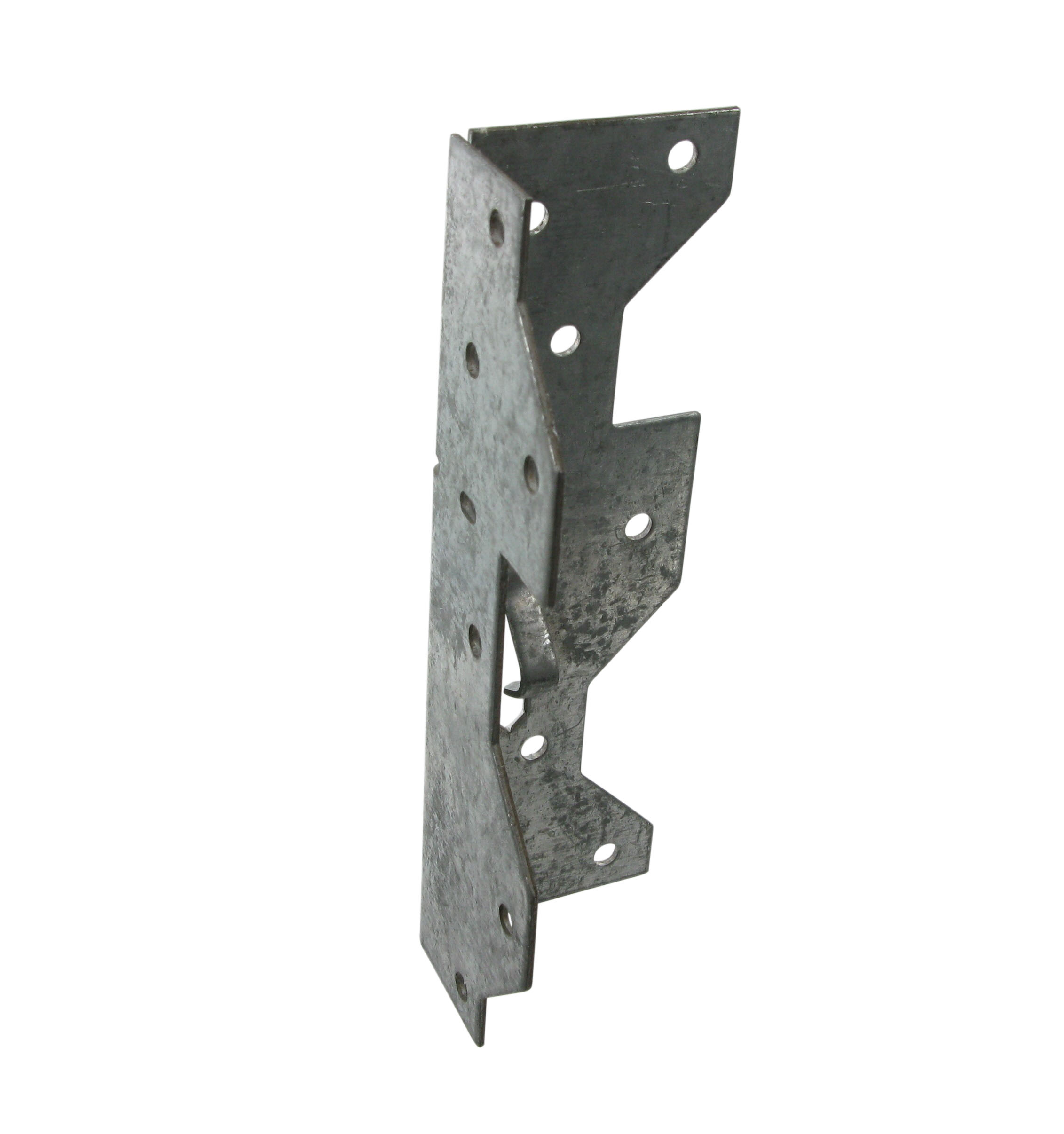

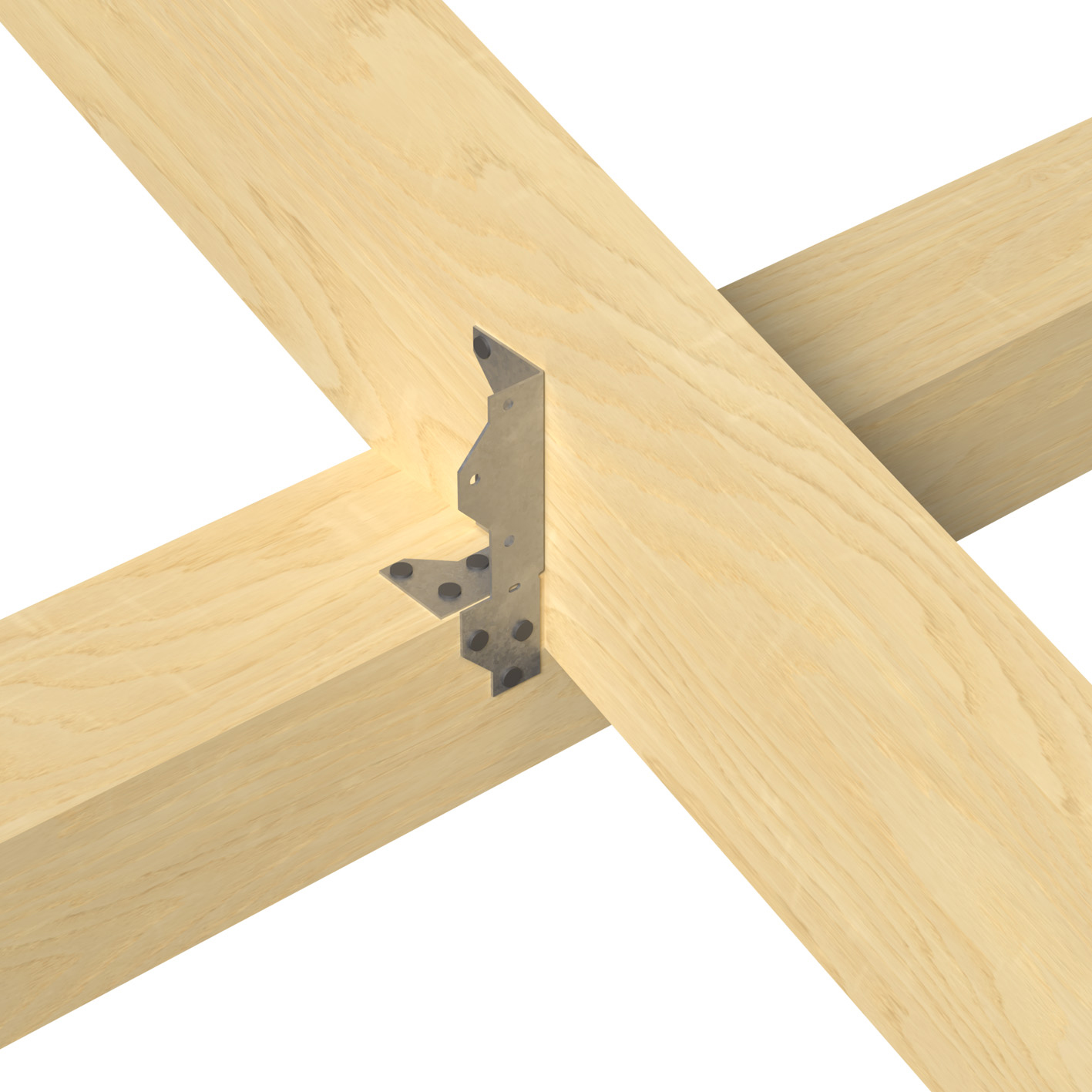

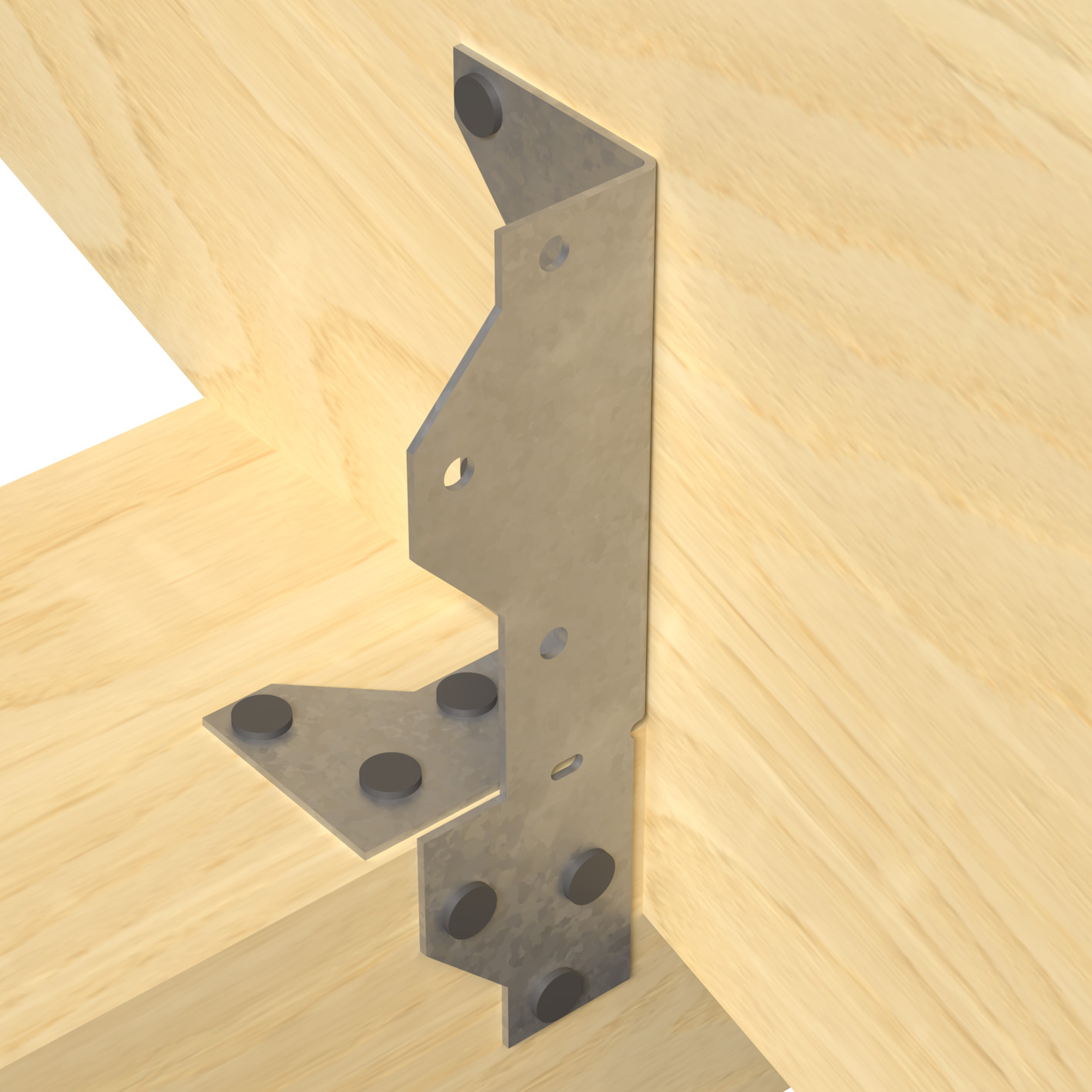

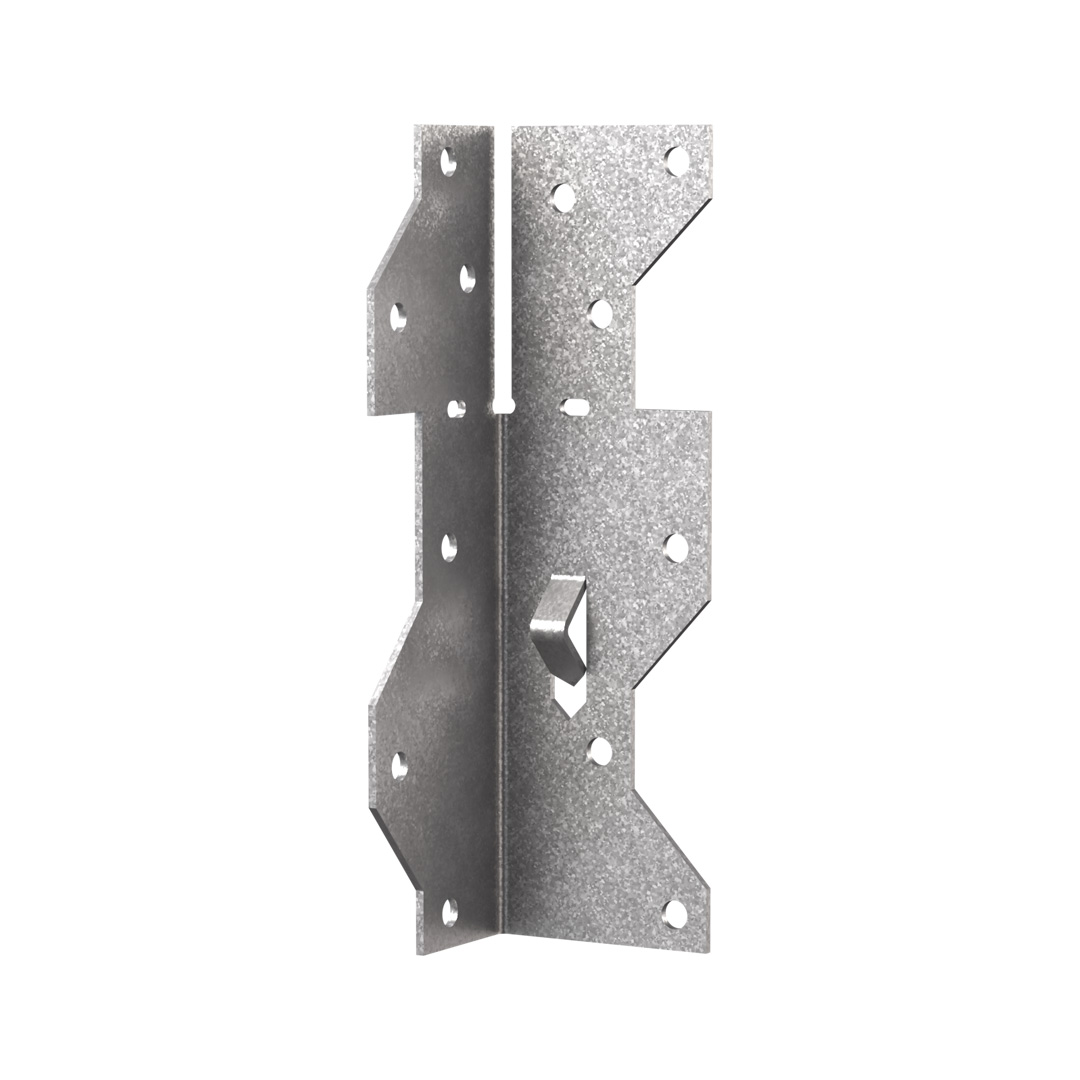

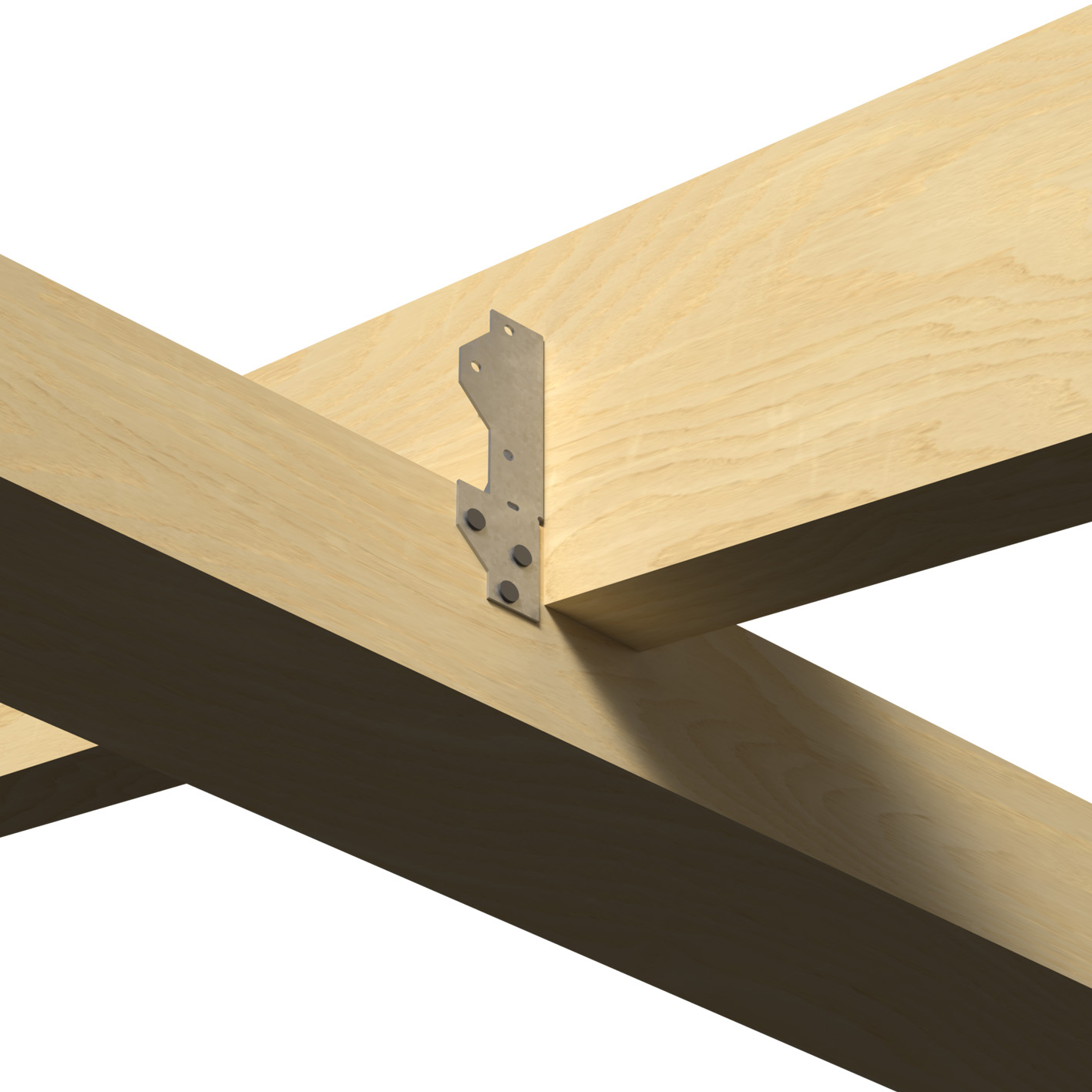

The A35E anchor’s exclusive bending slot allows instant, accurate bending on site for all two and three-way connections.
• Balanced, completely reversible design allows the A35E to be used to secure a wide variety of connections.
CE Marking
ETA
Service class 2
Electrogalvanized steel 20 µm
Indoor
EPD
Product Details
Images
Features
Application
Discontinued Products
Technical Data
Dimensions
Product Dimensions
| References | Product Dimensions [mm] | Holes | Weight [kg] | ||||
|---|---|---|---|---|---|---|---|
| A | B | C | t | Flange A | Flange B | ||
| Ø3,8 | Ø3,8 | ||||||
| A35E | 33 | 33 | 114 | 1.2 | 6 | 6 | 0.07 |
Connection Type 2
| References | Fasteners | Installation | Characteristic Capacities - Timber C24(3) [kN] | Safe Working Loads - Timber C16 [kN] | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flange A | Flange B | R2,k | Long Term | Medium Term | ||||||||||||
| N3.75x30 | N3.75x30 | R1,SWL | R2,SWL | R3,SWL | R4,SWL | R5,SWL | R6,SWL | R1,SWL | R2,SWL | R3,SWL | R4,SWL | R5,SWL | R6,SWL | |||
| A35E (Install 2) | 6 | 6 | 2 | - | 1.3 | 1.3 | - | 1.5 | - | - | 1.3 | 1.3 | - | 1.7 | - | - |
Connection Type 3
| References | Fasteners | Installation | Characteristic Capacities - Timber C24(3) [kN] | Safe Working Loads - Timber C16 [kN] | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flange A | Flange B | R2,k | Long Term | Medium Term | ||||||||||||
| N3.75x30 | N3.75x30 | R1,SWL | R2,SWL | R3,SWL | R4,SWL | R5,SWL | R6,SWL | R1,SWL | R2,SWL | R3,SWL | R4,SWL | R5,SWL | R6,SWL | |||
| A35E (Install 3) | 6 | 3 | 3 | 5.3 | - | 1 | - | - | 0.6 | 1 | - | 1.1 | - | - | 0.7 | 1.1 |
(3) Based upon 2 No brackets installed diagonally opposite to each other
Connection Type 4
| References | Fasteners | Installation | Characteristic Capacities - Timber C24(3) [kN] | Safe Working Loads - Timber C16 [kN] | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flange A | Flange B | R2,k | Long Term | Medium Term | ||||||||||||
| N3.75x30 | N3.75x30 | R1,SWL | R2,SWL | R3,SWL | R4,SWL | R5,SWL | R6,SWL | R1,SWL | R2,SWL | R3,SWL | R4,SWL | R5,SWL | R6,SWL | |||
| A35E (Install 4) | 6 | 6 | 4 | 5.3 | - | 1 | 1 | 0.6 | - | - | - | 1.1 | 1.1 | 0.7 | - | - |
(3) Based upon 2 No brackets installed diagonally opposite to each other
