High Wind Tie

Designed to provide wind ties for trusses or joists, this versatile range of products may be used for general tie applications where one member crosses another.

Suitable for use in Timber to Timber, Light Gauge Steel to Light Gauge Steel or Timber to Light Guage Steel Connections

Technical Data Sheet

CE Marking

ETA

Indoor

Electrogalvanized steel Z275

Service class 2

Product Details

Images

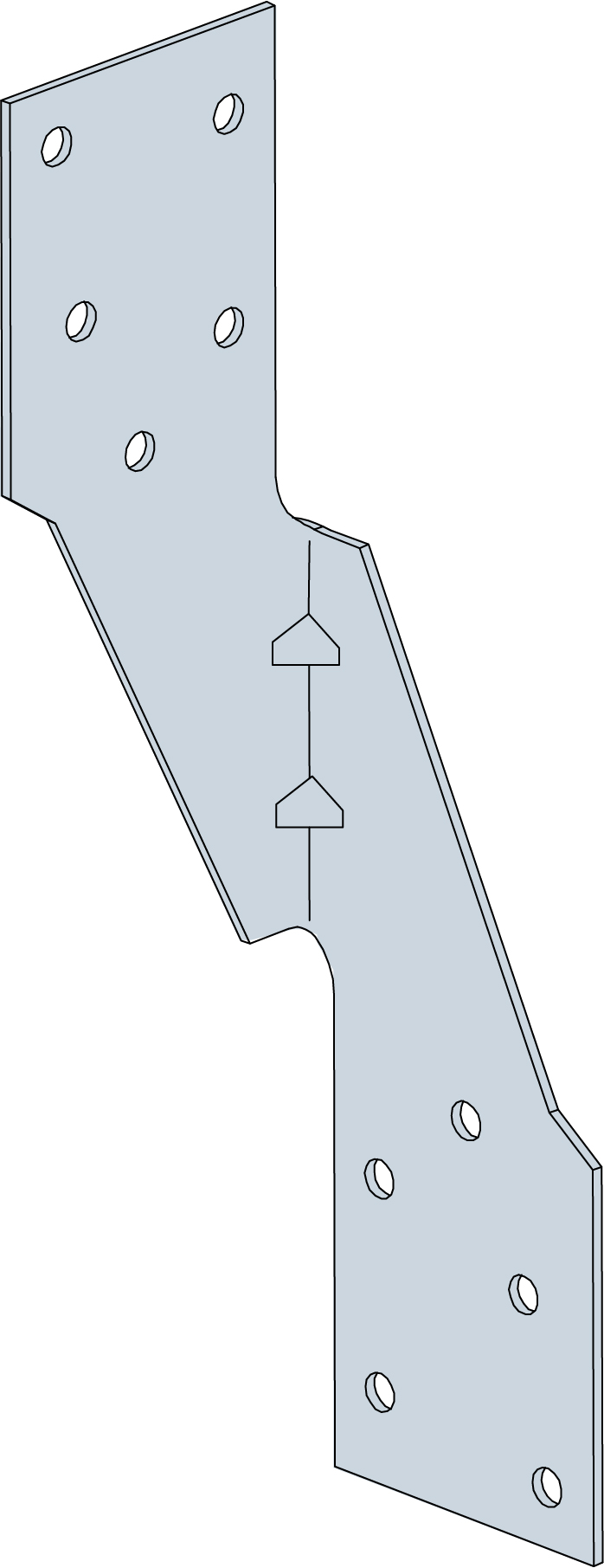

H2.5A

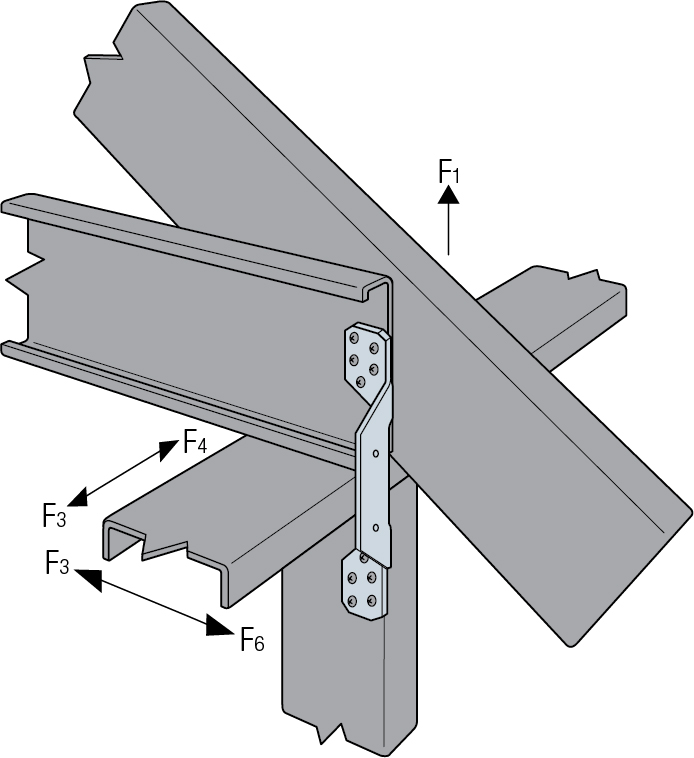

CF_S-H2A_InstIll_Ill_Instld_TypicalInstallCFS_C0 (1).jpg

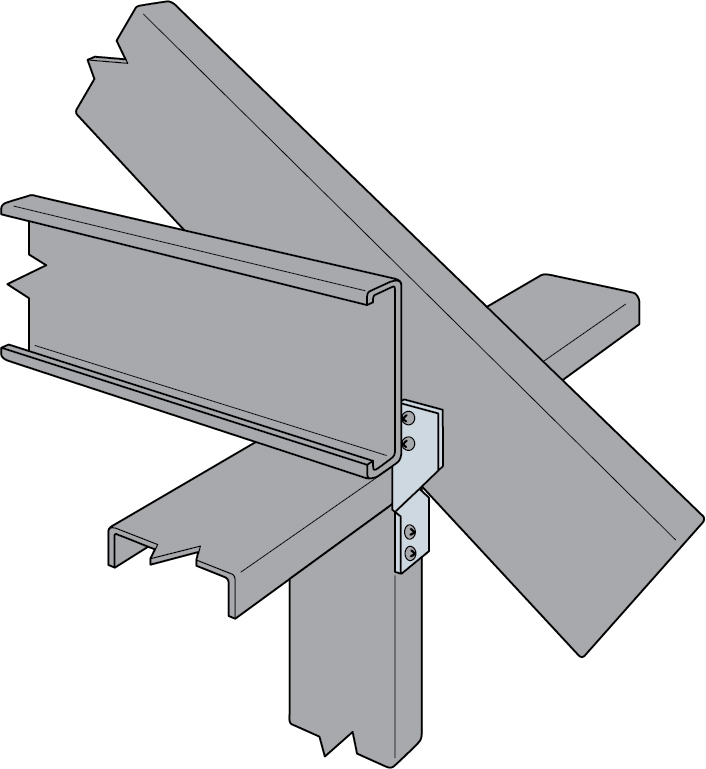

CF_S-H3_InstIll_Ill_Instld_TypicalInstallCFS_C0 (1).jpg

Features

Material

Pre-galvanised mild steel: 275g/m²

Timber Applications

For Timber to Timber applications use H2.5A

LGS Applications

For Light Gauge Steel to Light Gauge Steel or Light Gauge Steel to Timber applications use the H2A or H3 Ties.

Technical Data

Product Dimensions

Reference	Connector Dimensions
	Product Dimensions[mm]						Holes Flange C			Horizontal flange			Flange E	Other
	A[mm]	B[mm]	C[mm]	D[mm]	E[mm]	t[mm]	Round			Round			Round	Weight[kg]
	A[mm]	B[mm]	C[mm]	D[mm]	E[mm]	t[mm]	Ø3.9	Ø4.3	Ø4.1	Ø3.9	Ø4.1	Ø4.3	Ø3.9	Weight[kg]
H2A	38	265	89	89	87	1.1	5	-	-	5	-	-	2	0.095
H2.5A	35	150	55	55	-	1.2	-	-	5	-	5	-	-	0.049

Performance Values - Safe Working Loads

Reference	Ties capacity
	Number of Fasteners		Safe Working Loads[kN]
	Flange C	Flange D	R₂,ₛWₗ,ₛₕₒᵣₜ ₜₑᵣₘ	R₃ = R₄,ₛWₗ, ₛₕₒᵣₜ ₜₑᵣₘ
	Qty	Qty	N3.75x30	N3.75x30
H2.5A	5.0	5.0	2.3	0.5

SWL's are for one anchor. A minimum rafter thickness of 63mm must be used when framing anchors are installed on each side of the joist and on the same side of the plate.
When cross-grain bending or cross-grain tension cannot be avoided, mechanical reinforcement to resist all such forces should be considered.

Performance Values - LGS to LGS

Reference	Ties capacity
	Product capacities - LGS to LGS
	Number of Fasteners			Product capacities - LGS to LGS[kN]
	Steel Rafter	To Top Track	To Stud	Safe Working Loads			Characteristic Capacities
	Qty (FPHSD34S1214)	Qty (FPHSD34S1214)	Qty (FPHSD34S1214)	R2,SWL	R3 = R4, SWL	R5 = R6,SWL	R₂,ₖ	R3 = R4,k	R5 = R6,k
H2A	5.0	1.0	5.0	2	0.4	0.4	3.2	0.6	0.7

Table Notes

Performance values based upon attachment of Light Gauge Steel members having a minimum thickness 1.0mm
Performance values are based upon tests completed by Simpson Strong-Tie U.S. in accordance to ICC-ES AC261 - Acceptance criteria for connectors used with Cold-Formed Steel Structural Members

Performance Values - Timber to LGS

Reference	Ties capacity
	Product capacities - Timber to LGS
	Number of Fasteners			Product capacities - Timber to LGS[kN]
	Timber Rafter	To Stud	To Top Track	Characteristic Capacities	Safe Working Loads
	Qty (N3.75x30)	Qty (FPHSD34S1214)	Qty (FPHSD34S1214)	R₂,ₖ	R2,SWL,ST
H2A	5.0	5.0	1.0	3.9	2.5

Table Notes

Performance values based upon attachment of Light Gauge Steel members having a minimum thickness 1.0mm
Performance values are based upon tests completed by Simpson Strong-Tie U.S. in accordance to ICC-ES AC261 - Acceptance criteria for connectors used with Cold-Formed Steel Structural Members
