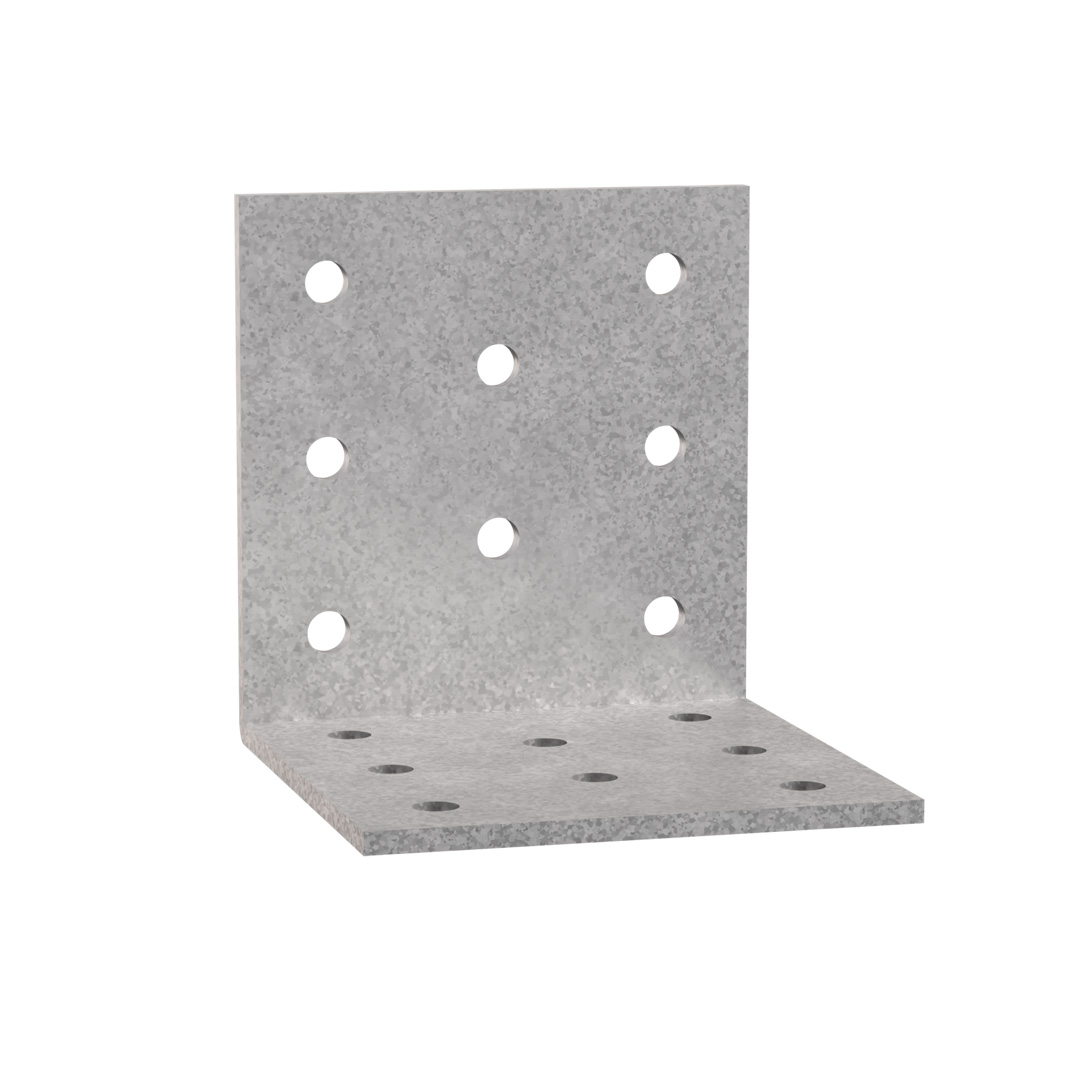

Nail Plate Angle Bracket

Simple angle bracket which is very versatile, used for timber to timber connections.

Technical Data Sheet

CE Marking

ETA

Service class 2

Indoor

Electrogalvanized steel Z275

EPD

Product Details

Images

Features

Material

Pre-galvanised mild steel.

Benefits

Available in various width.

Application

Header member

Wood to wood connections.

Scope

To strengthen existing timber assemblies.

Technical Data

Product Dimensions

Dimensions

Reference	Connector Dimensions
	Product Dimensions[mm]				Joist[mm]	Flange B[mm]	Other
	A[mm]	B[mm]	C[mm]	Thickness[mm]	Round	Round	Weight[kg]
	A[mm]	B[mm]	C[mm]	Thickness[mm]	Ø5[mm]	Ø5[mm]	Weight[kg]
ES10/40	62.5	62.5	40	2.5	5	5	0.09
ES10/40C50	62.5	62.5	40	2.5	5	5	0.09

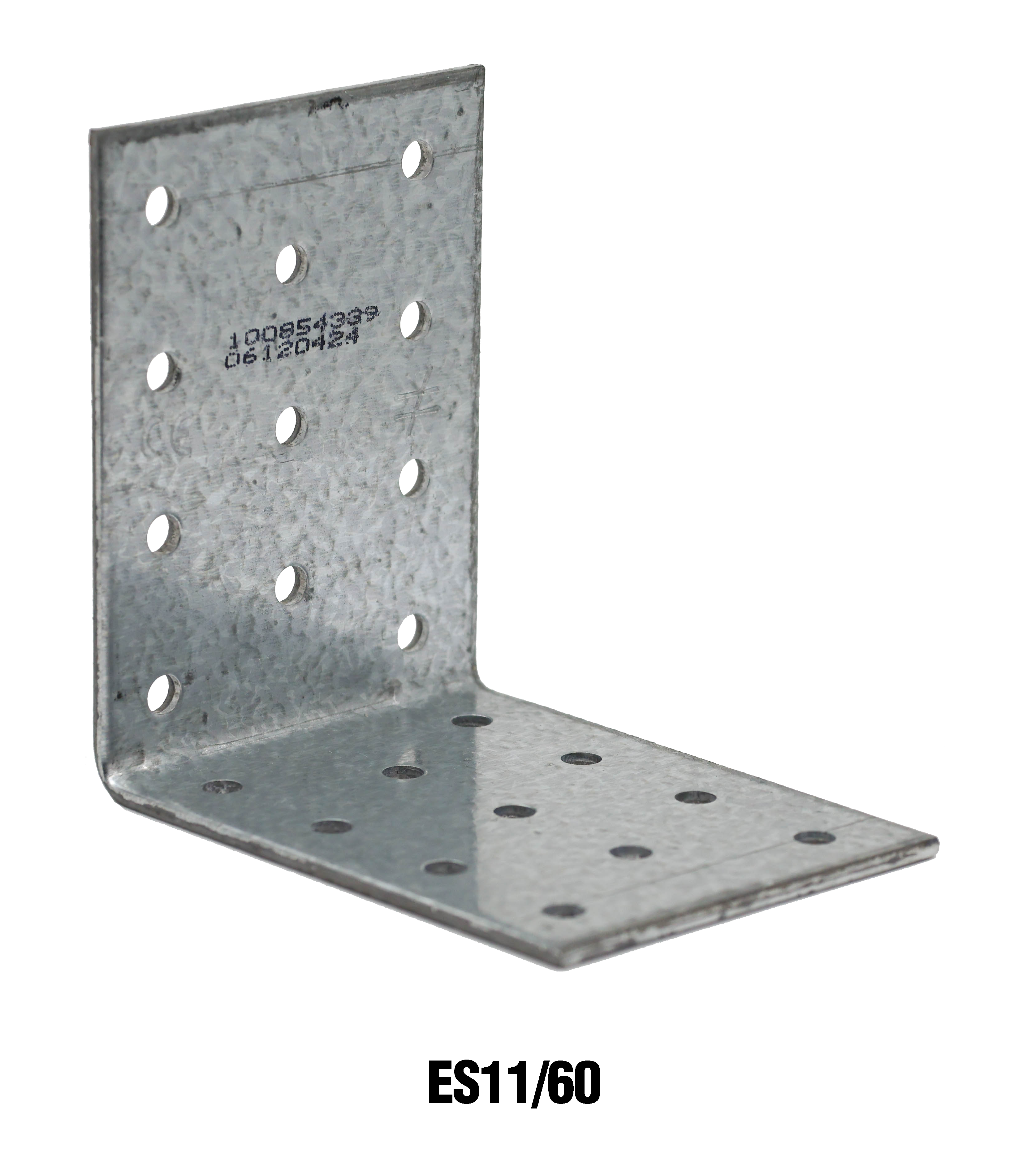

ES11/60	82.5	82.5	60	2.5	11	11	0.18
ES11/200	82.5	82.5	200	2.5	30	30	0.59

Characteristic Values

Dimensions

Reference	Angle bracket capacity

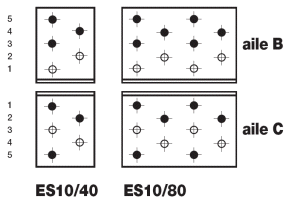

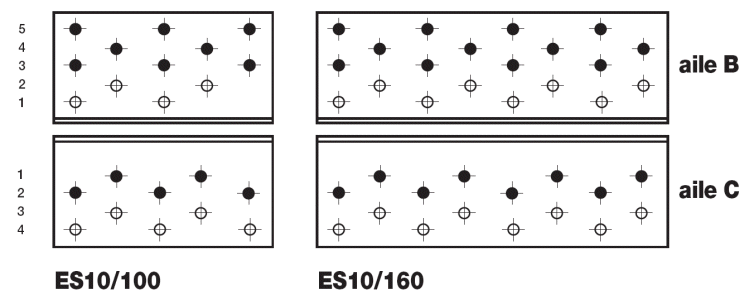

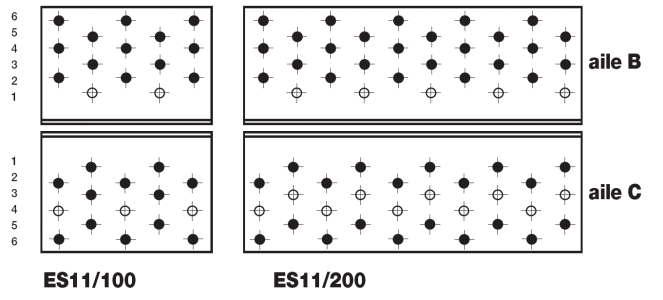

	Simplified product capacities - Timber to timber – Beam to beam - Full nailing
	Number of Fasteners		Characteristic Capacities - Timber C24 - 2 Angle Brackets per Connection[kN]
	Joist	Flange B	R₁,ₖ		R₂,ₖ=R₃,ₖ
	Qty	Qty	CNA4.0x35	CNA4.0x50	CNA4.0x35	CNA4.0x50
ES10/40	3.0	3.0	2.2	2.8	2.2	2.9
ES10/40C50	3.0	3.0	2.2	2.8	2.2	2.9
ES11/60	8.0	6.0	3.6	4.9	7.3	9.8
ES11/200	25.0	20.0	7.6	13.3	34.3	45.7

* The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – k_mod = 0.9. For other load duration and service class, please refer to the ETA to get more accurate capacities.

To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.

Installation

Fasteners

Ø 5.0mm holes.

Wood:

CNA Ø 4.0 mm nail.
CSA Ø 5.0 mm screw.

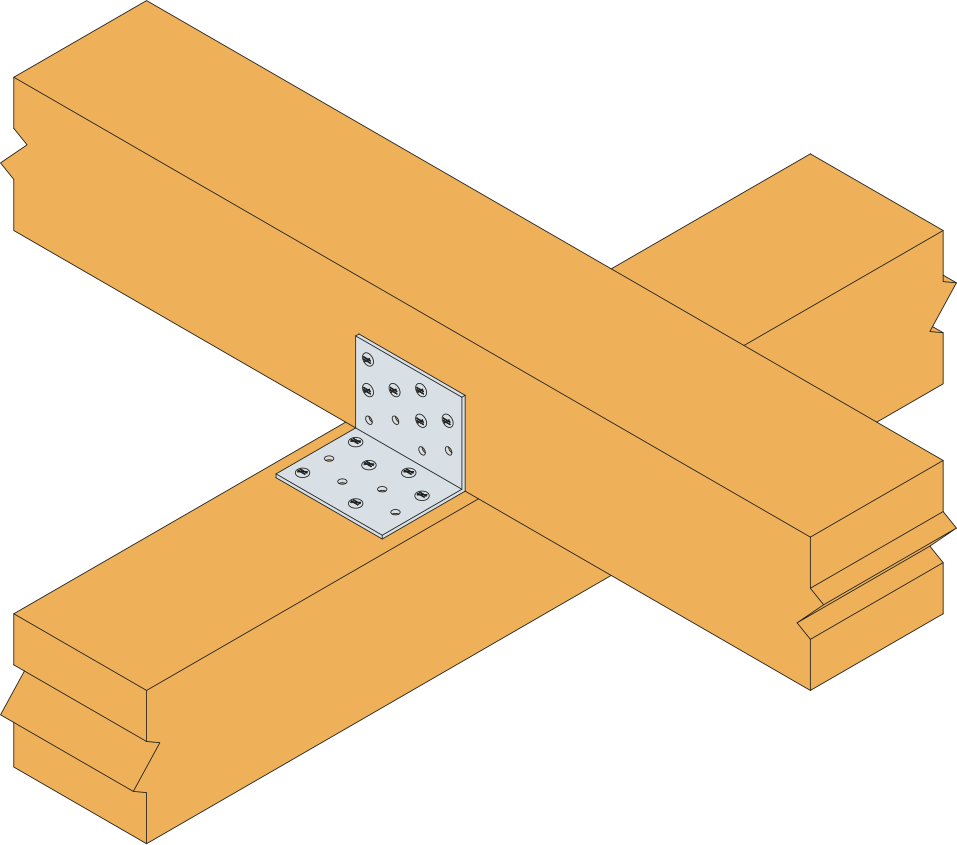

Installation

Approach the element to be fixed next to the support,
Fix the element wih nails. It can also be screwed on using suitable screws,,
If the support is made of timber, the bracket is also nailed or screwed onto it.
