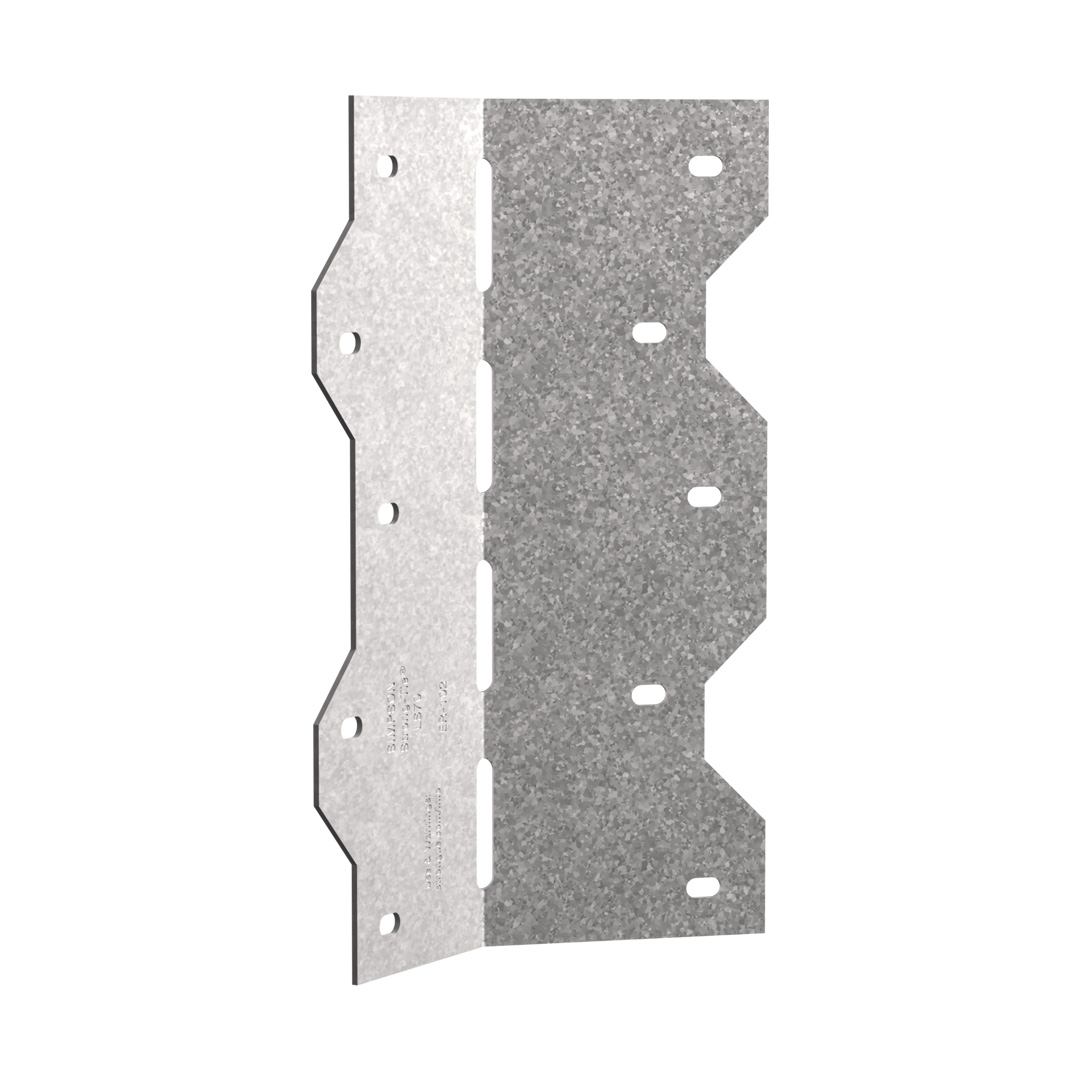

L70
Reinforcing Angle
A reinforcing angle designed to transfer loads between 2 ply floor joists/metal web joists. The L70 Reinforcing Angle may be used in pairs to transfer the loads between floor joist plys.
Product Details
Images
Features
Technical Data
L70 Safe Working Loads
Dimensions
| Reference | Angle bracket capacity | |||
|---|---|---|---|---|
| Number of Fasteners | Safe Working Loads[kN] | |||
| Joist | C16 Timber | TR26 Timber | ||
| Qty | Specification | |||
| L70 | 16.0 | 3.75 x 30mm | 3.4 | 4 |
- Die angegebenen zulässigen Lasten gelten nur für Balkenanwendungen mit Balken.
