LS

Skewable Angle

Designed to attach timber members at irregular angles, these connectors
can be bent on site from 0° to 135°. The staggered nail pattern reduces the possibility for splitting the timber and allows installation on both sides of the member.

LS can also be used to steel to steel.

CE Marking
ETA
Service class 2
Electrogalvanized steel 20 µm
Indoor

Product Details

Images

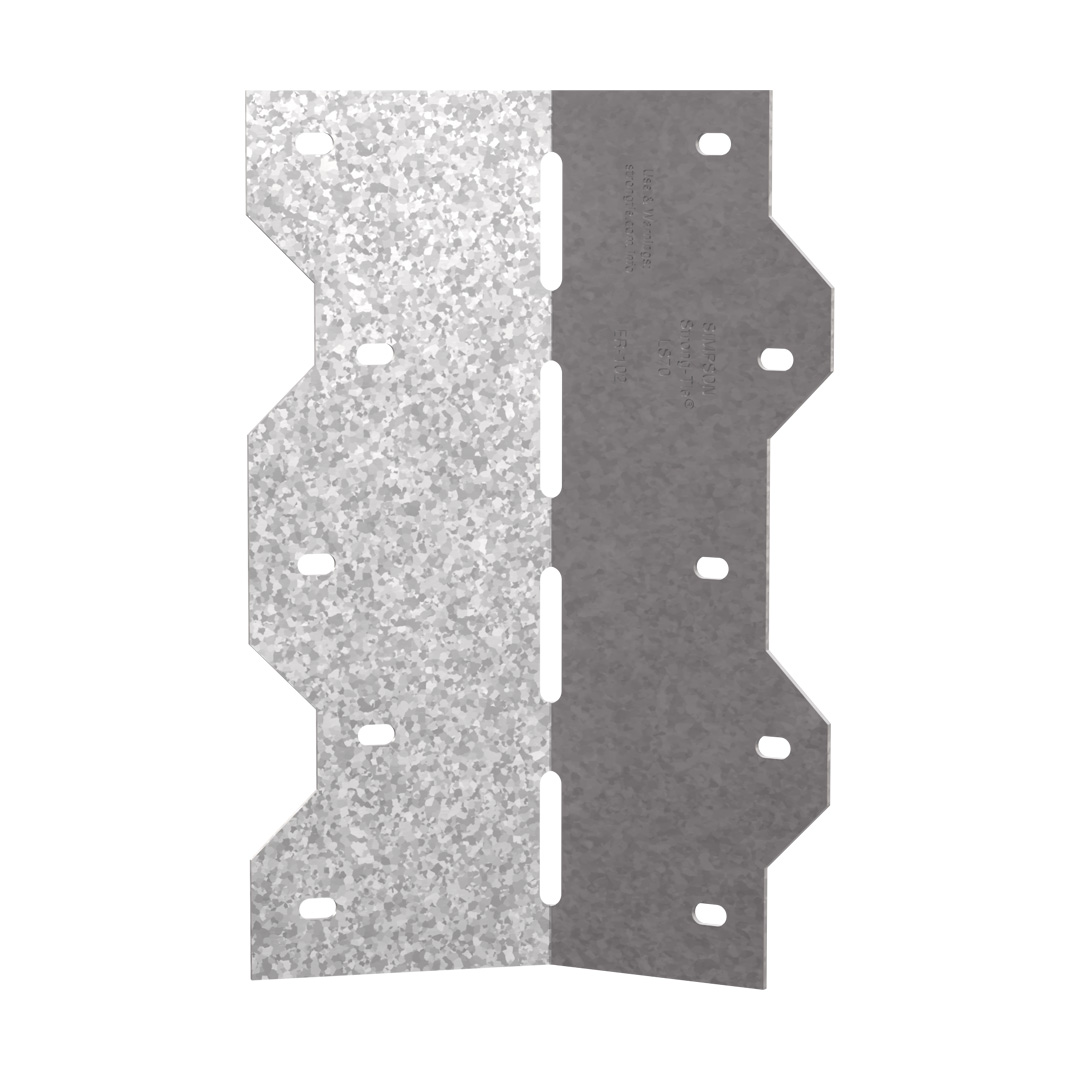

LS

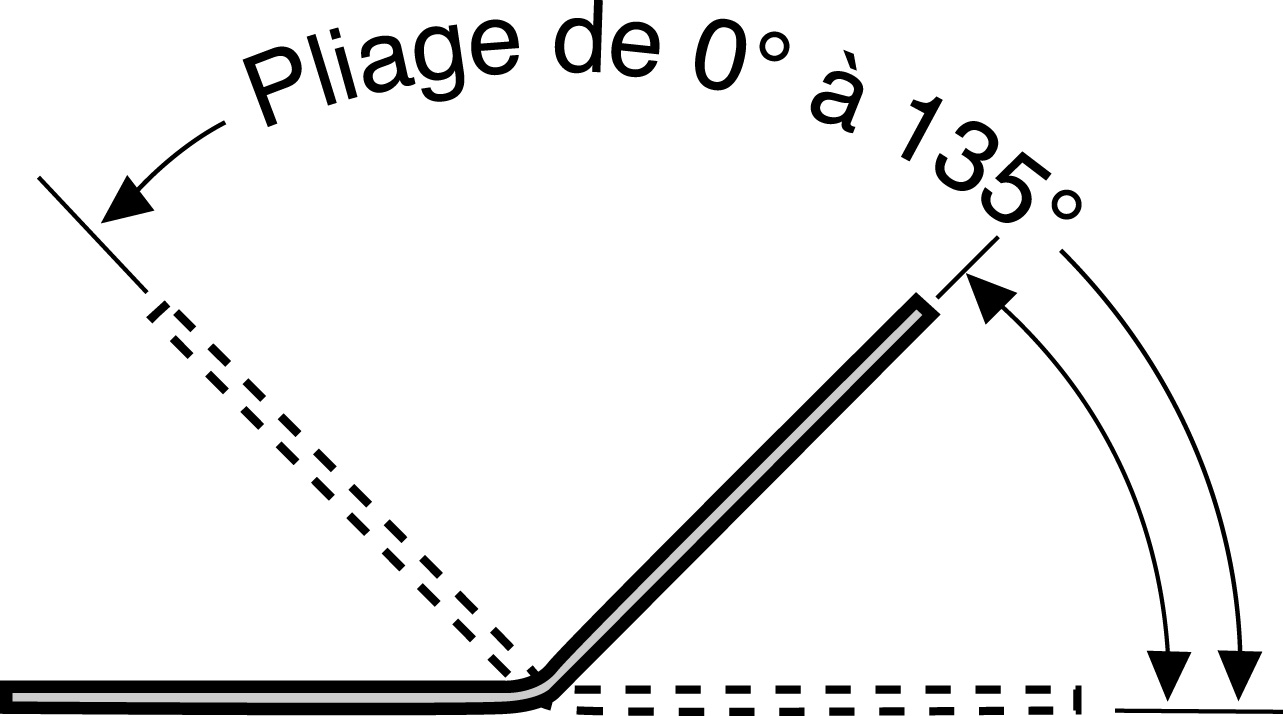

LS angle adjustment range.

Features

Material

  • Pre-galvanised mild steel.

Benefits

  • Site skewable.

Application

Header member

  • Timber to timber.
  • Steel to steel

For Use With

  • Timber and Steel construction.

Technical Data

Dimensions

Product Dimensions

References Product Dimensions [mm] Joist Holes Flange B
A B C t Ø4x7 Obround Ø4x7 Obround
LS305757861.233
LS5057571241.244
LS7057571621.255

Performance Values

References Fasteners Safe Working Loads [kN] Characteristic Capacity [kN]
Flange A Flange B R1 = R2,SWL, Long Term R= R2,SWL, Medium Term R1,k = R2,k
N3.75x75 N3.75x75 N3.75x75
LS30331.31.62.8
LS50441.72.24.3
LS70552.22.64.4

Installation

Installation

Fixing

  • Timber: CNA Ø 3.7x50 mm.
  • Steel: Ø 4.8 mm screws.

Installation

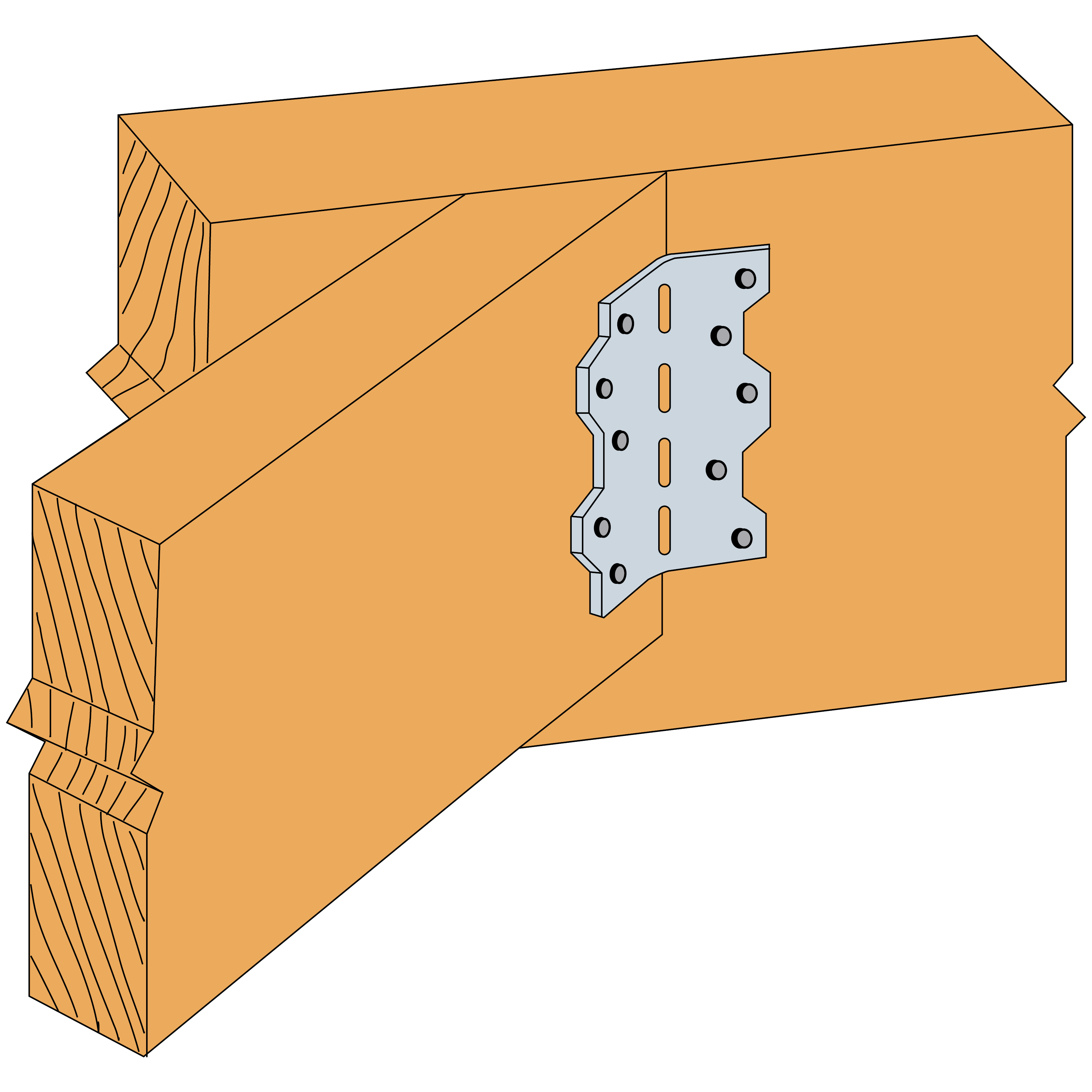

Adjust on site from 0 though to 135 degrees.

Certification

Declaration of Performance (DoP)

European Technical Assessment (ETA)

eta-06-0106.pdf (13.43 MB)
