ABAI

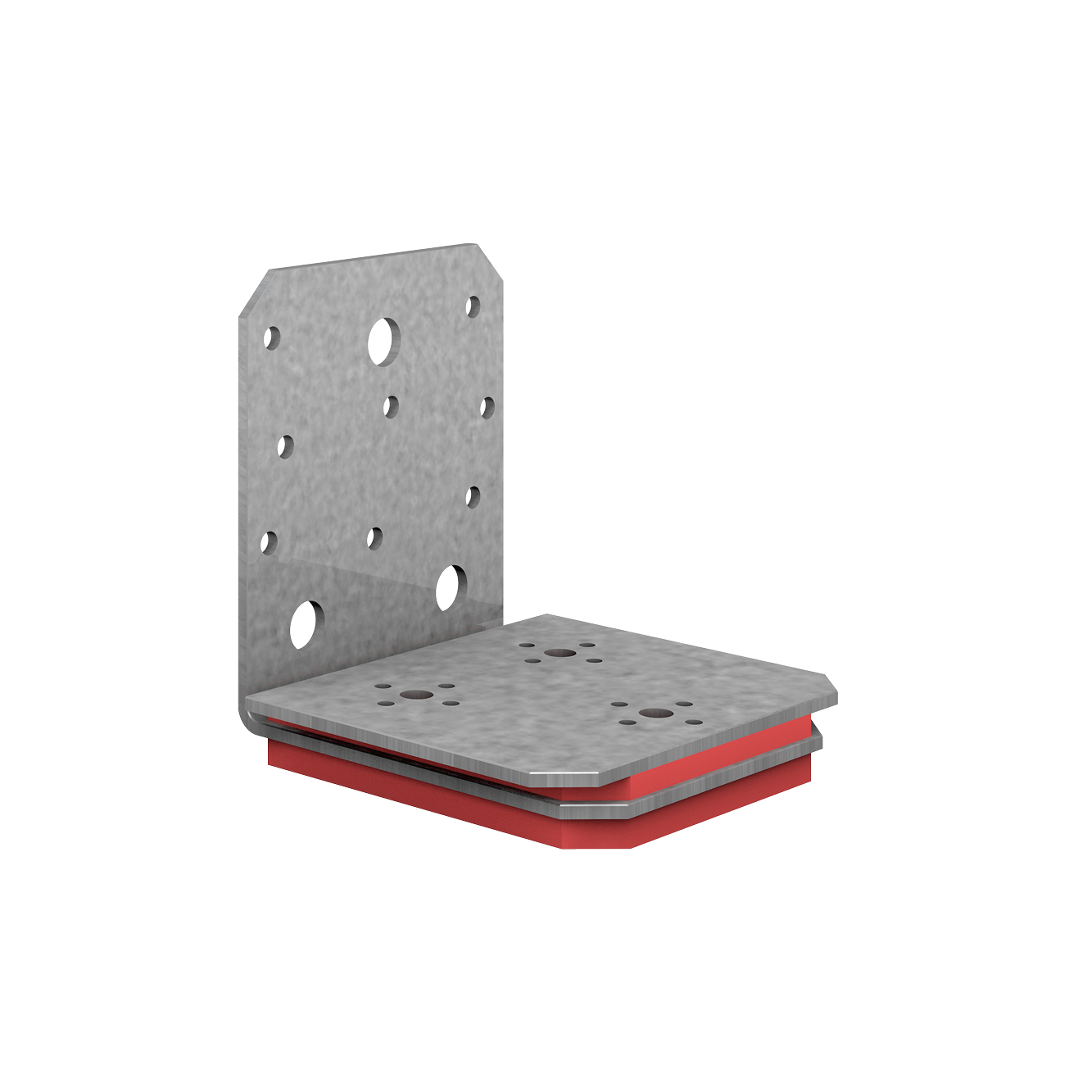

Angle bracket for CLT

It is a bracket for static structural joints between wall and ceiling panels of laminated wood. They are separated by 12 mm thick sound insulation support.


CE Marking
ETA
Service class 2
Indoor
Electrogalvanized steel Z275

Product Details

Images

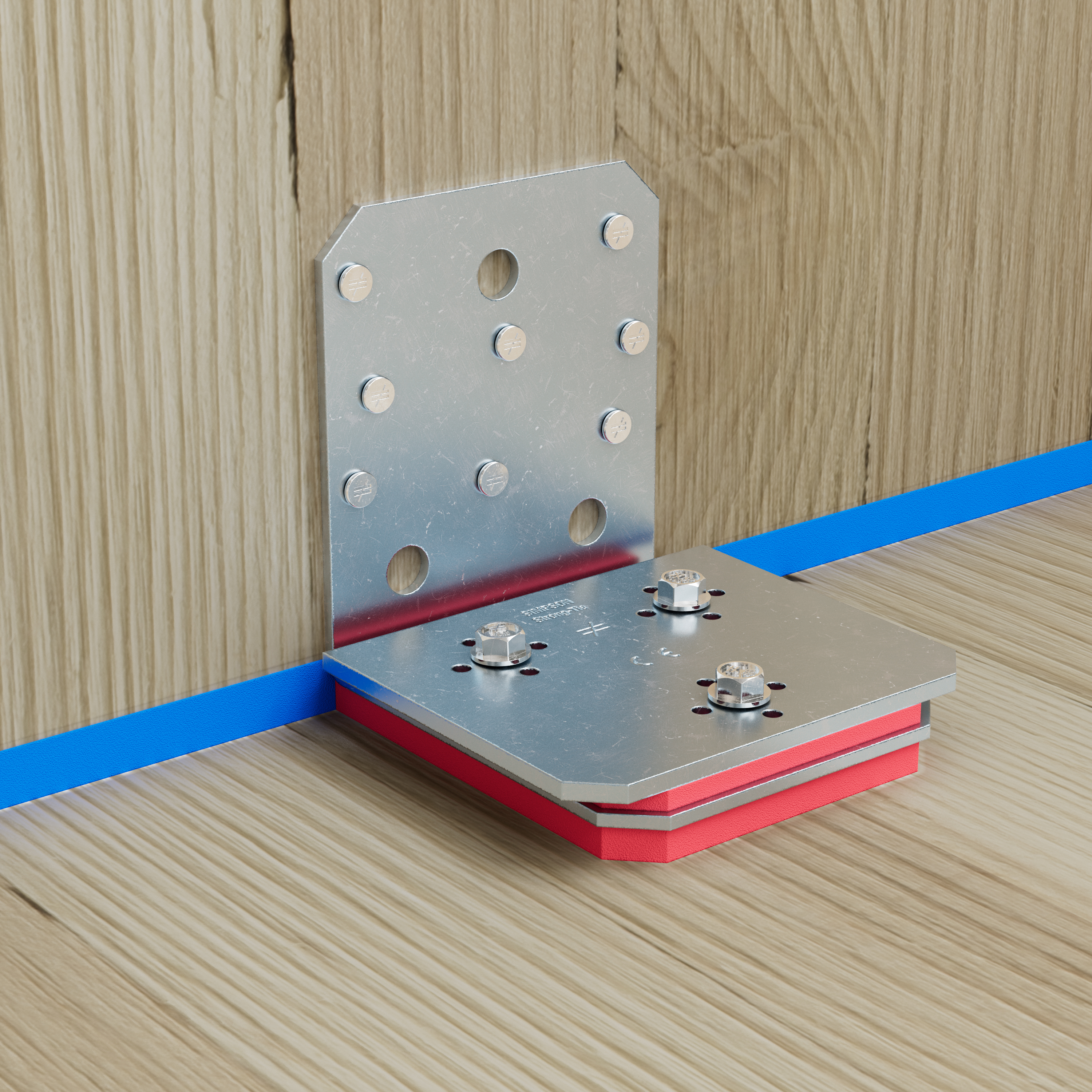

Fixation de l'équerre avec les vis SDS

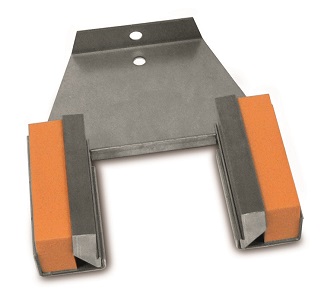

Montage à l'aide du gabarit MOABAI

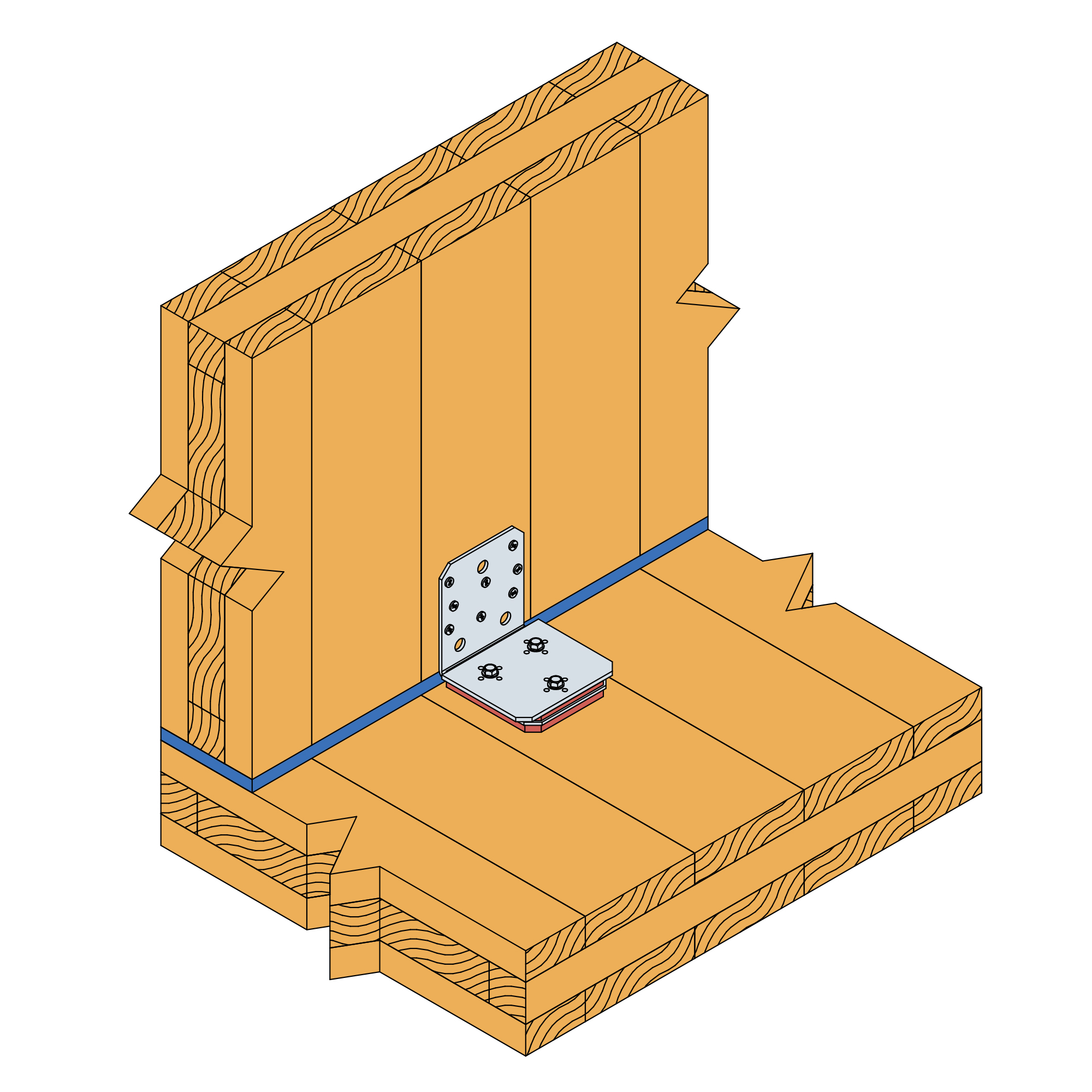

Exemple de mise en œuvre

Features

Material

• Galvanized steel S250GD with zinc coating thickness of 20 microns
• Sylodyn®: Polyurethane Syloer SR220



Benefits

  • Load capacity in all directions
  • Saving time and cost to build, because there is no need for additional sound insulation
  • Reduces sound transmission
  • More living space because of additional sound insulation
  • A positive impact on the indoor environment, greater wind resistance, due to isolation SYLODYN along the outer walls

Application

Applicatons

Supporting member:
Plywood boards

Supported member:
Plywood boards



Scope

  • The ABAI soundproofing angles are used for connections between wall and ceiling elements made of plywood boards
  • The connection to the base plate by means of Simpson Strong-Tie® special screws. The MOABAI insertion device is to be used
  • The connections can be made on one side or with opposing angle brackets.

Technical Data

Dimensions

Product Dimensions

References Tun / DB nr. NOB nr. Product Dimensions [mm] Joist Holes flange B
A B C D E t Ø5 Ø11 Ø7
ABAI105 1923004 46900855 113 103 90 106 18 3 8 3 3

Single-sided connection with a Sylodyn insulation strips d = 12 mm between wall and ceiling

Product capacities - ABAI

References Product capacities - Timber to timber - Full nailing
Number of Fasteners Characteristic capacities - Timber C24 - 1 angle brackets per connection [kN] Slip modulus Kser  for load direction [kN/mm]
Joist Flange B R1.k R2/3.k R4.k R5.k R1.k R2/3.k R4.k R5.k
Qty type Qty type
ABAI105 8 CNA4,0x60 3 SDS25600 2,0/kmod 2,0/kmod 3,3/kmod 2,3/kmod 0.8 0.68 1.16 0.8

Design:

For the overlap of the action must be proven:

Simplified characteristic capacities - Wood to concrete - 1 bracket per connection

References Simplified product capacities - Timber to timber – Full nailing
Number of Fasteners Simplified characteristic capacities - Timber C24 - 2 angle brackets per connection [kN] Slip modulus kser for load duration
Joist Flange B R1.k R2/3.k R4.k R5.k R1.k R2/3.k R4.k R5.k
Qty Type Qty Type
ABAI105 8 CNA4,0x60 3 SDS25600 2.2 2.2 3.7 2.6 0.8 0.68 1.16 0.8

The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0.9. For other load duration and service class, please refer to the ETA to get more accurate capacities

for load combination:

Installation

Installation

Installation

  • Vertical: 8xCNA4,0x60 (O11; 3 St.) neboCSA5,0x50
  • Bottom: 3xSDS25600
  • The MOABAI insertion device is to be used.
