LSTA
Precut strap ties

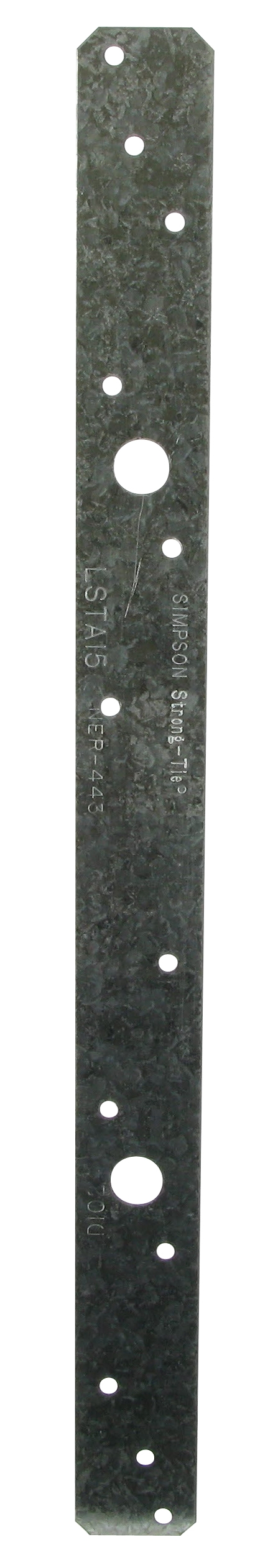

LSTA precut strap ties are used among others to bear tensile forces for instance in the case of beams used as rafters against the ridge purlin.
CE Marking
Electrogalvanized steel Z275
EPD
Indoor
Service class 2
Product Details
Images
LSTA Installation
Features
Application
Technical Data
Product Dimensions
Dimensions
| Reference | Connector Dimensions | |||||
|---|---|---|---|---|---|---|
| Product Dimensions[mm] | Holes[mm] | Other | ||||
| A[mm] | B[mm] | t[mm] | Round | Weight[kg] | ||
| Ø4.1 | Ø12 | |||||
| LSTA9 | 32 | 228 | 1 | 8 | 2 | 0.049 |
| LSTA12 | 32 | 304 | 1 | 10 | 2 | 0.073 |
| LSTA18 | 32 | 457 | 1 | 14 | 2 | 0.1 |
| LSTA24 | 32 | 610 | 1 | 18 | 2 | 0.14 |
Performance Values
Dimensions
| Reference | Straps capacity | |
|---|---|---|
| Number of Fasteners | Strap Characteristic Tensile Capacity[kN] | |
| LSTA9 | 8 | 5.1 |
| LSTA12 | 10 | 5.1 |
| LSTA18 | 14 | 5.1 |
| LSTA24 | 18 | 5.1 |
*capacity R1,k is calculated from the nails capacities but mustn’t exceed the maximum value.
n = effective number of nails in the row according to Eurocode 5 – 8.3.1.1 (8)
