Light Duty Angle Bracket

Light angle brackets are used in a large number of DIY applications and are commonly used for reinforcing furniture assemblies.

Technical Data Sheet
Service class 1
Service class 1
EPD
EPD
Electro-galvanized steel
Electro-galvanized steel
Indoor
Indoor
EC main image

Product Details

Images

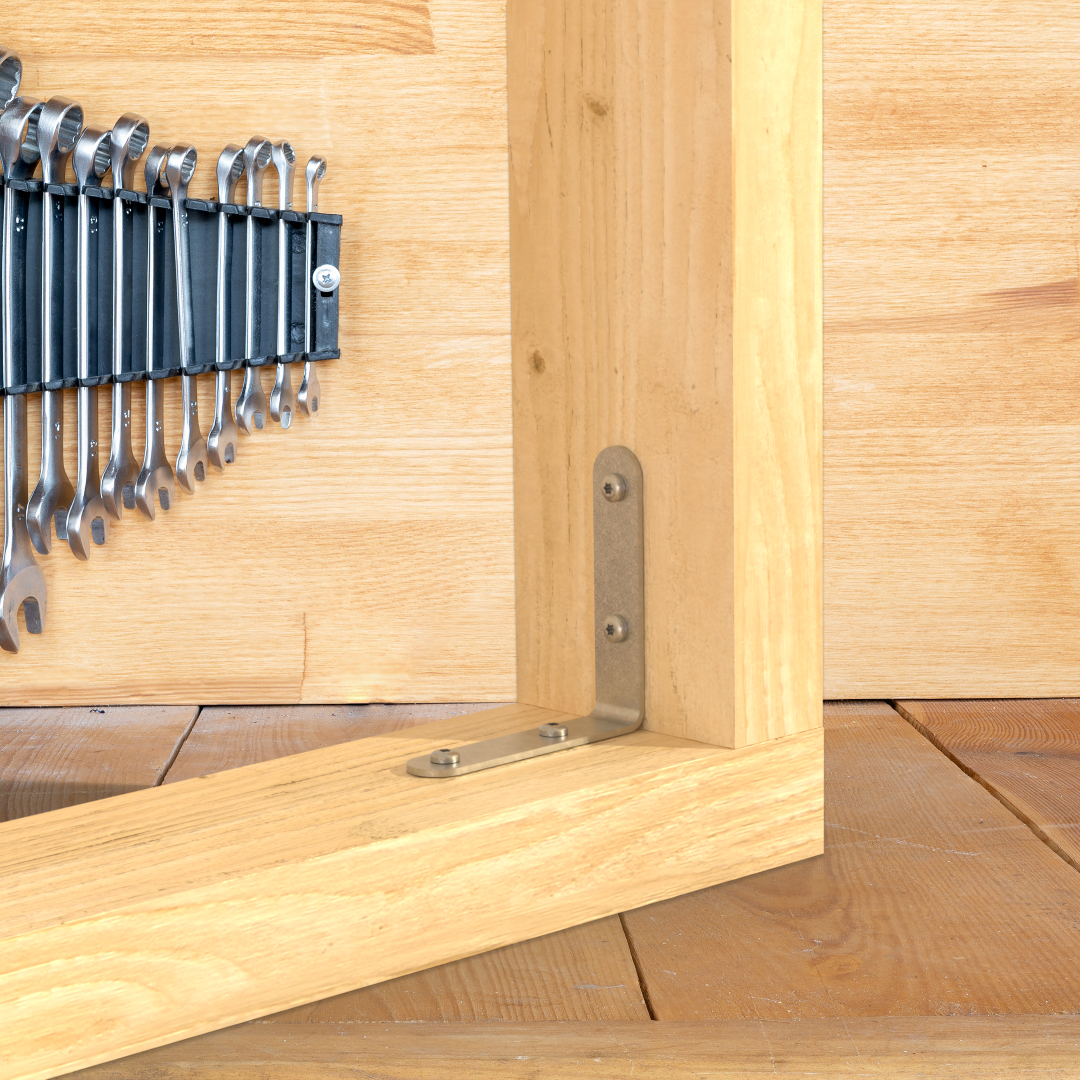

Installation example

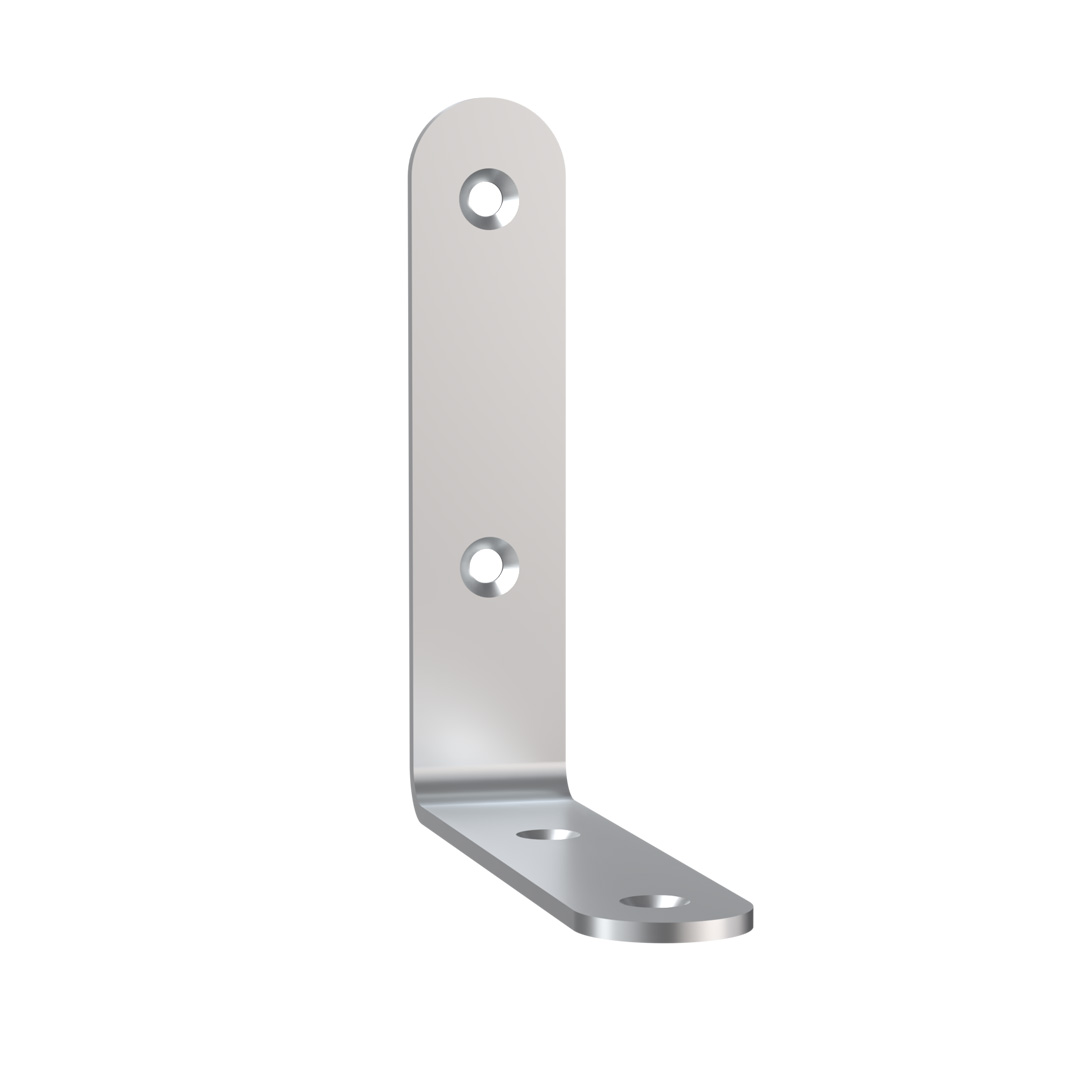

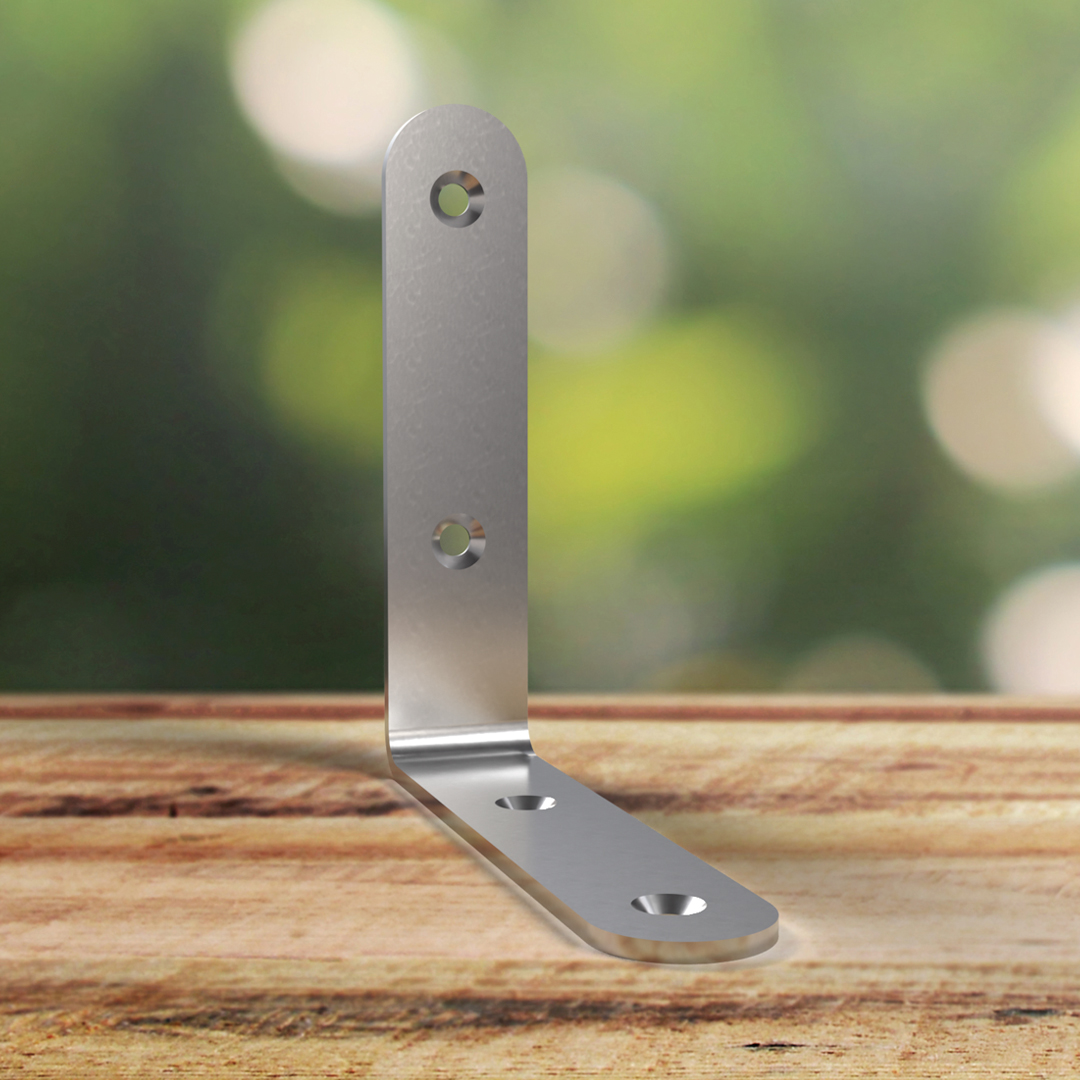

Light Duty Angle Bracket EC140/3
EC Installed.jpg

Features

Material

  • Steel S235JR according to NF EN 10025, electro-galvanized finish.

Benefits

Versatile connection.

Application

Suitable On

  • Supporting member: wood, etc.

Scope

  • Solid wood.
  • Panels.
  • PVC, etc.

Technical Data

Product Dimensions

Dimensions

Product Dimensions
ReferenceConnector Dimensions
Product Dimensions[mm]JoistFlange BOther
A[mm]B[mm]C[mm]Thickness[mm]RoundRound Weight[kg]
Ø4Ø5.8Ø4Ø5.8
EC40/240401522-2-0.017
EC60/260601522-2-0.027
EC80/2.58080182.5----0.045
EC100/3100100183-2-20.075

1. Countersunk holes

Installation

Installation

Fasteners

Countersunk holes:

  • Type 30 to 80 dia. 4.2 mm.
  • Type 90 to 140 dia. 5.5 mm.

On wood:

  • CNA annular ring-shank nails dia. 3.1 x 35 mm and dia. 4.0 x 35 mm.
  • SD8 screws dia. 4.0 x 32 mm.

Installation

Use specified nails.

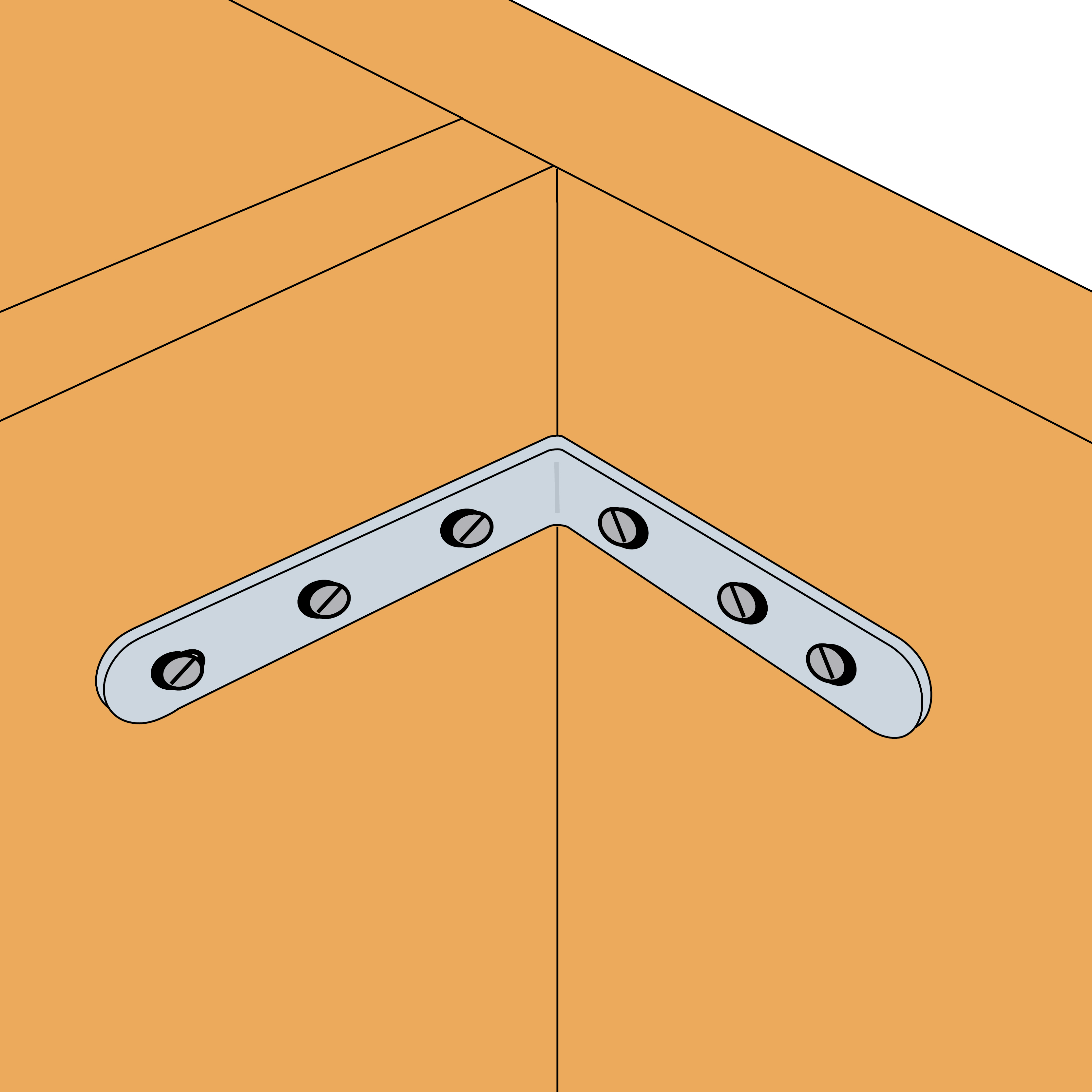

Installation example

Certification

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors

Related Products

CAD and BIM Library

2D

EC80/2.5

EC100/3

EC60/2

EC40/2

3D

EC80/2.5

EC100/3

EC60/2

EC40/2

3D Simplified

EC80/2.5

EC100/3

EC60/2

EC40/2

ZIP Packages
