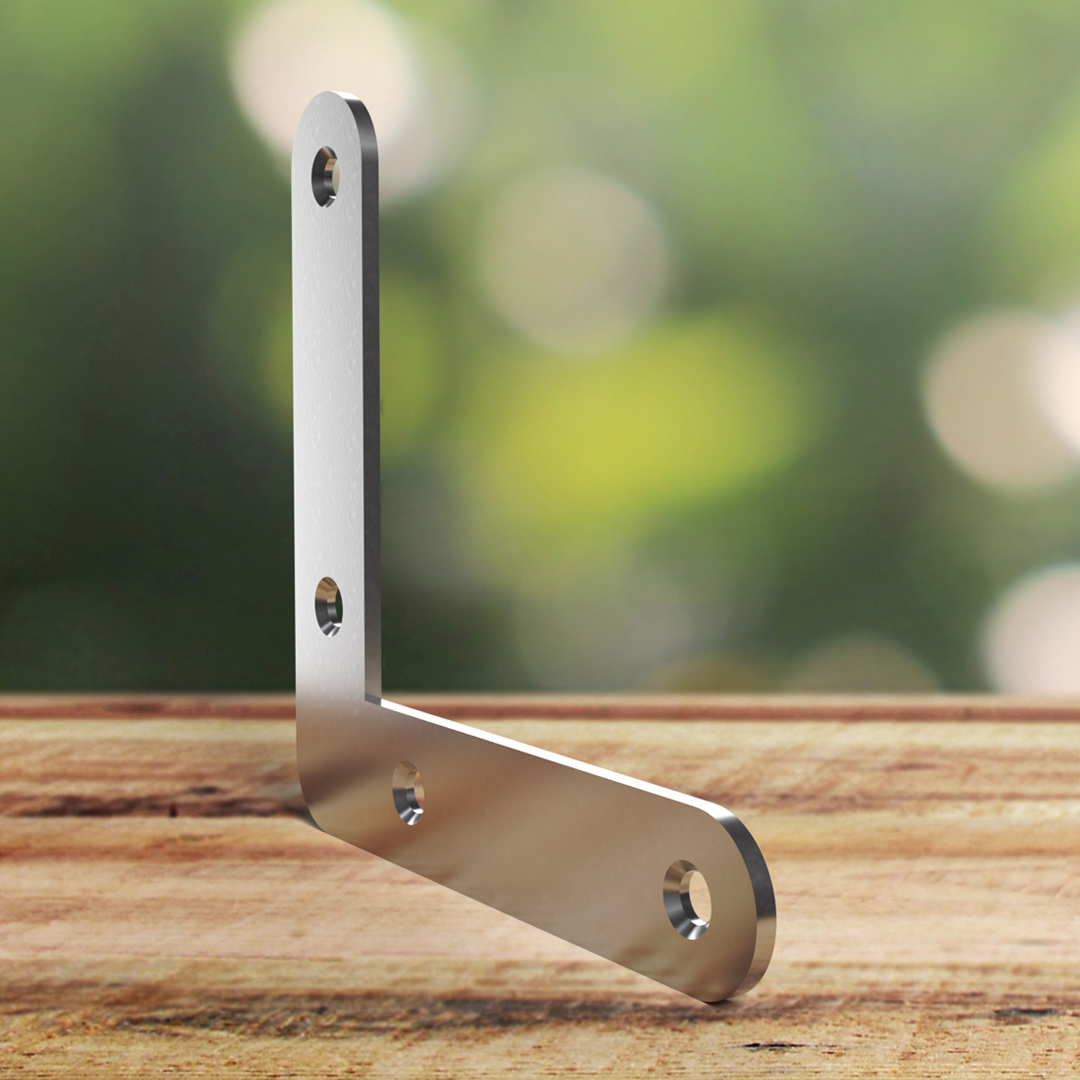

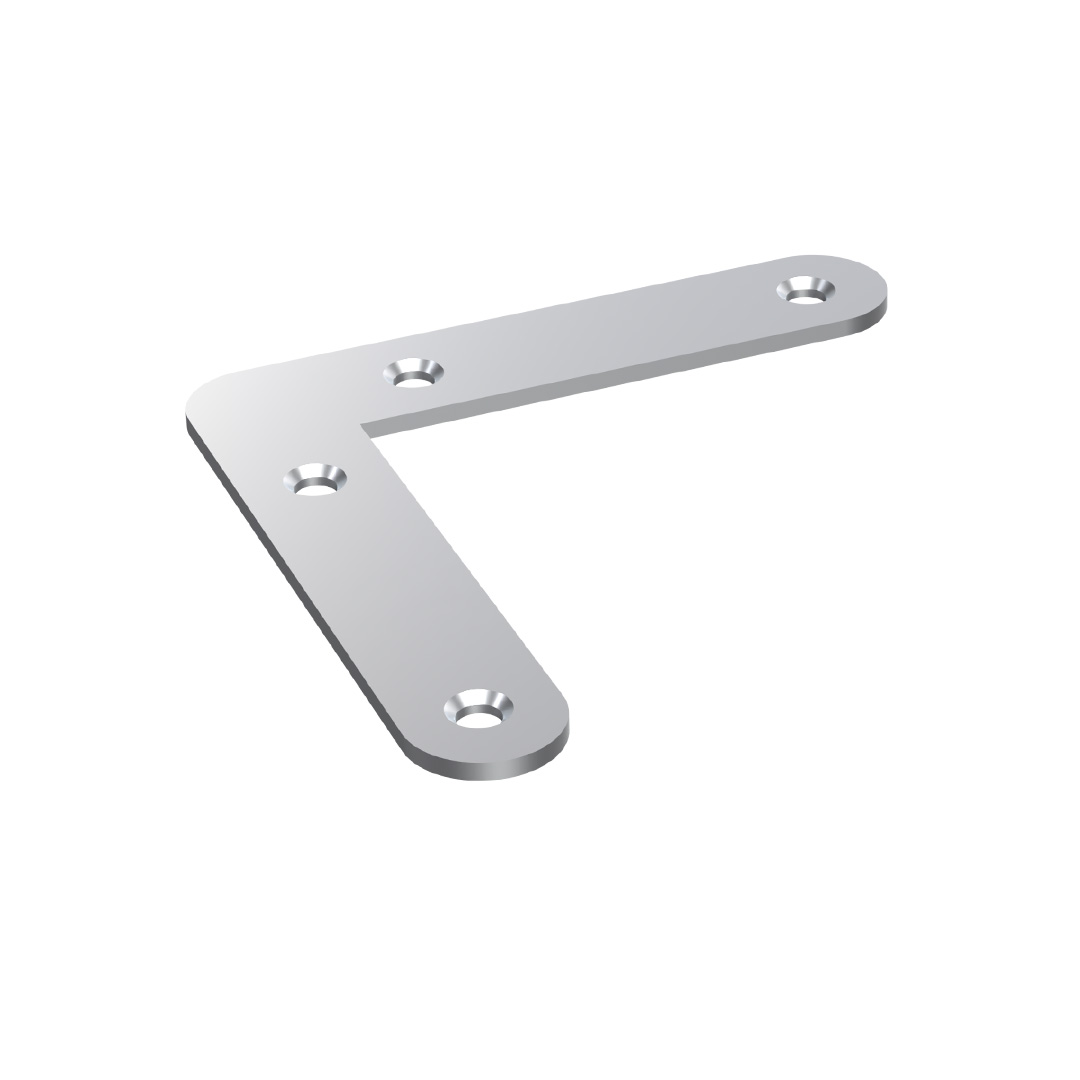

Light Duty Flat L Bracket

Light angle brackets are used in a large number of DIY applications and are commonly used for reinforcing furniture assemblies.

Technical Data Sheet

Service class 2

Indoor

EPD

Electro-galvanized steel

Product Details

Images

Timber connection

Features

Material

Steel S235JR according to NF EN 10025, electro-galvanized finish.

Benefits

Large range for multi use.
Suitable for us on timber and concrete.

Application

Header member

Supporting member: wood, etc.

For Use With

Solid wood.
Panels.
PVC, etc.

Technical Data

Product Dimensions

Dimensions

Reference	Connector Dimensions
	Product Dimensions[mm]				Joist			Flange B			Other
	A[mm]	B[mm]	C[mm]	Thickness[mm]	Round			Round			Weight[kg]
	A[mm]	B[mm]	C[mm]	Thickness[mm]	Ø3.6	Ø3.8	Ø4	Ø4	Ø3.6	Ø3.8	Weight[kg]
ECP40/1.2	40	40	10	1.2	-	2	-	-	-	2	0.006
ECP60/1.5	60	60	16	1.5	-	-	2	2	-	-	0.018
ECP80/2	80	80	16	2	-	-	2	2	-	-	0.034
ECP100/2	100	100	16	2	-	-	2	2	-	-	0.044

Installation

Fixing

Countersunk holes:

Type 30 to 80 dia. 4.2 mm.
Type 90 to 140 dia. 5.5 mm.

On wood:

CNA annular ring-shank nails dia. 3.1 x 35 mm and dia. 4.0 x 35 mm.
SD8 screws dia. 4.0 x 32 mm.

Installation

1. Place the elements together
2. Mark out positionsif required
3. Fix the elements with nail or screws

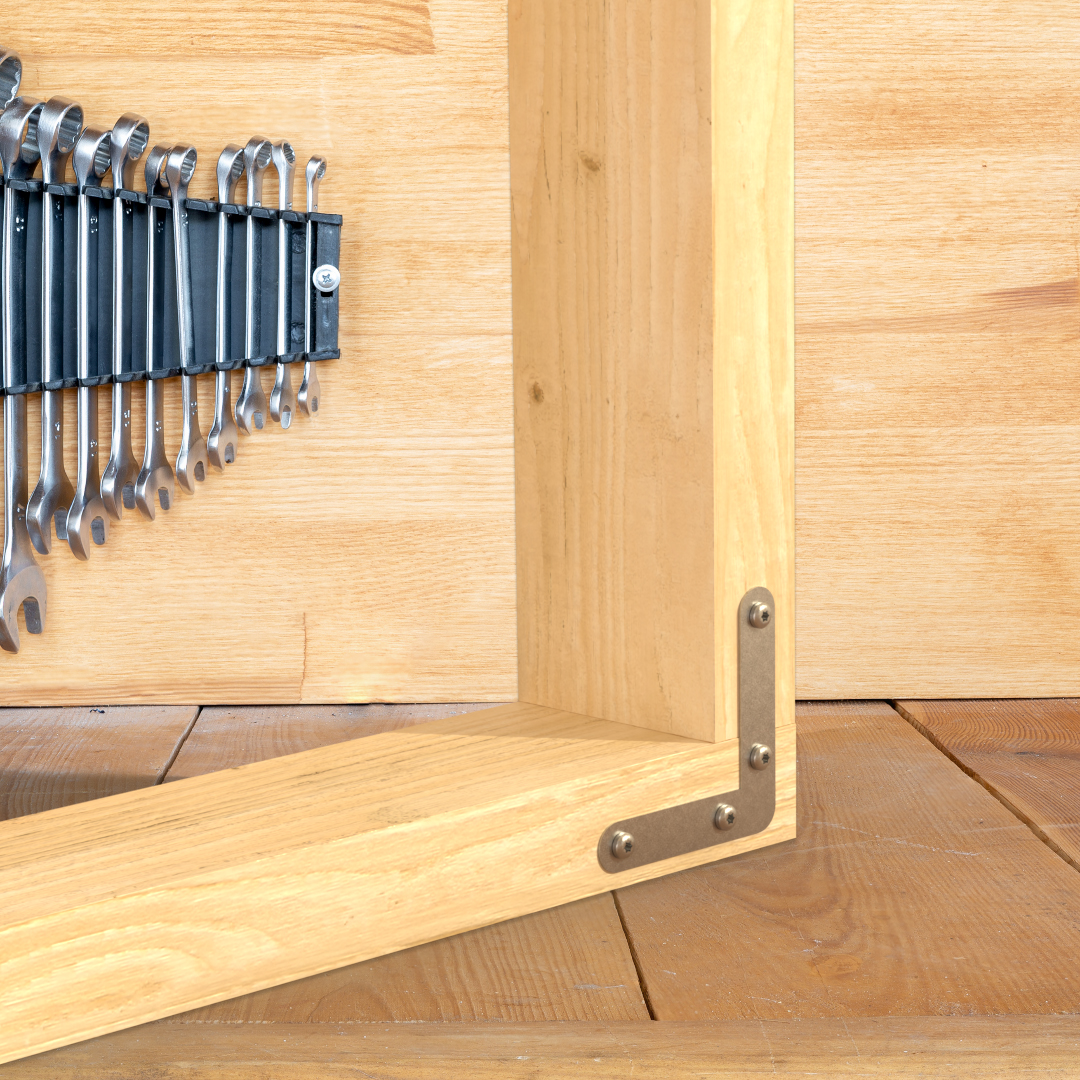

Timber connection

Certification

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors
