AKRX3

Angle bracket

These brackets allow optimum connection between wood and other building materials such as concrete and steel. This is an economic connection that can be used in many areas. AKR AKR-L and vary in the screw hole.

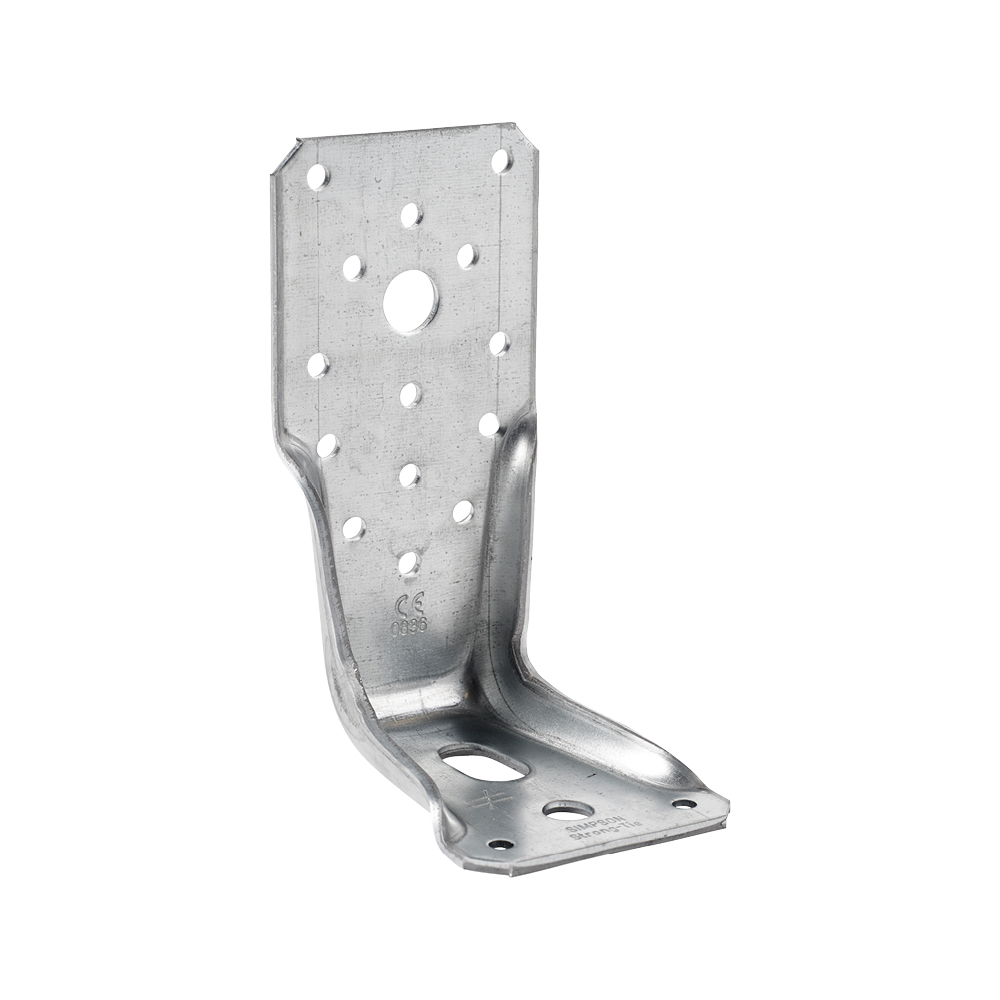

AKR bracket is 3 mm thick and the edges are reinforced with rib

CE Marking
ETA
Service class 2
Electrogalvanized steel 20 µm
Indoor

Product Details

Images

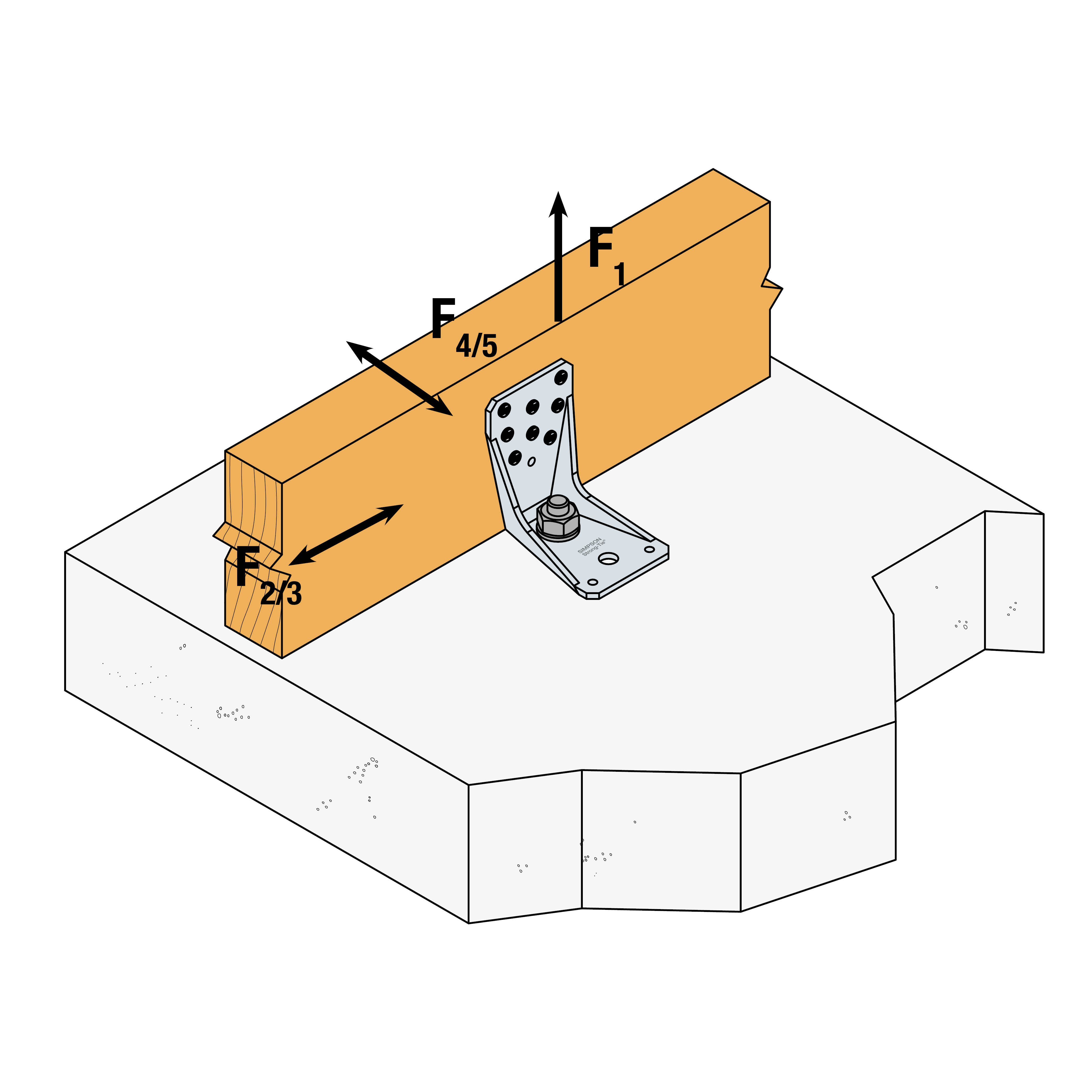

Fixation poutre sur dalle béton
Fixation d'équerre renforcée pour ossature bois avec SDS

Features

Material

Steel quality:
• S 250 GD + Z 275 according to DIN EN 10346

Corrosion protection:
• 275 g / m galvanized on both sides 20mm




Benefits

  • Load capacity in all directions
  • Optimised capacities for partnailing and fullnailing
  • One or two-sided connections
  • Possible mounting with distance from the support at  tension connections
  • Optimised bolt utilisation

Application

Applicatons

Supporting member:

Concrete, steel

Supported member:

Solid wood, engineered wood

Scope

The AKR brackets allow optimum connection between wood and other building materials such as concrete and steel.

Technical Data

Dimensions

Product Dimensions

References Product Dimensions [mm] Box Quantity
A B C t Joist Holes flange B
Ø5 Ø13.5 Ø5 Ø11 Ø13.5 Ø13.5x25
AKR95X3L95856539-21-125
AKR135X3L1358565314121-125
AKR285X3L2858565326321-125

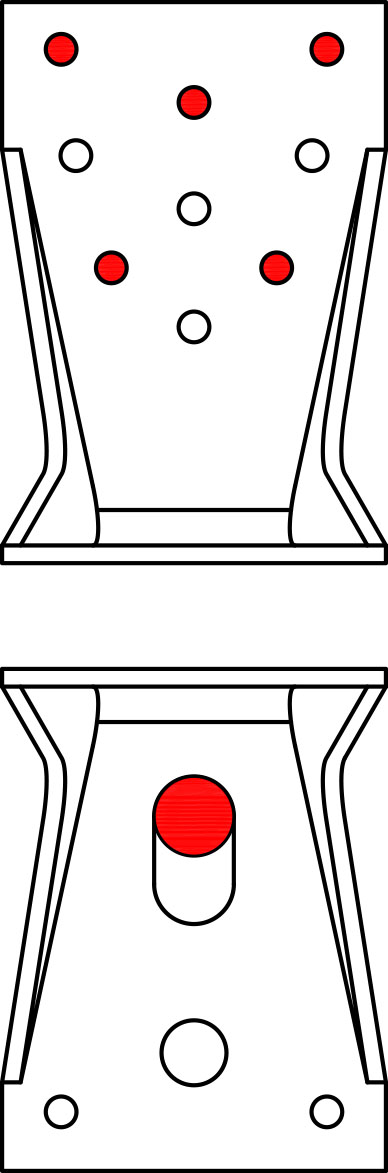

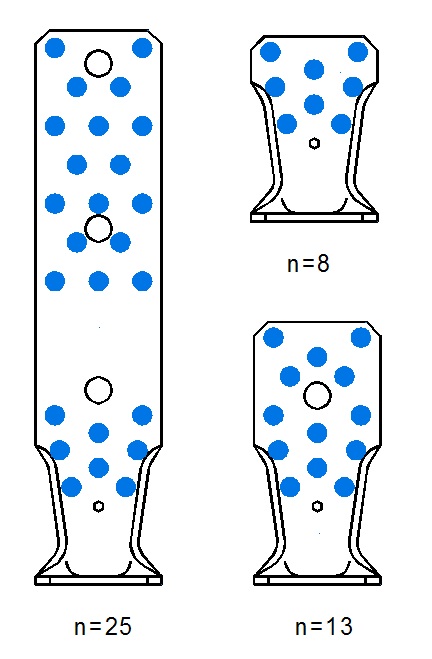

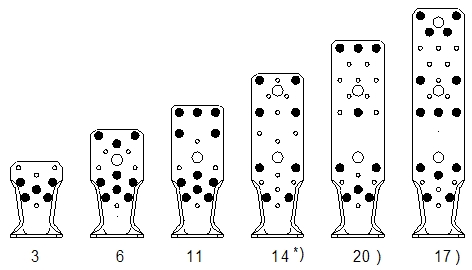

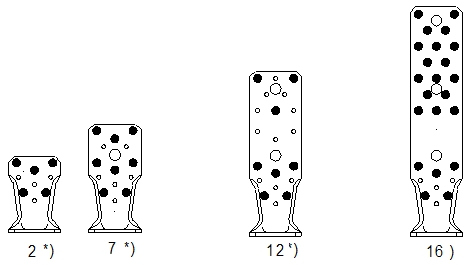

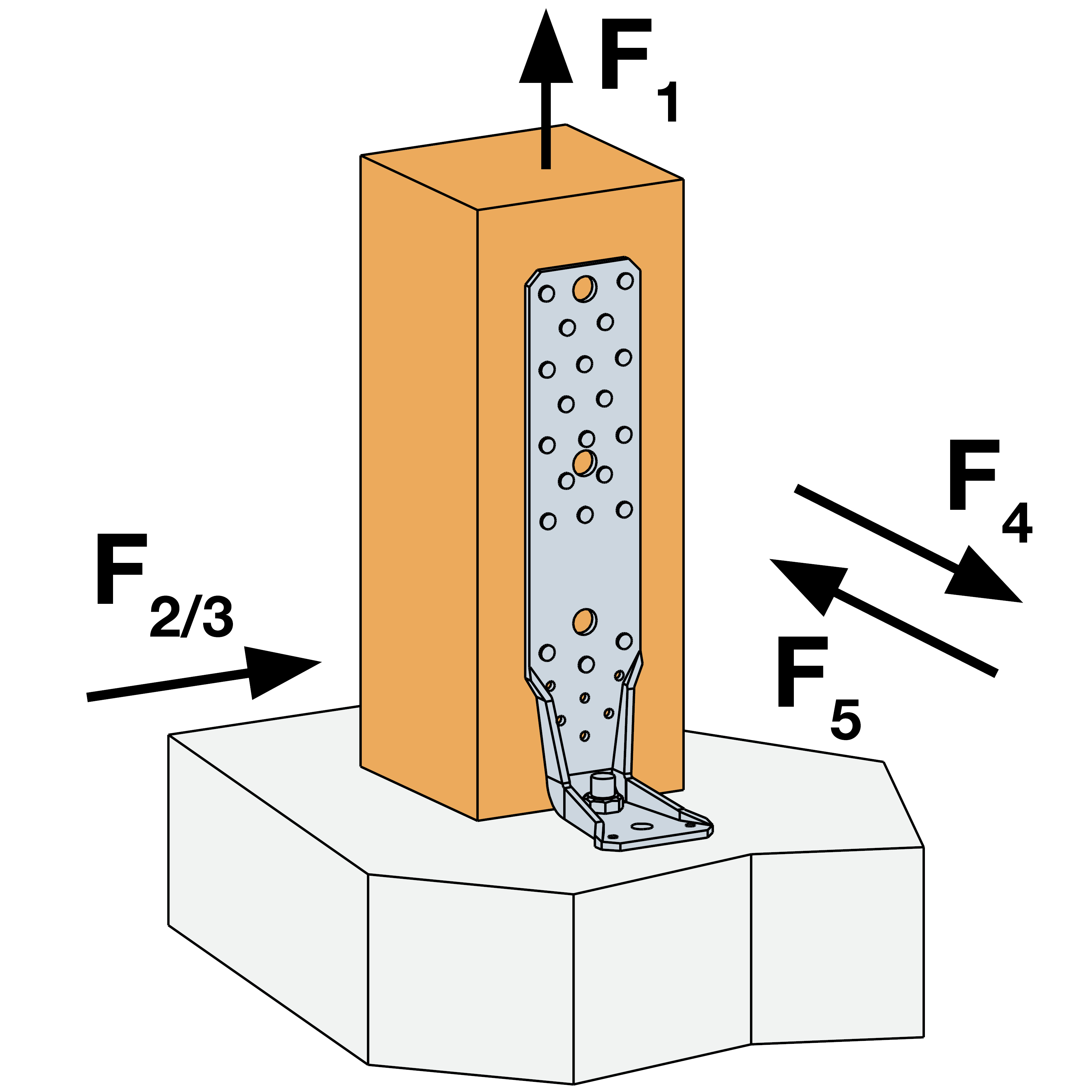

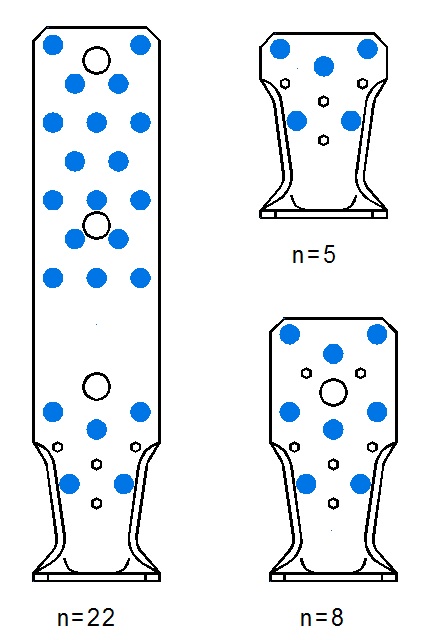

Below you will find load details to the nail pattern: fullnailing, partnailing and post connection. Further connection options, see the corresponding ETA.

Characteristic Capacities - UK

References Fasteners Characteristic Values - C24 Timber on Concrete [kN]
Flange A Flange B R1,k R2,k
Qty Qty CNA4.0x50 CNA4.0x60 CNA4.0x50 CNA4.0x60
AKR95X3L51 x Ø125.76.822.3
AKR135X3L81 x Ø1210.512.43.13.6
AKR285X3L221 x Ø1213.113.62.83.5

The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 1.1.  For other load duration and service class, please refer to the ETA.

Installation

Installation

Fasteners

  • The fixing needs to be done with CNA4,0xl threaded nails or CSA5,0xl screws.
  • On concrete or steel by an wedge anchor M12 and a washer Ø24.
  • SSH Ø 12 x 80 mm (timber to concrete)
  • It is possible to single or double sided connections.

Installation

• Fasten nails or screws CNA4,0xl CSA5,0xl.Pro installation in concrete anchor bolt M12

Certification

Declaration of Performance (DoP)

European Technical Assessment (ETA)
